IPS квадратный на тонкопленочных транзисторах на тонкоплёночных транзисторах дисплей 7 дюймов 720*720 квадратный цифровой преобразователь ЖК дисплея с HD MI драйвер платы
- Category: Electronic Components, Accessories & Telecommunications >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (62232065079):
Product Overview
Description
Product Description

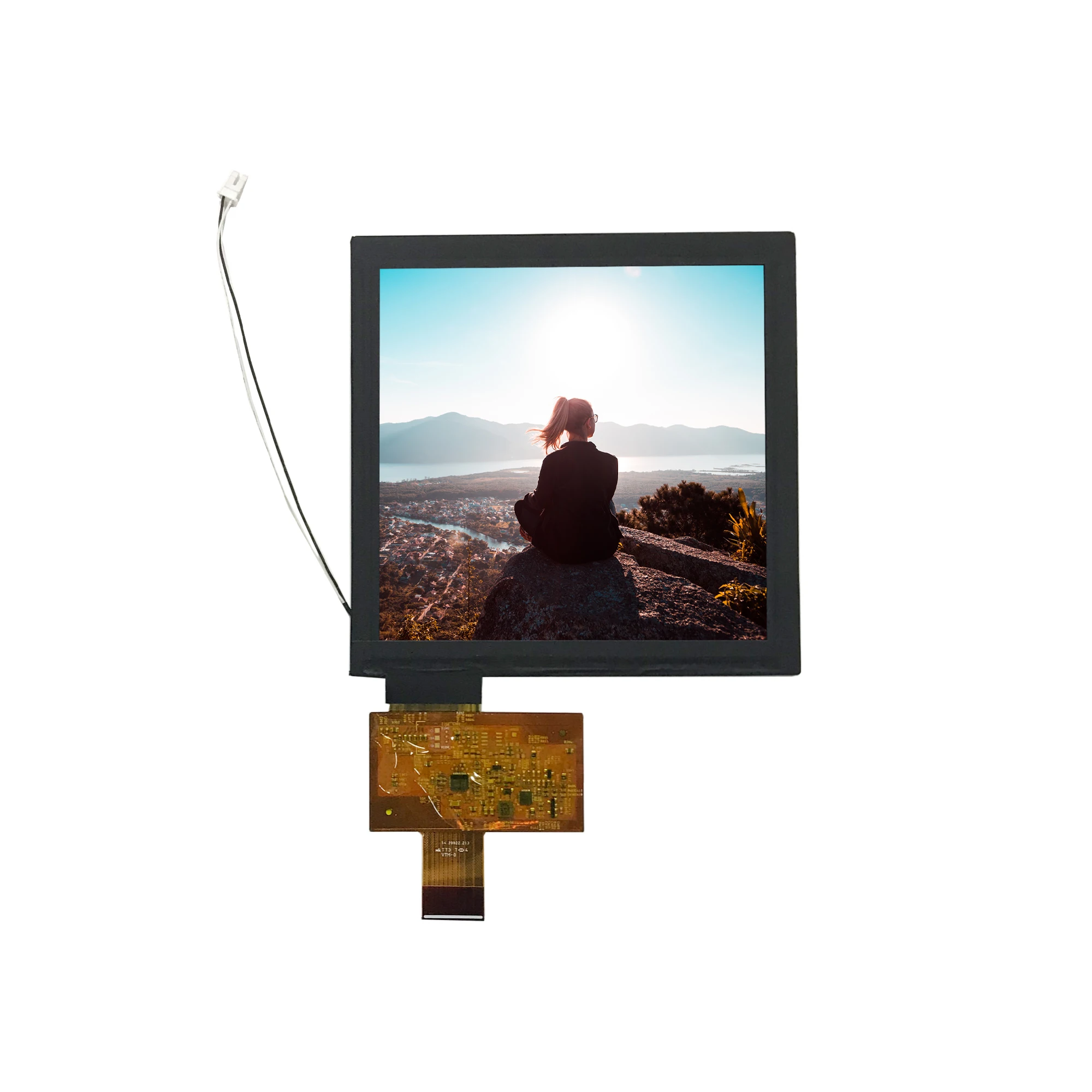

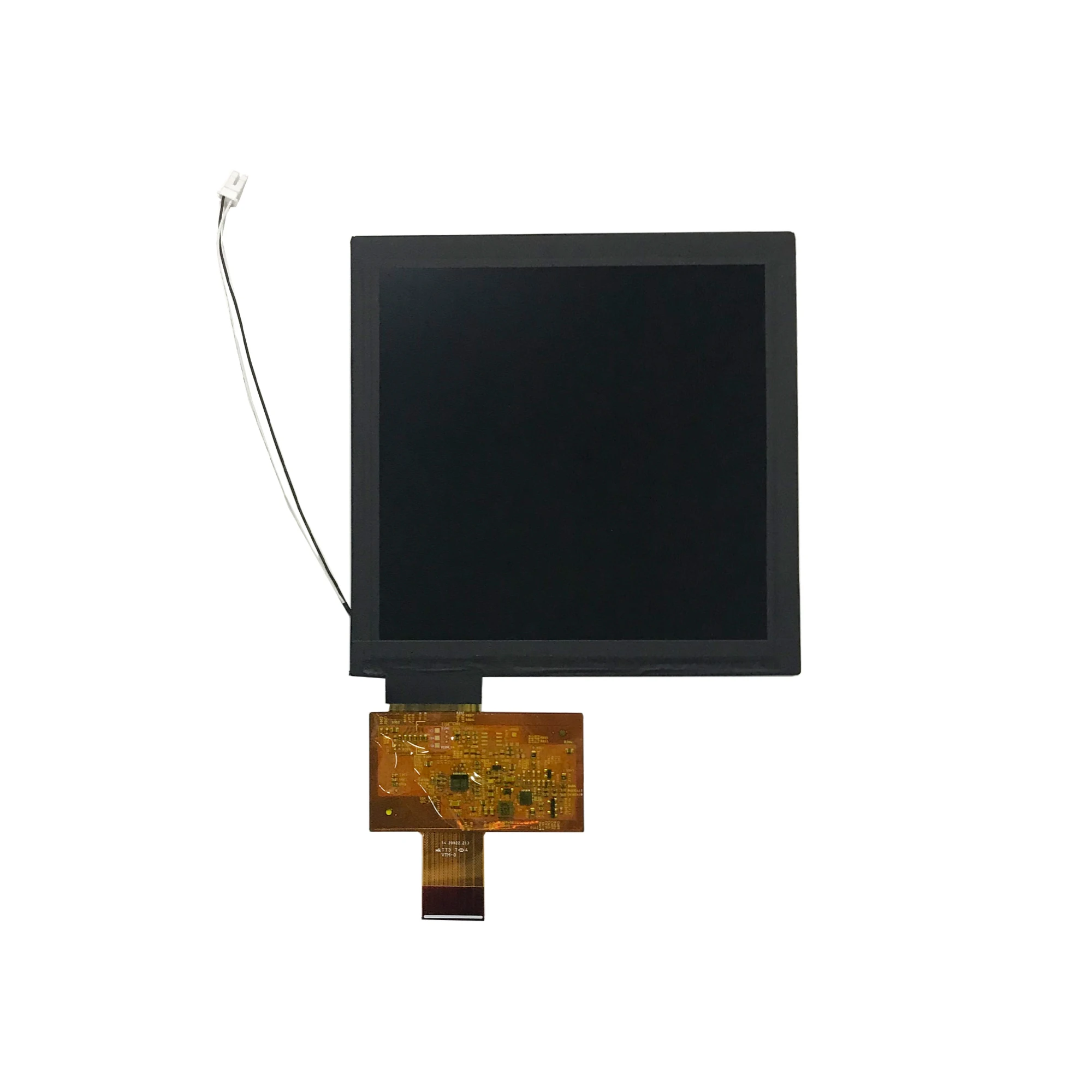

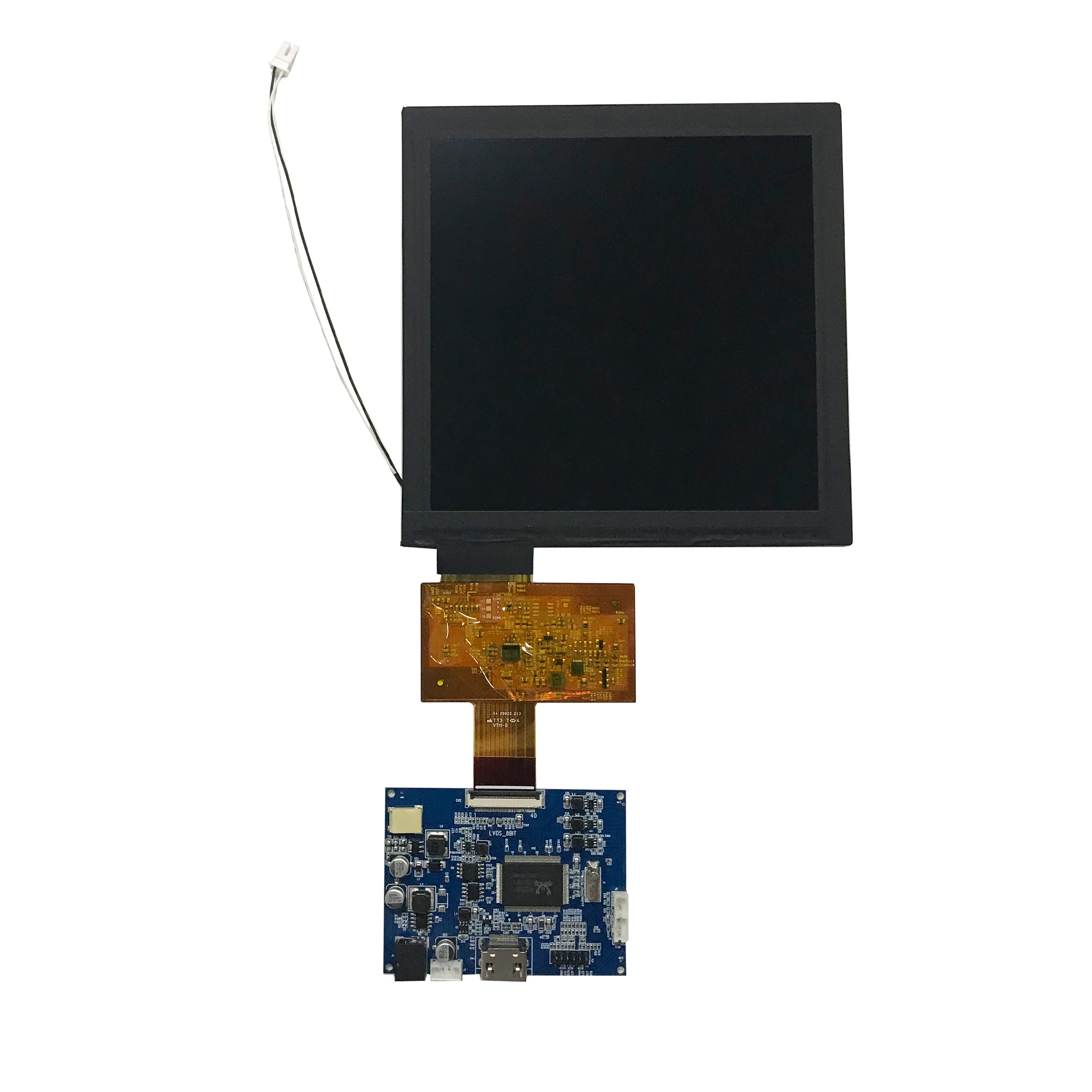

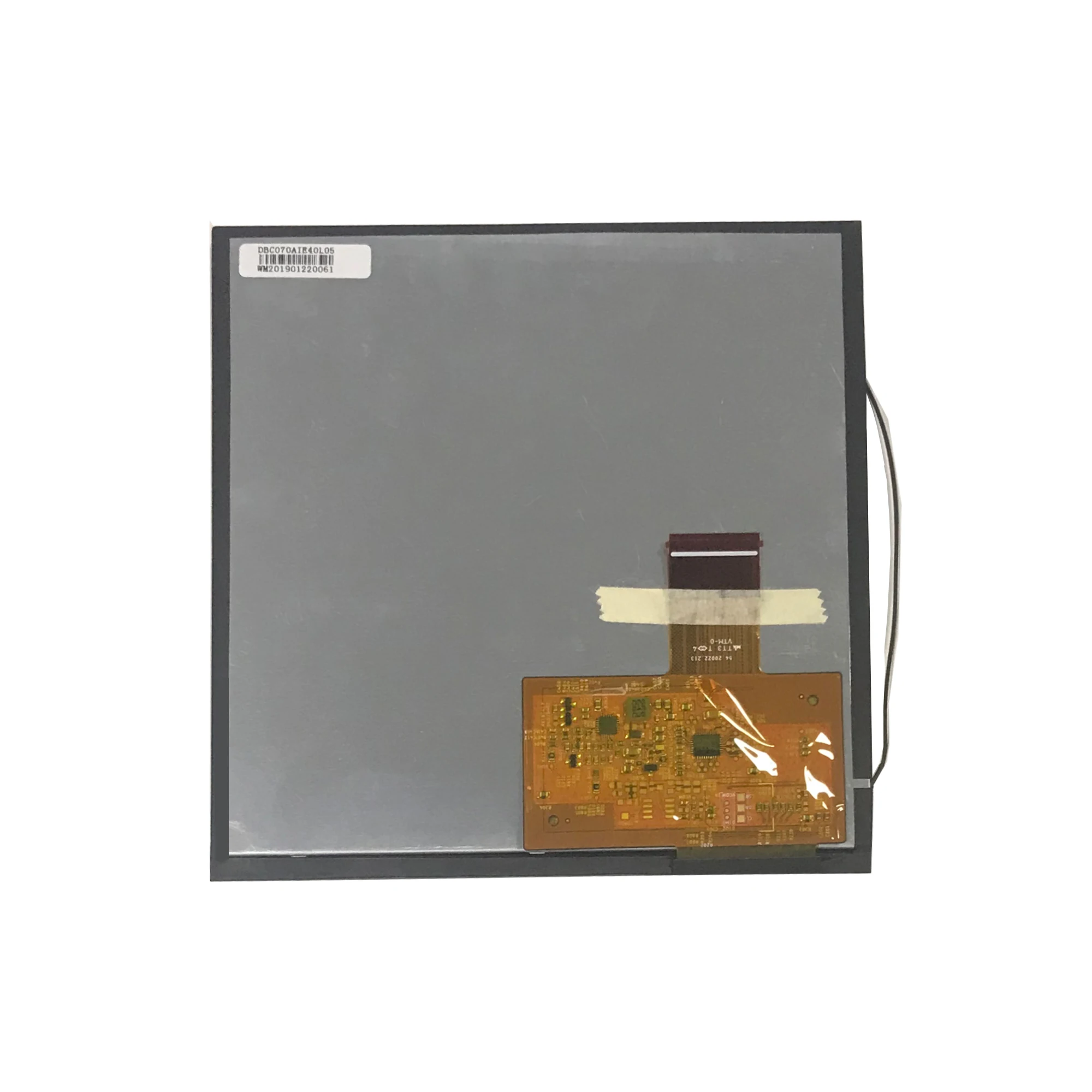

IPS square tft display 7inch 720*720 square lcd display with HDMI driver board
Product parameter
No. | Item | Specification |
1 | LCD size | 7.0 inch(Diagonal) |
2 | Luminance | 500 cd/m² |
3 | Resolution | 720*720 |
4 | Active area | 125.82x125.82mm |
5 | Viewing Angle | 80/80/80/80 (Typ.) |
6 | Support Color | 16.7M |
7 | Operating Temperature | -20 ~ +70 ℃ |
8 | Outline Dimension | 150(H)*150(V) *4.5(D) |
9 | Surface | Antiglare |
10 | Interface Type | 40 pin LVDs |
11 | Model Name | DBC070AIE40L05 |
12 | Touch Screen | Without but available |
13 | Weight | TBD |
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks within 2 days,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
Related Products
About Us
We are professional display solution company for 3D printer. We provide LCD, control kit, parallel UV light source.

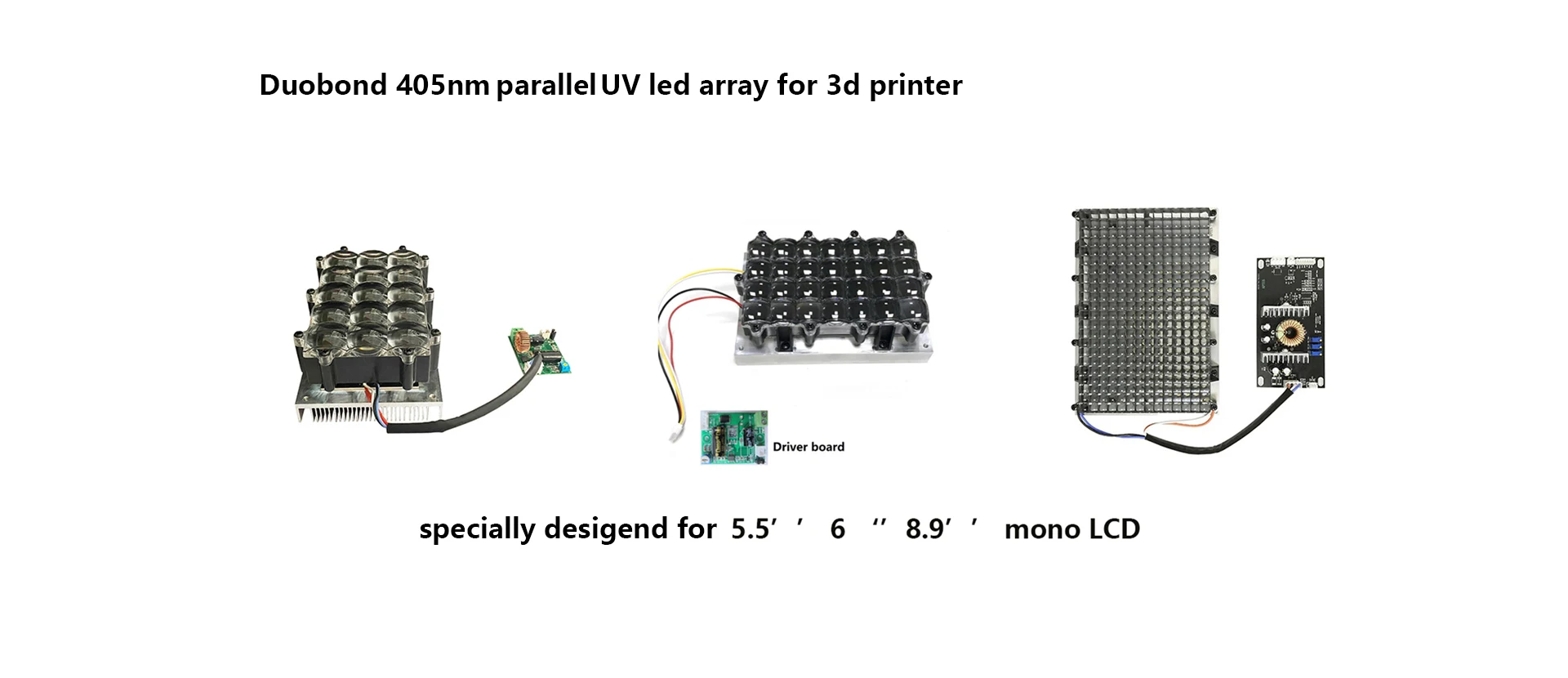

Parallel UV Light source
We designed parallel light sources with patent certificate.
Patent Certificate
Patent number: ZL 2019 3 0018260.5
Paten number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1
Paten number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1

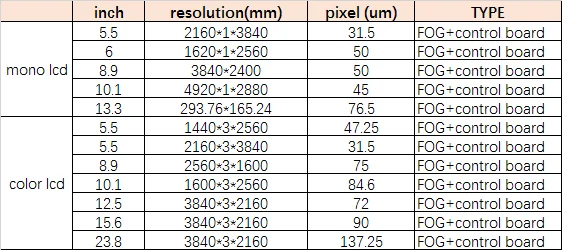

LCD Series for 3D Printer
please click the module number for more product details:
LCD | Size | Resolution | Pixel Pitch(um) | Description |
LS055R1SX04 | 5.5" | 1440*2560 | 47.25*47.25 | Original LCD,can be backlight removed |
LS055R1SX04.1 | 5.5" | 1440*2560 | 47.25*47.25 | LCD without backlight,with optically bonded cover glass on the top. |
LS055R1SX04.2 | 5.5" | 1440*2560 | 47.25*47.25 | LCD without backlight,without PR film,with optically bonded 3mm glass on the back. |
TFTMD089030 | 8.9" | 1600*2560 | 75*75 | Original LCD,can be backlight removed |
DBT089TIU50M0 | 8.9" | 3840*2160 | 50*50 | Original open cell 4K mono LCD,without backlight |
DBT101AIQ61M1 | 10.1" | 1600*2560 | 84.6*84.6 | Original FOG,without backlight |
LQ125D1JW31 | 12.5" | 3840*2160 | 72*72 | Can be backlight removed |
DBT133TIU40E0 | 13.3" | 3840*2160 | 76.5*76.5 | Original FOG,without backlight.4k monochorme LCD |
LQ156D1JX02 | 15.6" | 3840*2160 | 90*90 | Original FOG(Open cell) |
