Shanli Purify Desiccant Compression Heated Air Dryer with Oil Filter
- Category: Freeze Drying Equipment >>>
- Supplier: Hangzhou Shanli Purify Equipment Corporation
Share on (62237736586):
Product Overview
Description

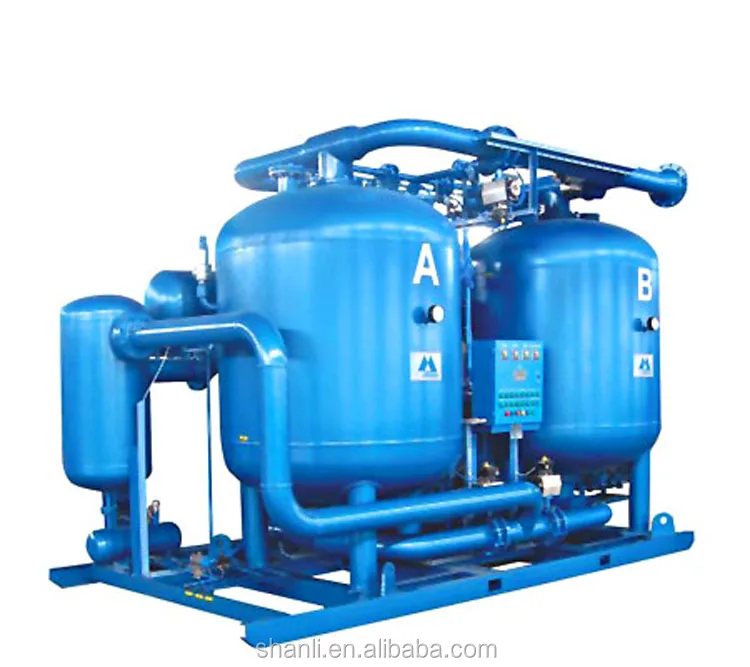

Shanli Purify Desiccant Compression Heated Air Dryer with Oil Filter
Product Description
Zero Purge Desiccant Air Dryer
Brief introduction:
Principle:
The air be discharged from the compressor has the features of hightemperature with high-calorie, high degree of instauration. Compression heattype products effectively utilize this compressed air for the desiccantregeneration, which saves power and air consumption compared with themicro-heat type. After the heating regeneration, the compressed air flowdirectly into the water cooler and then enter the absorption tower to be a dryproduct gas, we take 3% of the gas for cold blowing to the heated desiccant.Then two towers exchange
Features
1.Energy saving type desiccant dryer
2.Switch valve with stablity and realiable can ensure the integrity of the working process.
Extend the components life time
3.Use the high activated oxide alumina with uniform shape and size,high strength,with low dew point,
producing less dust with long lifetime
4.Use the air flow distribution design.ensure the regenerative air can be uniform distributed in heating
and cold blowing.Uniform heating for the desiccant in the tower with a fast heat transfer and thorough
regeneration
5.3-stage drain away water:liquid level,time,manual
6.Small pressure loss
Packaging & Shipping
Specifications
Air dryer ,working pressure: 0.6-1.0Mpa, 1.0-10.0Mpa opptional
Flow capacity:0.5-600nm3/min
pressure dew point: 2-10Deg C
Company Information
Shanli Purify Company:
- Established in1997 with turnover 30 million USD annual turnover;
- Choose from a wide range supplied by a 15-year manufacturer;
- 16 years of compressed air purification units industry experience;
- Upwards of 12 patents garnered over 16 years;
- Offering complete customized production lines for galvanized sheets;
- Satisfying big oversea buyers for over 8 years;
- Mainland China’s leading compressed air purification equipment manufacturer;
- The most experienced trade team in Eastern China for industrial refrigerant air dryer;
- We have eight years of exporting experience.
Main Technical Specifications:
1) Pressure dew point: - 40°C(Oher dew point can be customized)
2) Rated operation pressure: 0.5 - 1.0Mpa
3) max air inlet temp:100°C
4) Ambient temperature: ≤38°C
5) Pressure drop: ≤ 5% of the working pressure
6) Air Capacity Range: 40-400Nm3/min
7) Power supply: AC 380/220V 50Hz

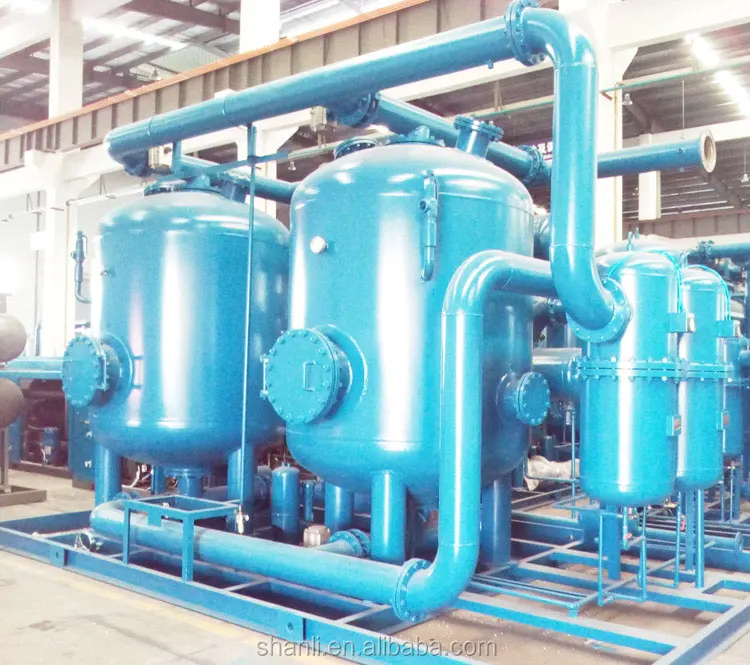

Workshop:
Experienced Sales Team:
Wideservice scope: 17 service centers, activelyaccumulates every resources and grasps the main trends of market.
The outstanding of salesteam:there are47 salesmen,including 2/3 experience staff with abundant marketing resources. the average annual sales turnover 3.8 million RMB for each person.
he plentiful selling ways:direct selling,matchingwith air compressors, sole agent selling and so on.
The main buyers:Many effective key industry project such as Dalian shipyard,Jiangnan Shipyard; Shenyang airplane manufacture,Xian airplane manufacture;Bao steel,Han steel,An steel;China The second manufacture of China Auto,BYD,Ford.
Customers' factory:
Our Services
SLAD AIR PURIFICATION---QUALITY GUARANTEE
The guarantee period for SLAD air dryer is 12 months dating from delivery date. During this time, SLAD submit after-service when damage occurred not by people.
Any delay in installation due to project, you may contact SLAD sales team to know the situation, SLAD company could extend the guarantee period but not longer than 18 months after shipment date.
SLAD quality control---6S factory manage and ISO9001:2008
- Components quality check;
- Quality check in production;
- Finally quality check before shipment, keep the testing report.
- SLAD have the testing room for quality check and new design dryers testing. The testing room with the compressor, tanks and air-condition to adjust the ambient temperature. The testing pressure, temperature, and dew-point data all display on computer system.
Prompt and accurate problem-solving ability:
There are 8 staffs in the marketing department, which can accurately and solve all the pre-sale questions in time. such as the flow diagram drawing and provide the solution of the whole project.(Pre-sales)
Shanli has selling attendance department with 8 staff, which can solve the problem or order inquiry.(Sales)
Powerful and thorough after sales service network, there are 17 sales service centers with 50 staffs all around domestic market and each of them matching with professional service engineers, they can prompt and timely to solve all the after sales problems such as start debugging and trouble shootings.(After sales)
