Product Overview

Description



Product Description


Product Application

This machine is special equipment used for the drilling processing of large H beams, channel steel structure, bridge, three dimensional garage and other industries.



Features

1.There are 3 spindle units on the up, left & right side,which is for web and flange drilling.

2.There are 8 CNC axis, which equip with high precision servo motor.

3.Software can process workpiece drawing directly which edited by Auto CAD.

4.Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.

5.Machine equips with photoelectric measure sensor, can detect beams and measure the length automatically.

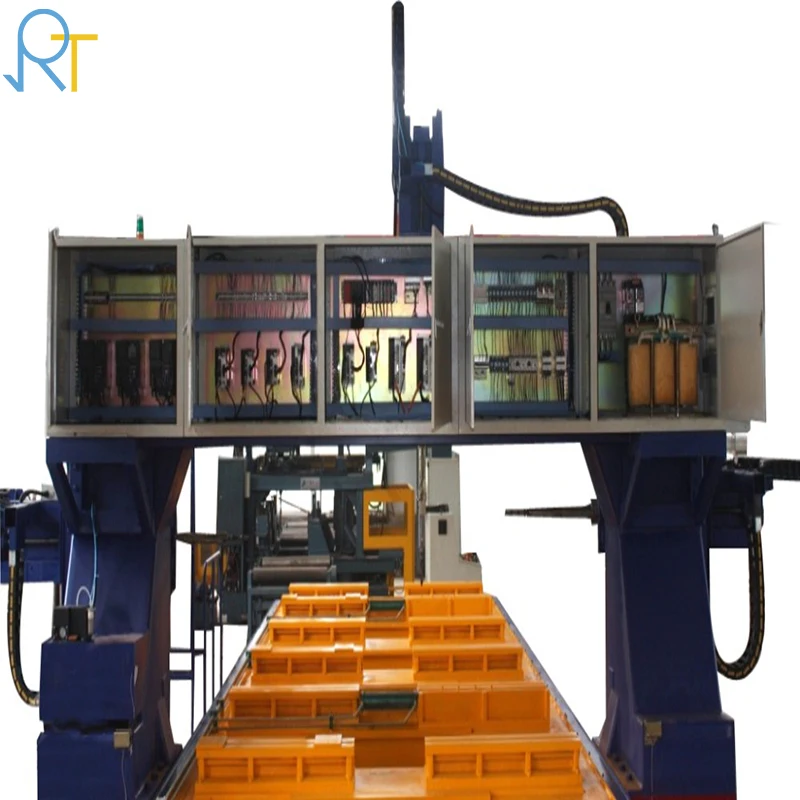

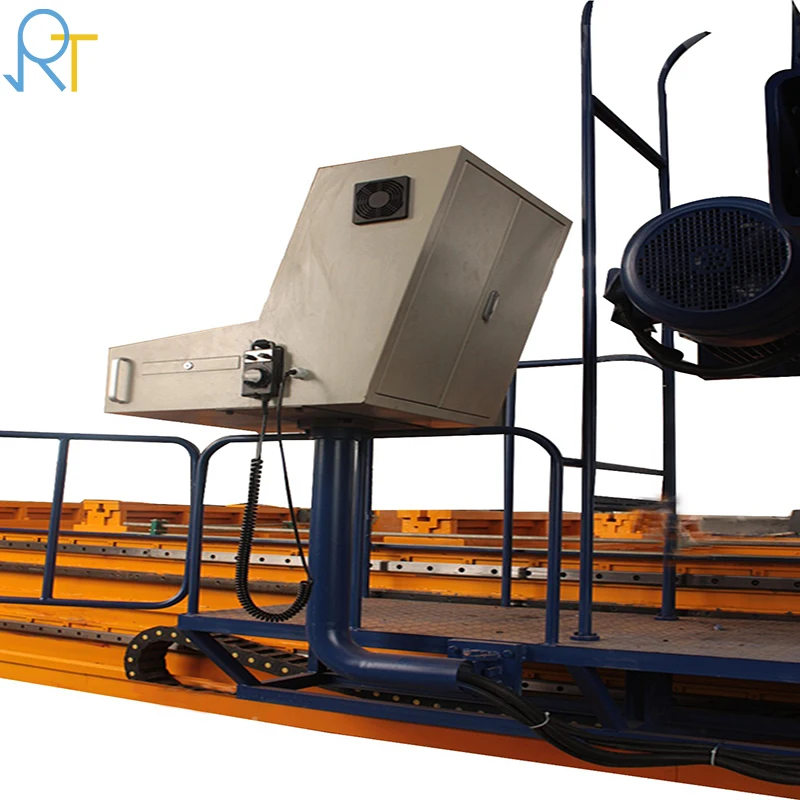

Detailed Images


Model
BD2010
BD1010
Workpiece Size
Max. Section size(W *H)mm
2000*1000
1000*1000
Min. Section Size(W*H)mm
1000*400
300*300
Max. Length (m)
16
20
Drilling Unit
Type
Sliding table, servo control
Sliding table, servo control
Max. Drilling Dia.(mm)
Ø50
Ø50
Rotating Speed(f/min.)
120-560 Frequency Control
120-560 Frequency Control
Spindle stroke(mm)
600
600/400/400
Feeding Speed(mm/min.)
0-4000
0-4000
Motor power of spindle(kw)
5.5(x3)
5.5(x3)
Servo Motor Power(Kw)
1(x3)
1(x3)
Movement of gantry(X axis)
Stroke (m)
16
20.5
Max. Moving Speed(m/min.)
8
8
Power of servo motor(KW)
2( x 2)
2( x 2)
Movement of Vertical Drilling unit(Y Axis)
Stroke (mm)
2000
2000
Max. Moving Speed(m/min.)
10
8
Power of servo motor (KW)
1
1.5
Movement of left/right drilling unit (Z. W) axis
Stroke(mm)
1000
1000
Max. Moving Speed(m/min.)
10
8
Power of servo motor (KW)
1.5(x2)
1.5(x2)
Hydraulic Pump
Motor Power (KW)
2.2+0.75
2.2+0.75
Scrap cleaner
Motor Power (KW)
0.75(x2)
0.75(x2)
Cooling Pump
Motor Power (KW)
0.45
0.45
Power supply
Motor Power (KW)
35
40
Tool magazine quantity
3
3
Tool quantity for each magazine
4 pcs
4 pcs
