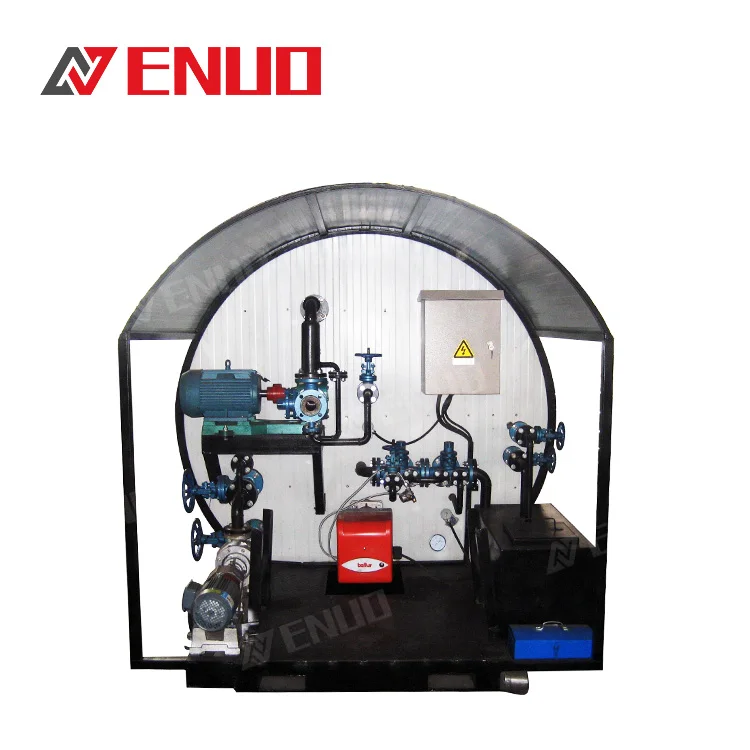

EBM ST10 horizontal asphalt bitumen heating storage tanks with burner
- Category: >>>
- Supplier: Zhongshan Enuo Machinery Limited
Share on (62240095478):
Product Overview
Description
Product Description
EBM ST10 horizontal asphalt bitumen heating storage tanks with burner with heating coils are widely used for holding different kinds of bitumen in the road construction and maintenance. They come in different sizes with capacities from 10,000 to 50,000 Liters.
Features
• Our storage tanks are mounted on steel skids that bolt to concrete foundations.
• Equipped with diesel burner and temperature controller, the temperature controller shut down the burner when the bitumen temperature reaches set temperature, and will restart the burner when the bitumen temperature drops.
• Our storage tanks have serpentine heating coils, liquid bitumen in the tank is indirectly heated by hot thermal oil flowing through the coils.
• The exhaust pipes are also serpentine in the tanks to be used to heat up the bitumen, which saves the fuel.
• A manway is located in the top of each compartment. An access ladder is provided on the outside of the tank and inside each compartment. Each compartment also has a combination vent and overflow pipe.
• An valve in the bottom of each compartment allows the tank to be completely drained.
• All our tanks are covered with fiberglass insulation, temperature drop is no more than 10% of the atmospheric temperature changes in 24 hours.
• The tanks are provided with bitumen pumps and unloading pocket so it can be easy used either loading your equipment or being recharged by a transport container.
• Agitating shaft are optional for the storage of the rubber bitumen or modified bitumen.
Specifications
Item | Parameter |
Heating | Diesel burner, heat transfer oil, Baltur 26P |
Productivity | 1-2.5 t/h, environment temperature of 25℃ |
Heating rate | 20 ℃/ hour |
Oil consumption per ton bitumen | 2-4 kg, continuous working |
Highest bitumen temperature | 200 ℃ |
Total volume | ≥10 m³ |
Dimensions | Φ2.2*5.7 m, horizontal cylinder |
Landing leg | Longitudinal entire |
Bitumen pump flow rate | 6 m³/h |
Total power | ≈7 kw |
Power Requirements | 380 V 50 Hz AC power |
Heat transfer oil working temperature | 180-240 ℃ |
Heat transfer oil pump flow rate | 10 m³/h |
Heat transfer oil heat transfer area | 9.14 sq.m. |
Heat transfer oil capacity | 0.4 m³ |
Total heat transfer area | 16.88 sq.m. |
Bitumen temperature control | Automatic temperature control |
Heat transfer oil temperature control | Automatic temperature control |
Customer Cases
Bitumen Emulsion Plant and tanks at Customer Site
Packaging & Shipping
Supply chain is not only a simple chain that join us to our customer, but also a value-added chain that the materiel can add its value from the stage of processing, packaging and transporting. We have a strict process from packaging to shipping, so we can ensure you on the quality of our products to the largest extent.
Manufacturing
At ENUO, we offer the best road maintenance solution for our customers by guarantee high quality and lower the production cost with controlling every process from product design to manufacturing.
Certificates
At ENUO, 'QUALITY FISRT' is our first aim, we have developed a detailed quality assurance system, and have passed ISO9001 international quality management system certification.
