Product Overview
Description
Product Description

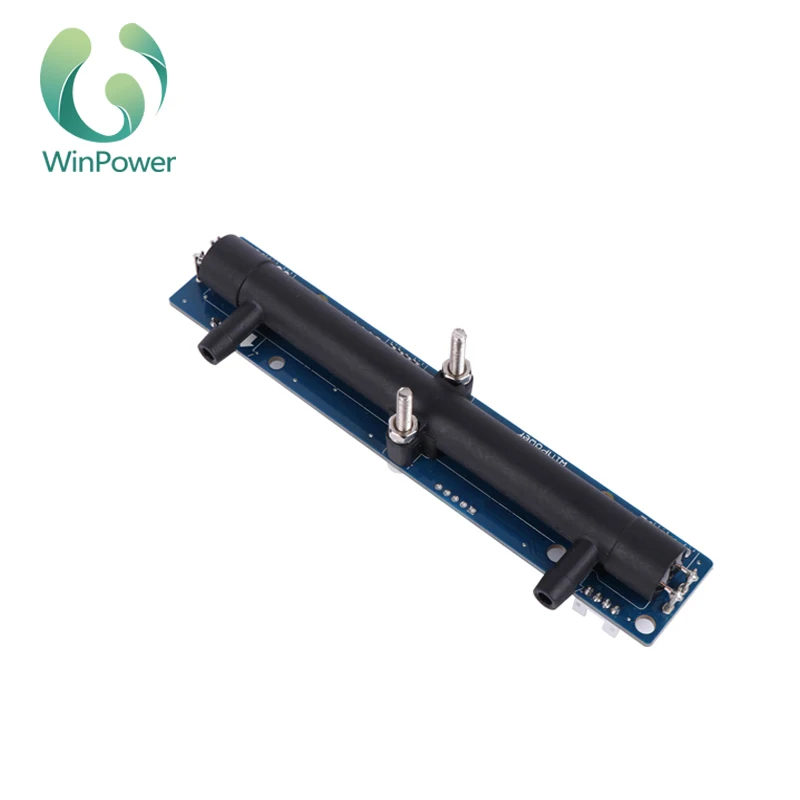

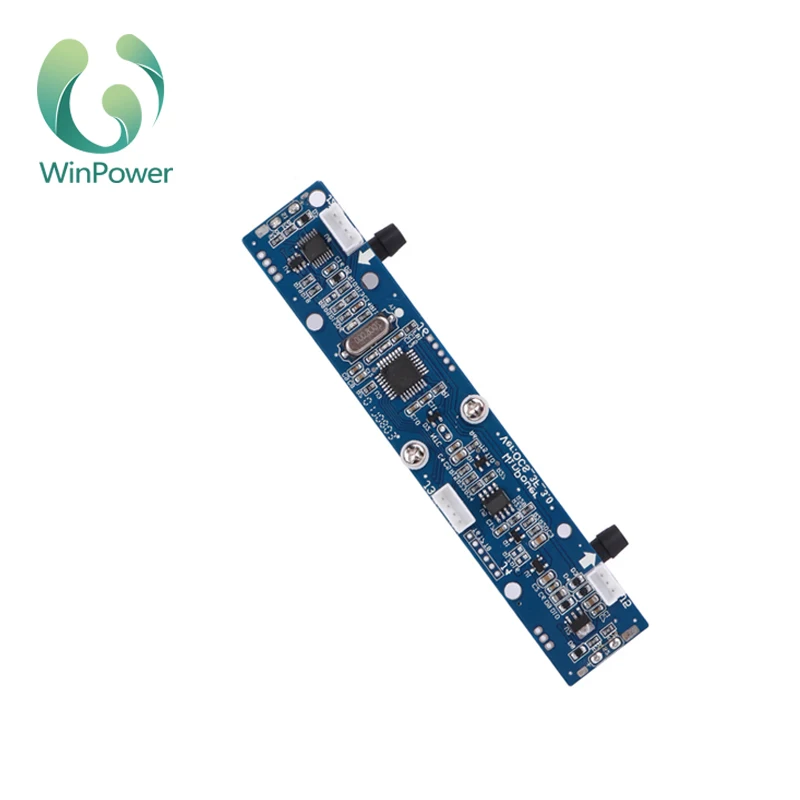

WINPOWER Medical equipment ultrasonic oxygen sensors for oxygen analyzer OCS-3F
OCS-3F adopting the ultrasonic technology, is an oxygen sensor to detect oxygen concentration and gas Volumetric Flow Rate. It has been widely used in home and medical oxygen generator, PSA oxygen generator, medical ventilator,etc.
Technical Parameter
Range of Concentration | 20%~95.6% |
| Resolution | 0.1% |
| Accuracy | ±1.5%FS@(0 ~ 50) oC |
| Range of Flow | 0~10L/min |
| Resolution | 0.1L/min |
| Accuracy | ±0.2L/min or 5% reading, which is bigger@(25 ± 2) ℃ |
| Response Time | 1s |
| Warm-up Time | Sensor works as soon as power on; 10s to within specified accuracy; |
| Digital Output | 9600bps UART 5V TTL / 3.3V CMOS compatible |
| Analog Output | 0~2.5V (Optional) |
| LED Output | GREEN:Concentration >82% YELOW:82%>Concentration>50% RED: 50%> Concentration (Settings are adjustable according to customer’s requirement) |
| Direction | Unlimited |
| Operating Temperature Range | 0~50℃ |
| Operating Humidity Range | 5~85%RH Non condensate water |
| Maximum Pressure | 150 kPa |
| Power Supply | +12V DC/50mA |
| Dimensions | 120.5mm x 22mm x 22mm (L x W x H) |
| Weight | 27g |
Size
mm

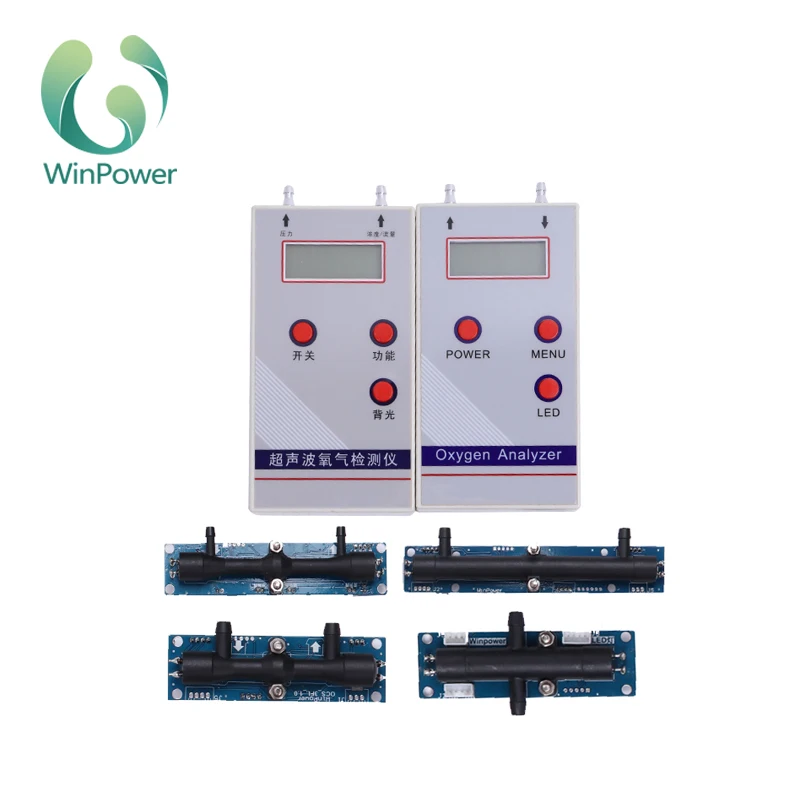

Detailed Images
Packaging & Shipping

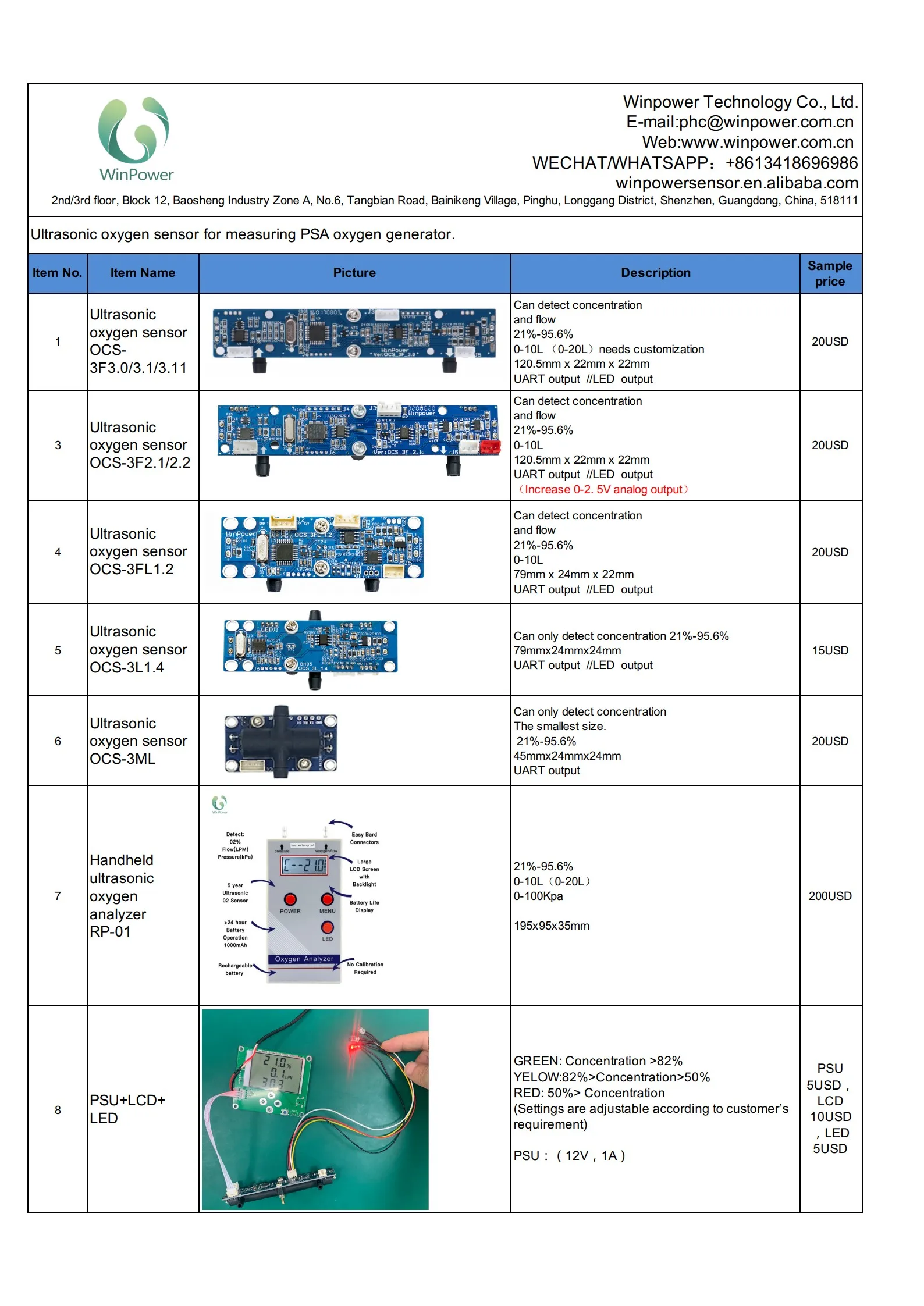

Related Products
| OCS-3L | RP-01 |
FAQ
Q: Are you a factory or trading company?
A:We are a Professional Manufacturer for ultrasonic oxygen sensors.
Welcome to our company, our company, show room and factory in same place.
Q. Where is your company?
A: 2nd floor, 6# Building, Zone A, Baosheng Industry Zone, No.6 Tangbian Road, Bainikeng Village, Pinghu, Longgang District, Shenzhen City, Guangdong Province, P.R.China. Welcome to our company.
Q. What is your trading term?
A:1. Payment term: T/T, or PAYPAL for small amount .
2. Lead time: normally in 2-30 days after receiving the payment.
3. Sample policy: Samples are always available for each model. Samples can be ready in 2-5 days once payment received.
4. Shipping: send by EXPRESS
5. Discounts: We offer discount for big quantity.
Q: How to purchase your product?
A:Quotation → PI → Confirm PI → Arrange payment →Producing → Shipping
Q: Can you provide the OEM service?
A: Yes
