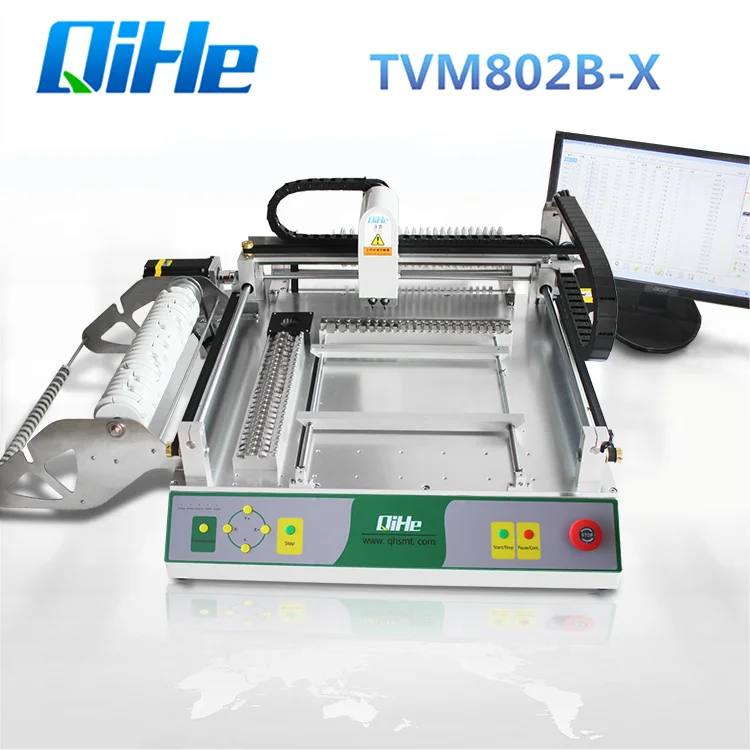

QIHE TVM802BX мини автоматическая настольная машина для сборки и размещения печатных плат
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (62247712872):
Product Overview
Description
TVM802BX Mini Automatic Desktop Pick and Place Machine PCB Assembly Machine
TVM802BX Parameter
| Model | TVM802BX |

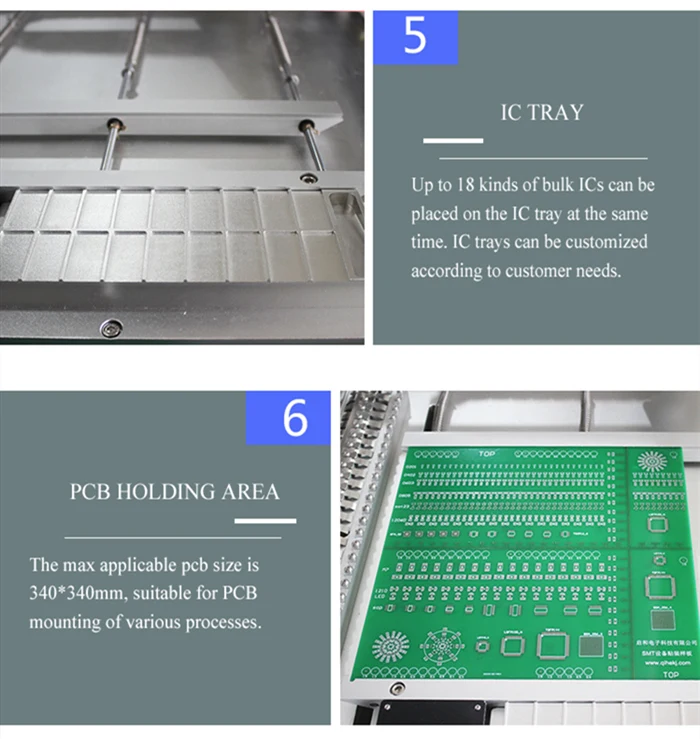

| Max applicable PCB | 20*20mm-260*330mm |
| Max XY moving range | 395*450mm |
| Max Z moving range | 12.5mm |
| Placement head quantity | 2 |
| Mounting speed | Vision off: 6500CPH |
| Vision on: 5500CPH | |
| Mounting accuracy | 0.025mm |
| Applicable component | 0402-5050. SOP. TQFP.QFN etc. |
| Component supply | Tape reel, Bulk, Tubular, Tray etc. |

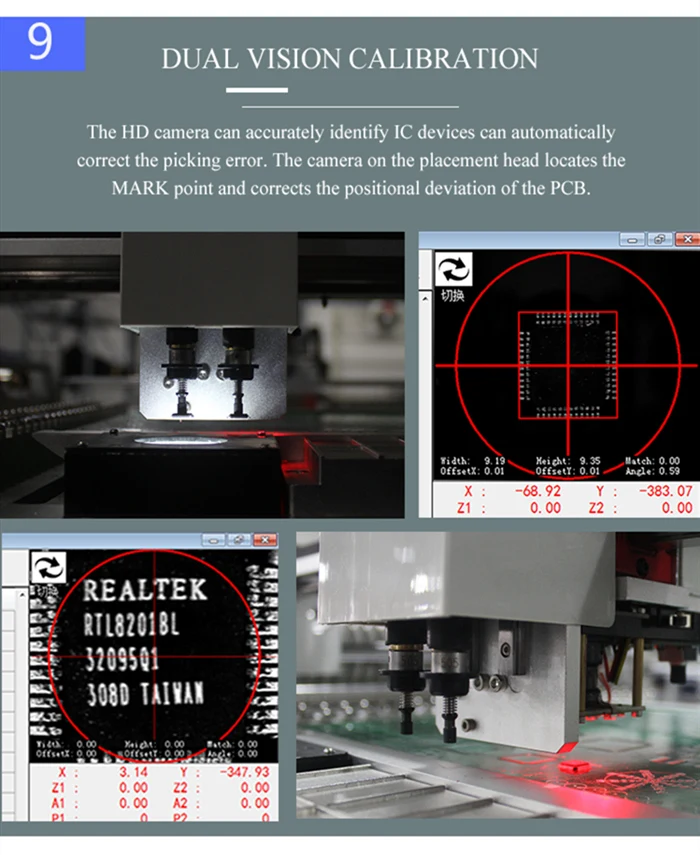

| Vision system | 2 HD cameras |

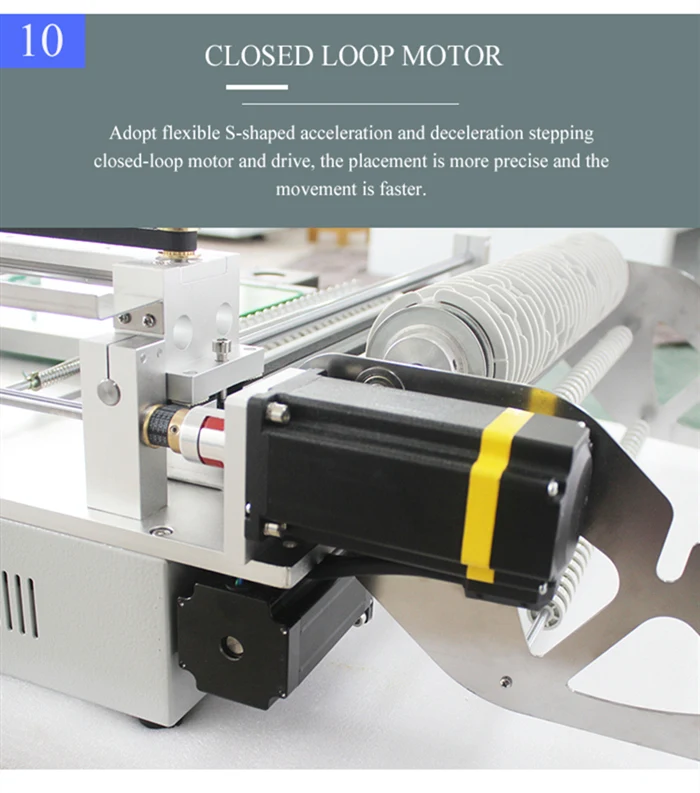

| Motor control scheme | Closed-loop motor |

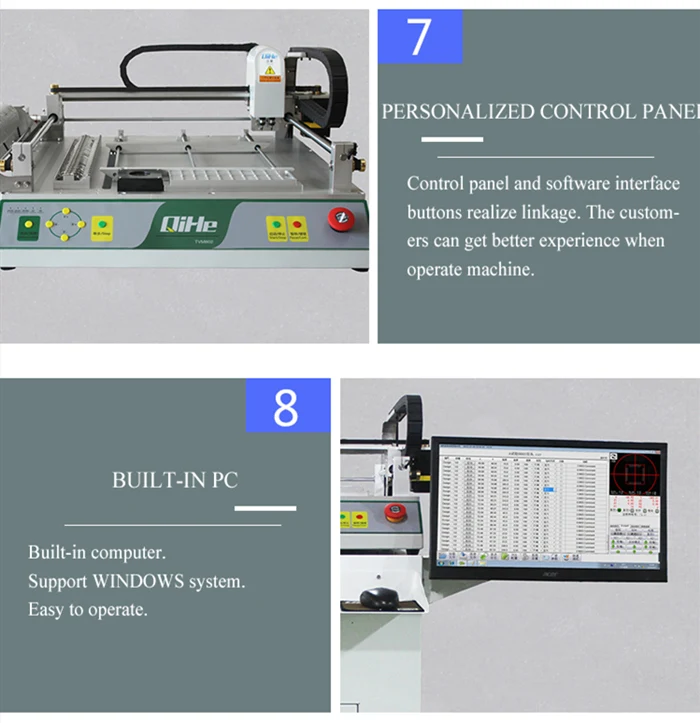

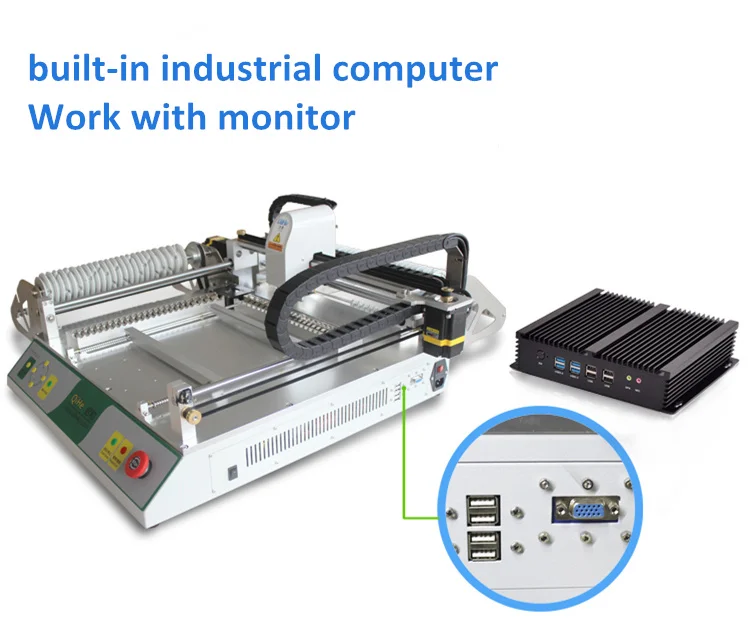

| Operating system | Built-in computer, Windows 7 |
| Feeder count & Tape width | 46pcs . 8mm=38 12mm=6 16mm=2 |
| Power supply | 220V or 110V |
| Machine size | 940*940*330mm |
| Net Weight | 41.5kg |
| Volume | 0.38CBM |
Company Information
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
