licorice root slices processing machine herbal medicine processing equipment herb cutting machine lemongrass cutter
- Category: Other Pharmaceutical Machinery >>>
- Supplier: Shanghai Nanjue Herb Equipment Manufacturing Co. Ltd. [Shanghai China]Shanghai
Share on (62247989245):
Product Overview
Description
Product Applicationherbs processing machine herb equipment

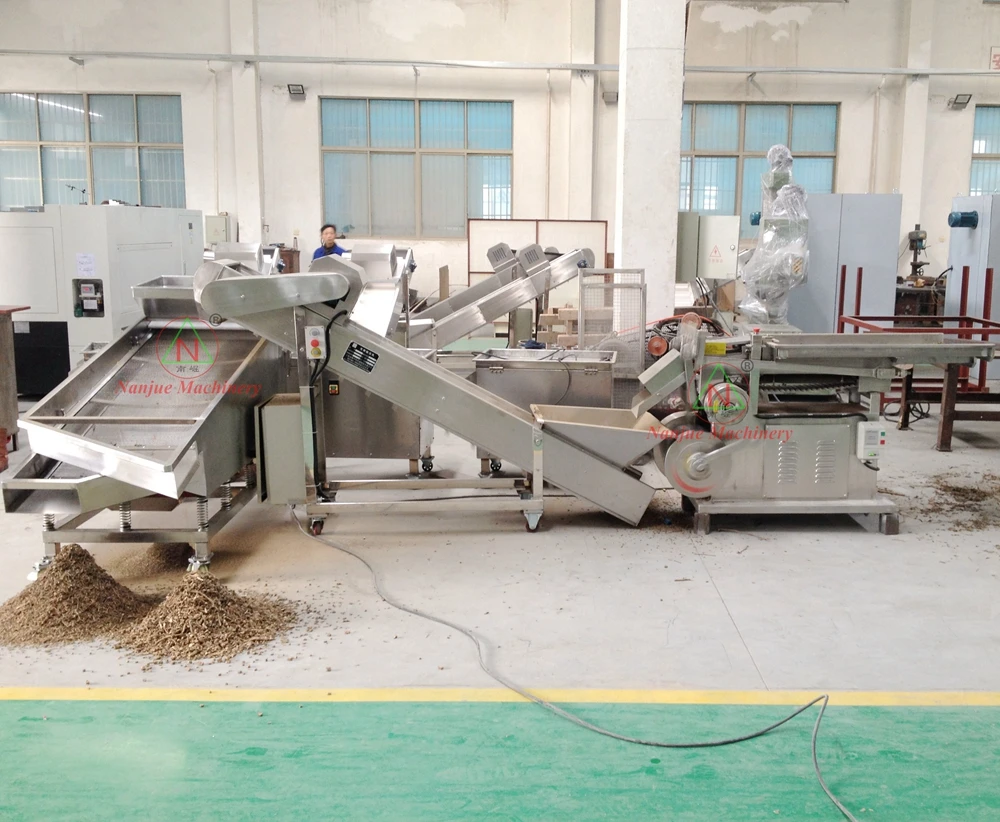

This herbs processing machine including one herb cutting machine, converyor & sieving machine, is used for processing all kinds of soft & hard herbal leaf, roots, steam & vine. Such as herb leaf and root, licorice roots, armatic herb tea.
the cutting machine can cut herb leaf & root into slices and sticks, the cut size from 0.4-25mm, the conveyor connected under the exit of cutting machine and convey the cut slices into sieving machine which will seperate the slices into different levels , select the dusts and residue out of the good slices.
Techinical Spec. | ||||
Model | QYJ-200 | QYJ-300 | ||
Capacity | 50-800Kg / h | 75-1200 Kg/h | ||
Cutting size | 0.4-25mm | |||
Motor power | 2.2 Kw / 380V / 3 phase/ 50Hz | 4.0 Kw / 380V / 3 phase/ 50Hz | ||
Cutting speed | 357 times/min | 357 times/min | ||
Rotary speed | 940 r/min | 960 r/min | ||
Dimension | 1780*780*980 mm | 1780*880*980 mm | ||
Net Weight | 440 Kg | 500Kg | ||
Certificate | CE | |||
Technical specifications of Conveyor | ||
Model | SSJ-300 | |
belt width(mm) | 300 | |
belt length(mm) | 2400 | |
motor(Kw) | 1.1 | |
Technical Spec | |
Model No | SYJ-700 |
capacity | 200-800 Kg/h |
sieve specification | 10-140 mesh |
Motor power | 1.1Kw |
Dimension | 2120*760*1100 |
Main Features of cutting machine
a ) The blades move from up to down by mechanical driver
b ) UsinG stainless steel convey chain to transport herbal materials to the knife and get fine slices
c ) The design of machine is very scientific, the five-star pulley (clutch) was milled cut through computer, high precision & rational structure.
d ) The machine is made of stainless steel 304, including the convey chain, it's very strong & durable, hard to slip & low noise, easy to clean.
e ) Meet the requirements of CE & GMP
f ) Equipped with a emergency stop button..

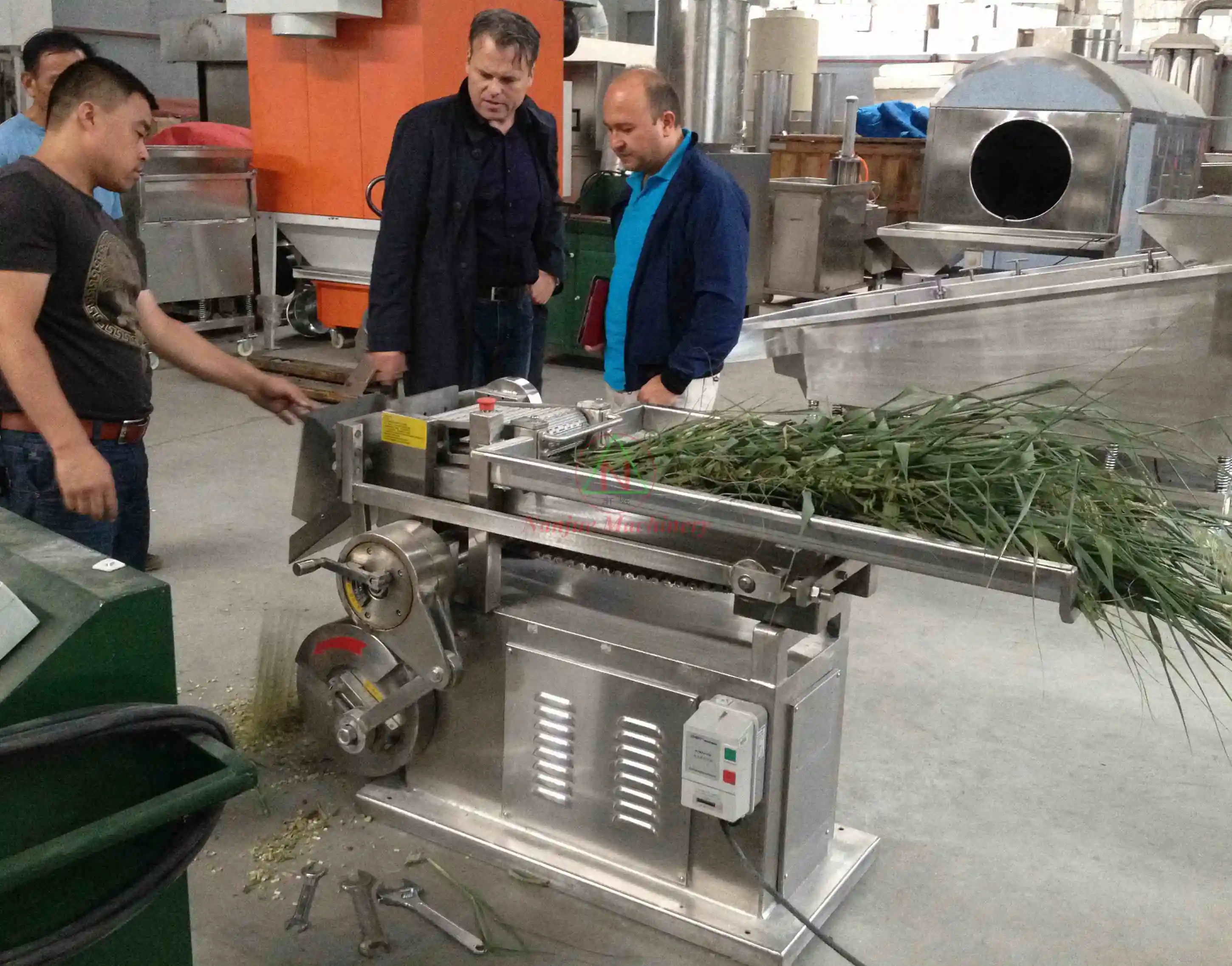

Customer Photos & Comments

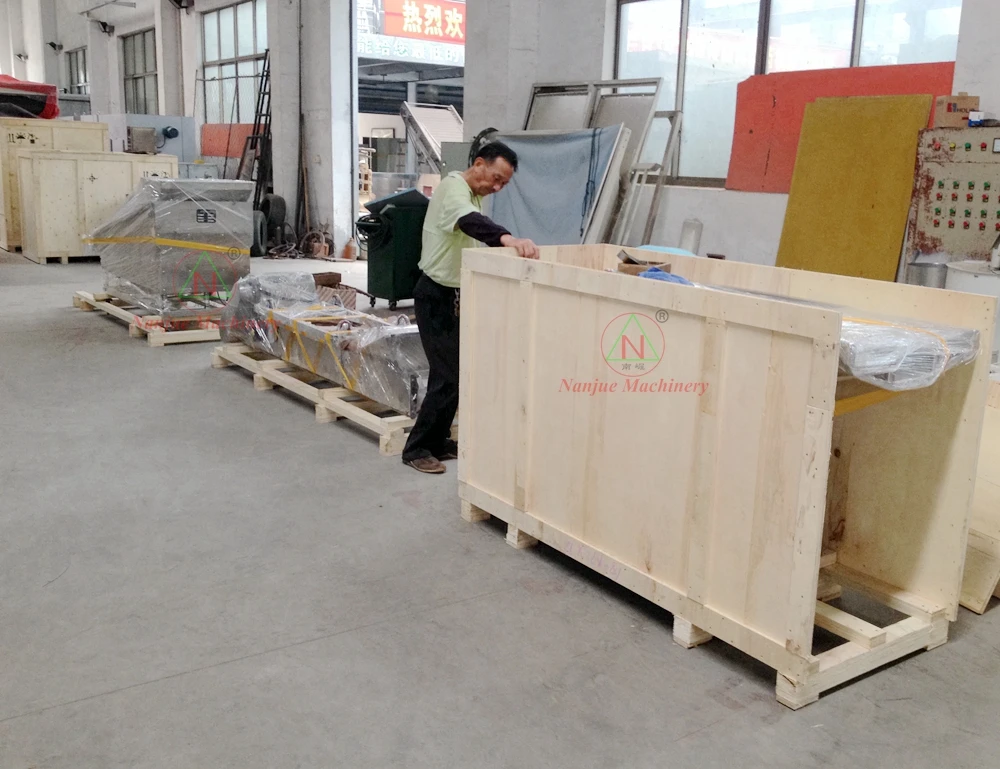

Packing & Delivery
Packaging | ||
Size | 1.85 (L) * 0.78 (W) * 1.18 (H) m | |
Weight | 500Kg | |
Packaging Details | The package is fumigated wooden box(Size: L*W*H). | |
Related Products
licorice slicing machine
95.5% Response Rate
herb washing machine
92.8% Response Rate
herb drying machine
94.8% Response Rate

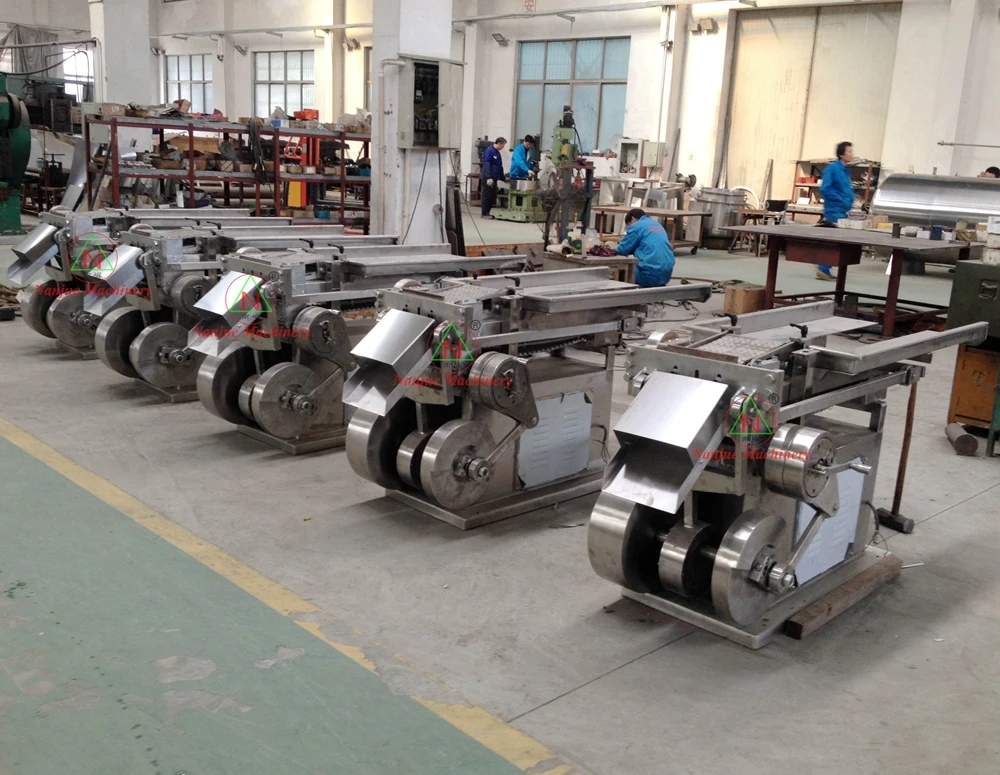

Our factory
Certifications
Our Service
1.Warranty: one warranty except man-made damage, if machine break down within one year, we supply the damaged parts free and technical supports.
Our customers will be fully trained for the operation and maintaining technology after the order confirmed.
24-hours full after sales , our skilled engineer will help customers to solve out the problem by what's app/ wechat / skype / QQ etc in time. If necessary, overseas service is available.(Note: This cutter machine easy to be operated , not easy to be break down, and we never get bad feedback on the working of this cutting machine)
2. Quality Control : Skilled and strict Quality Inspection Team during the materials purchasing & production procedure.
All finished machinery are 100% strictly tested by our QC & engineering department.
3. Professional sales will reply your inquiry within 12 hours and delivery your order within 15-20 working days.
4 . We have 11 years foreign trade experience and more than 20 years machine producing in this area, our customers are from all over the world.
