2 pipe 2 rows 4 way cassette fan coil unit with wireless remote controller
- Category: Air Conditioners >>>
- Supplier: Shenzhen Monchrui Industrial Development Co. Ltd.
Share on (62251773971):
Product Overview
Description

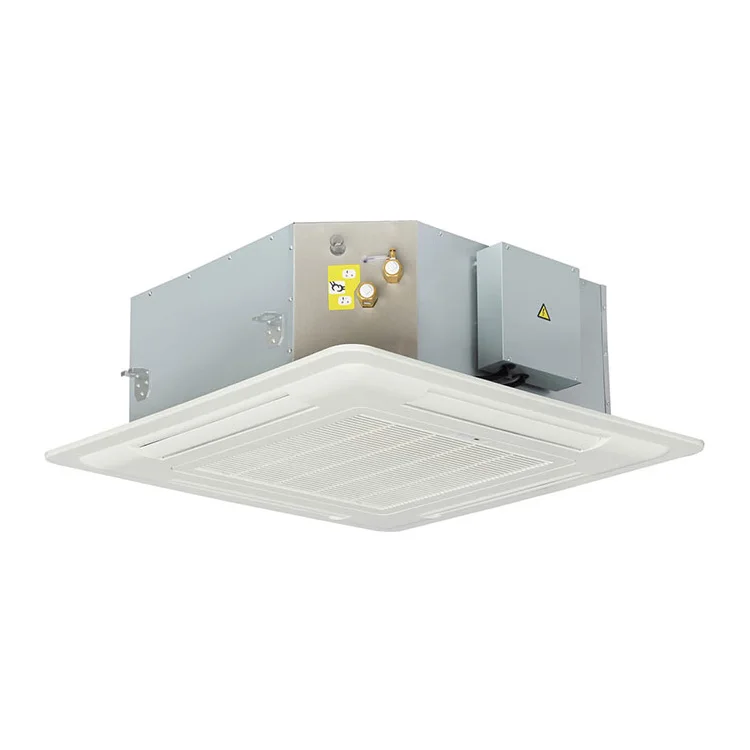

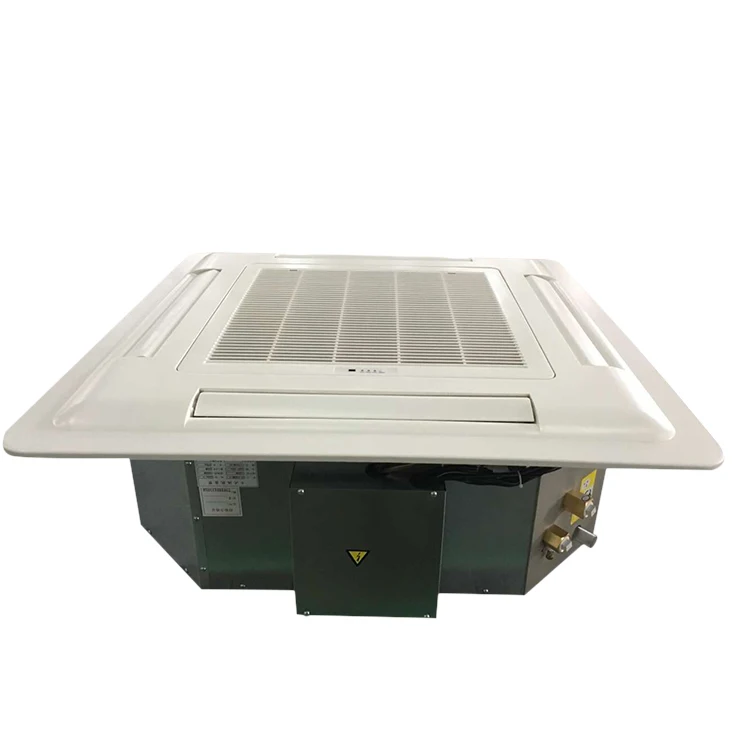

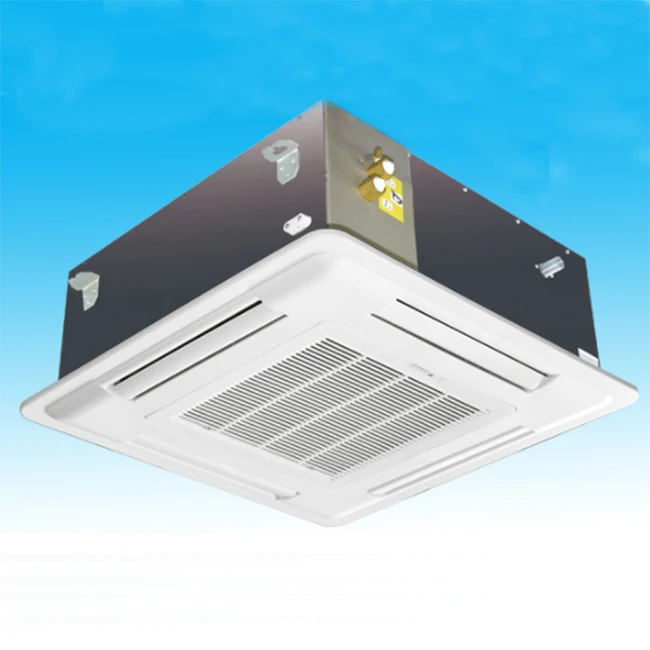

2 pipe 2 rows 4 way cassette fan coil unit with wireless remote controller
Banner
Product Description
| Model:M4KM*AV-A(E) | M4KM400AV | |||||
| CFM | 400 | |||||
| Air Flow Rate | H | m3/h | 680 | |||
| M | m3/h | 520 | ||||
| L | m3/h | 350 | ||||
| Cooling | Total Capacity | H | kW | 3.7 | ||
| M | kW | 3.1 | ||||
| L | kW | 2.6 | ||||
| Sensible Capacity | H | kW | 2.6 | |||
| M | kW | 2.0 | ||||
| L | kW | 1.8 | ||||
| Water Flow Rate | L/h | 640 | ||||
| Water Pressure Drop | kPa | 11 | ||||
| Heat | Heating Capacity | H | kW | 5.6 | ||
| M | kW | 4.5 | ||||
| L | kW | 4 | ||||
| Power Supply | 220~240V/1PH/50Hz(or60HZ) | |||||
| Power Input | W | 62 | ||||
| Sound Pressure | dB(A) | 41 | ||||
| Fan | Type | CentrifugalFan | ||||
| Model | mm | 315 | ||||
| Quantity | pcs | 1 | ||||
| Motor | Type | 3-speedMotor | ||||
| Quantity | pcs | 1 | ||||
| Coil | Coil Rows | 2 | ||||
| Max. Working Pressure | mPa | 1.6 | ||||
| Tube Diameter | inch | 3/8” | ||||
| Dimensions | Unit Body | mm | 580X580X250 | |||
| Panel Assembly | mm | 680X680X30 | ||||
| Connection | Water Inlet/Outlet Pipe | inch | ZG3/4”/ZG3/4” | |||
| Condensate Discharge | inch | 26 | ||||
| Weight(with feet,with casing) | kg | 20 | ||||

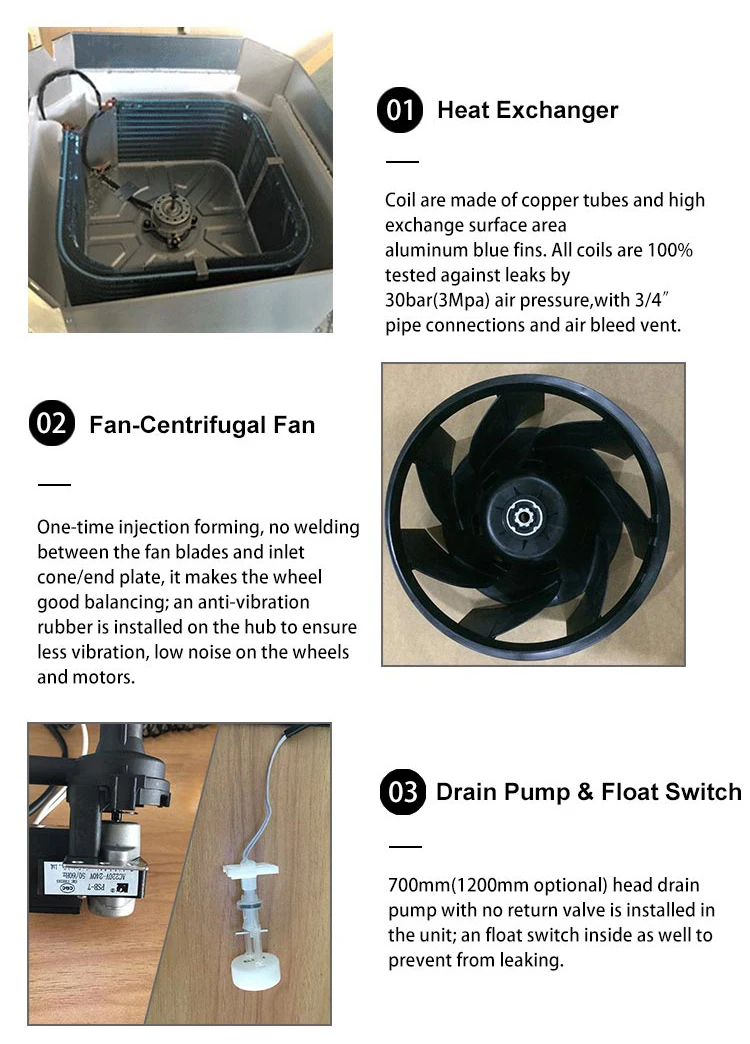

Detail
Related Product
produce
Assembly&test
Installation Process
