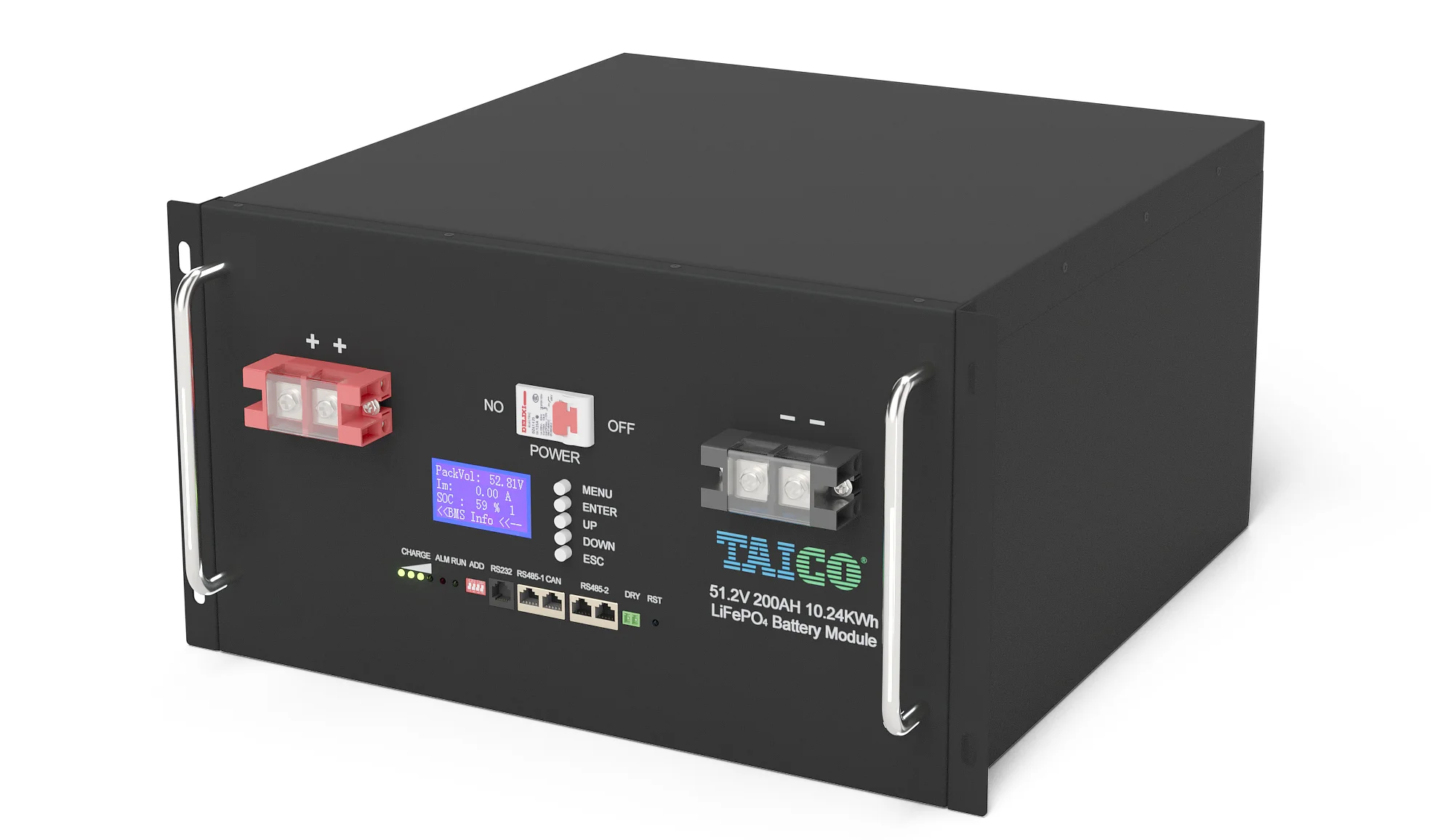

6000 циклов 48В 5KWh 100Ah литий ионная аккумуляторная батарея для зарядки Ноута и сотового телефона системы солнечных батарей lifepo4 батарея
- Category: Batteries >>>
- Supplier: Dongguan Tairuiyuan Power Technology Co. Ltd.
Share on (62254327441):
Product Overview
Description
Battery Features
of space between the batteries, better for heat dissipation.

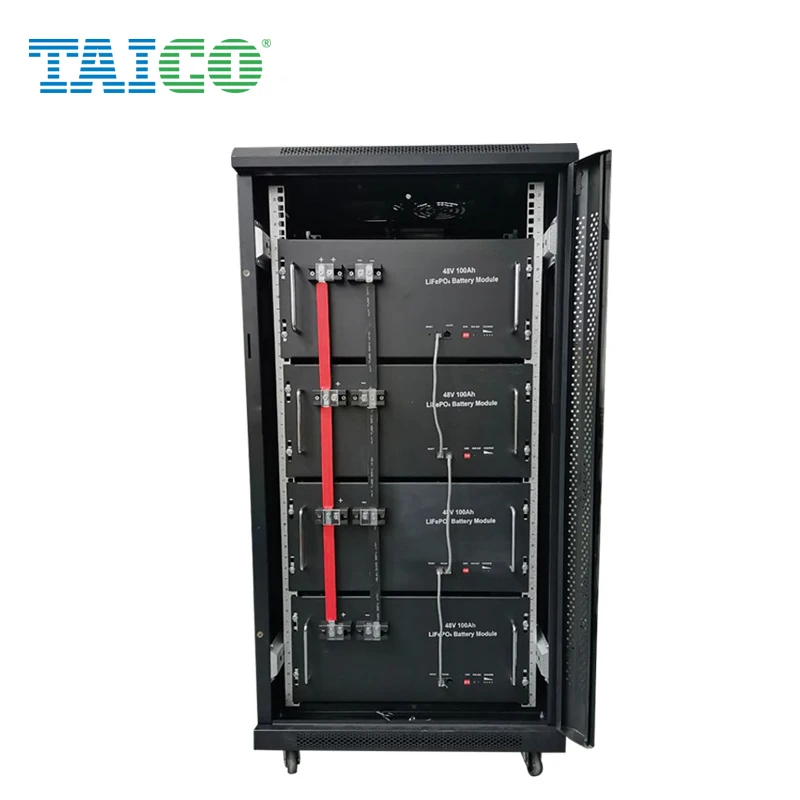

If without master control, it support max. 4 parallels for highest 9.6Kwh battery system; If with standard master controls, it can
be paralleled and serialed with more batteries.
be paralleled and serialed with more batteries.

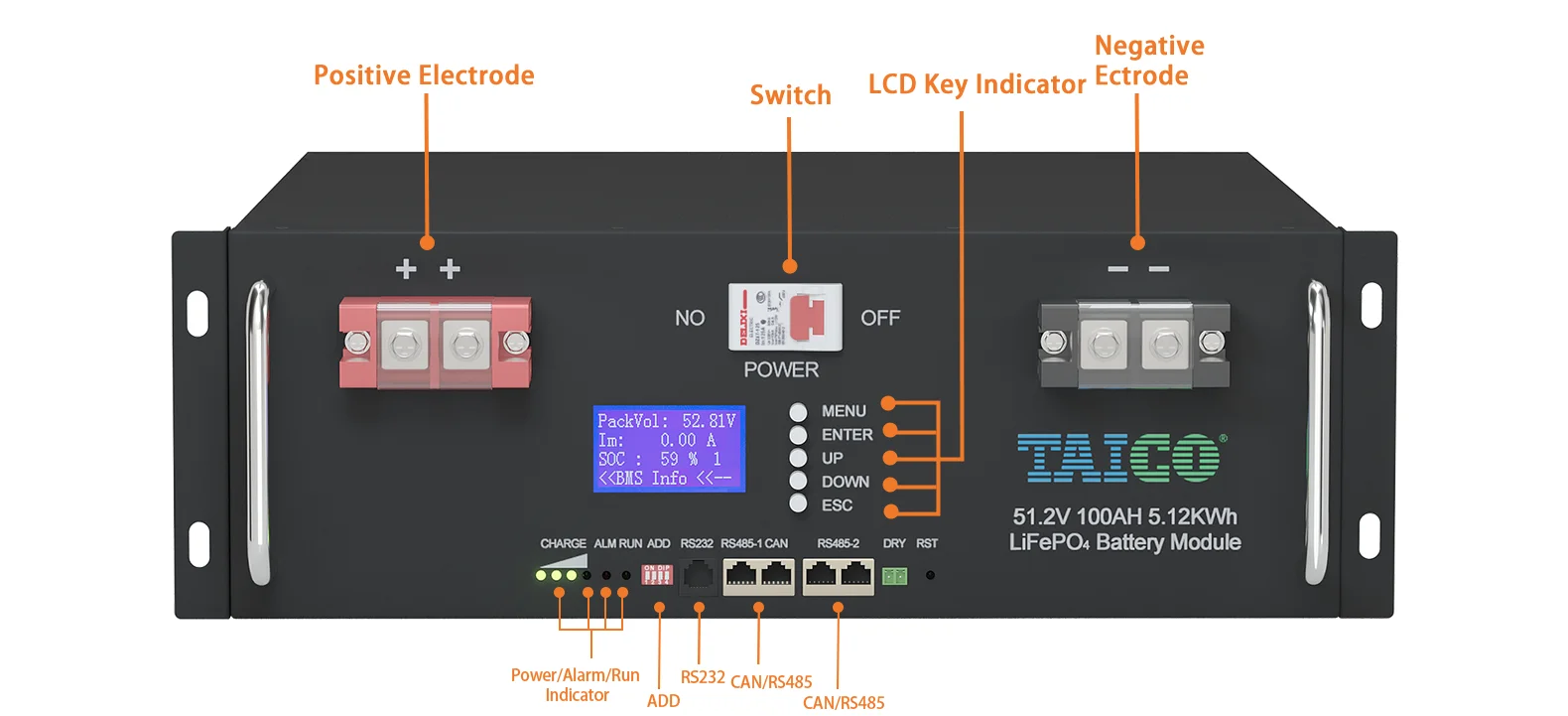

Battery Functions
Battery Specifications
Model No | TK2400 | TK5000 | TK7200 | TK9600 | TK12000 | ||||
Voltage | 48 V | 48 V | 48 V | 48 V | 48 V | ||||
Capacity | 50Ah | 100Ah | 150Ah | 200Ah | 250Ah | ||||
Energy | 2.56KWH | 5.12KWH | 7.68KWH | 10.24KWH | 12.80KWH | ||||
Operation voltage | 42-54 Vdc | 42-54 Vdc | 42-54 Vdc | 42-54 Vdc | 42-54 Vdc | ||||
Max.charging voltage | 54 Vdc | 54 Vdc | 54 Vdc | 54 Vdc | 54 Vdc | ||||
Max.charging and discharging current | 50A | 100A | 100A | 100A | 100A | ||||
Max Power | 2560W | 5120W | 7680W | 10240W | 12800W | ||||
Life time(25°C) | 10 years | ||||||||
Life cycles(80% DOD, 25°C) | 6000 Cycles | ||||||||
Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||||||||
Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||||||||
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||||||||
Lithium Battery Standard | UL1642, IEC62619, UN38.3, ROHS,CE-EMC | ||||||||
Enclosure protection rating | IP21 | ||||||||
Dimensions(L×W×H)mm | 482*350*132 | 482*400*177 | 482*430*222 | 482*500*280 | 482*500*280 | ||||
Weight | 24KG | 43KG | 65KG | 82KG | 100KG | ||||
