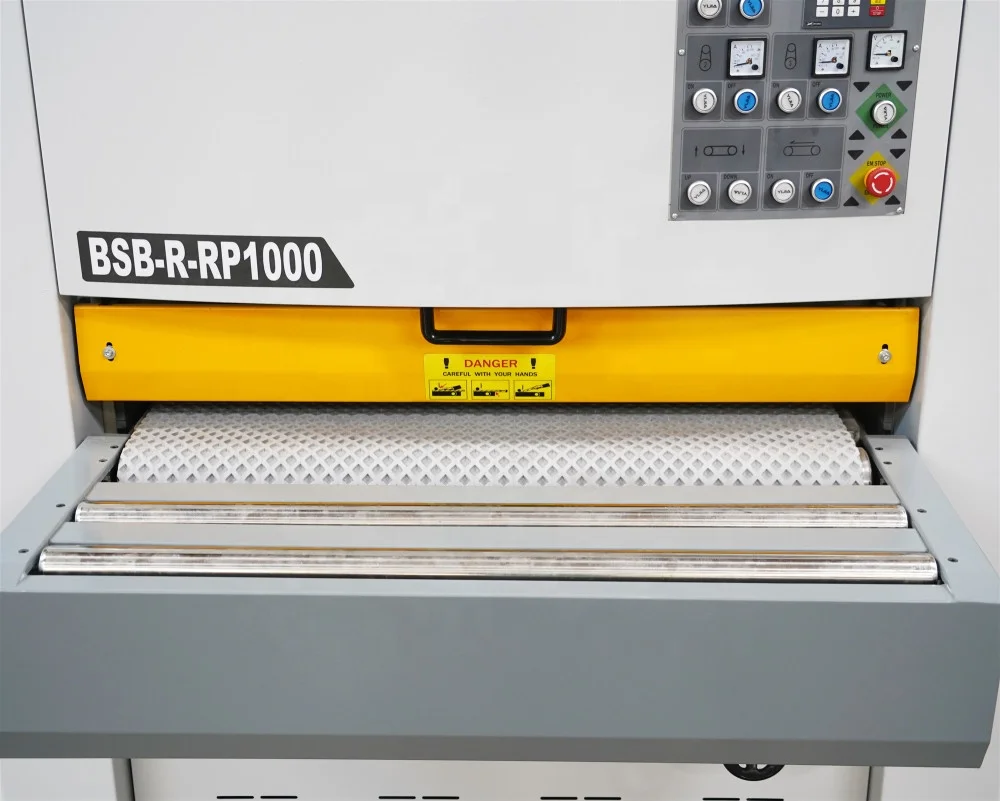

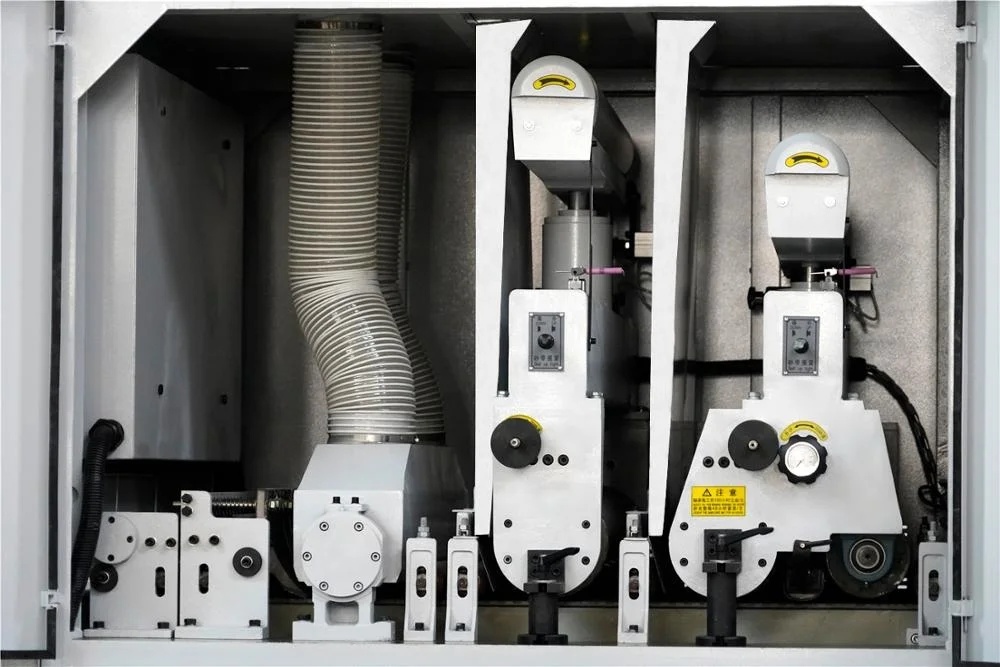

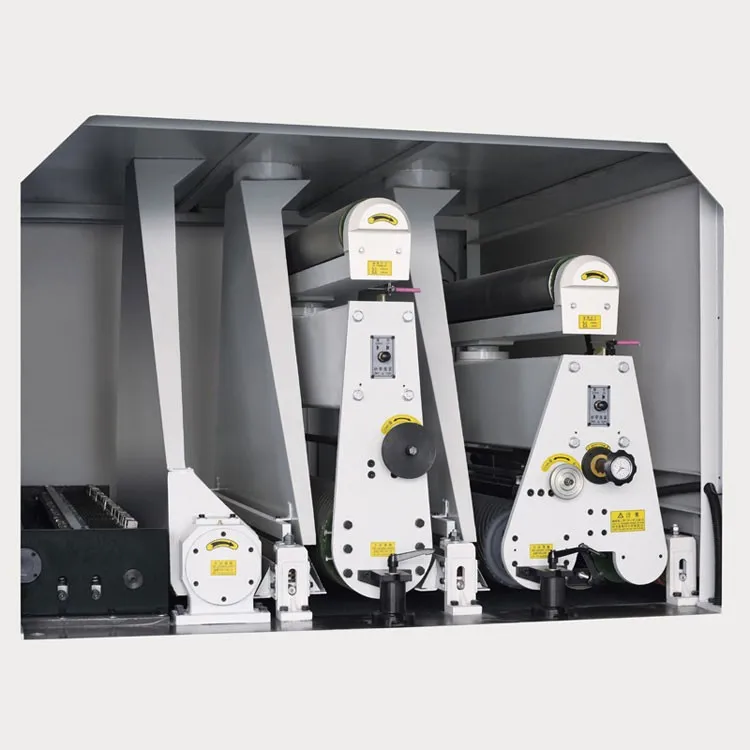

BSB R RP1000 Planer wood brush sander machine
- Category: Wood Based Panels Machinery >>>
- Supplier: Qingdao Sefe Trading Co. Ltd.
Share on (62256115389):
Product Overview
Description
Product Description
This type characters:
1.planer sanding machine
2.has two sand heads,with one planer
3.planing and sanding
1.planer sanding machine
2.has two sand heads,with one planer
3.planing and sanding
-The machine has the perfect combination of planning and sanding function,which has the planning roller,roller-type sand frame and pressure-type grinding sand frame together.First plane and then sand.There are planer capacity,high precision sanding and low abrasive wear characteristics.Spiral planer roller blade fitted with four side superhard blade.

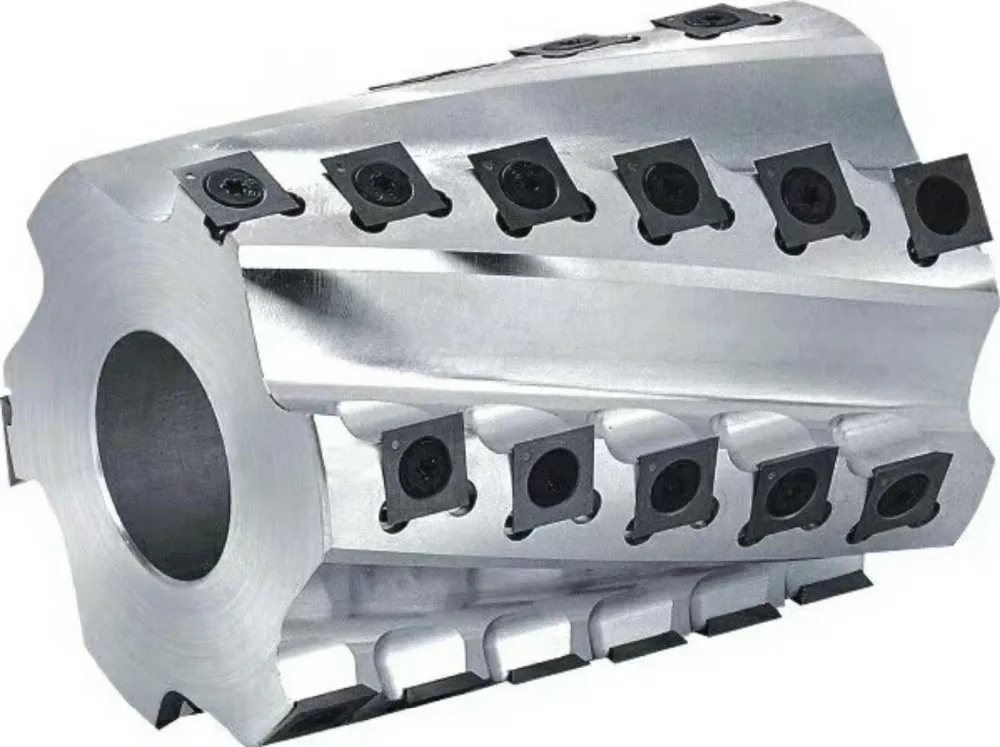

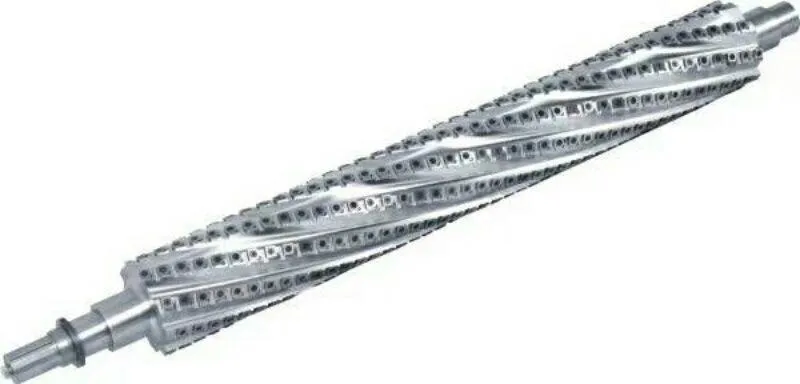

Spiral planer
First planer and then sand.There are planer capacity,high precision sanding and low abrasive wear characteristics.Spiral planer roller blade fitted with four side superhard blade.
Application
It is mainly used for the shaving of solid wood boards and solid wood panels.
It can also be used for thickness planing and fine sanding of various boards such as blockboard, particle board, medium density fiberboard, finger joint board and composite materials.
Technical Parameters
There are two types of structures, customized according to customer requirements.
Model | BSB-R-RP1300 | BSB-R-RP1000 | BSB-R-RP630 |
Working width | 40-1300mm | 30-1000mm | 30-630mm |
Working thickness | 3-110mm | 3-110mm | 3-110mm |
Working length | ≥600mm | ≥450mm | ≥450mm |
Speed of planer | 36m/s | 36m/s | 36m/s |
No.1#sanding belt speed | 20m/s | 20m/s | 20m/s |
No.2#sanding belt speed | 18m/s | 18m/s | 18m/s |
Feeding speed | 4-30 m/min | 4-16 m/min | 4-16 m/min |
Size of sanding belt(W*P) | 1330*2200mm | 1020*2000mm | 650*1920mm |
Total motor power | 75.62 kw | 43.93kw | 30.05kw |
Main motor power(two motors) | 22kw,30kw,18.5kw | 15kw,15kw,11kw | 11kw,11kw,7.5kw |
Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Consumption of comperessed air | 0.15m³/min | 0.1m³/min | 0.1m³/min |
Volume of sucked air | 10000m³/h | 6500m³/h | 5500m³/h |
Speed of sucked air | 25-30 m/s | 25-30 m/s | 25-30 m/s |
Overall dimension(L*W*H) | 2300*2100*2200mm | 2000*1800*2100mm | 1900*1400*2100mm |
Net weight | 4400kg | 2900kg | 2350kg |
Factory Video Display
Company Introduction
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
With more than 30 years of experience in woodworking and metalworking, Sefe sanding machines are well-known brands in the Chinese market, including wide belt sanding machine, paint sanding machine, water sanding machine, double-sided sanding Machine,planer sanding machine, heavy-duty inclined sanding machine and sanding machine production line.
Workshop details display
Machine Assembly Workshop
Rigorous Skilled Workers
Packing&Shipping
Stretch Film or Wooden Packing
Exhibition Show
Certifications
Related Products
Why Choose Us
1. We will come standard with the wearing parts.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff to overseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff to overseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
FAQ
Q1:Why is our price more expensive than our peers?
Because we do is high-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine?
We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong?
Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us?
At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
Because we do is high-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine?
We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong?
Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us?
At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
