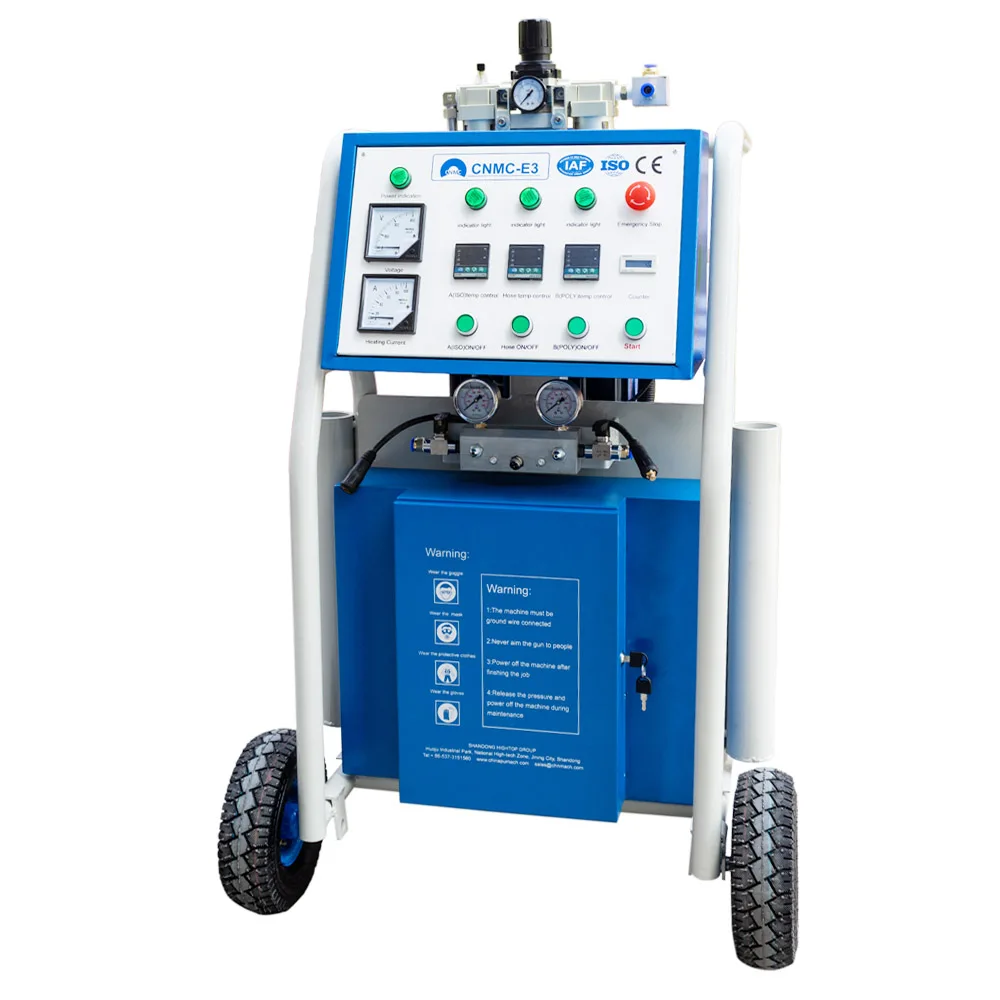

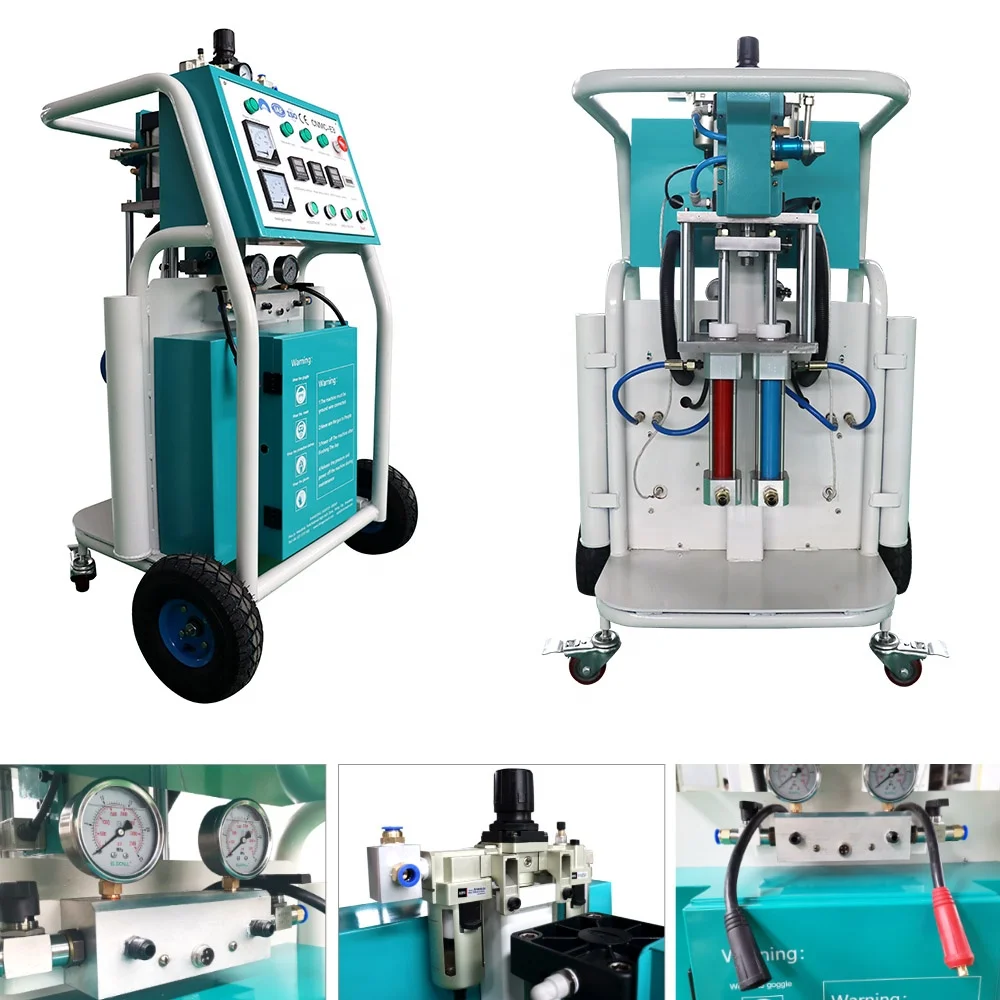

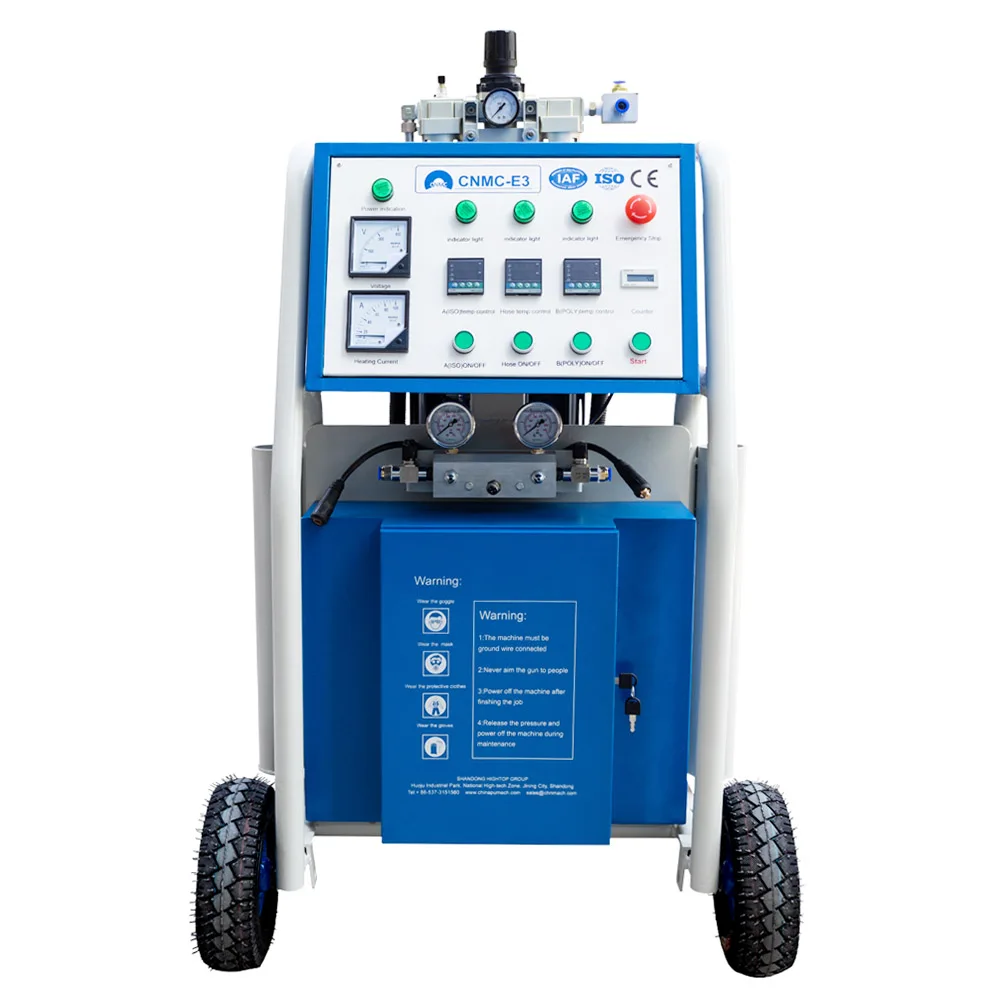

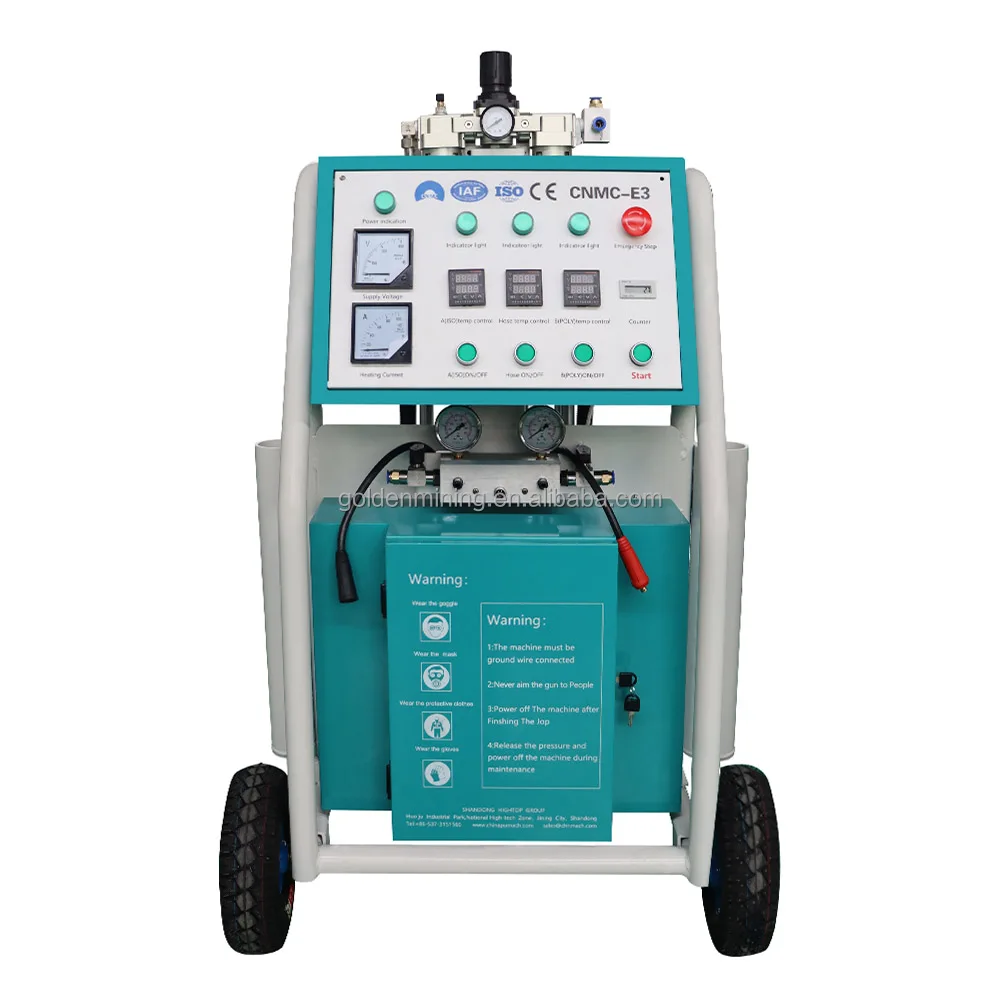

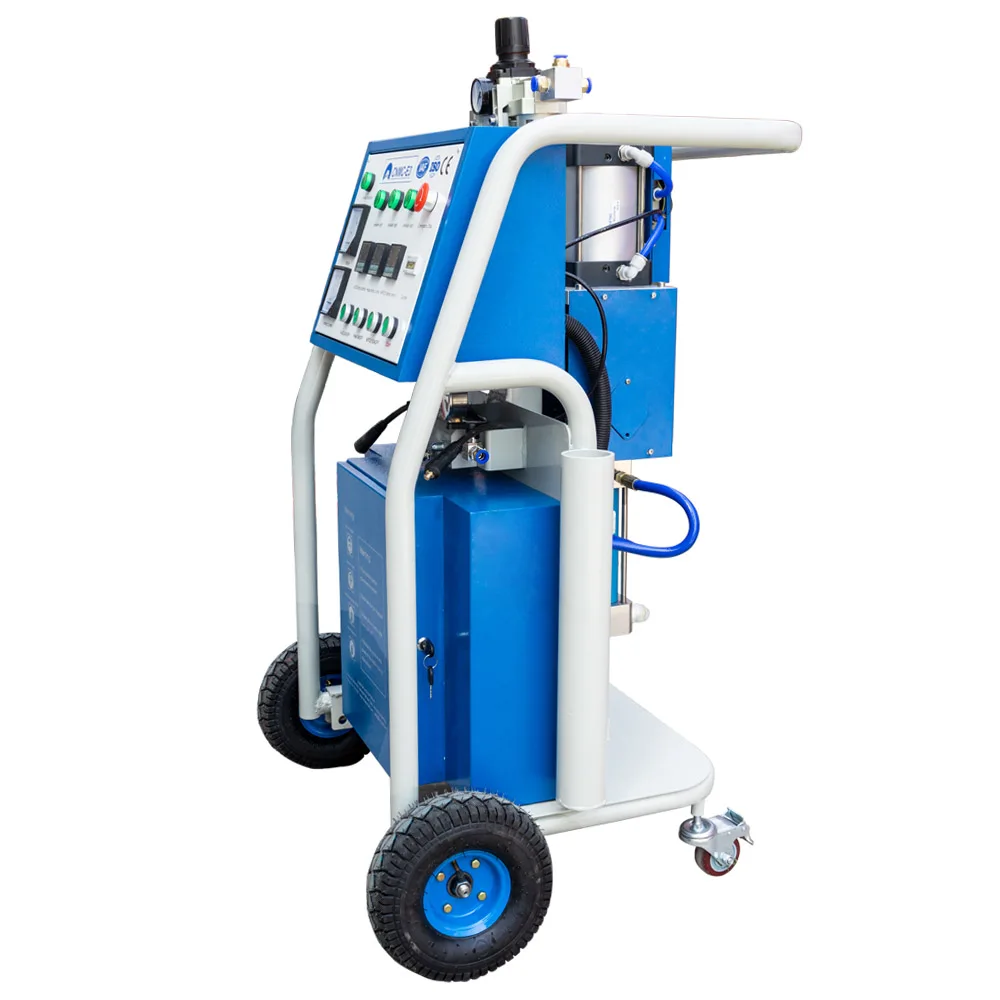

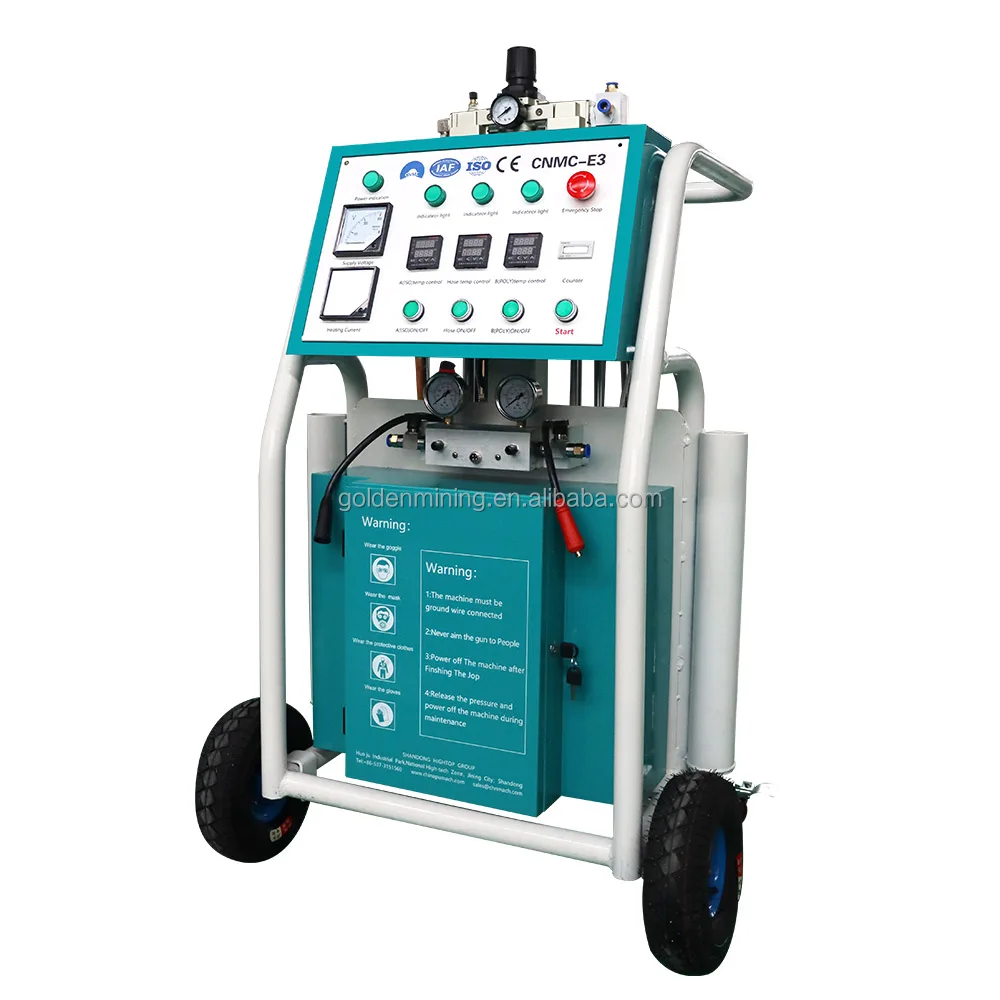

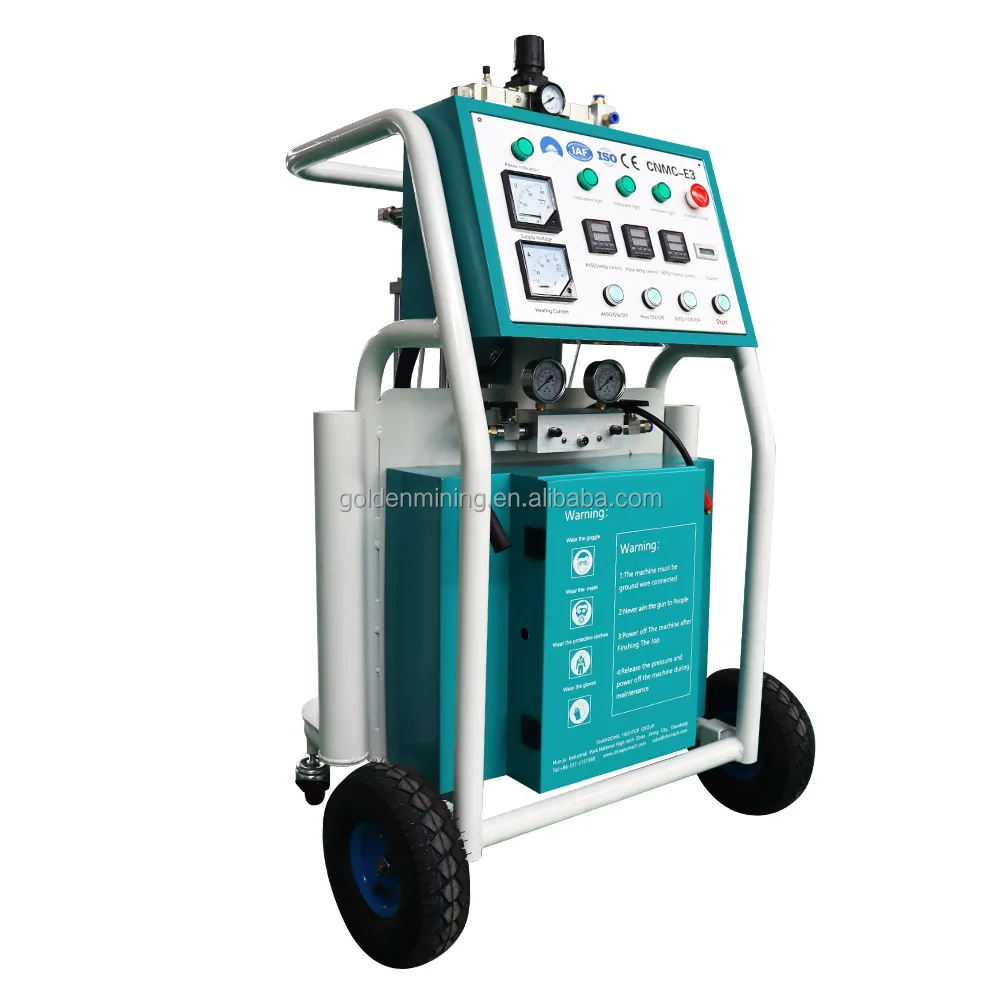

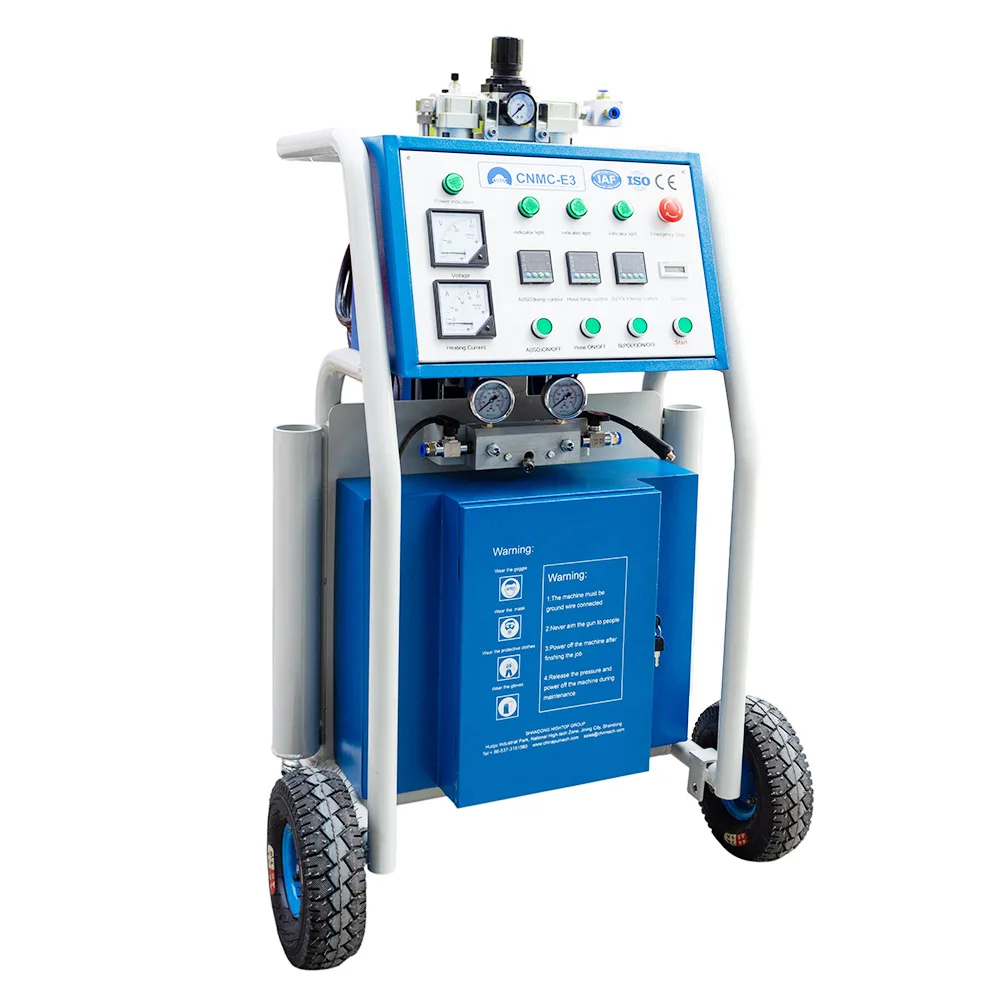

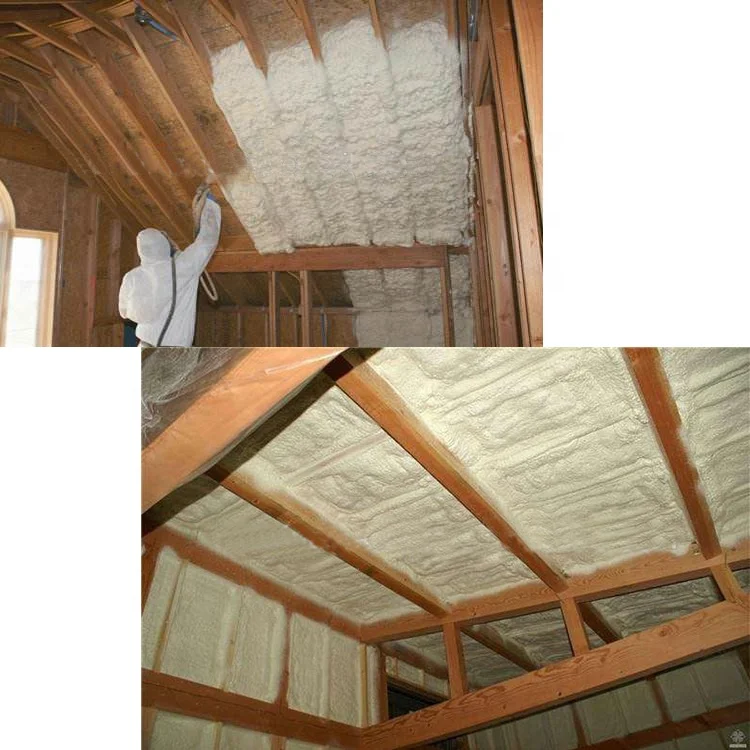

Spray foam insulation machine is used for Exterior Interior wall, Roof, Tank, cold storage spraying insulation.







Model | CNMC-E3 |
Power source | single phase 220V 50Hz;380V,110V |
Heating power | 7.5KW |
Driven mode | pneumatic |
Air source | 0.5~0.8 MPa ≥0.9m³/min |
Raw output | 2~12 kg/min |
Maximum output pressure | 11MPA |
AB material output ratio | 1:1 |
Spray gun | 1 Set |
Heating hose | 1set(15meters) |
Feeding pump | 2 sets |
Gun connection pipe | 2pieces |
Feed delivery pipe | 2pieces |
pneumatic pipe | 5meters |
Spare parts | 1set |
Packing size | 860mm X 860mm X1560mm |
Machine weight | 200KG |
Advantages of E3 spraying machine:
1. The big size cylinder makes the spraying more powerful and the atomization effect better.
2. The heated hose of the new Upgrade machine CNMC-E3 heats up to setting temperature only in 10 minutes ,faster than old model 20 minutes. E3 model can heat up even higher temperature at 80 celsius degree.
3. The machine contains the electric leakage protector to prevent machine leakage and human electric shock, and improve the safety performance of the machine.
4. Add Voltmeter and Ammeter, the voltage and current conditions inside of the machine can be detected every time.
5. The electric circuit design is more humanized, engineers can check the circuit problems more quickly.
6. The machine adds handrails which makes it easy to move, the appearance design conforms to the principle of artificial mechanics.
7. The quick opening door is installed ,easy to access to do maintenance.
8.Adpot some technology from Glass-craft USA brand ,heated hose and spray guns can be used on both machines






If you order from our factory ,for FIVE STARS LEVEL after sales service :
1:24 hours on line service ,support Chinese, English, Spanish, French, German, Russian ,technical guidance.
When meets machine failure problem,our factory will ensure that the problem is solved within 1 hour
2:Povide machine install video .
3:Provide logistics information ,like shipping by sea , shipping by express DHL,FEDEX delivery, real-time tracking service.
4:If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided .
