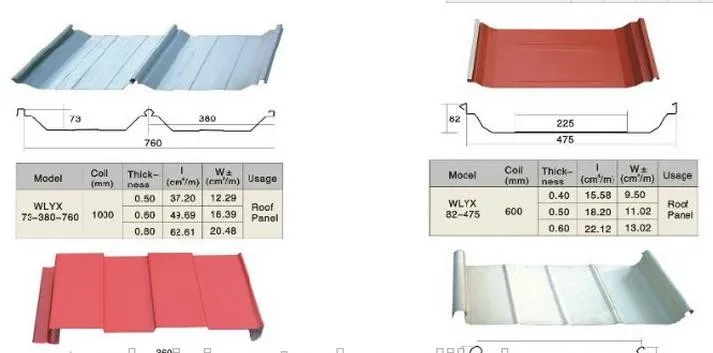

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc. The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.
Name
Units
Quantity
Decoiler
Set
1
Main machine
Pre-cutting device
Set
1
Feeding device
Set
1
Roll forming system
Set
1
Hydraulic system
Set
1
Electric control system
Set
1
Supporter/Automatic Stacker
Set
1
Detailed Images
DECOILER
(1) Max. Width: 1250 mm (2) Inner Diameter: Φ450 – Φ550 mm (3) Out Diameter: 1500 mm (4) Max. Loading Capacity: 5000 kgs

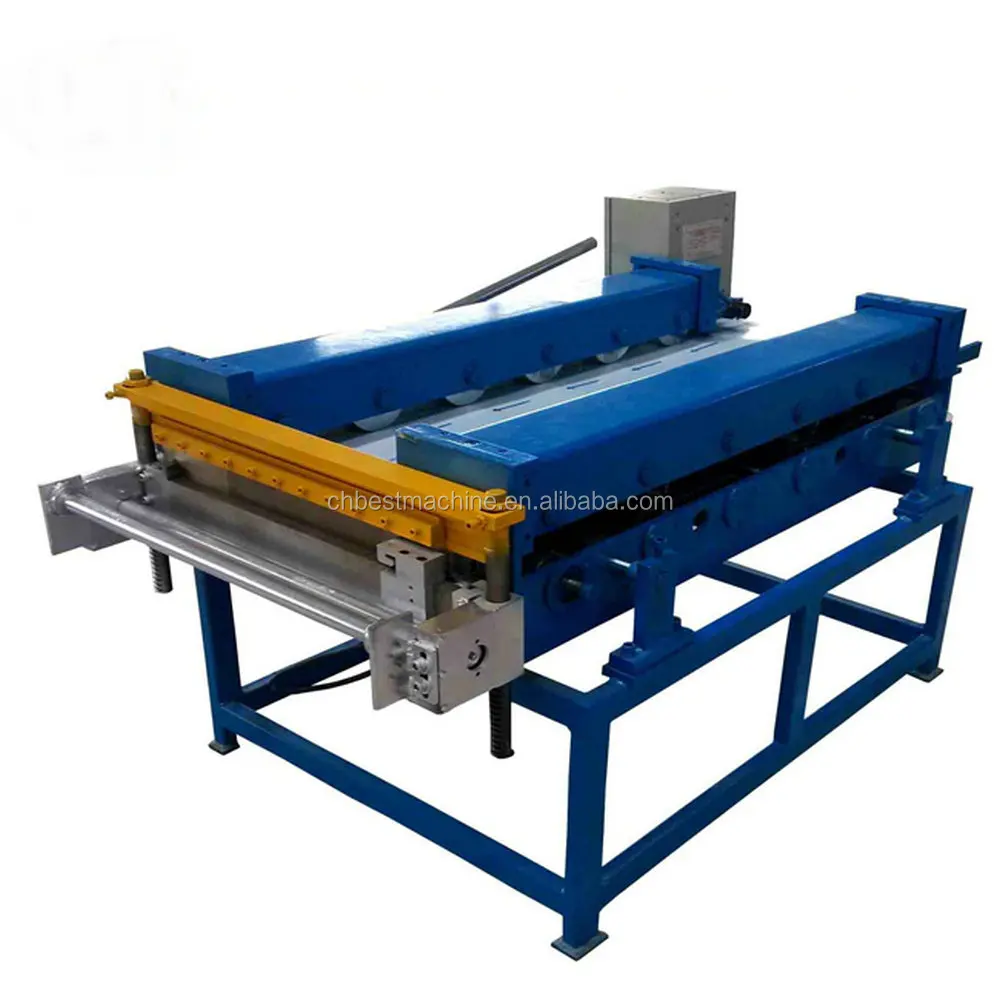

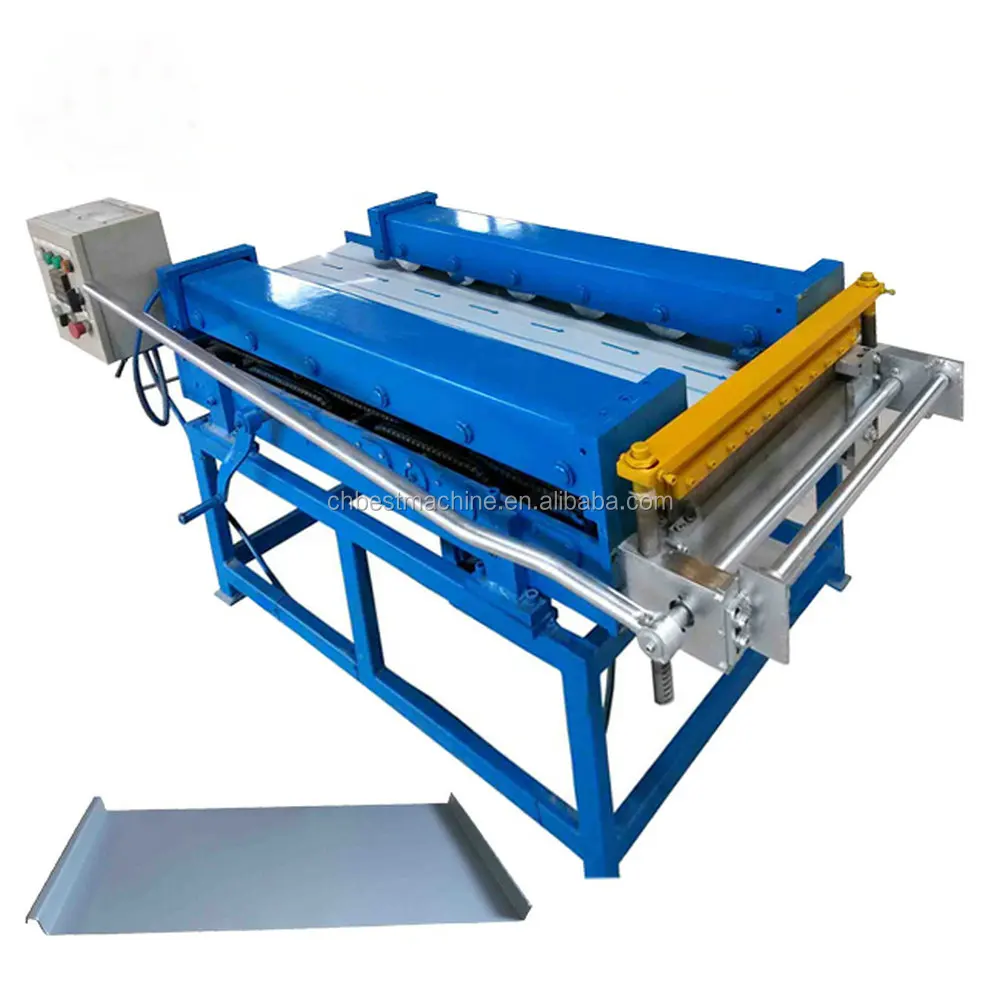

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI (2) NO. of roller Stations: 11 groups (3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62° (4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62° (5) Diameter of shaft: 70mm
CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment (2)Hardness for Heat Treatment:HRC58 – 62° (3)Cut-Off Type: Hydraulic, Automatic Cut-Off (4) Motor for Hydraulic Stand: 3 KW
PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen (2) PLC Brand:Delta (3) Encoder Brand: Omron (4)Length Error: ±2mm (5)Language: English and Chinese (6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
HYDRAULIC PUMP STATION
(1) Motor power: 3 kw (2)Oil type: 46# hydraulic oil (3) Pump brand: China brand

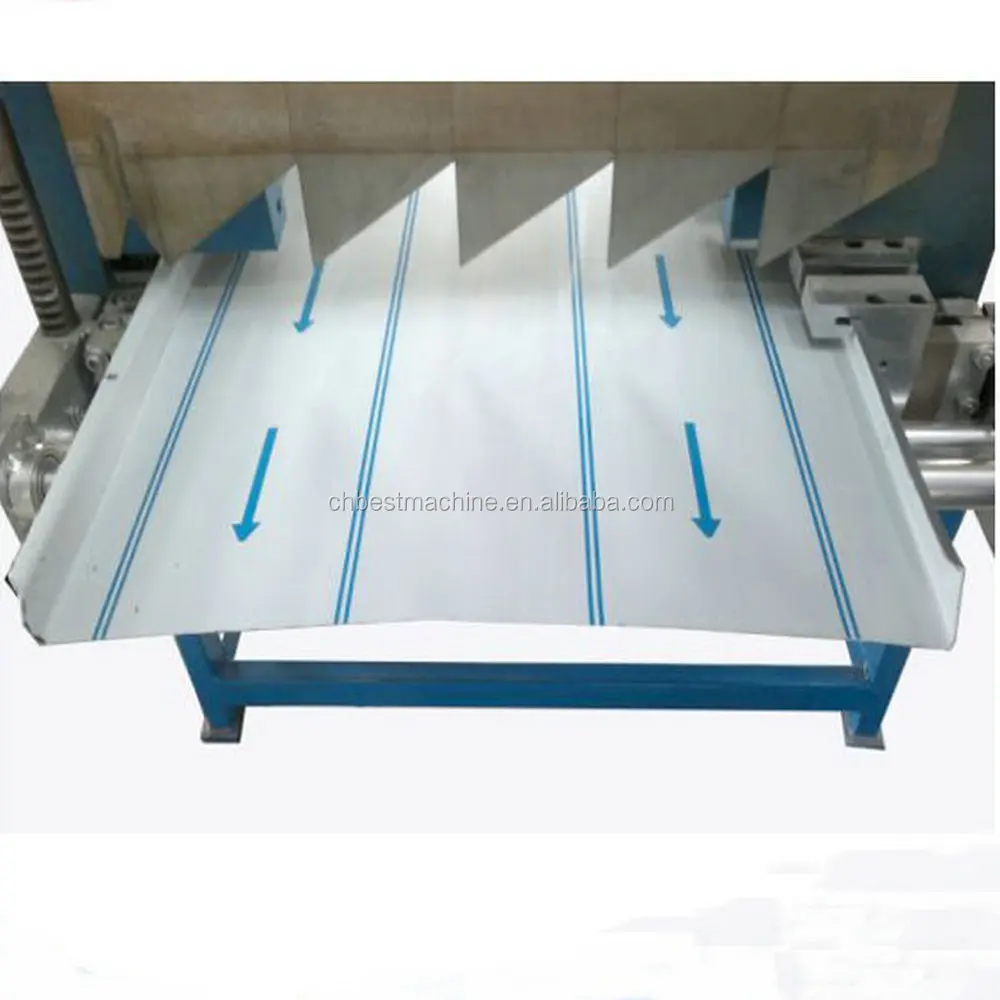

Finished Product Table:
(1)Length: 2m (2)Type: manual without power
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Make a deal.
Pre-Sales Service
* Inquiry online.
* 24hours service online.
* Discuss details online.
* Make a deal online.
After-Sales Service
* If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
* Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales Service
* Engineers available to service machinery overseas.
* If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
* Training how to instal the machine, training how to use the machine.

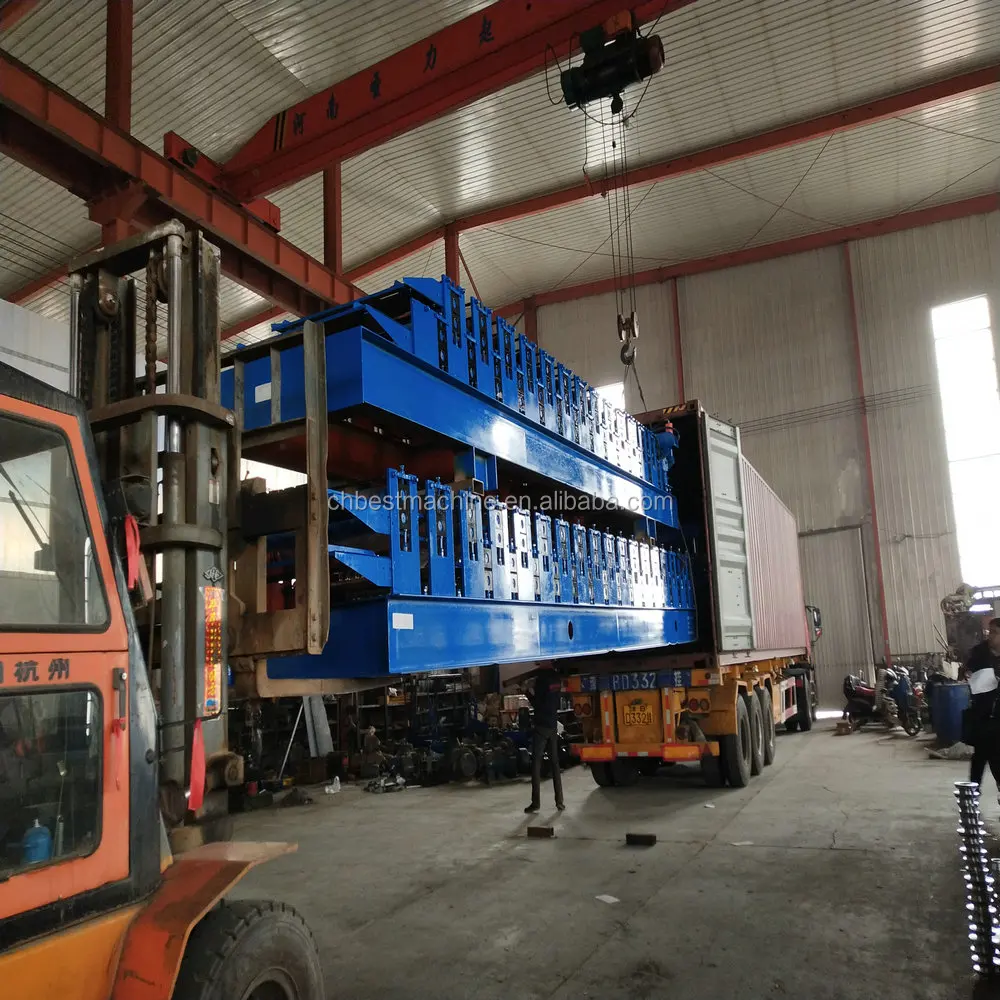

Packing & Delivery
Standard Export Packing.
1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Certifications
Our Company
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine according to customer's requests. 2.This is a very perfect and durable equipment. We have more than 20 years experiences. 3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. 4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers. 5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
