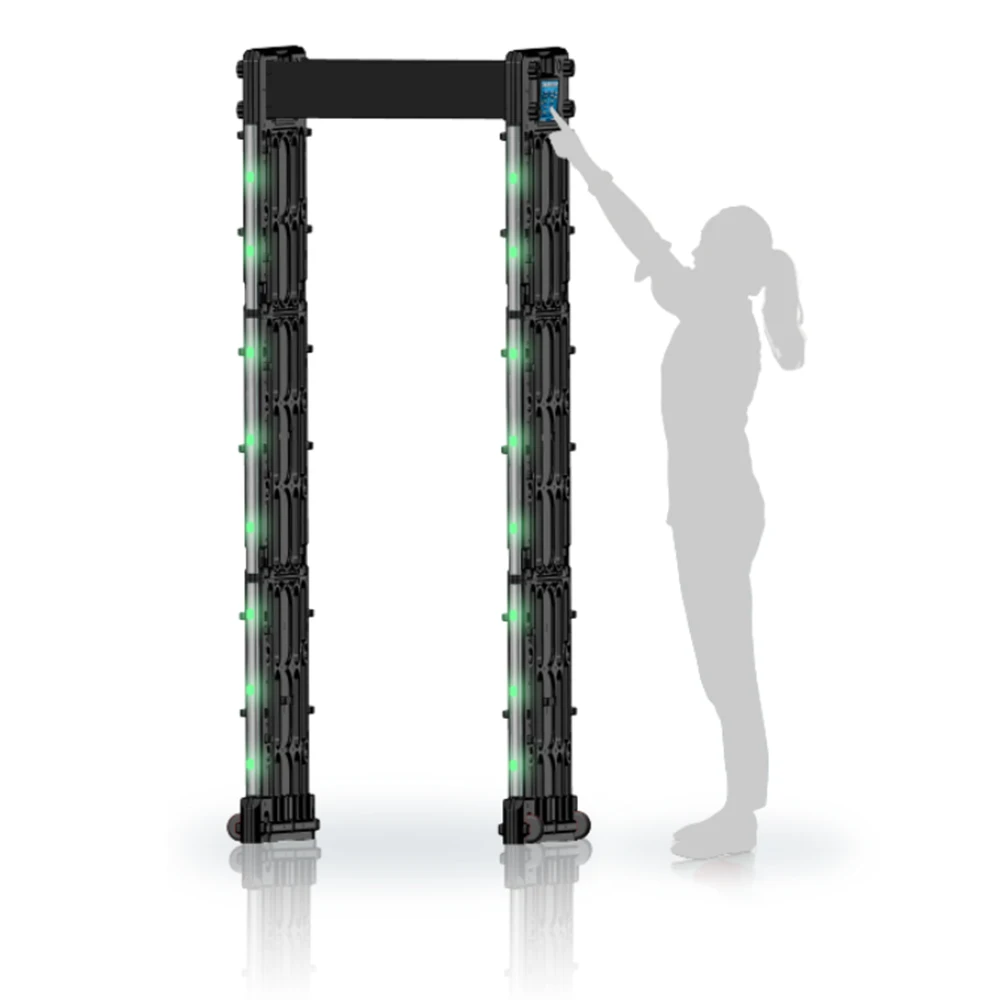

Multi zones walk through metal detector with temperature check function

Share on (62261338080):


Price:$500.00 - $600.00

Quantity:


Product Overview

Description



Product Description

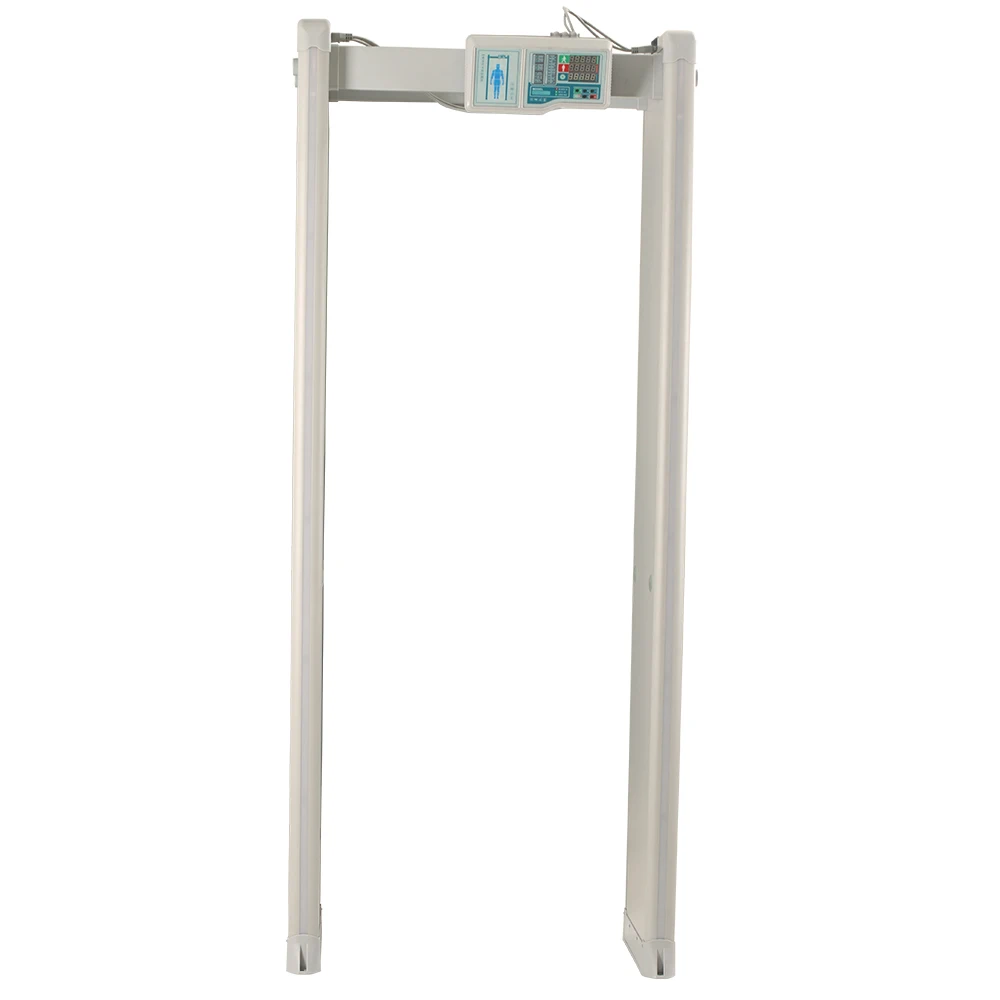

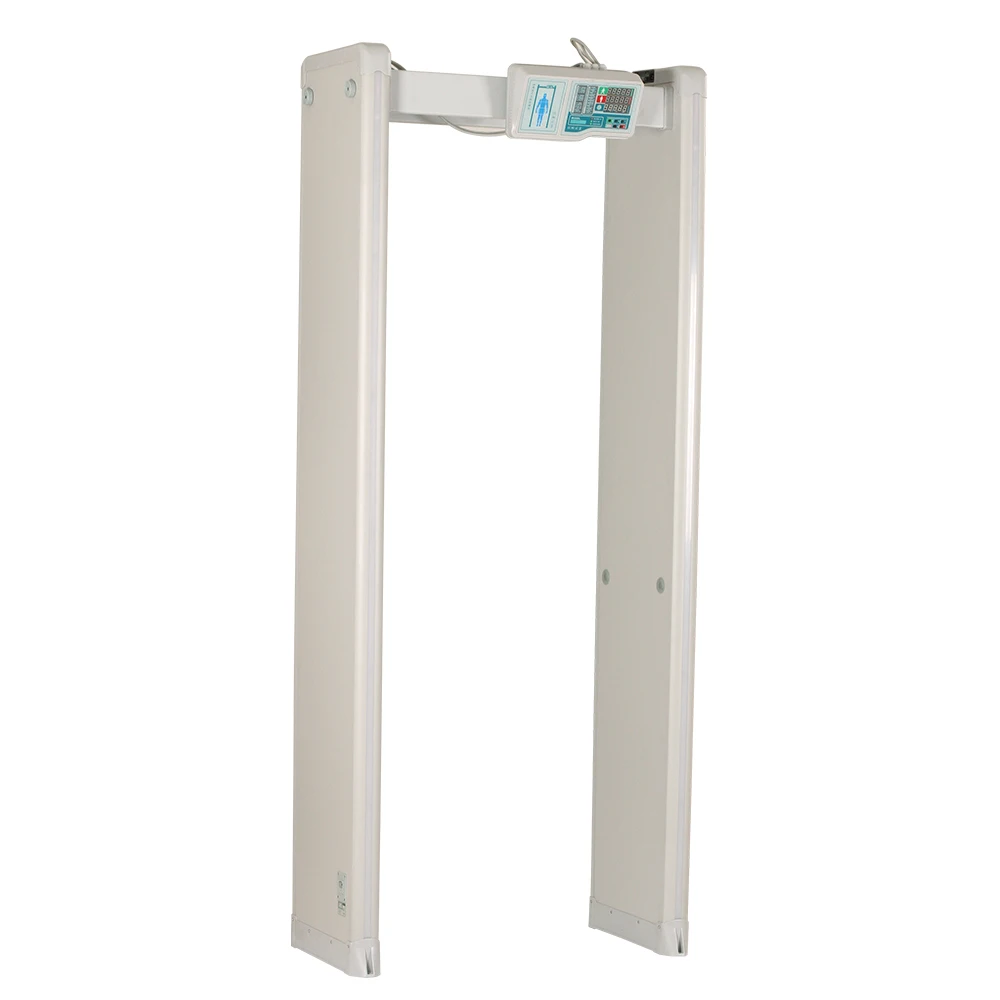

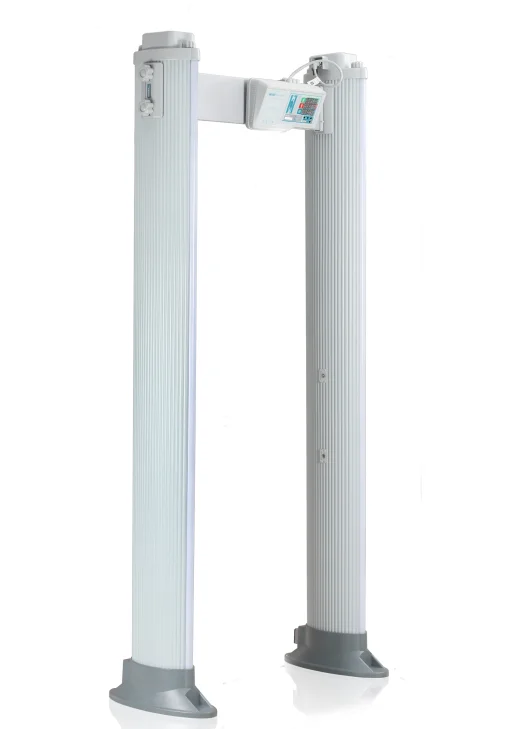

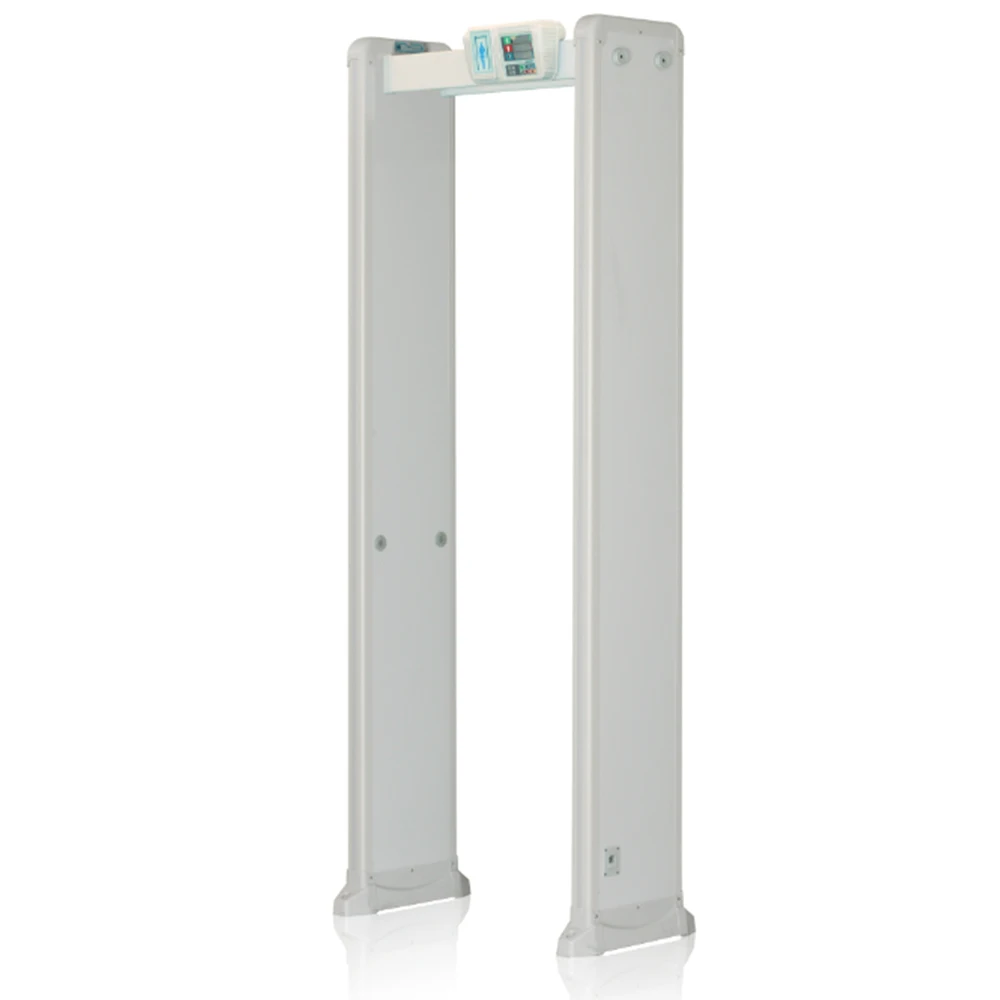

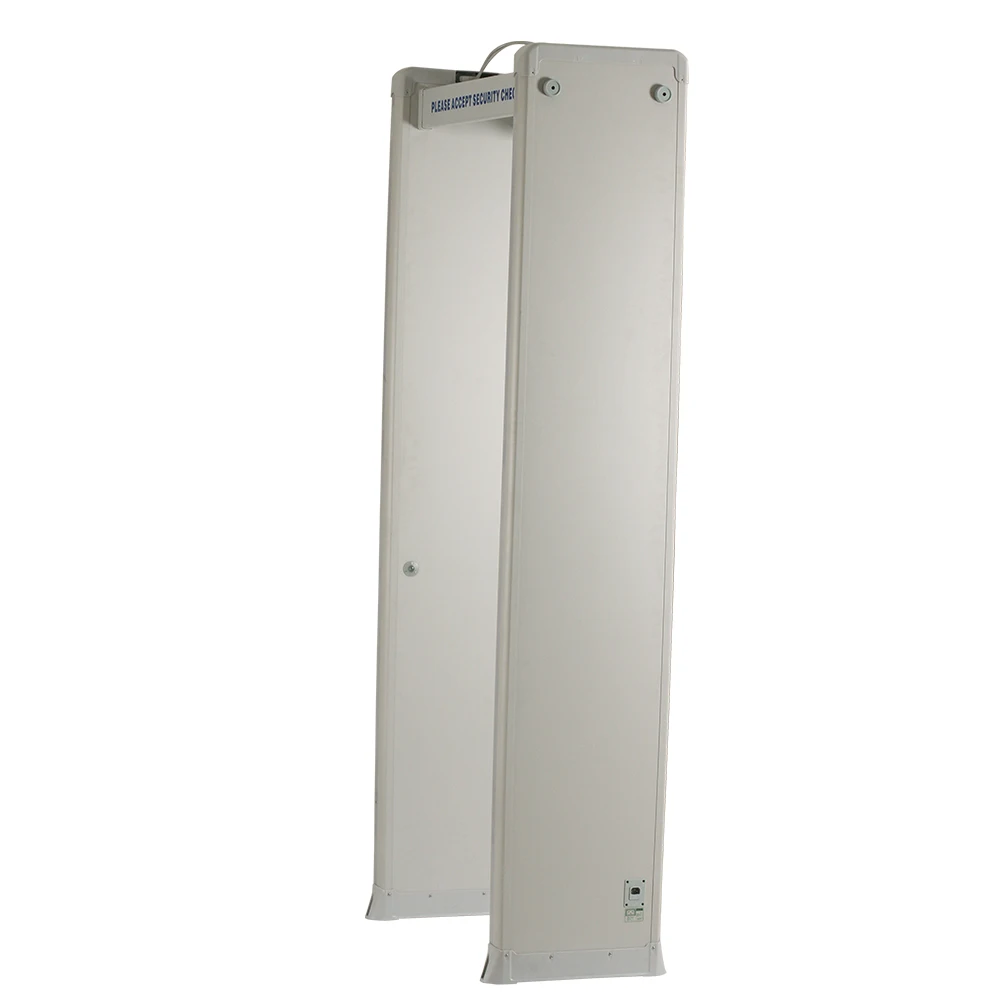

Walk Through Metal Detector

FA-TD series walk through metal detector can change detection zones according customers' demands, for example convert 6 zones to  18 zones, or 33 zones(optional feature);


We integrated 72 application occasions in the program, so it will change all zones sensitivity once you select on specific occasion, supporting 4 kinds of infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON





Model
FA-SD
FA-XIS10080
FA-XIS100100
Display
Dual high-brightness red LED
1018Wx810H
1018Wx1010H
Frequency
50 alternative operating frequency
Detection Zones
6/18/33
Detection speed
more than 60 persons/min
Working Voltage
AC90V~240V50/60Hz
Power Supply
20W
Each Zone Sensitivity Level
1-400 Adjustable
Security Level
100
Working Frequency Range
1-50bands
Working Environment Temperature
-20ºC~65ºC
Vertical Dimension
2240×670x850mm
Vertical Tunnel Size
2000x700mm
Packing Size
2400 X 545 X 620 mm
Net Weight
58KG
Gross Weight
66 KG

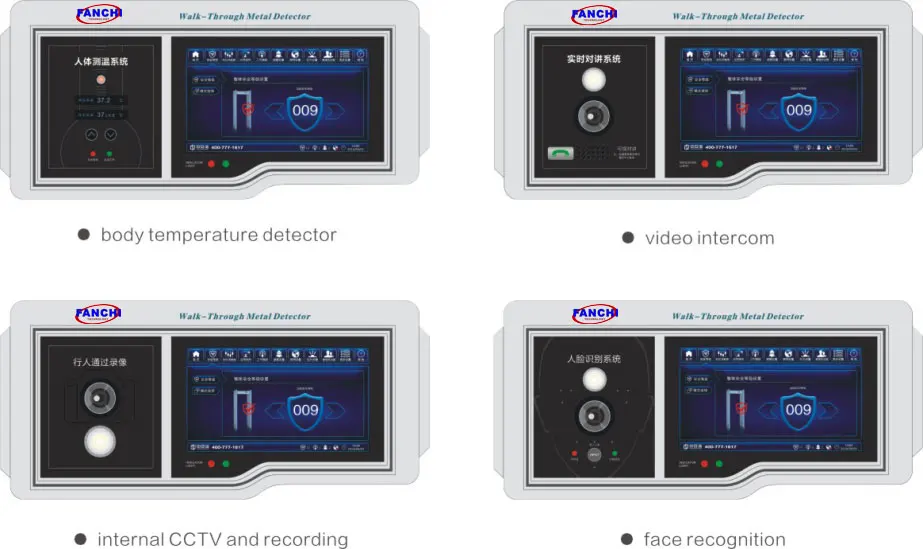

Optional Function
1.One-button remote control operation mode

2.Query the number of people in and out

3.Multiple alarm sound selection modes

4.Before and after the unilateral zone alarm indicators

5.12 independent probes, 12-18 interactive detecting zones

6.Restore factory settings




Main Features


Adjustable sensitivity for each detection zone

 Operating frequency can be adjusted manually or automatically

 Detection technology: advanced detection technology,no blind spot

 Internet technology: remote upgrade system and remote control system

 Working bands: 50 bands

 Each detection zone sensitivity level: 400

 Statistics: record the pass and alarm numbers simutaneously

 Query function: the system has real-time information query function

 Intelligent Standby: the system has intelligent standby operation alerts

 Capable of connecting PC terminal to change specifications at anytime, anywhere(optional)




Products






Packing & Delivery

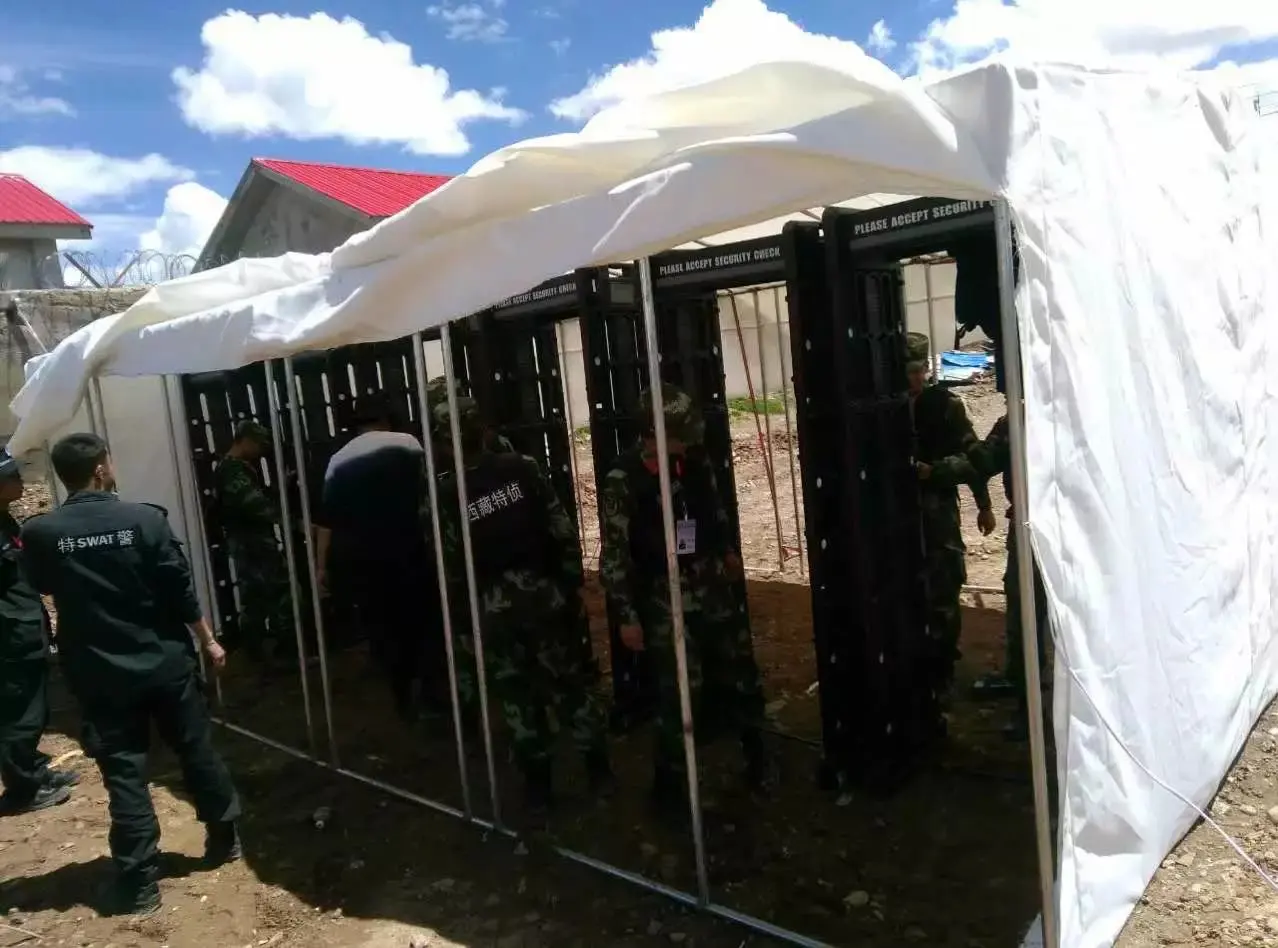

Case Reference
