Асептический упаковочный материал молочные продукты 1500 мм одновальный станок для резки
- Category: Dairy Processing Machines >>>
- Supplier: Hangzhou Dahua Industry Control Technology Co. Ltd.
Share on (62265122810):
Product Overview
Description
Product Description
Product Brief Introduction
This slitter is for diary packaging such as Tetra Pak products.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS | ||
Slitting Material | Paper-plastic composite material，Tetra pak milk box，aseptic packaging | |
Machanical Thickness | 320-550μm | |
Tension Range | 600～200N | |
Machanical Speed | 1000m/min | |
Slitting Way | Shear cut | |
Unwinding Way | Shaftless unwinding | |
Unwinding Width | 700mm-1350mm | |
Unwinding Diameter | MaxΦ1800mm | |
Unwinding Core Size | 6″paper core | |
Edge guide Way | Oscillation device | |
Rewinding Way | Central shaftless rewinding | |
Rewinding Width | 150mm-1350mm | |
Rewinding Diameter | MaxΦ1800mm | |
Rewinding Core Size | 6″paper core | |
Rewinding Station quantity | 7（Alternative） | |
Unloading Way | Unloading with air expanding shaft extraction device | |
Edge Trim Way | Vacuum suction system with smash function | |
Equipment Power | 380V, 50Hz, 3 phase AC | |
Equipment Size | About 6200 mm (length)×3000 mm (width)×2350 mm(height) | |
Control System | Germany siemens servo system | |

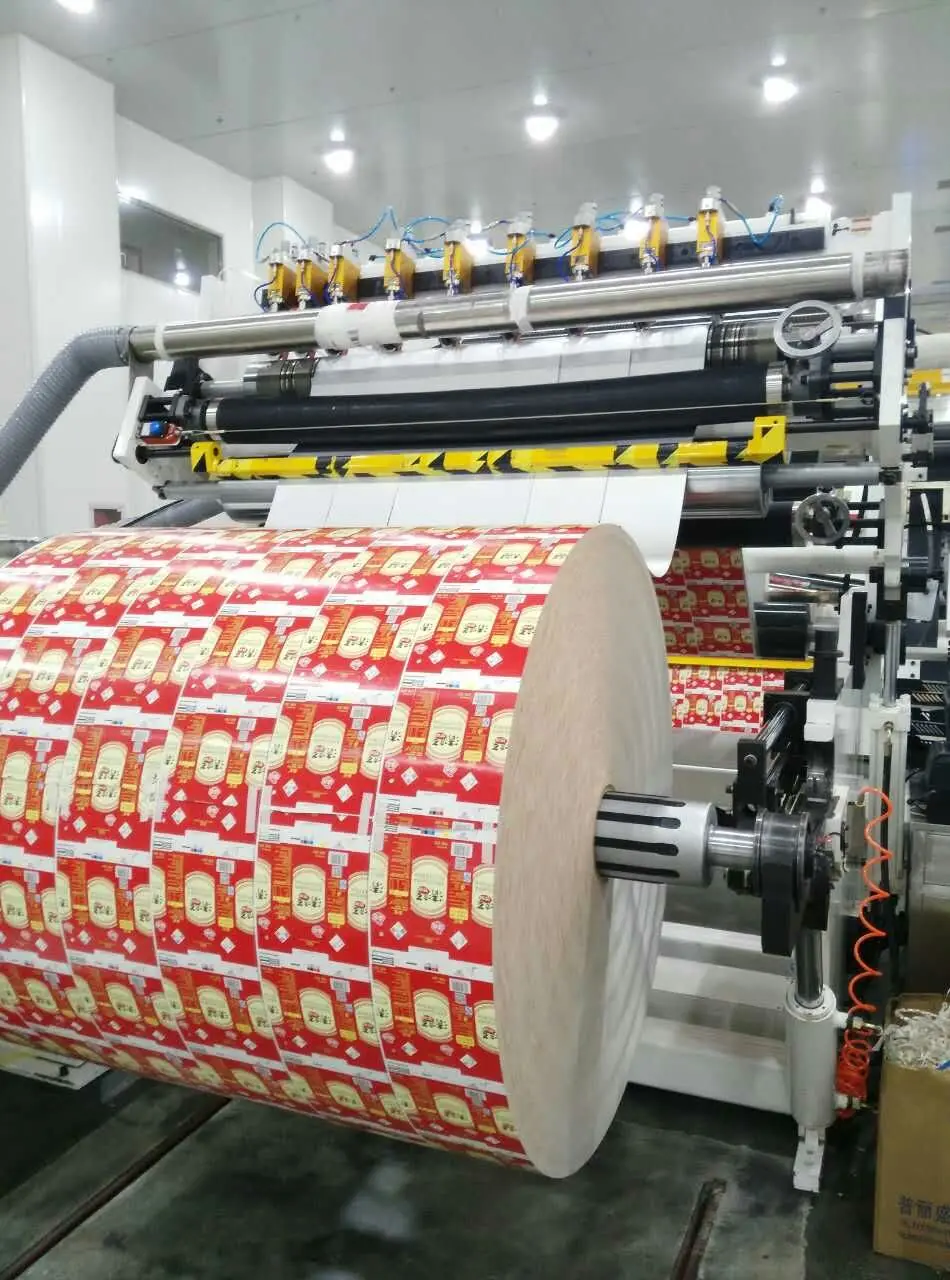

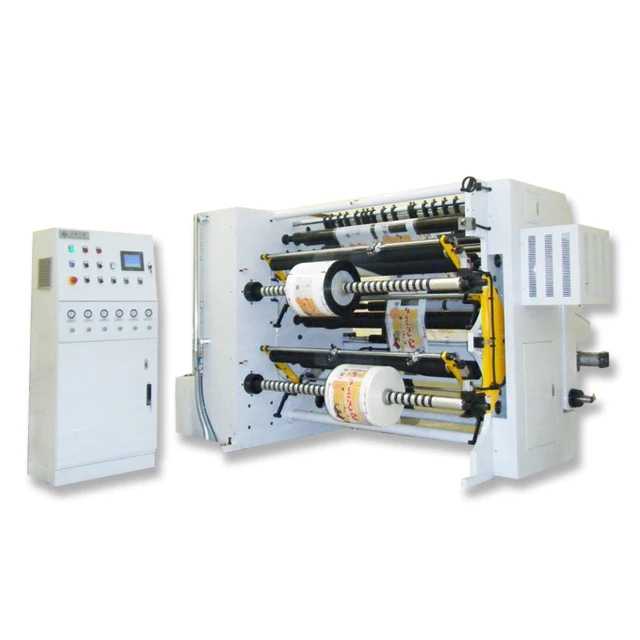

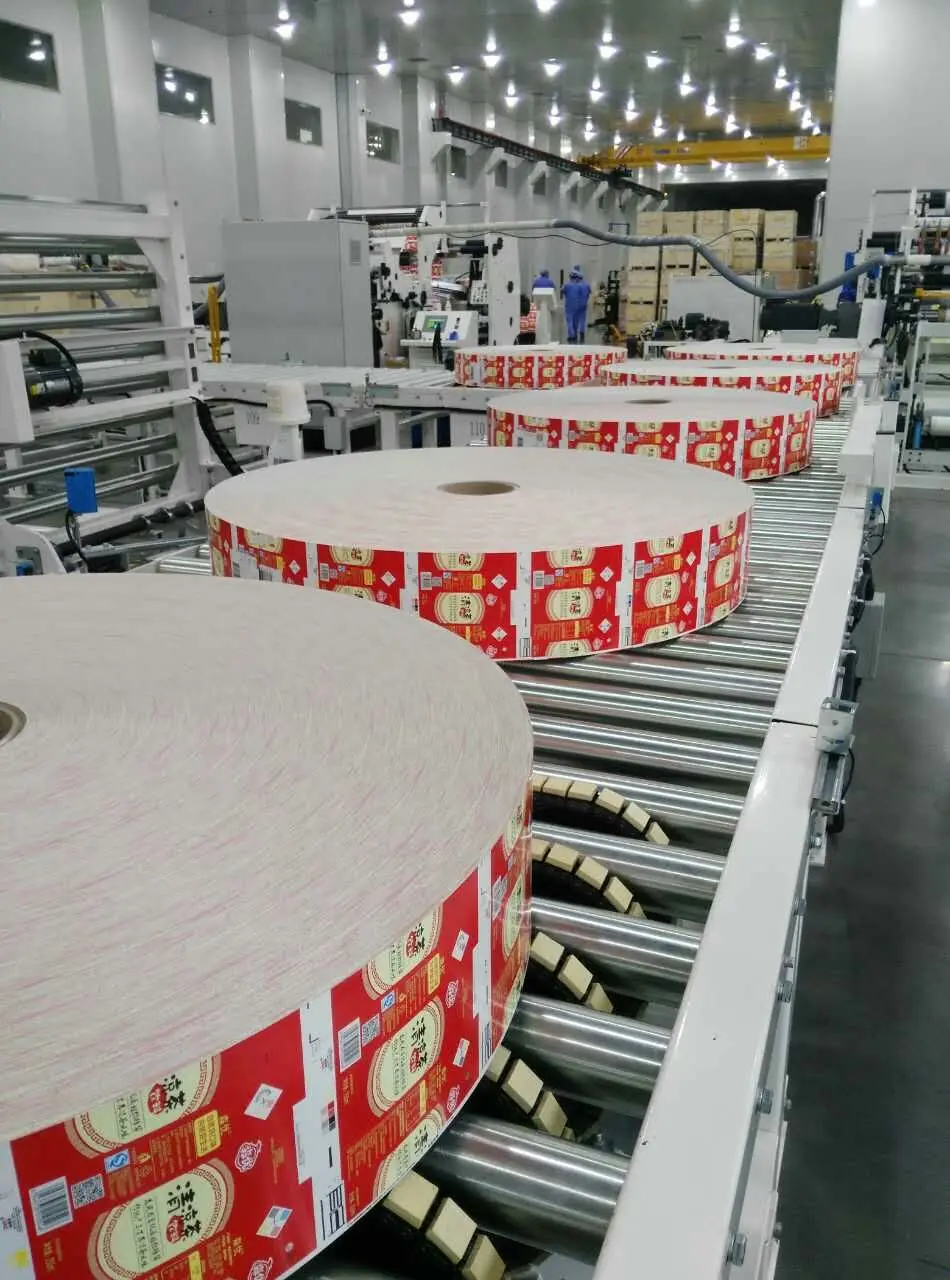

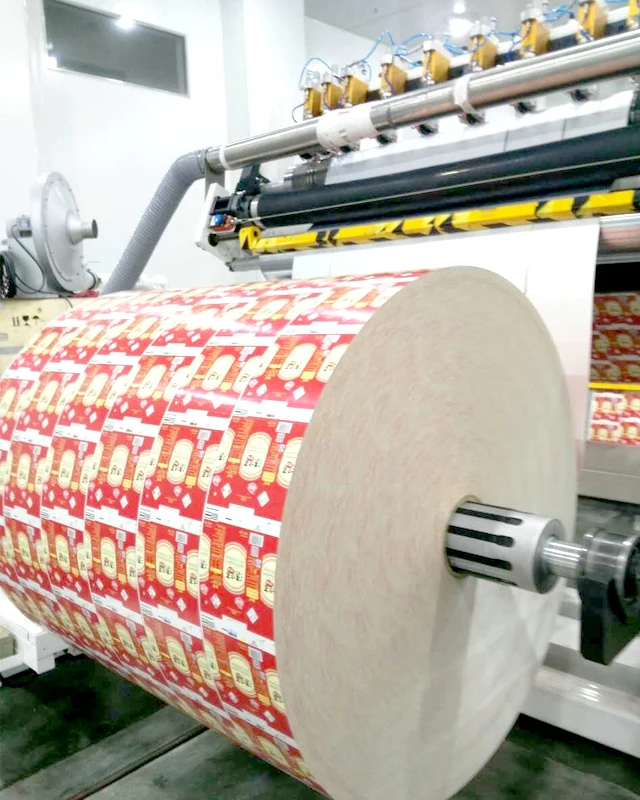

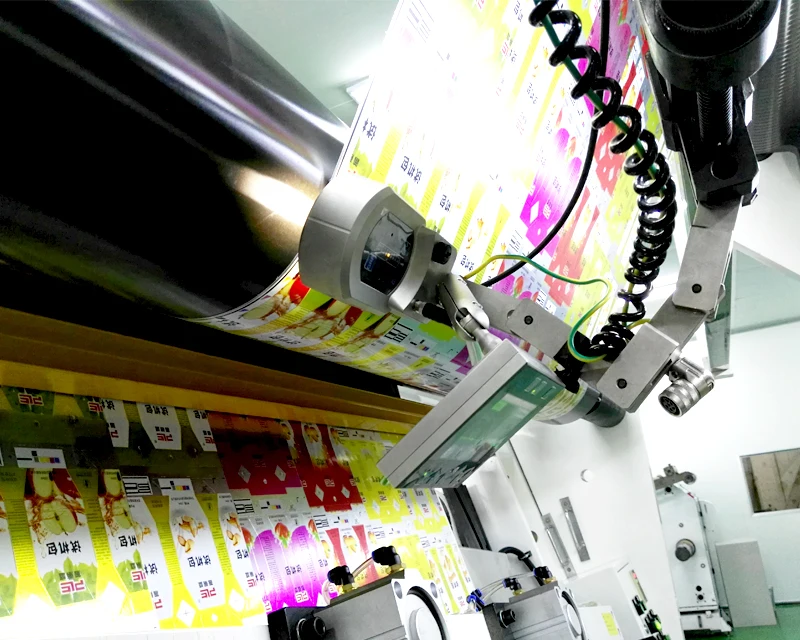

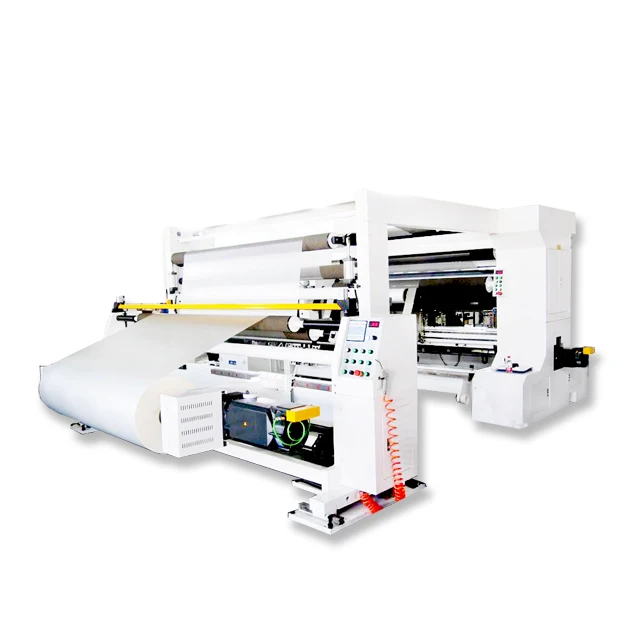

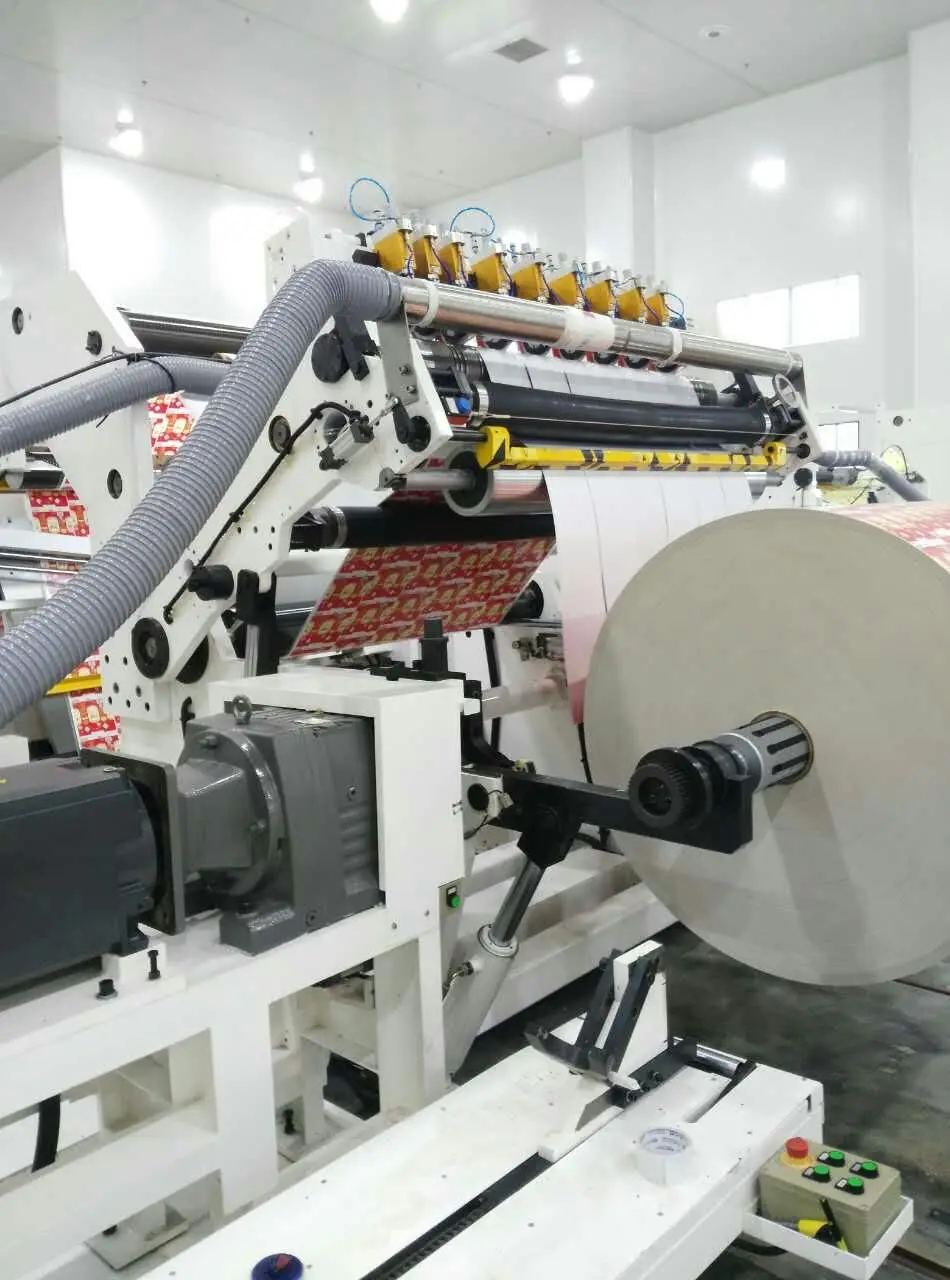

Detail Images
Equipment Main Feature
1、High efficiency with reliable performance |
2、Large tension control for board laminates |
3、Center rewinding technology to ensure the good quality finish roll |
4、Cost effective machine |
Acceptance index
1, Trial |
2, Quality guarantee |
3, Equipment cleanliness |
Special instructions of Equipment
1、The hydraulic lift system to pick up the unwinding roll easily. |
2、Individual rewinding station design instead of air expanding shaft, easy operation and save labor. |
3、Pneumatic shear cut system to slit the material properly and easy for knife movement |
4. Dancing roll design to control the tension properly. |
