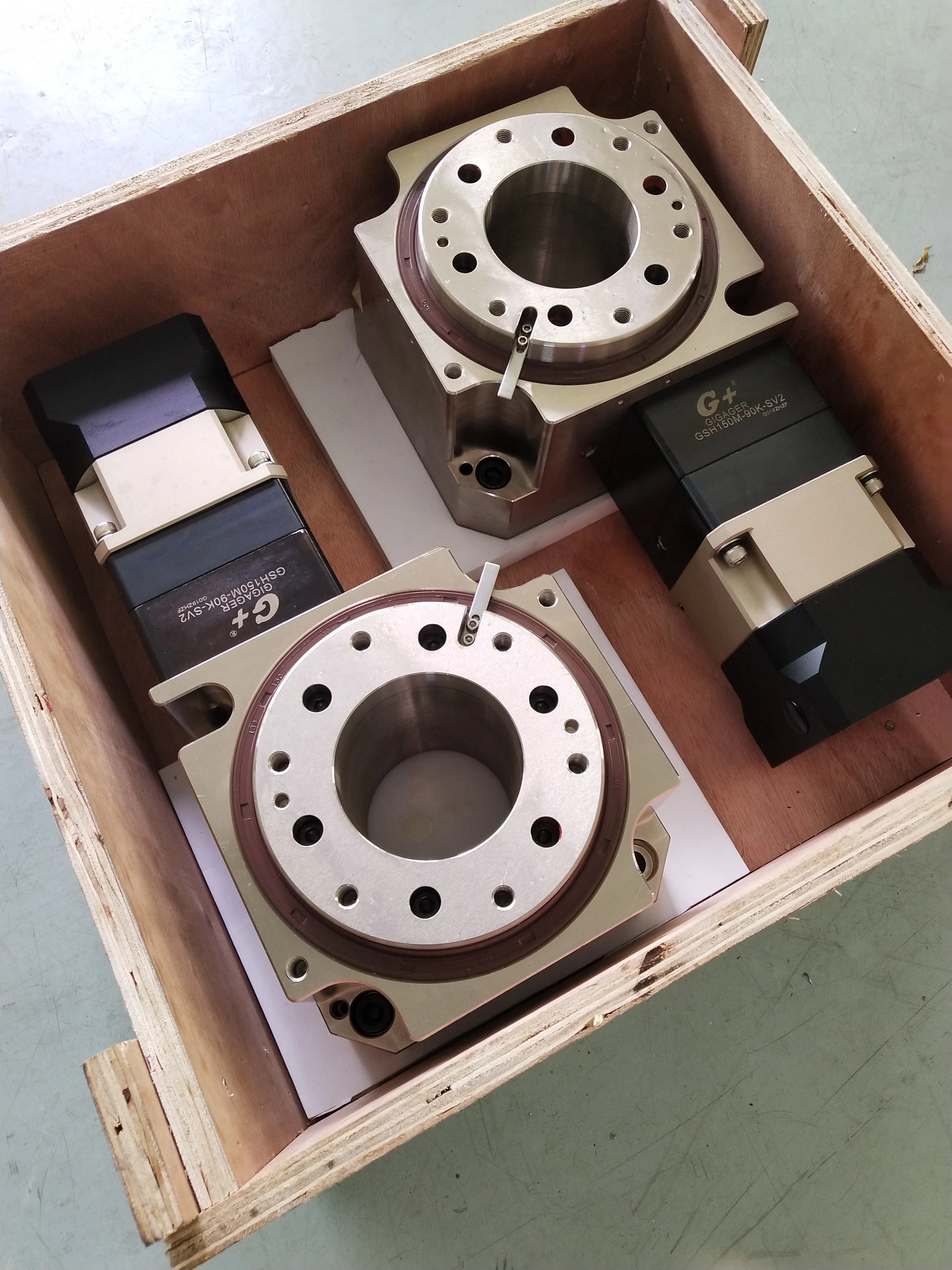

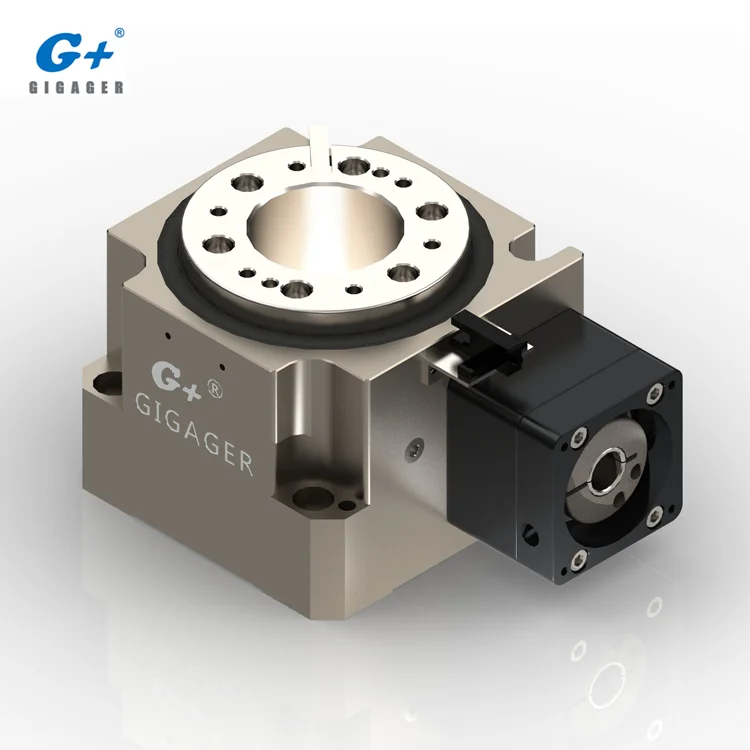

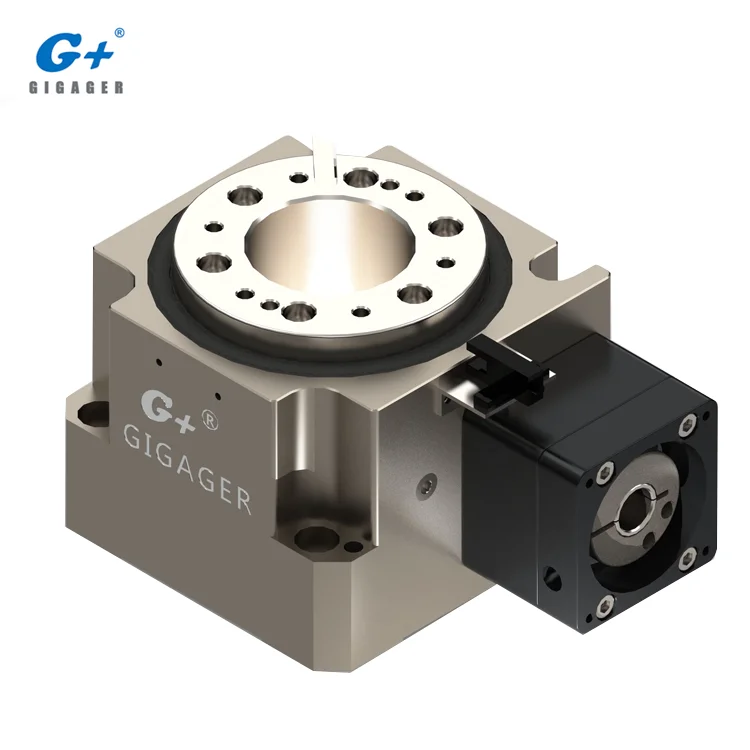

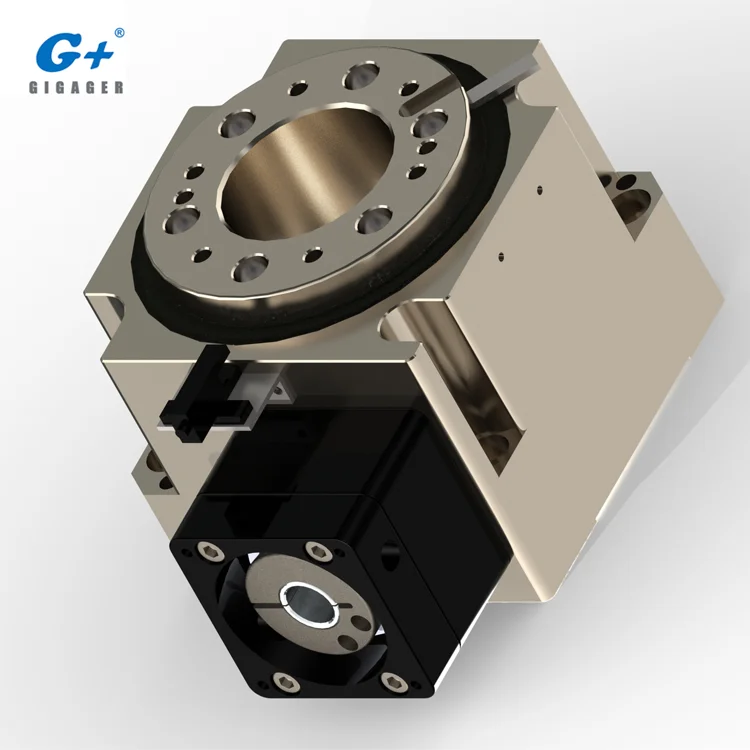

200mm Hollow Shaft hypoid gearbox High Load High Rigidity Servo Motor Hollow Rotary Stage

Hypoid Gear Rotary Table

Hypoid Rotary Table is a kind of gearbox integrated right angle gearbox and Hypoid gears, featured with high torque, high gear ratio, high IP grade, high precision, low wear. It adopts sliding mode to rotate, the transmission precision can reach 30 arc seconds, the transmission efficiency is up to 96%; the gear geometric tolerance ≤ 0.002mm, up to JIS0 level standard. Hypoid Rotary Table also called High Torque Rotary Stage, Hypoid Hollow Rotary Stage, Right Angle Hypoid Gearbox, etc.

Product Features of G+ Hypoid Rotary Table

•      Right angle design

•      High precision ,high torque, high regidity and long life

•      Stable using with low noise

•      Reliable and easy installation

•      IP Grade IP65

•      Gear ratio 30K

•      High Torque maximum 450N.m

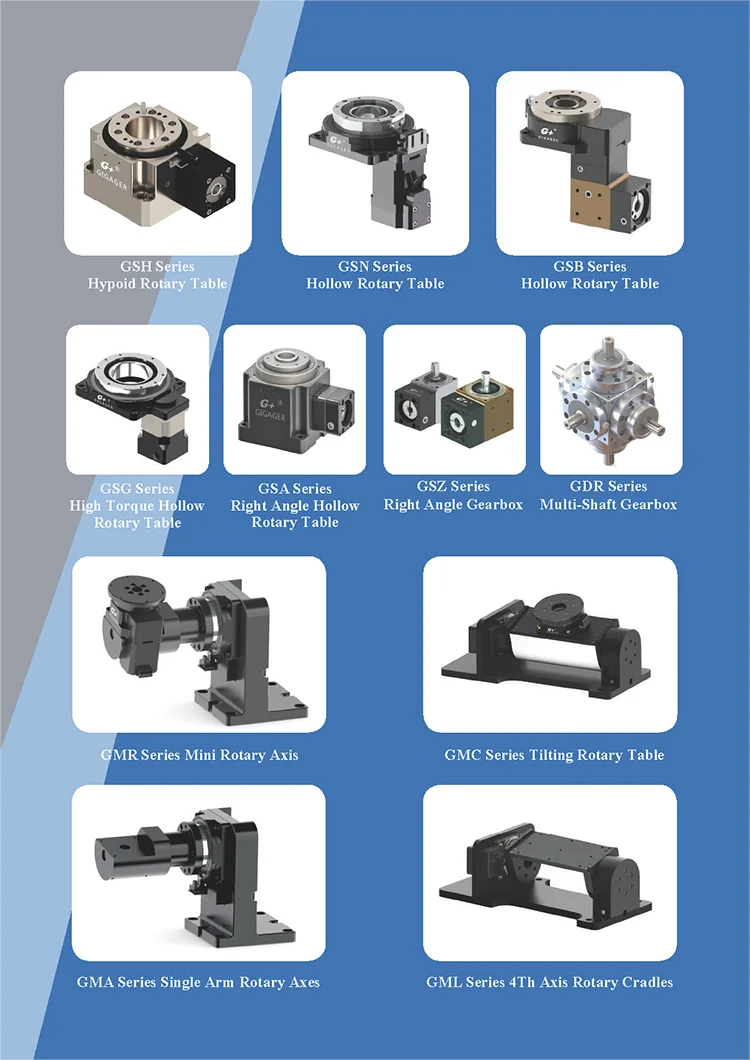

How Many Types Available

G+ Gigager Saini Intelligent provides 4 types of Hypoid Rotary Table.

Image Detail

Application of Hollow Rotary Actuator

The Hypoid Rotary Table is widely used for auto transmission system, CNC and robot arm fields.

Hypoid Rotary Table could be installed horizontal, suspension and side installation.

Guangdong Saini Intelligent Equipment Technology Co,Ltd. is a professional manufacturer integrated with production, R & D and sales for more than 10 years in China. We supply high precision hollow rotary actuator, harmonic drive gearboxes, high precision planetary gearboxes, 90 degree gearboxes ( for servo motors and stepper motors), right angle hollow reducer, high precision alignment platform, etc.

Besides of providing of the wide range of standard speed reducers, customized service is also available for motion control solutions and mechanical transmission solutions for customers all over the world for lithium battery industry, robot industry, mobile phone industry, printing industry, laser industry, medical industry, etc. The product served for the equipment of logo printing, CNC machine tools, packaging and printing program, welding and cutting, laser cutting machines, woodworking engraving machines, full servo paper tissue machineries, precision concave-convex printing machines, precision coating machines, servo pipe benders, digital control spring machine, and other equipment with high degree of automation.

Guangdong Saini Intelligent Equipment owns the brand G+, named GIGAGER.

Since its establishment, the company has been committed to providing customers with high quality and high performance products, and constantly introducing high-end well known brands at home and abroad to meet the demand of automation industry in China. Through continuous efforts and development, SaiNi sales network has been set up all over China, now, we are making efforts on developing overseas sales network around the globe. You are welcomed to join us to be a distributor in your local market. We can offer you full support from pricing, catalogue and technical support, etc. If we cooperate in depth, we are willing to bear part of the cost if you promote our speed reducers in the local market, such as attending the exhibition.

1,SaiNi provides a wide range of standard and customized motion control solutions and mechanical transmission solutions.

2,As a professional factory, we can provide customers with very competitive price with good quality. GIGAGER speed reducers are featured with lower backlash (≤1 arcmin), higher efficiency (≥95%) and lower noise (65dBA). And all gearboxes produced by SaiNi will be tested strictly before they leave the factory. Besides, one-year’s warranty and life long after-sales service is offered to our customers.

3,We offer 24 hours professional technical support.

4,We offer custom built service according to your requirement.

5,Fast delivery time. For standard speed reducers, we have sufficient stock and can delivery to the customer in very short time.

Q1. How to choose a reducer which meets our requirement?

A: You can refer to our catalogue to choose the reducer or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.

Q2. Do you sell the motors?

A: We have stable motors suppliers who have been cooperated with us for a long-time. We can provide motors with high quality.

Q3. Are you a manufactuer or trading company?

A: We are a manufacturer.

Q4. What information shall we give before placing a purchase order?

A: Please tell me Type of the reducer, ratio, input and output type, input flange, mounting position, and motor information etc.

Q5. What are your terms of payment?

A: 100% before delivery. We'll show you the photos of the products and packages before the delivery or you can do inspection before delivery.

Q6. What are your terms of delivery?

A: EXW, FOB, CIF.

Q7. How about your delivery time?

A: Generally, it will take 5 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.

Q8. Can you produce according to the samples?

A: Yes, we can produce as per your samples or technical drawings. We can build the molds and fixtures.

Q9. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q11: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;

A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
