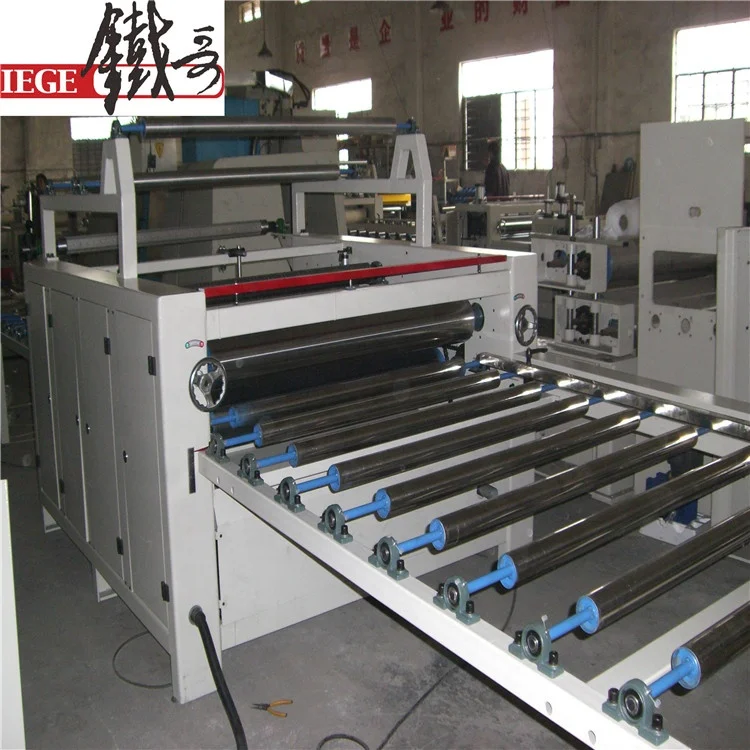

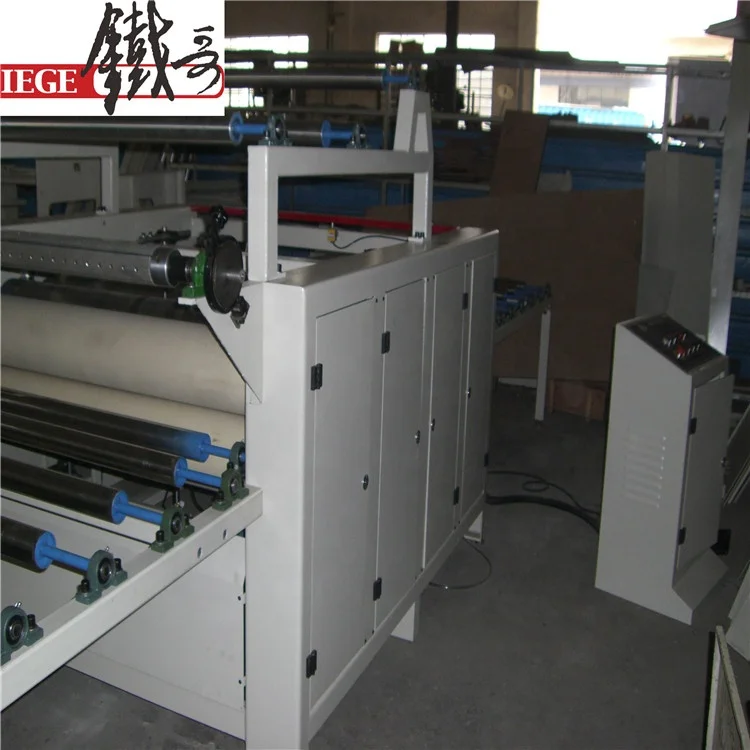

paper sticking machine TMC TIEGE China

   Equipmen t

Specific

ation

Front-back feeding

Glue spreading equipment,  Paper sticking equipment,  automatic paper cutting equipment  ,hot press equipment

 Board width

1220mm

Board thickness

2-30mm

Working speed

8m/min

Power

6.5kw

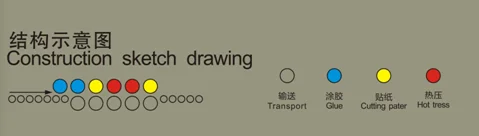

Diameter×Length×Number

Feeding roller:

63mm×1200mm×16

Steel roller:190mm×1300×1

Paper Sticking Roller:190mm×1350mm×6

Glue spreading rubber roller:190mm×1350mm×1

Glue spreading steel roller:155mm×1350mm×1

Hot press roller:190mm×1350mm×2

Up-down system

Manual

Main motor

1.5KW

Heating power

4KW

Max.temperature

120℃

Max.press

Spring pressure

Paper tensioner

Manual brake

Dimension

6500×1900×1700mm

Weight

3000kg
