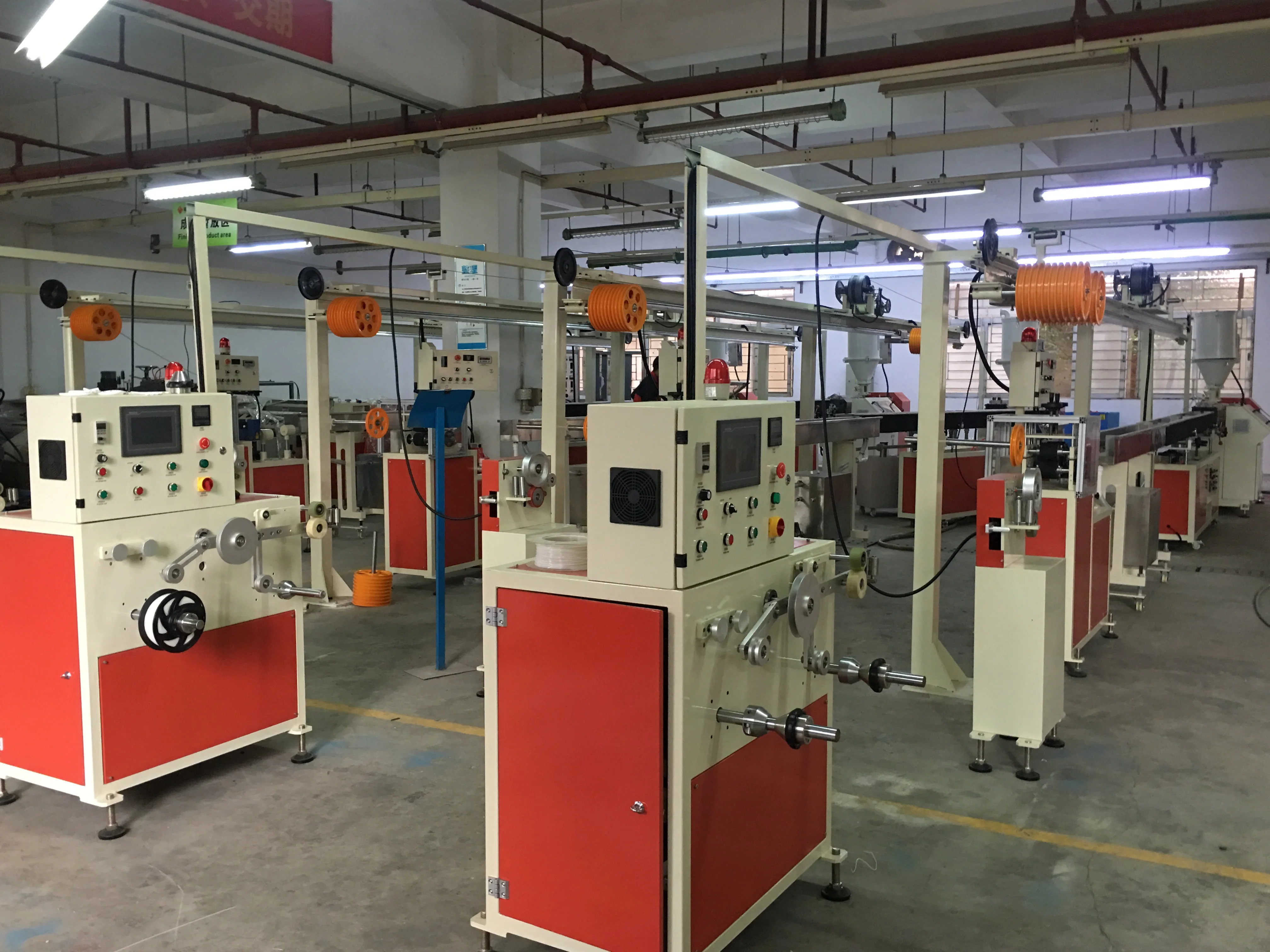

1.75mm ABS PLA plastic lab filament extruder machine/3D Printer Filament Extruder Line Abs Extrusion Machine Line neat winding
- Category: Plastic & Rubber Machinery >>>
- Supplier: Donguan Songhu Plastic Machinery Corp. Dalingshan Branch
Share on (62281186189):
Product Overview
Description
1. Introduction of production line
There is big market for 3d printer filament along with the developing of 3d printing technology. We have shipped many production line to USA, Brazil, Korea, Germany, Poland.
The machine specially designed for making 3D printer filament, we can make some small change in configuration to fit different material.
Based on your requirement, we can design single filament extruder or twin-filament extruder for your chooice. for sinle filament production line, the line speed is up to 80-120m/min
Detailed configuration of machine:
1.1 Overall Basic Technical Information of 3D Printer Filament Extrusion Line | ||
Item | Technical parameter | Remarks |
Voltage | 3 Phases + Neutral | Customized |
Raw material | TPU ABS PLA etc. | Granule |
Product range | 1.75 3.0 mm | With plus or reduce 0.03mm |
Install Power | 35KW | The power the factory should install |
Power rating | 30KW | Maximum power when operating |
Power consumption | 8-10KW | Nominal power consumption |
Output | 15-25kgs/h | Changing according to producing condition |
Machine size | 14.5x1.5x2.3meter | Can according to your requirements |
Machine Weight | About 2300KGS |
|
Container Size | 20GP | Around 11.3CBM |
Packing | Stable the machine by wooden pallet |
|
Delivery time | 35 working days | When is the receipt of the deposit |
Certificate | CE and 7 National patent | |
Item | Equipment line | QTY/SET |
1 | 50kg Mixer | 1 |
2 | 50kg Hopper dryer | 1 |
3-1 | SHSJ-45 Single screw extruder | 1 |
3-2 | Die head( single filament) | 1 |
4 | 4m hot and cold Water tank | 1set each |
5 | haul-off unit | 1 |
6 | Horizontal tension and accumulation system | 1 |
7 | Roundness Laser Measuring unit | 1 |
8 | dual-station winding unit | 1 |
9 | Vacuum Packing Machine |
