Stone Washer Rock Sand Washing Machine Rotary Drum Washer
- Category: Sand Washer >>>
- Supplier: The Nile Machinery Co. Ltd.
Share on (62282676717):
Product Overview
Description
Products Description
Spiral sand washing machine is the washing equipment of artificial sand (including natural sand). Screw sand washing machine is widely used in sand yard, mine, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries.

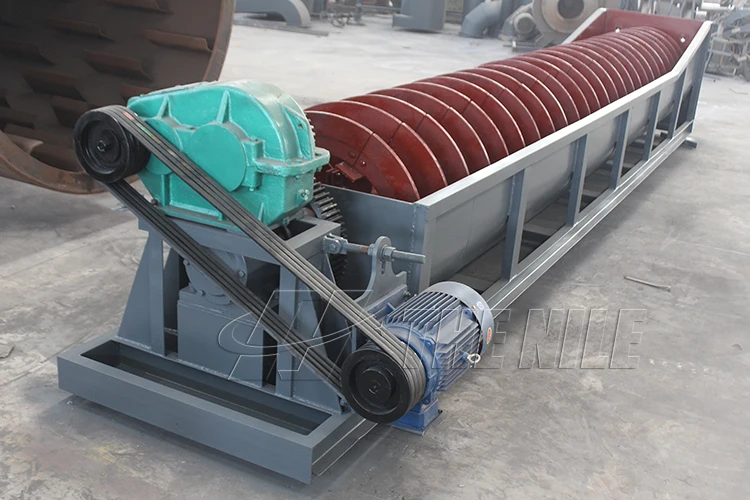

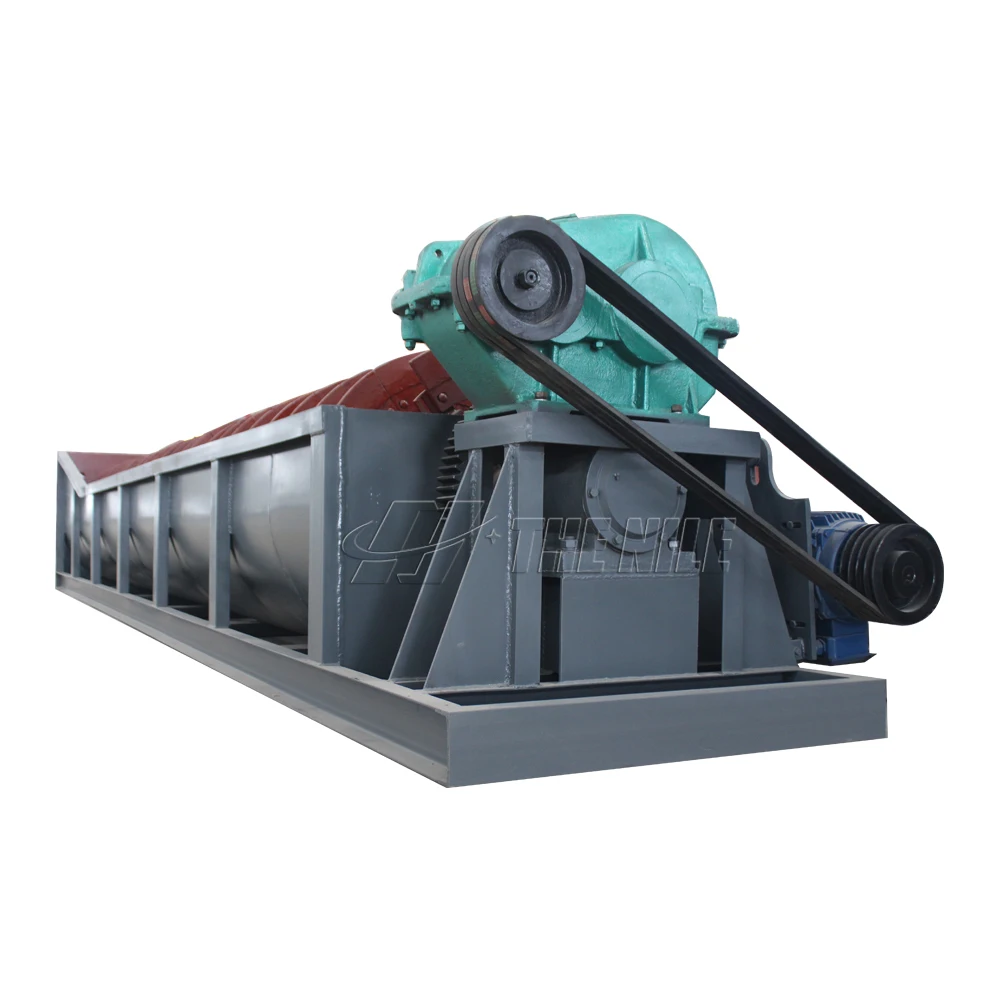

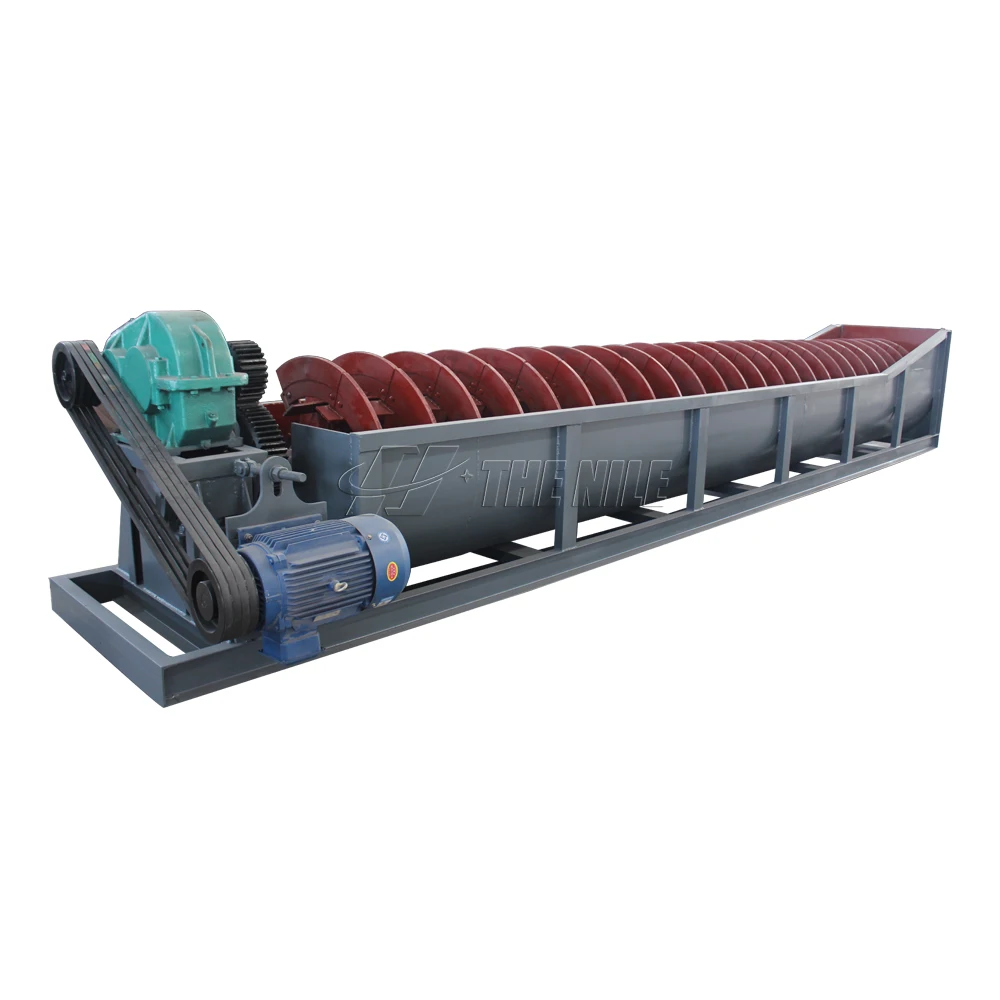

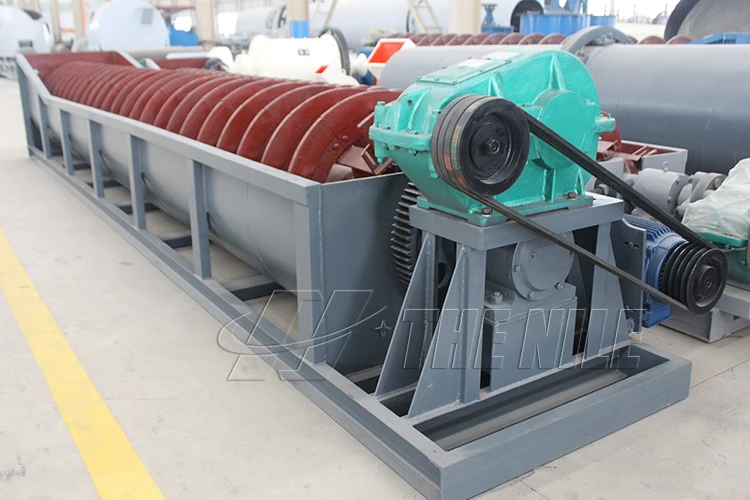

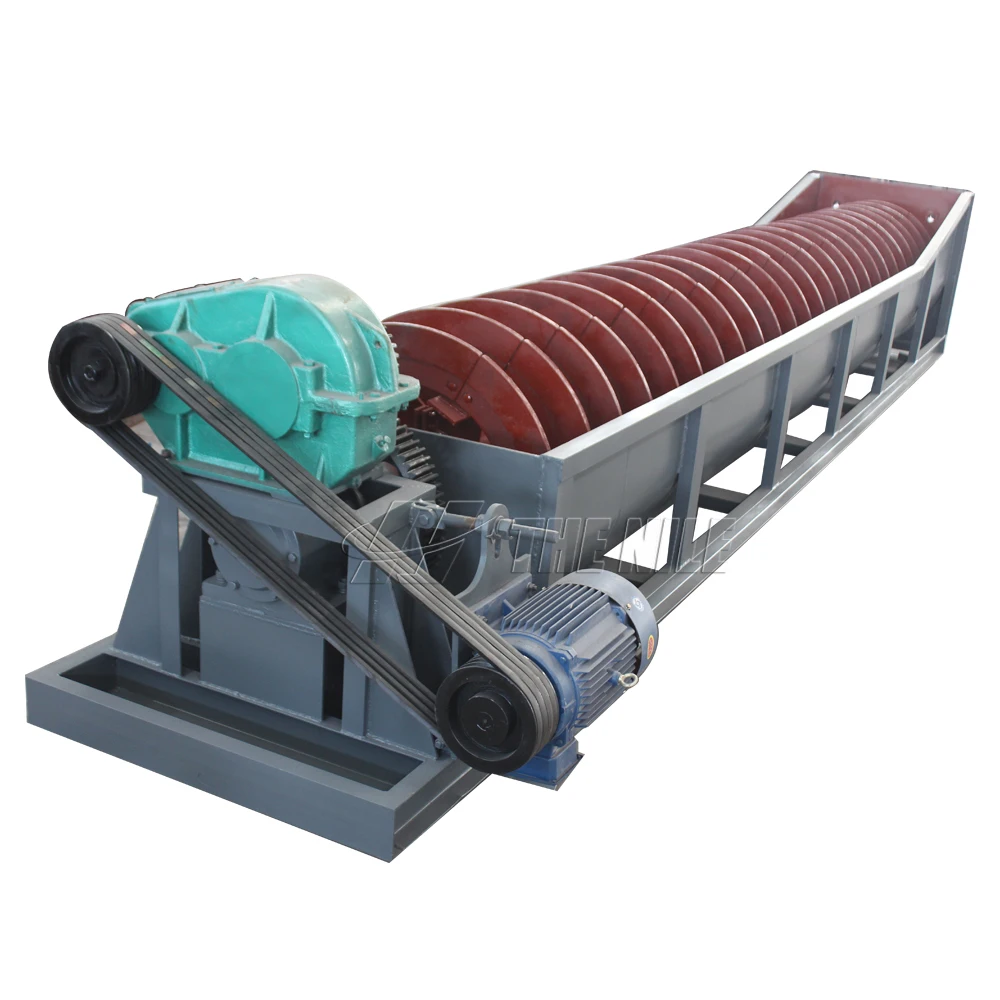

Working Principle of Spiral Sand Washing Machine
When the spiral sand washing machine works, the constant sharp motor drives the impeller to rotate slowly after the gear slows down through the triangle belt, the reducer and the gear decelerates. The sand and stone feed groove enters the washing tank, rolls under the drive of the impeller, and grinds each other to remove the impurities covered with sand and stone, and at the same time destroy the water vapor layer covered with sand particles in order to facilitate dehydration. At the same time, add water to form a strong flow, take away impurities and small.
Features of Screw Sand Washing Machine
1.The screw sand washing machine is simple in structure and stable in performance. The bearing device of impeller drive is isolated from water and water-receiving materials, and the phenomenon of bearing damage caused by soaking, sand and pollutants is avoided as far as possible.
2.Very little loss of fine sand and stone powder.
3.Large processing capacity and low power consumption.
2.Very little loss of fine sand and stone powder.
3.Large processing capacity and low power consumption.
Technical Data
Model | Diameter(mm) | Capacity(t/h) | Power(kw) | Weight(kg) |
LSX-508 | 508 | 10 | 5.5 | 2800 |
LSX-610 | 610 | 20 | 7.5 | 3250 |
LSX-750 | 750 | 50 | 7.5 | 3820 |
LSX-915 | 915 | 60 | 11 | 4550 |
LSX-1200 | 1200 | 95 | 15 | 6900 |
LSX-1500 | 1500 | 130 | 18.5 | 8800 |
Product Details
Packing & Shipping
Company Profile
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.
Our Advantages
Overseas Service
1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .
2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .

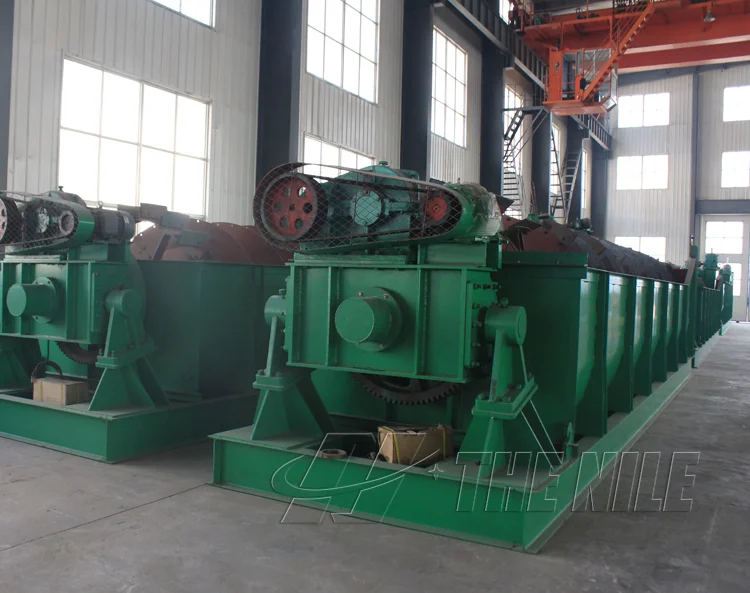

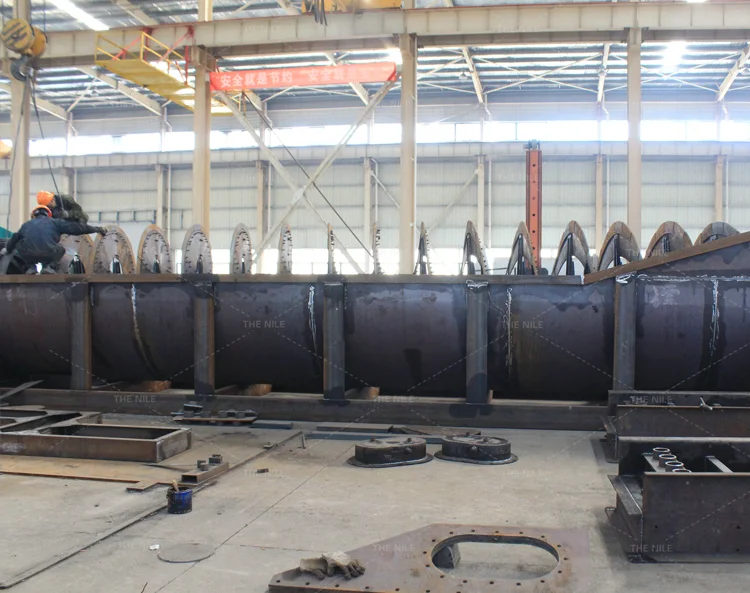

Factory and Warehouse in Kenya
