Product Overview

Description

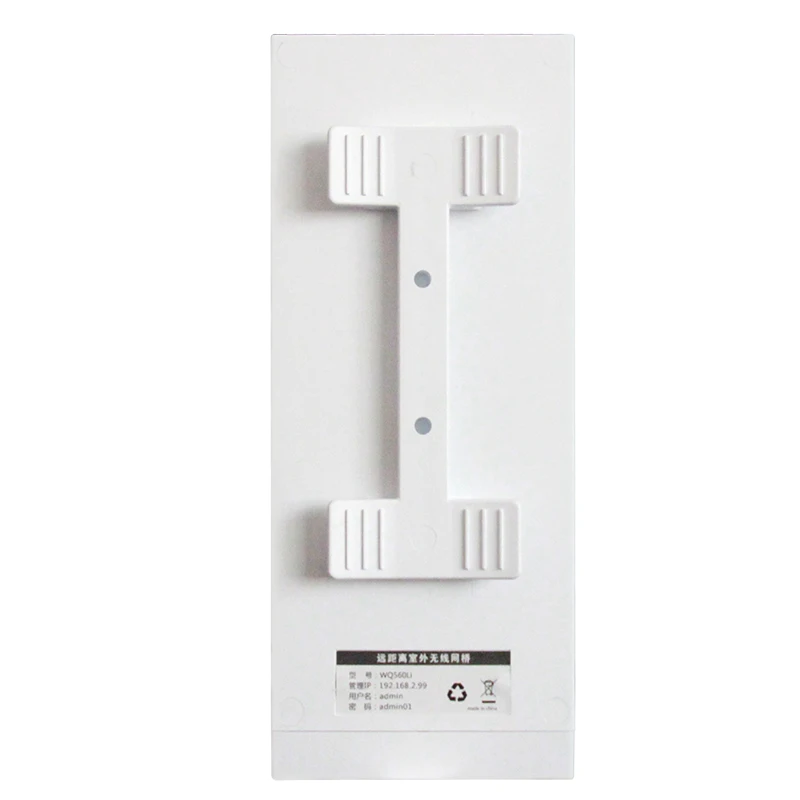

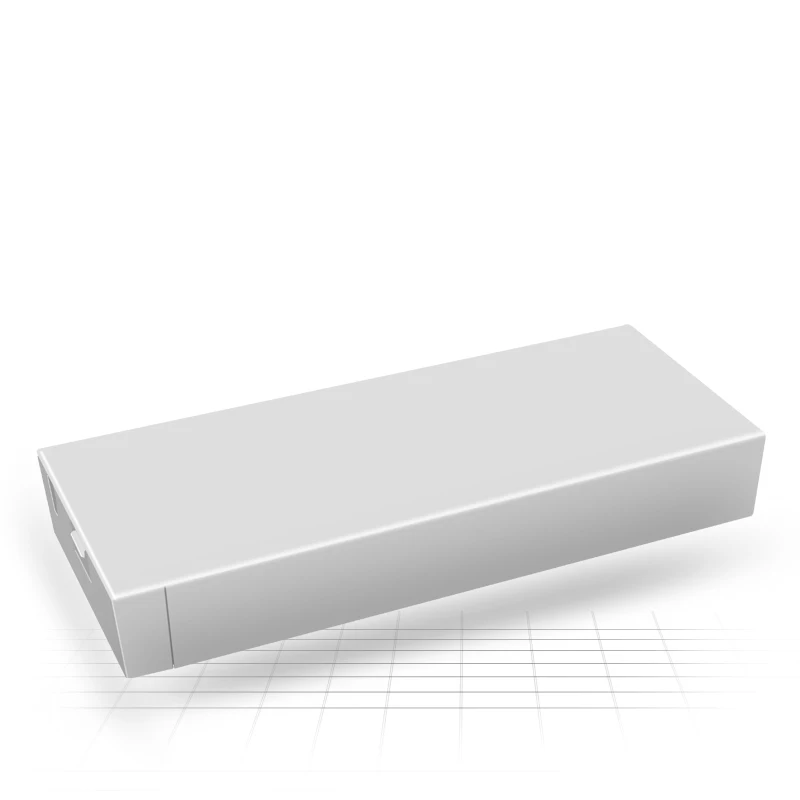

WQ-580L wireless cpe

This new band product WQ-580L is made of engineering ABS plastic, it is waterproof and anti-oxidant. It meets the equirements of outdoor use.

5km wifi transmitter and receiver 5.8g wifi mesh router access point

Andy Shaw

Mob/Wechat/Whatsapp: +86 130 5334 3539

live:e125cf9f4b64b661

QQ: 1211031999

Model number
WQ-580L
Chipset
Atheros AR9342 560Mhz
Frequency band
5.150-5.850GHz
PTP distance
5km
Through out
300Mbps
Antenna gain
16dBi
Interface
1*10/100 Base-T, RJ45
Power supply
24V PoE

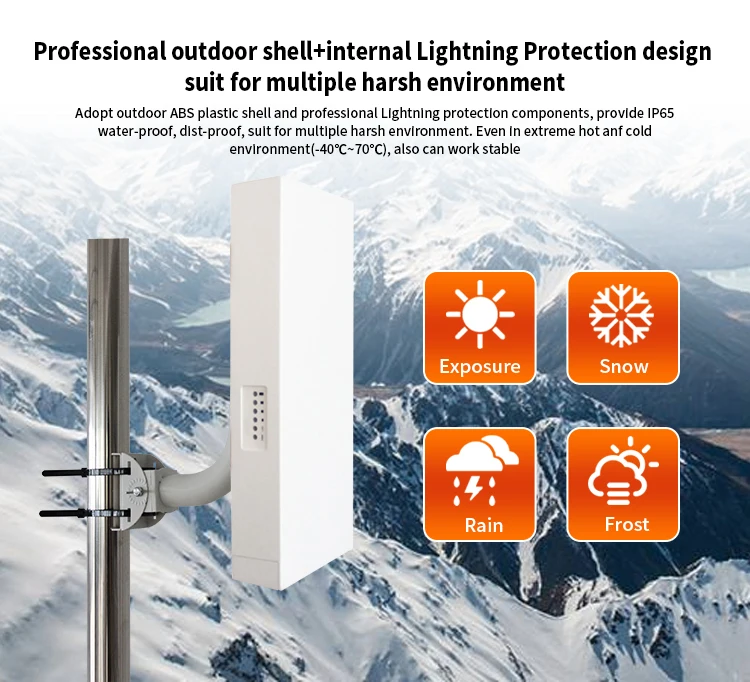

It is not afraid of severe heat and cold, WQ-580L can wokr stably in -40℃. IP65 protection can effectively prevent dust and sun exposure.

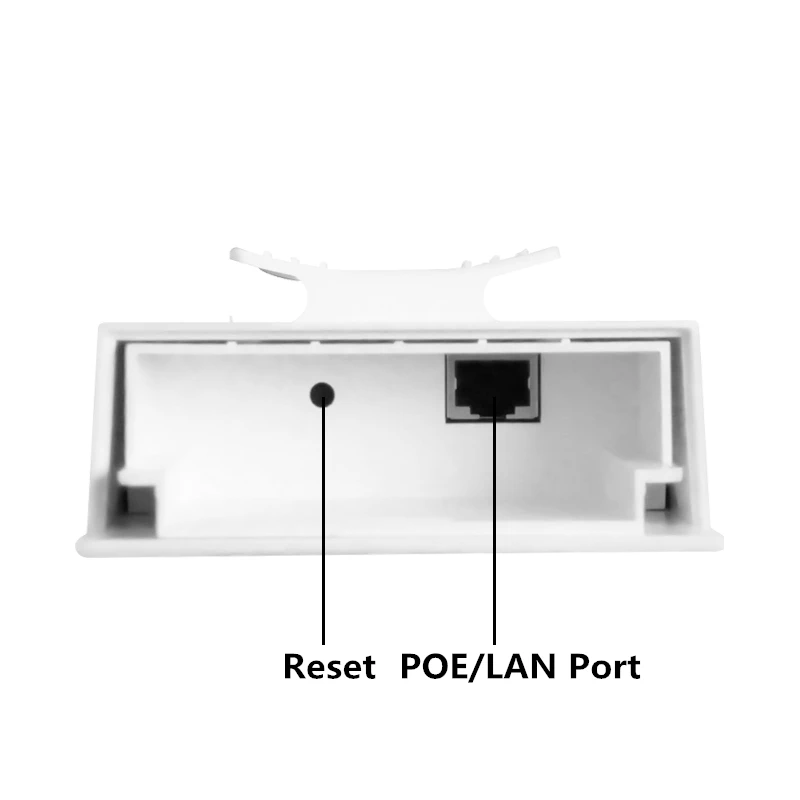

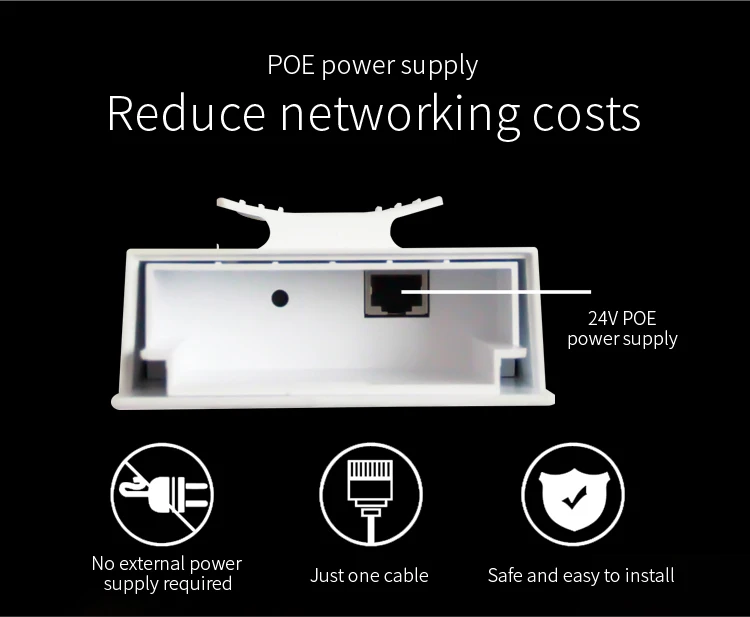

WQ-580L supports 24V power supply, this makes it more adaptable to the outdoor installation environment. we just need one network cable to connect CPE and PoE adapter. PoE adapter power WQ-580L wireless CPE, data comes from Lan port to PoE adapter.

1. No external power supply required

2. Just one cable to transmit both signal and power

3. Safe and easy to install
* Ultra-thin appearance and industrial Grade Design

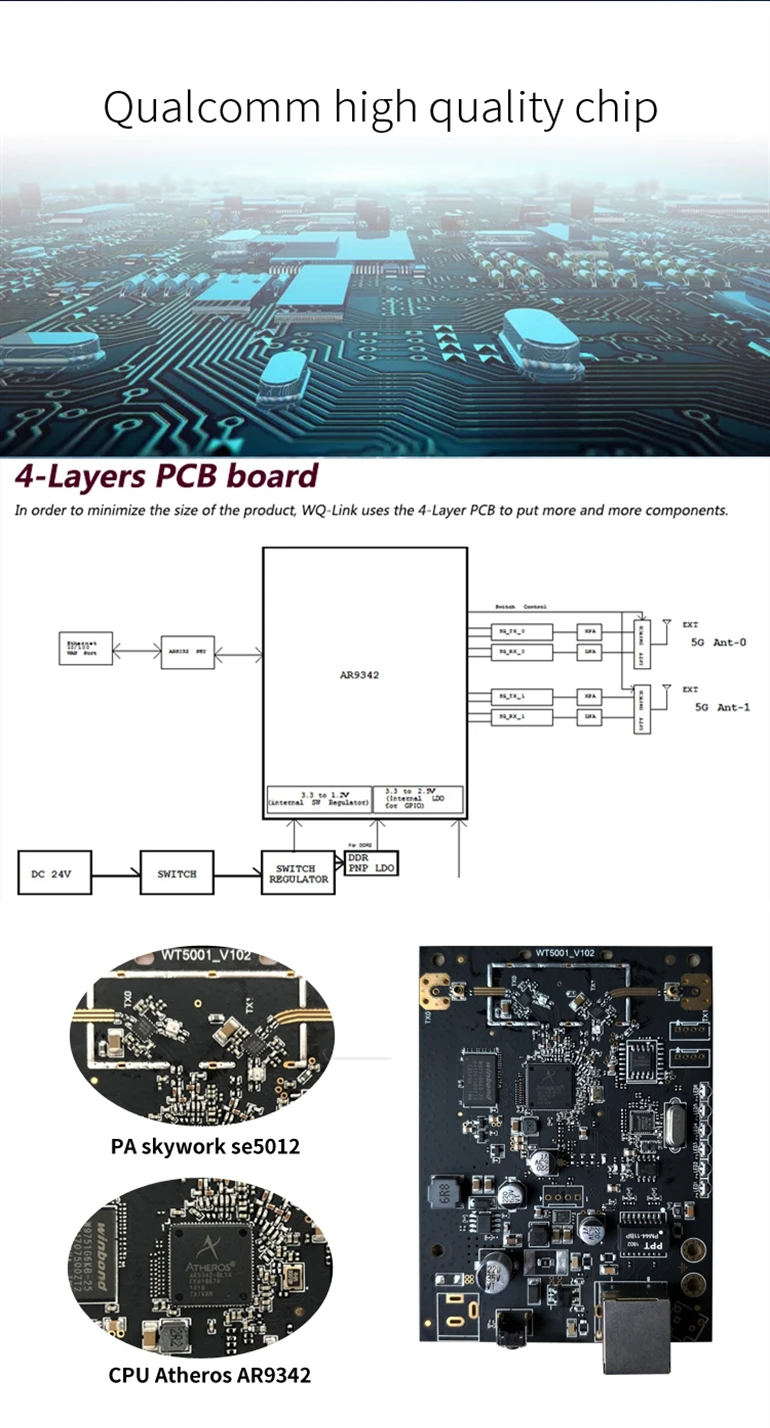

* Qualcomm QCA9342 chipset, performing powerful and stable
* 802.3af / at is compatible with standard POE power supply
* Build-in hardware smart antenna system

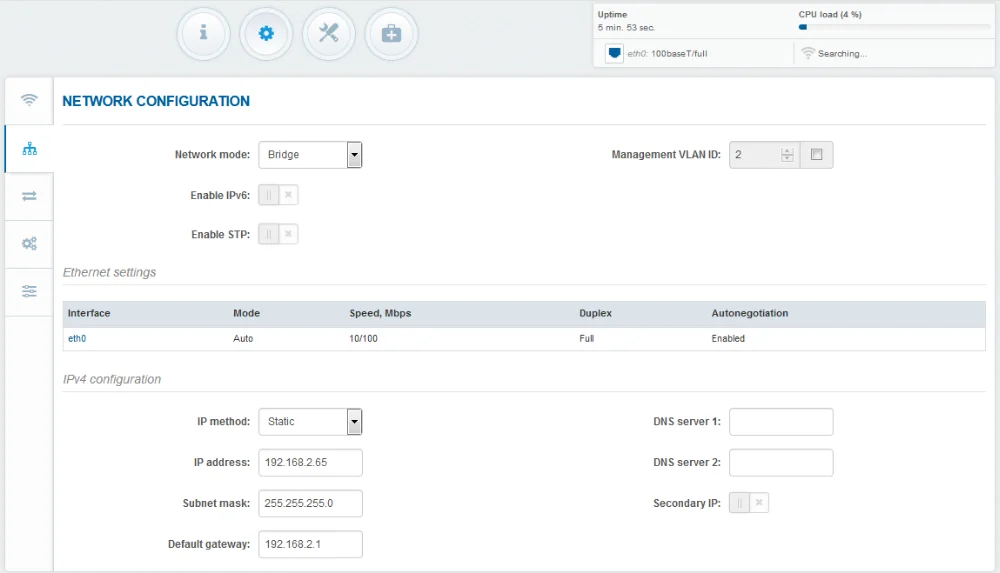

WQ-580L is equipped with WQ-Link operating system, which is independently developed by WQ-Link. It is easy to learn and operate, just need read the GUI and set it.

5.8GHz frequency band makes WQ-580L to transmit longer than 2.4GHz, through out comes to 300Mbps. 5.8GHz signal has strong anti-interference ability, no need to worry about signal loss

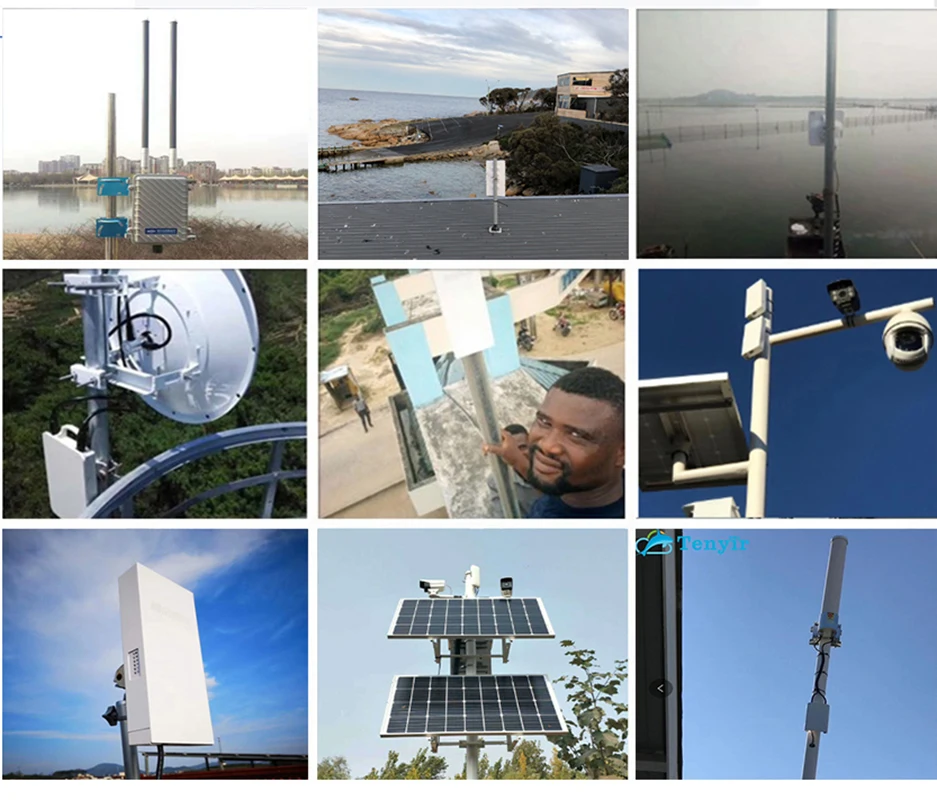

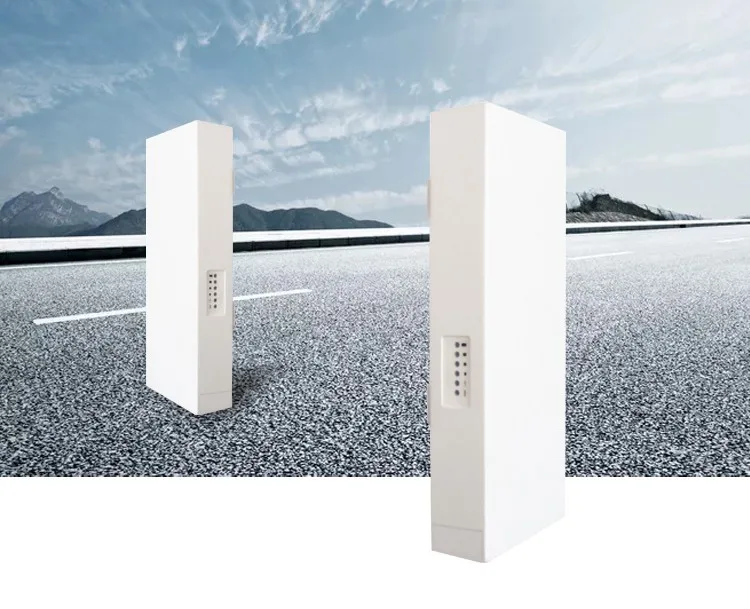

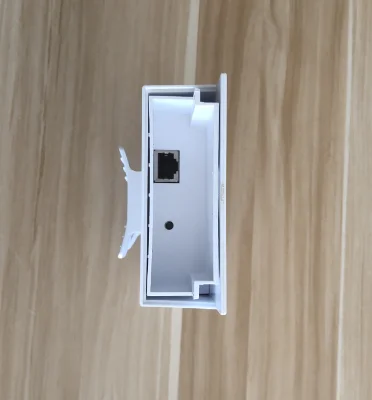

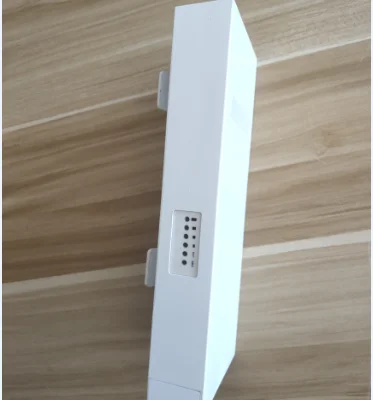

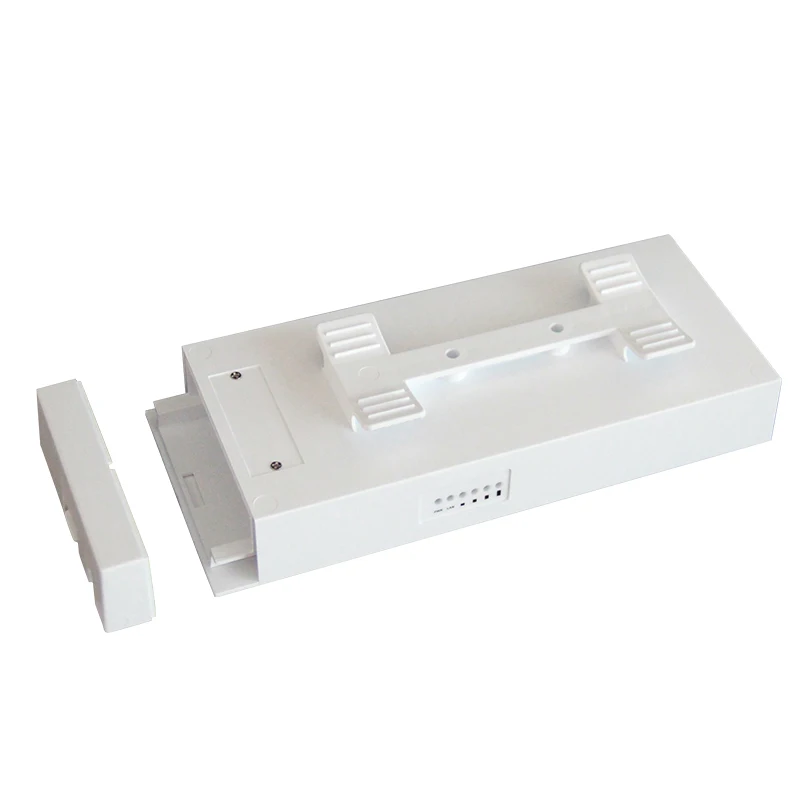

Product show

How to use

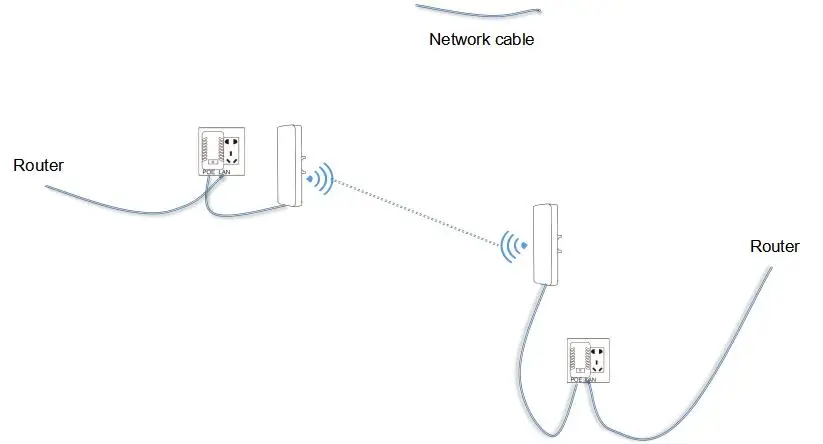

1. PTP data transmission
For example, there is network at place A and no network at place B, we can't choose wiring for various reasons. This WQ-580L can help you. At place A, WQ-580L works as Access point mode and as Station mode at place B.
Note: max PTP range is 5km

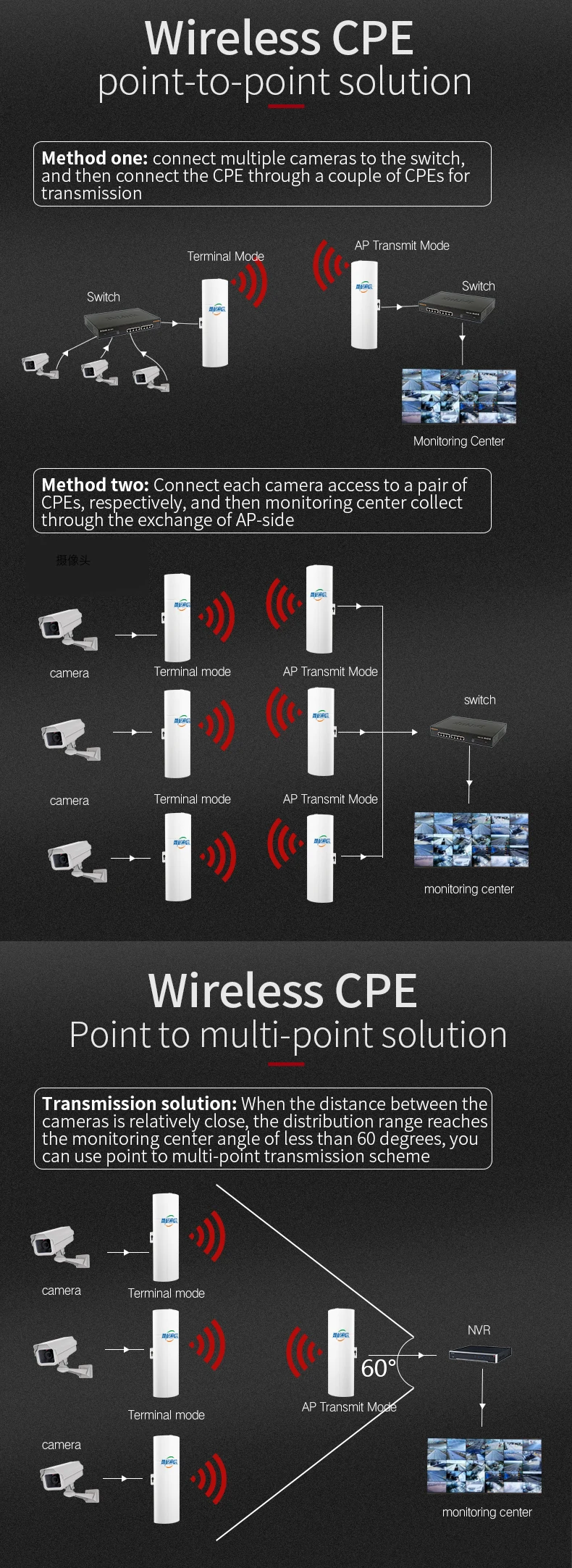

Above is the connection method

2. Outdoor wireless CCTV system

To solve the trouble of wiring, WQ-580L can be used for outdoor wireless cctv project. Install WQ-580L (Station mode) at each camera side and WQ-580L (Access point mode) at NVR side. Connection method is as follows.

Note: there should be as less as obstruction between wireless CPE and wireless Access Point.

There are many different methods to install CPE and cameras, we can decide how to install according to different projects.
WQ-580L can be used in our omni wireless cctv kit, kindly click the picture above for more information

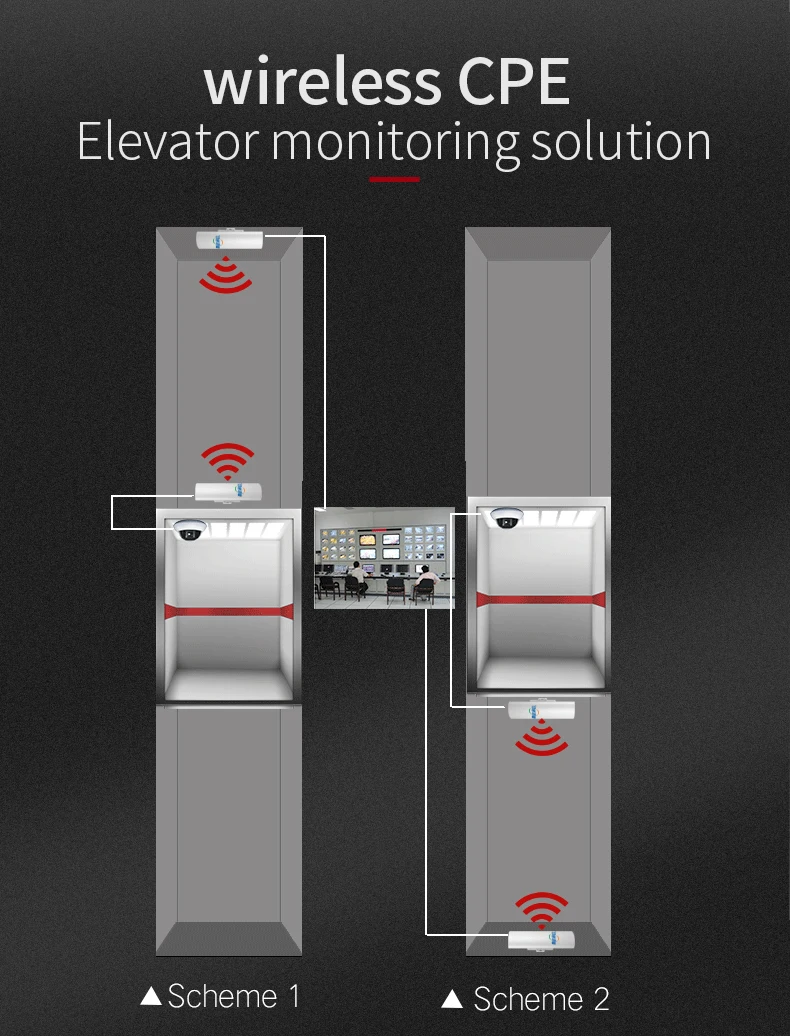

3. Elevator wireless CCTV system
There are two methods for elevator wireless CCTV installation.
1) install WQ-580L up on the elevator and top of building, camera signal will be sent to the roof first. Collect all the signals on the roof and send them to the monitoring room.
2) install WQ-580L under the elevator and ground of the building.

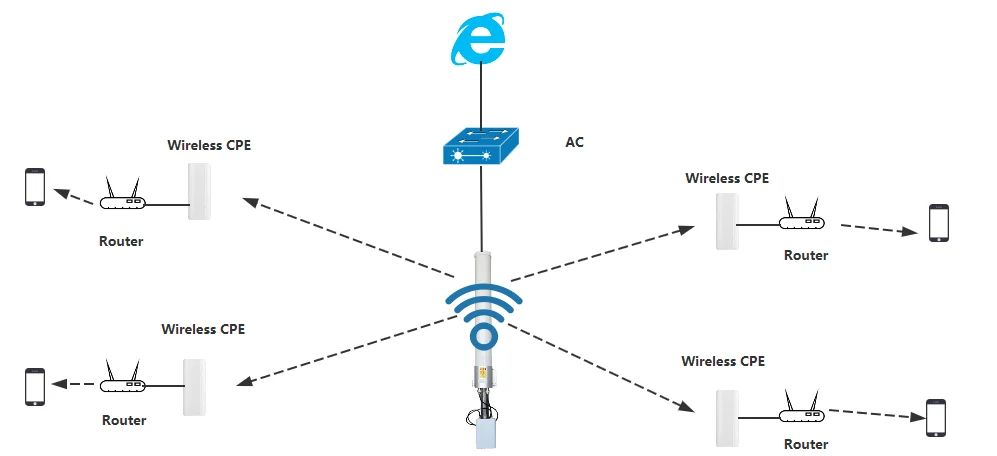

4. WISP
If we put a wireless base station, WQ-580L can be used within 3km to receive the signals.
Still need a router to connect to this CPE, and we can start network near the router.
Our Company

With 8 years of export experience along with excellent quality, advanced services and competitive prices, WQ-Link has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, WQ-Link has won numerous customers' trust and support.

Certifications

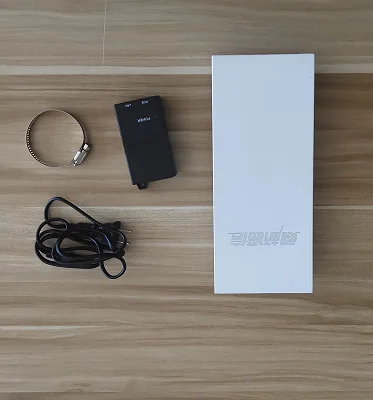

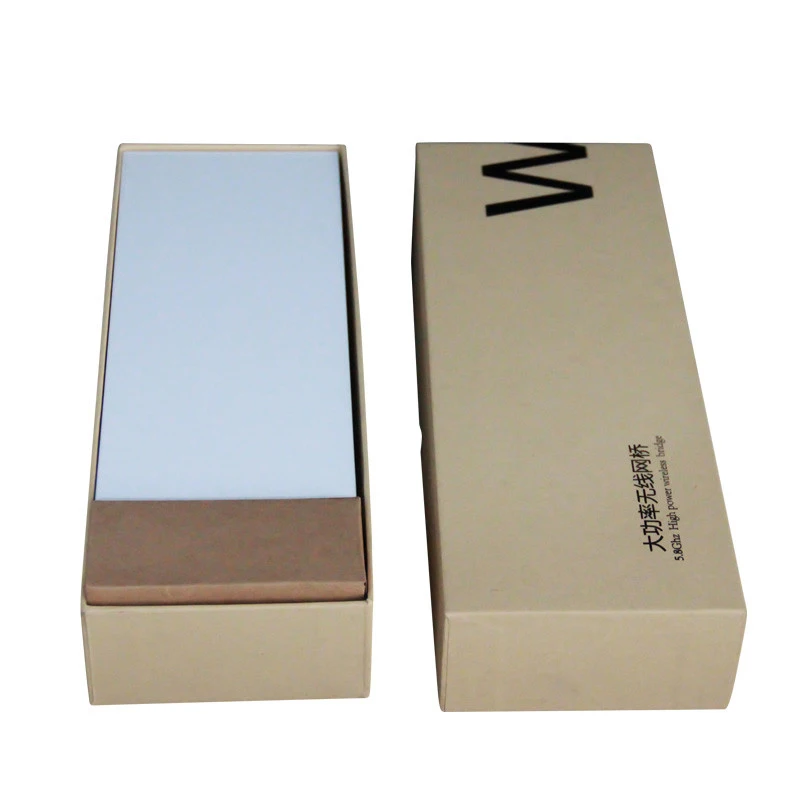

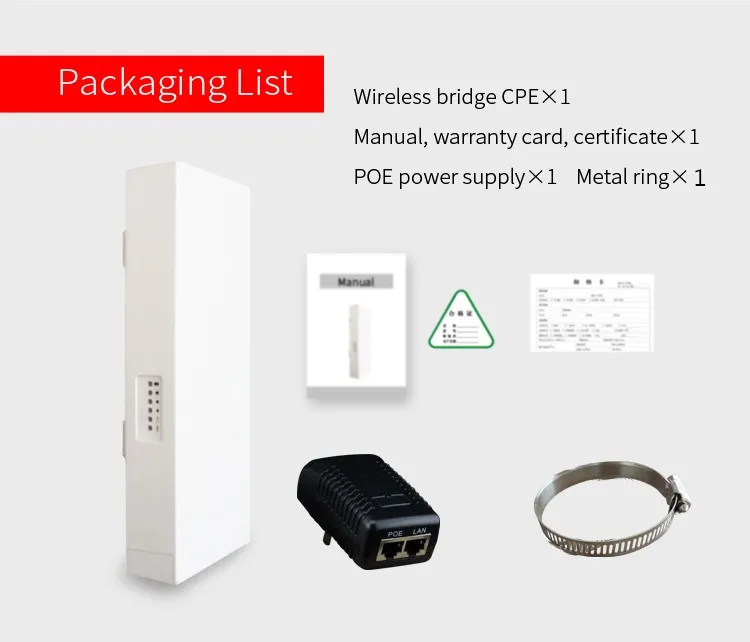

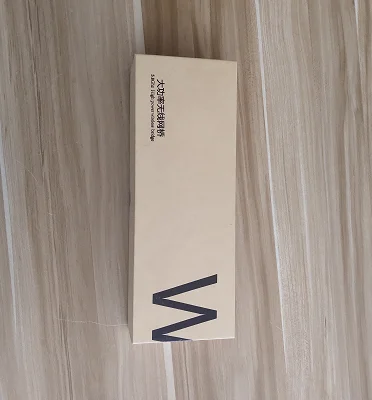

Packing & Delivery
FAQ

How can i get product price list?
Contact us by email, trademanager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptible for bulk order.
What is the product warrenty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
