2 3S Lipo 35A remote control electric speed car model rc truck esc

Product Overview

Description

2-3S Lipo 35A remote control electric speed car mold rc truck esc

1. It adopts high performance MCU, low internal resistance MOSFET and other imported components. High reliability, low impedance circuit board, strong current resistance.
2. It is suitable for driving firmware of three-phase brushless non-inductive motor with smooth, delicate speed control feel and first-class speed linearity.
3. 8 kinds of acceleration and 8 kinds of angle of entry are optional.
4. Perfect protection functions: battery low-voltage protection, over-temperature protection, throttle signal loss, motor stalling, etc.
5. The working parameters of the motor can be set by remote control or programming card, with sound cues.

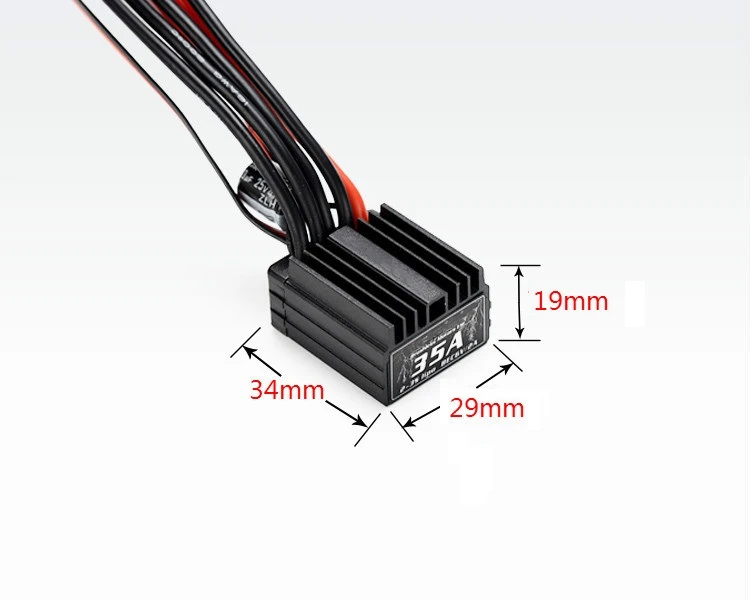

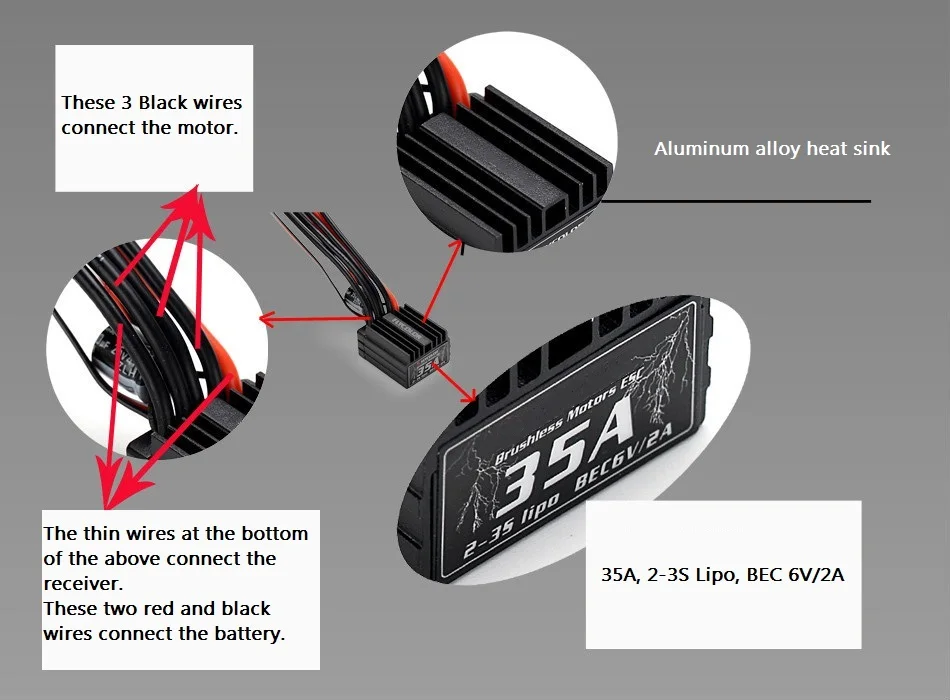

Design Drawing:





Technical Parameters:

Model	Continuous Current	Burst Current	Lipo Cells	Size	BEC	Weight	Typical Application
Lightning 18A	18A	50A	2-3S	34*29*19mm	6V/2A or 6V/1A	40g	1:18/ 1:16
Lightning 25A	25A	90A	2-3S	34*29*19mm	6V/2A or 6V1A	42g	1:18/ 1:16
Lightning 35A	35A	190A	2-3S	34*29*19mm	6V/2A or 6V1A	46g	1:18/ 1:16
Lightning 45A	45A	260A	2-3S	34*29*31mm	6V/2A or 6V1A	54g	1:10
Lightning 80A	80A	500A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:10
Lightning 120A	120A	750A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:8
Lightning 160A	150A	1000A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:6



If you need the other current, pls click the following picture. Then you can choose the other type of Lightning series.



Standard export carton.

Delivery time:

Pls feel free to contact us and inform the quantity you need. Then we will check to see if we have products in stock or not. If yes, we will send products out in 7 days. If not, we need some days to prepare your orders. The specific delivery time will be different according to your quantity.



1. We can accept L/C, T/T, Western Union and MoneyGram.

2. 30% TT advance, 70% before shipment.

How to order:

1. If you have any questions, pls feel free to contact us. And pls let us know the model and the quantity you need.

2. After confirming all details, we will send you a quotation.

3. Sample confirmation. We will prepare the sample you need and send out in 7 days.

4. After you confirm the bulk order, we will send you the PI.

5. After confirming the PI, you transfer 30% deposit.

6. After receiving your deposit, we arrange to produce your order.

7. After testing and packing, we will send product pictures and packing pictures for your confirmation.

8. You transfer the 70% balance. After we receive your payment, we will ship out and offer you the tracking number.

9. If the details of the page are all ok for you, you can place a trade assurance order directly. We wil prepare your order asap.

10. After-sale services and feedback.



After-Sale Service:

We will track the order until you received.



If you have any questions, pls feel free to contact us. Thank you!
