Automatic hydraulic press machine four post 4 column hydraulic presses

Product Overview

Description

Four-post 4-column hydraulic presses



1.Applications:

Four-post hydraulic presses, also known as 4-column hydraulic presses, can be designed to accommodate dies of any size and are well suited for part manufacturing that requires superior rigidity and precise bed-to-ram parallelism. 4-column hydraulic presses are advantageous because they typically more economical than gib-guided presses and allow four-sided access to the working area.







2.Description:

Multipress offers a wide variety of hydraulic 4 post hydraulic presses or 4 column presses ranging from 20 to 1000 ton in capacity. While we offer several “standard” sizes based on typical use, Multipress routinely builds customized 4-post hydraulic press models based on individual client application and production requirements.



3.parameters

Specification	Unit	Q32-63A	YQ32-63B	YQ32-100A	YQ32-100B	......
Nominal force	Kn	630	630	1000	1000
Max pressure of hydraulic system	Mpa	25	25	25	25
Max. Opening height	mm	500	700	800	800
Slider effective stroke	mm	360	400	500	500
Working table size	mm	410*510	610*500	630*550	750*700
Nominal force of Ejection cylinder	Kn	100	100	200	200
Ejection stroke	mm	160	160	200	200
Slider working speed (empty travel)	Mm/s	100	100	100	100
Slider working speed   (press)	Mm/s	5-10	5-10	5-10	5-10
Slider working speed   (Return stroke)	Mm/s	90	90	90	90
NOTE:ALL ARAMETERS COULD BE CUSTOMIZED



4.Characteristic

1. Low energy consumption, high speed, low noise, high efficiency

2. Slider divide speed into two segments to control : empty loading fast ,slowly close mold ,stretch

3.Activity crossbeam has safety limiter in both up and down directions

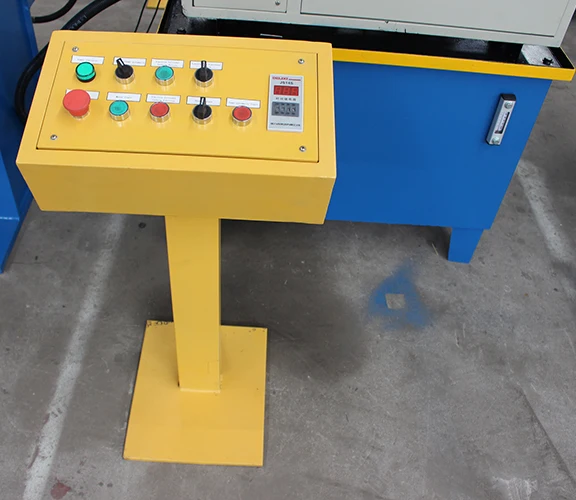

4. Equipped with photoelectric protection device, could guarantee the safety of the operation

5. With the function of automatic and manual, it’s convertible

6.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping andtime-delaying

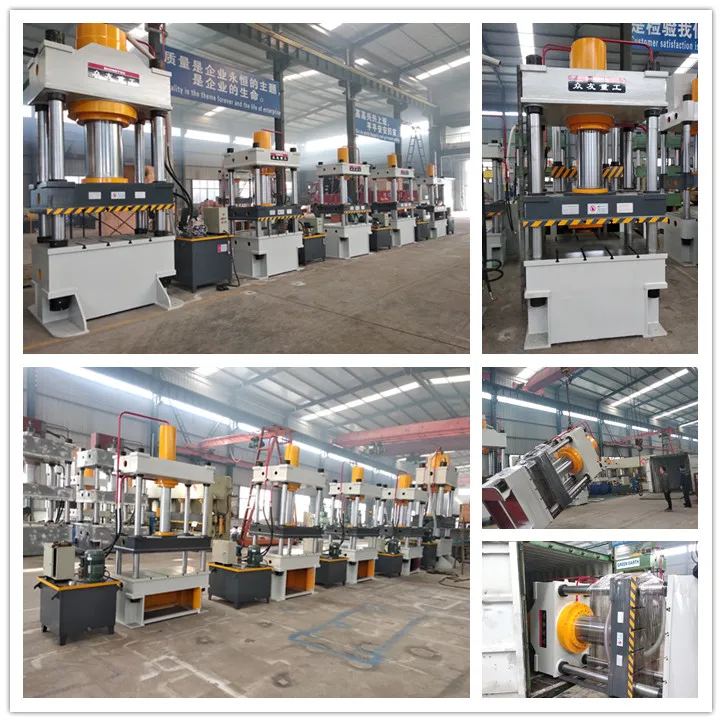

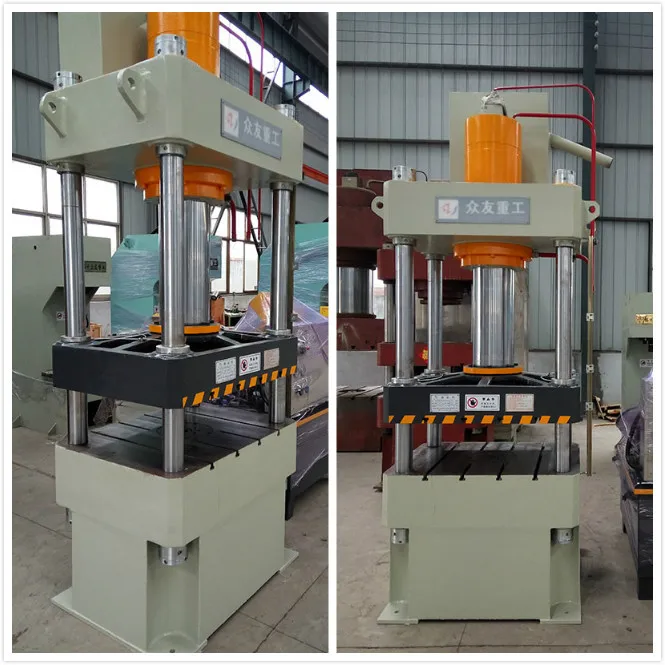

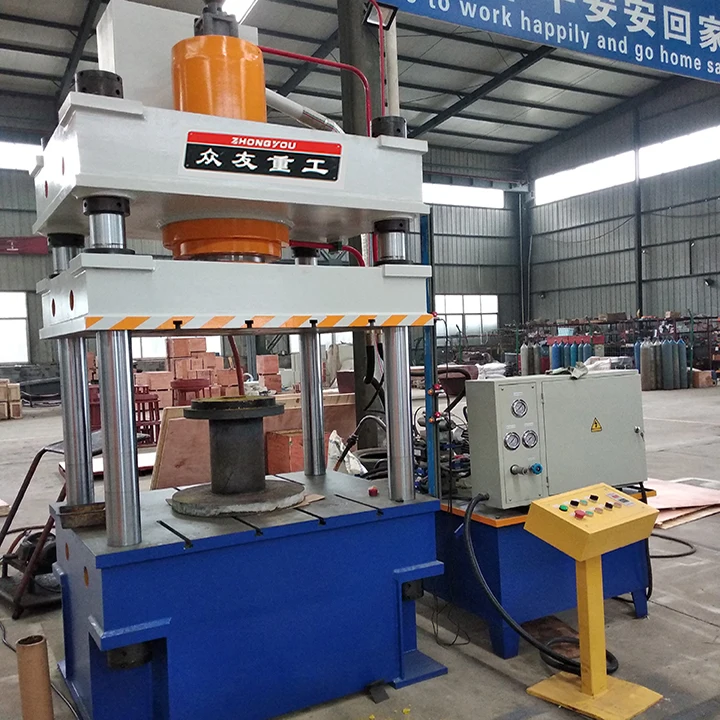

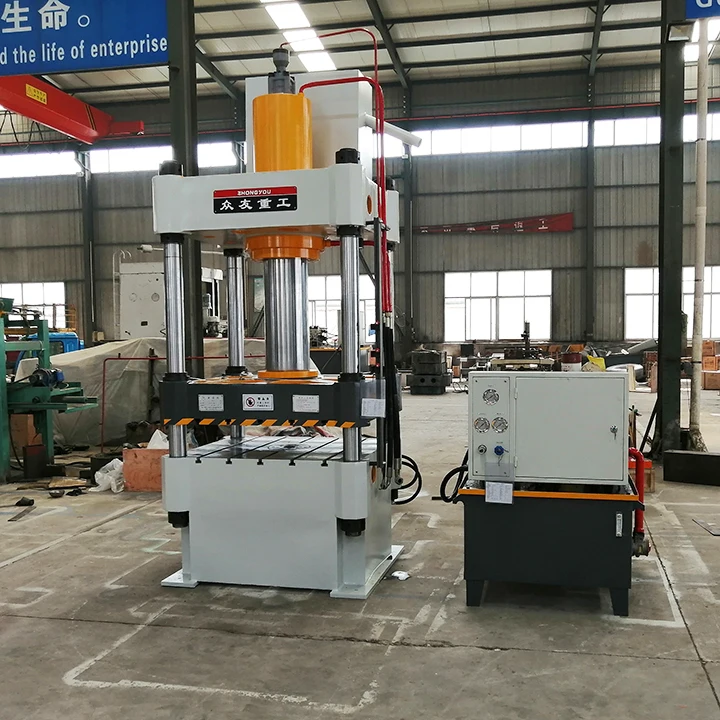

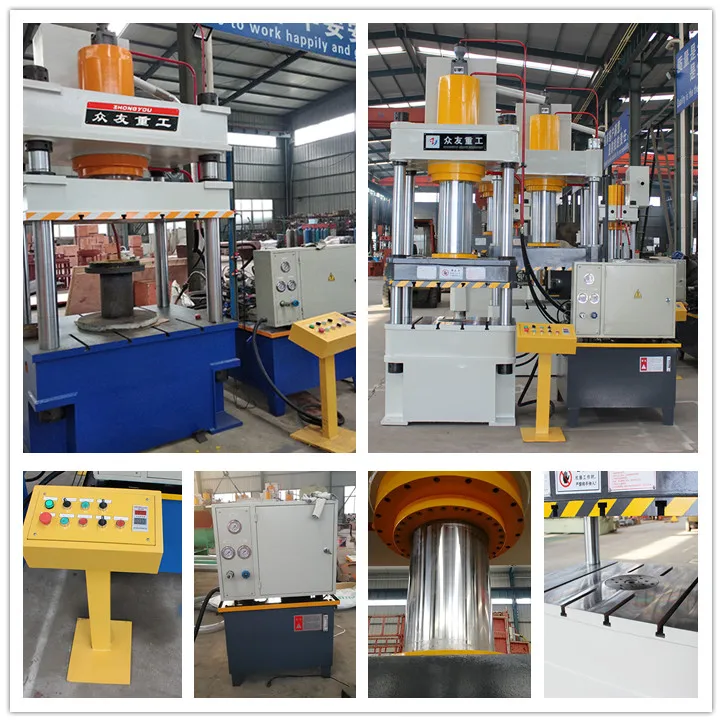

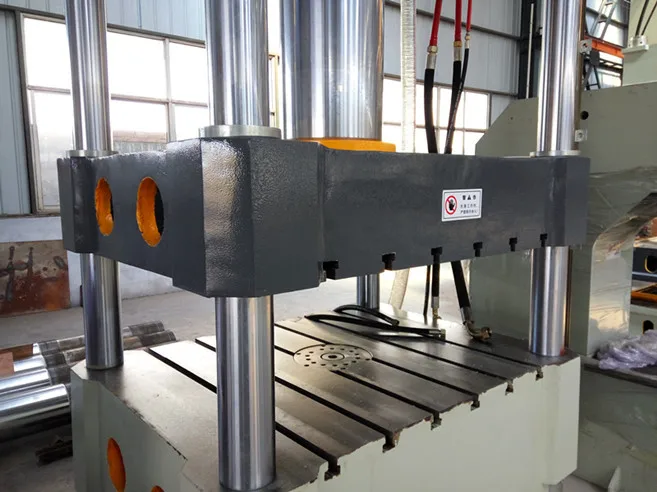

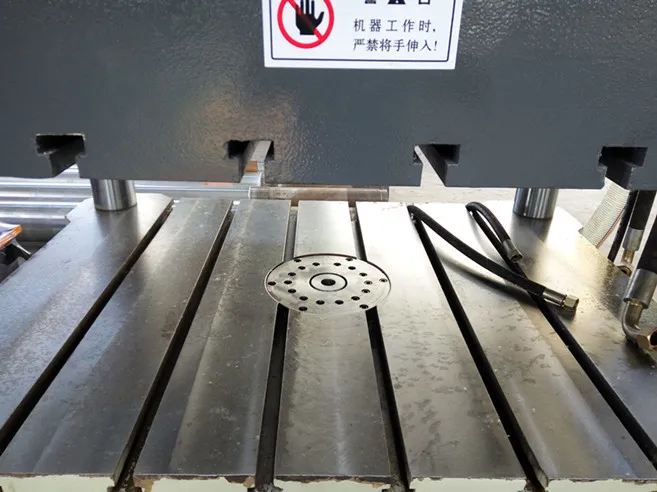

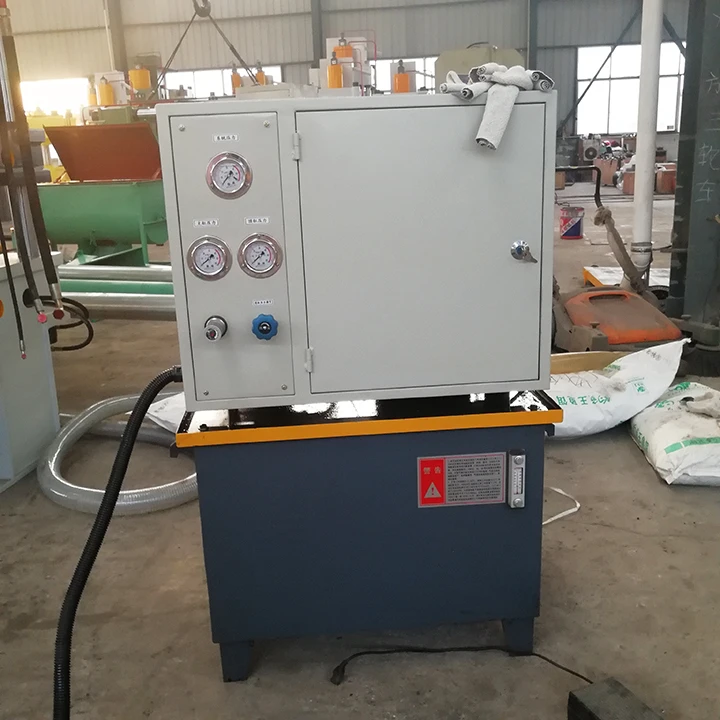

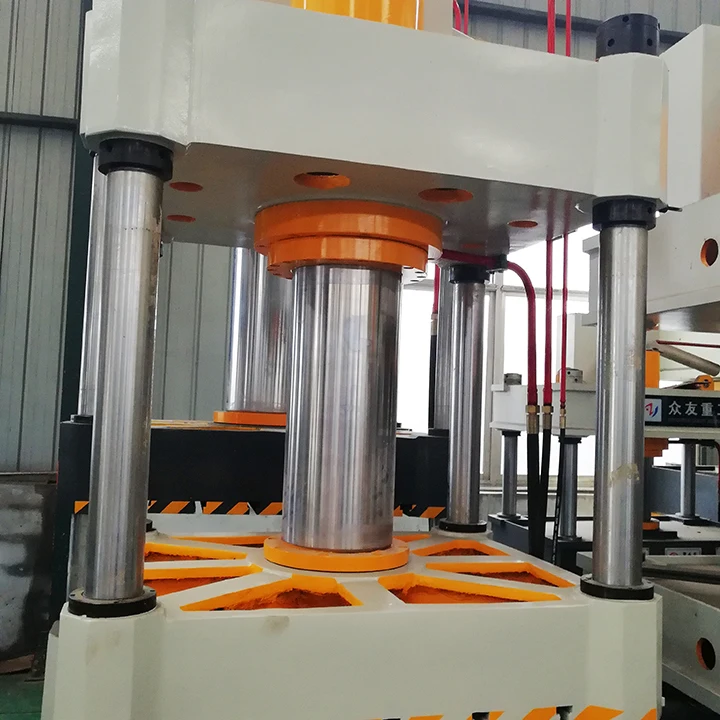

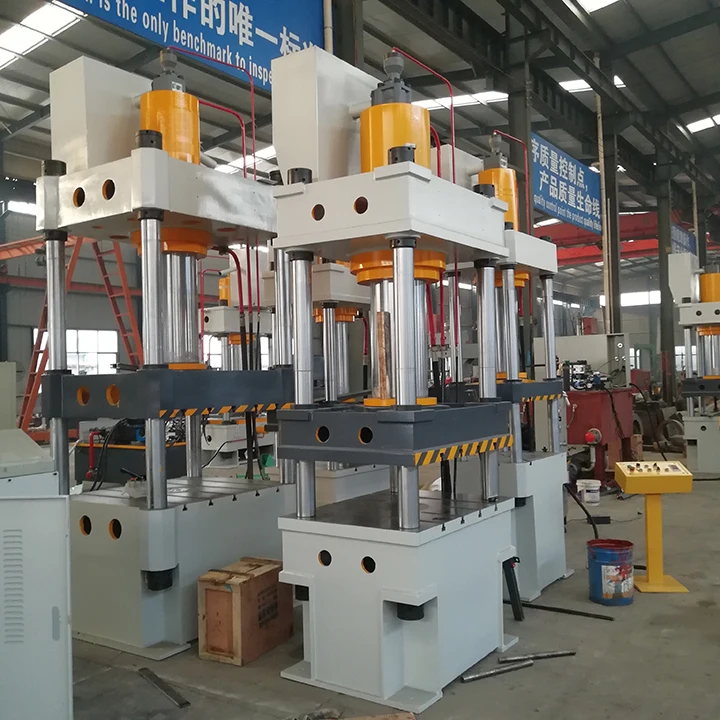

5.Pictures
