100Hz ~10kHz Lcr Meter Capacitance Meter ESR Meter AT825

Product Overview

Description

100Hz ~10kHz Lcr Meter Capacitance Meter ESR Meter AT825



Key Features:

·         Test Frequencies: 100Hz~10kHz (4 point)

·         Test Level: 0.6Vrms

·         Basic Accuracy: 0.2%

·         4 times/sec, 1.5 times/sec speed measurement

·         Output impedance modes: 100Ω

·         Test signal monitoring function

·         Compare & bin-sorting function

·         Open/short zeroing & sweeping correction

·         Detached measurement & display unit design

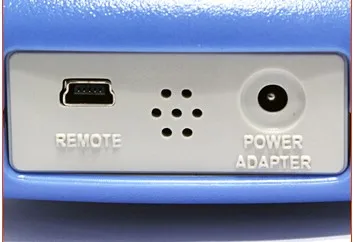

·         USB interface

·         Color TFT-LCD display, touch screen, SCPI, Level 4 backlight adjustment, powertimer

·         49999 display

·         Build-in comparator,1 set record, main parameter compare, beep





Description

Handheld high performance ARM micro process control. Super-lower power design and high density SMD assembly technology, TFT-color display with keyboard and touch screen control.

Adopt 8.4V Li battery power supply 1400mAh rechargeable battery.

The standard Data Acquisition Software for analysis
