{HOSHEEN} HSR 180/200 Vegan softgel encapsulation machine production line

Product Overview

Description

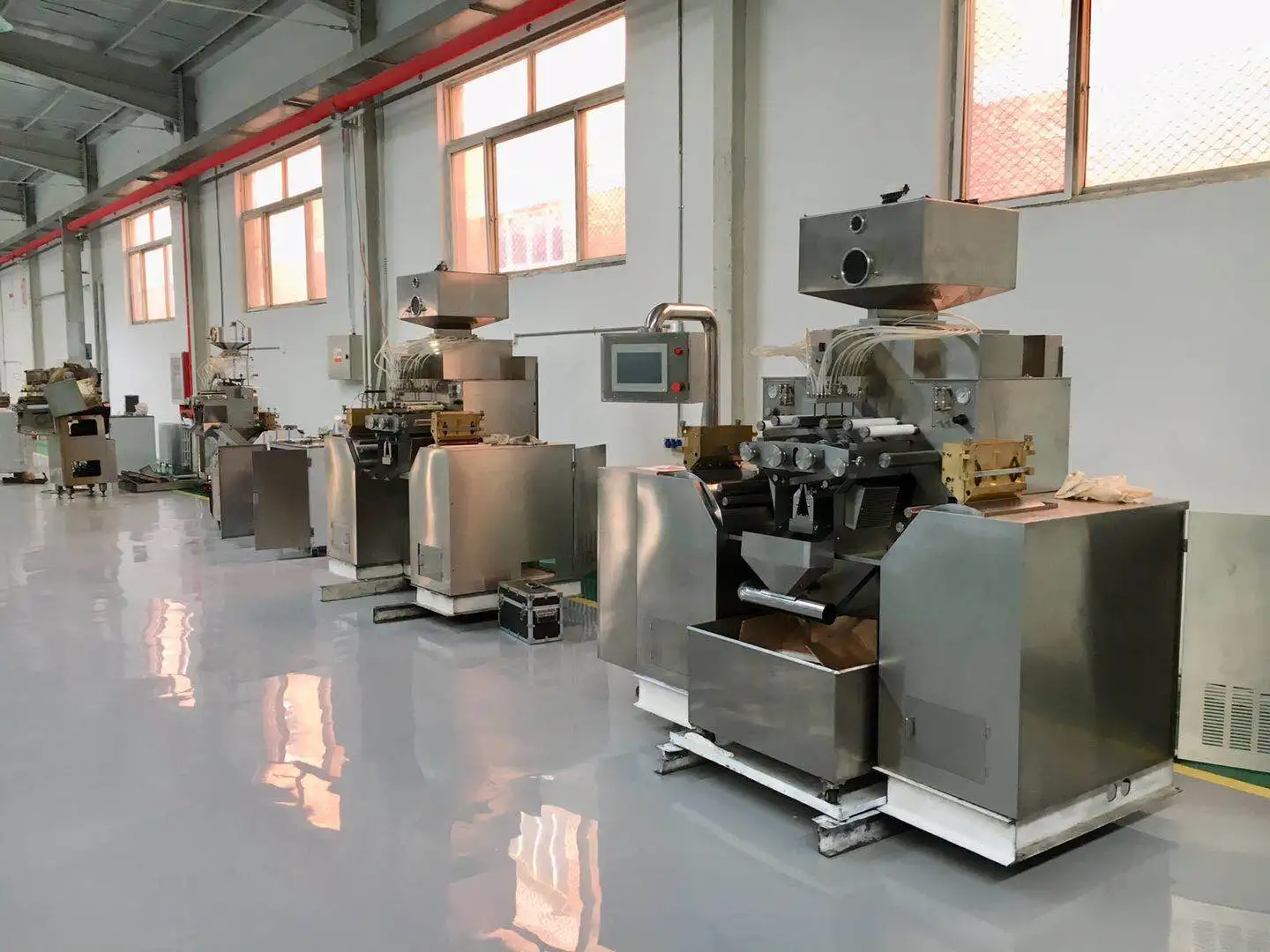

HSR-180H/200H/250H/300H series softgel production line is mass production equipment and suitable customers with different capacity requirements.The equipment has compact structure, easy operation, simple maintenance, stable performance, high production and low consumption. It is suitable for food,pharmaceutical , cosmetics,paintball and chemical industry.

HSR Series Softgel Encapsulation Machine was identified as “Independent Innovative Products of Beijing”

Main Characteristics:

Developed from the 3rd Generation Sofgel Encapsulation Machine Development Platform HSRDP3.0.

New modular and standardized design: structure simple and stable, the spindle runs more stable.

Main machine drive system:No liquid lubricant required.

Materials supplying pump system: Specially design for the extracts suspension sticky filling materials,wide range of applicable filling materials.

Injection Wedge temperature control: Double PID control to ensure rapid response and precise control of injection wedge temperature.

Gelatin film transmission:Full-range autonomous drive into the die roller,no sliding pull, no film deformation and perfect capsules shape.

* Gelatin film linear conveying, no need to adjust, production stable.

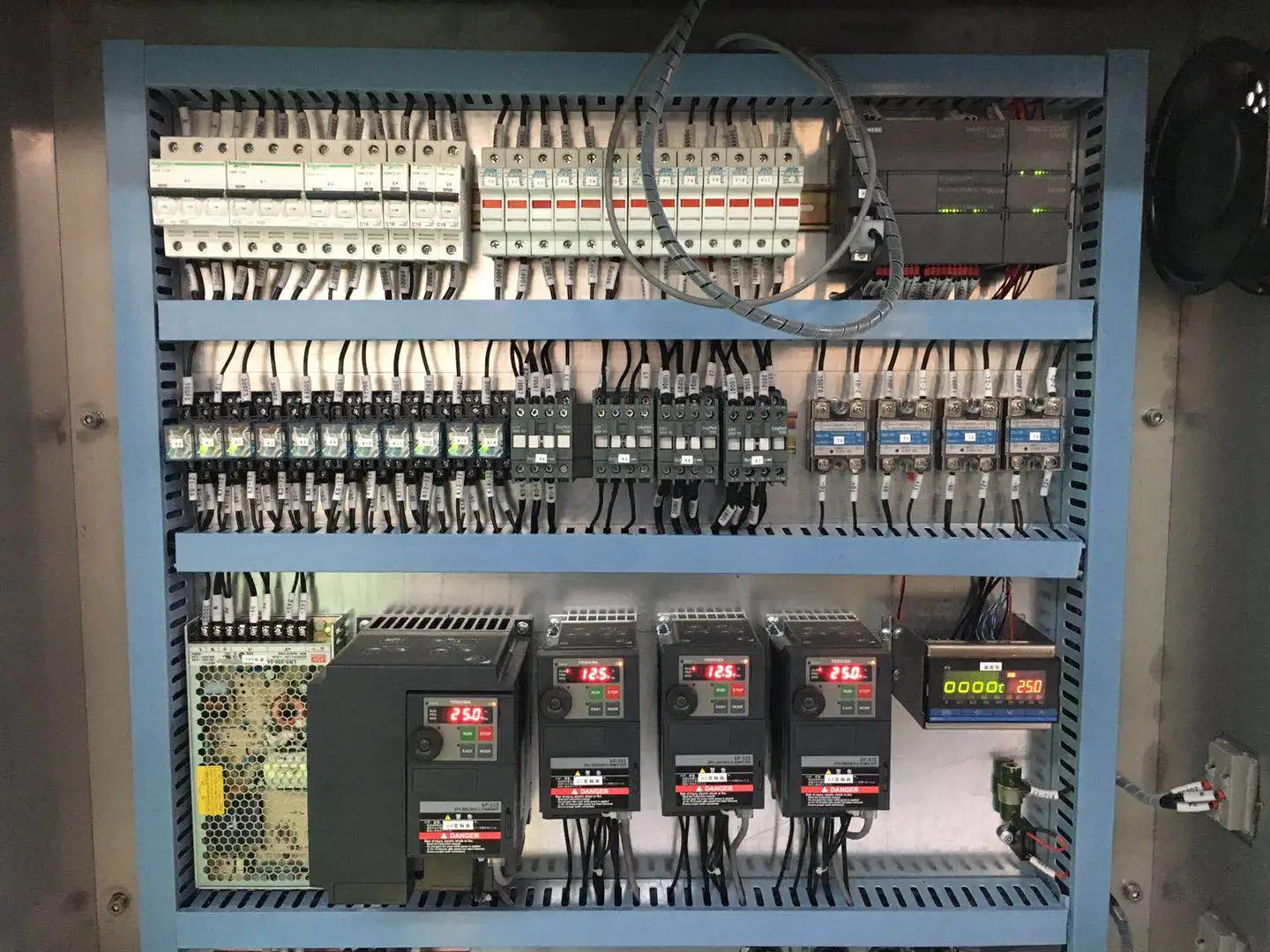

* Control type: Each system independent control, coordinated accordingly, easy to adjust.

* Die roller Pressure type: Pneumatic constant voltage, digital display, stable and convenient.

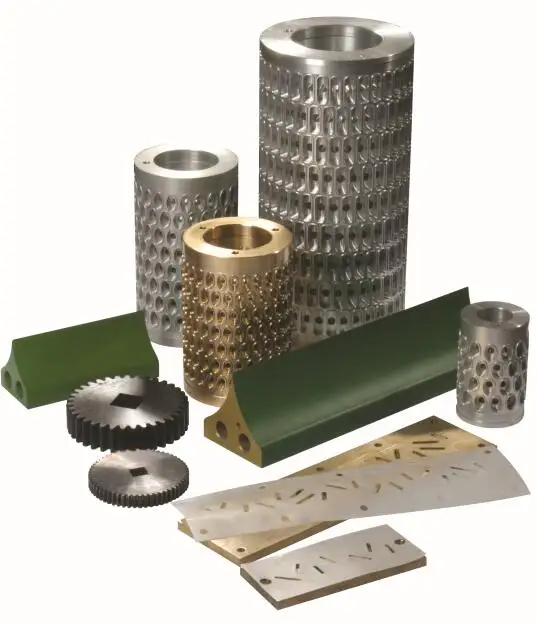

* Die roller adjustment: Free line aligning design, simplified operation to prevent operator’s error.

* Injection wedge lifting type: Electric self-locking, safe and reliable.

* Material supply pump: Free adjust design, easy install, prevent operator’s error.

* Material supply pump direction guidance: spherical guide (numerical control machine tool technology)

* Main machine noise control: Low noise design, no noise increase when highest and lowest speed operation.

* Main machine lubrication:Non-liquid lubrication,all lubricated with grease,no maintenance and oil change required.

*Gelatin film lubrication:

  Quantitative Micro-lubrication,visual adjustable,Lubricating oil quantity<2L/24h,almost none oil capsule encapsulation

  low production cost and keep working condition clean.

* Adopts non-oil or micro-oil lubrication, the water of capsule shell easy to evaporate,drying time is greatly shortened.

* Free solvent cleaning:

   Soft capsules no need to clean by alcohol or ether,to avoid the damage of solvents to capsules (the printed capsules excepted)

* Gelatin film control:

   Precise film thickness adjustment, independent film spreading control,  suitable to various gelatin solution and moulds,

   reaches the max. using rate of gelatin solution.

* Gelatin film cooling type:

   Auto-control water cooling, air blow balance, equipped with machine.

* Temperature control hopper:

   PID precise temperature control, auto liquid level control, suitable to various materials’ requirements (optional equipped)

Technical Parameter
