Wood veneer machine manufacturer/timber veneer rotary peeling machinery
- Category: Wood Based Panels Machinery >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (62292033909):
Product Overview
Description
Product Description

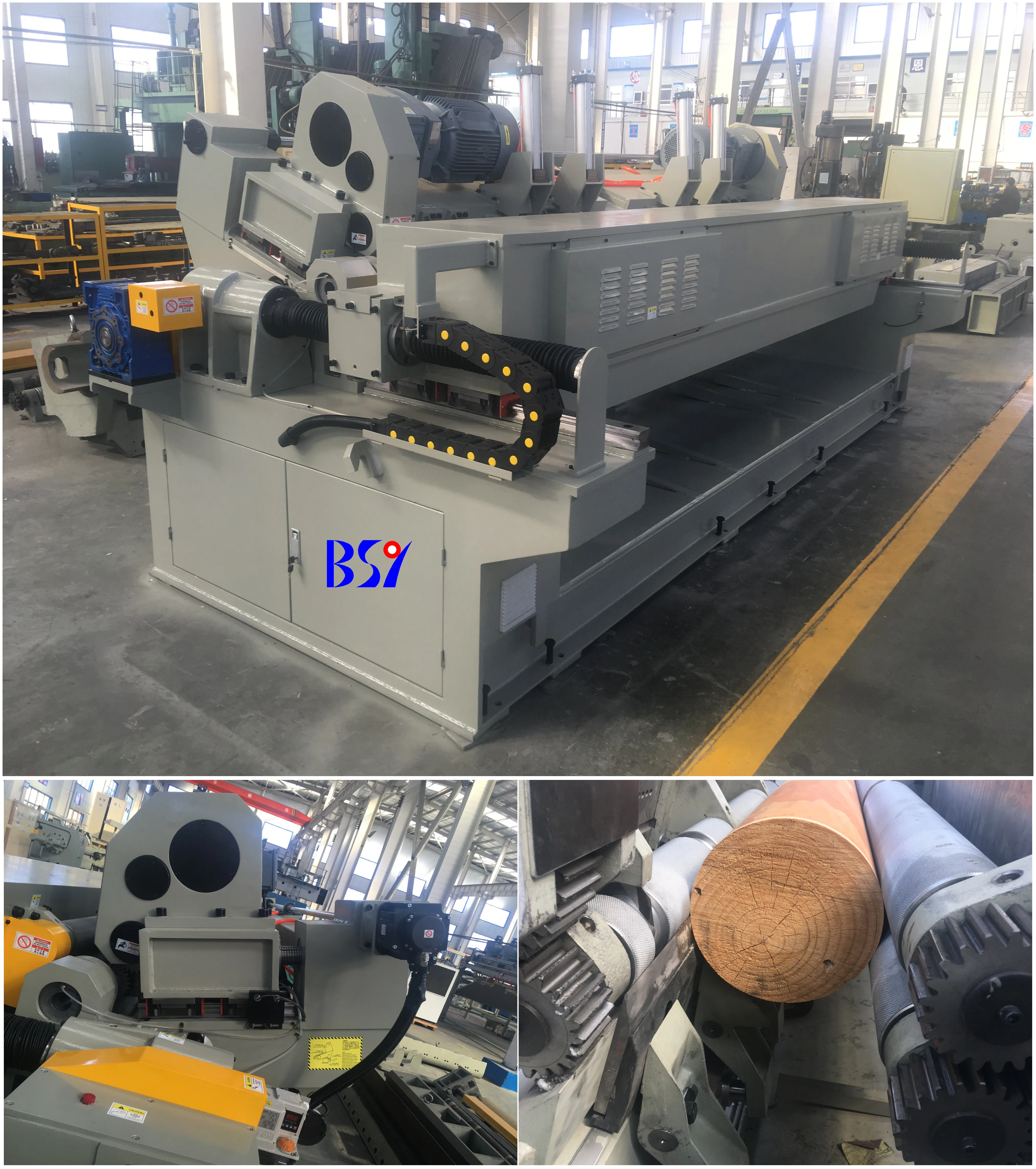

Spindleless wood veneer peeling machine is mainly used for producing veneer from the wood (log),it's the main machine in processing plywood.It can peel diameter less than 360mm,high efficiency,improve wood utilization
Product Name | Wood veneer machine manufacturer/timber veneer rotary peeling machinery |
Material of roller | high quality 45# steel |
Control system | CNC automatic control,brand:Mitsubishi |
Certification | CE,SGS,ISO |
Feeding System | Ball screw and linear guide |
Knife carriage and knife gap | With two servo motor |
Knife assembling | By Hydraulic |
Trasmission | By gear |
Model | SL1350/5B | SL2600/5B |
Max.rotary cutting length | 1350mm | 2600mm |
Max.rotary cutting diameter | 480mm | 480mm |

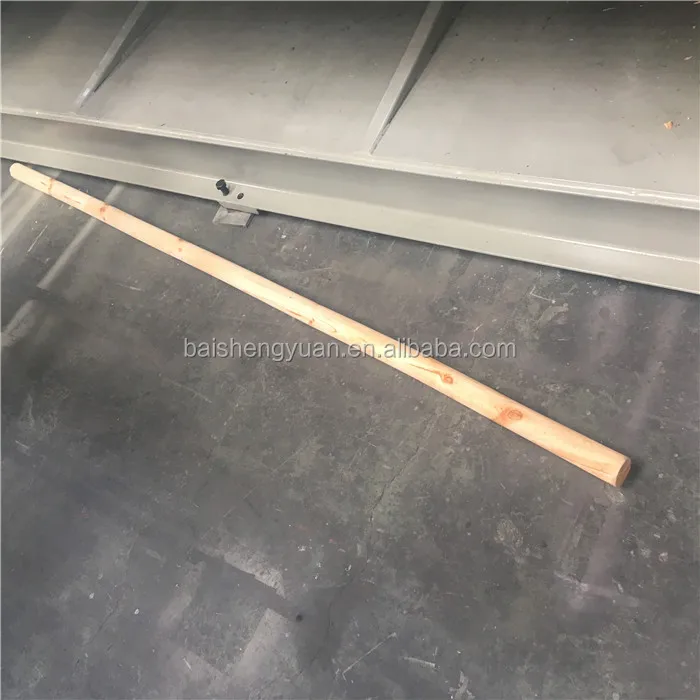

The final diameter | 40mm | 40mm |
Veneer thickness | 0.8-3mm | 0.8-3mm |
peeling speed | 30-80m/min | 30-80m/min |
Driven rollers motor power | 30KW | 44KW |
Feeding servo Motor power | 11kw | 7kw |
Overall sizes | 4600x2200x1900mm | 3500x2150x1870mm |
Weight | 11500KG | 10000KG |

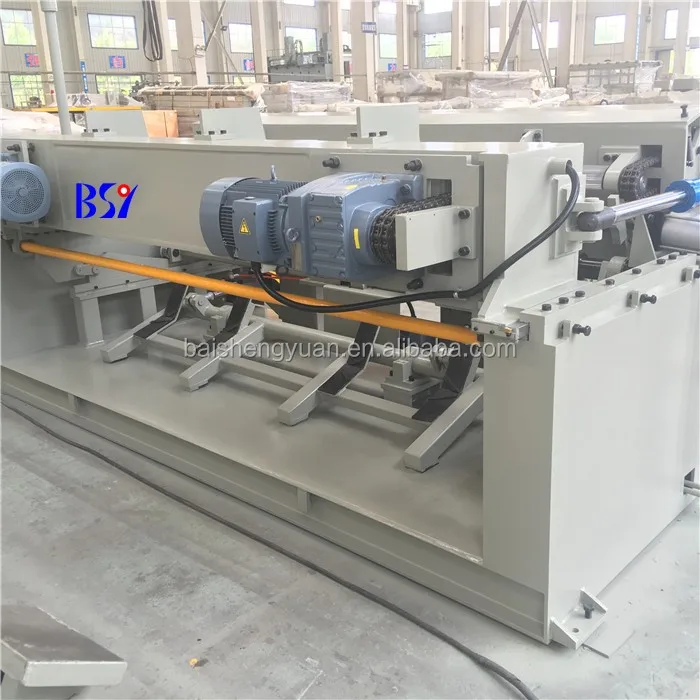

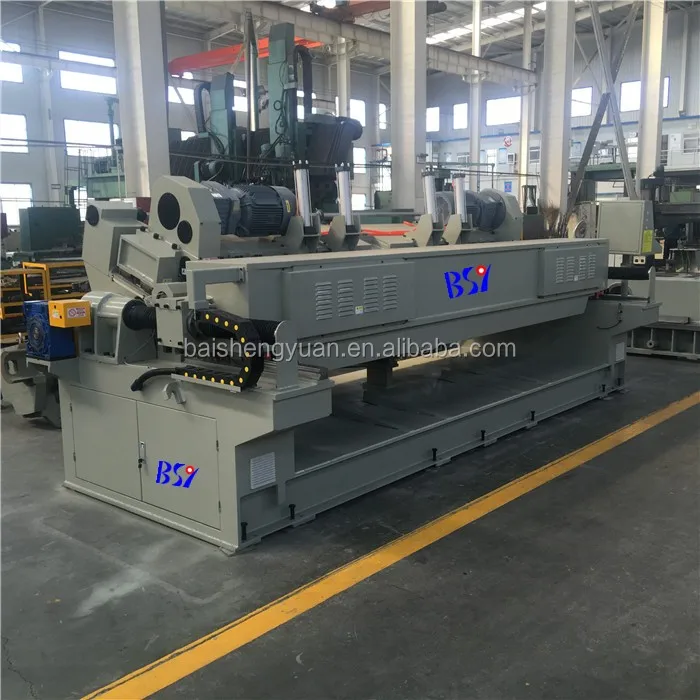

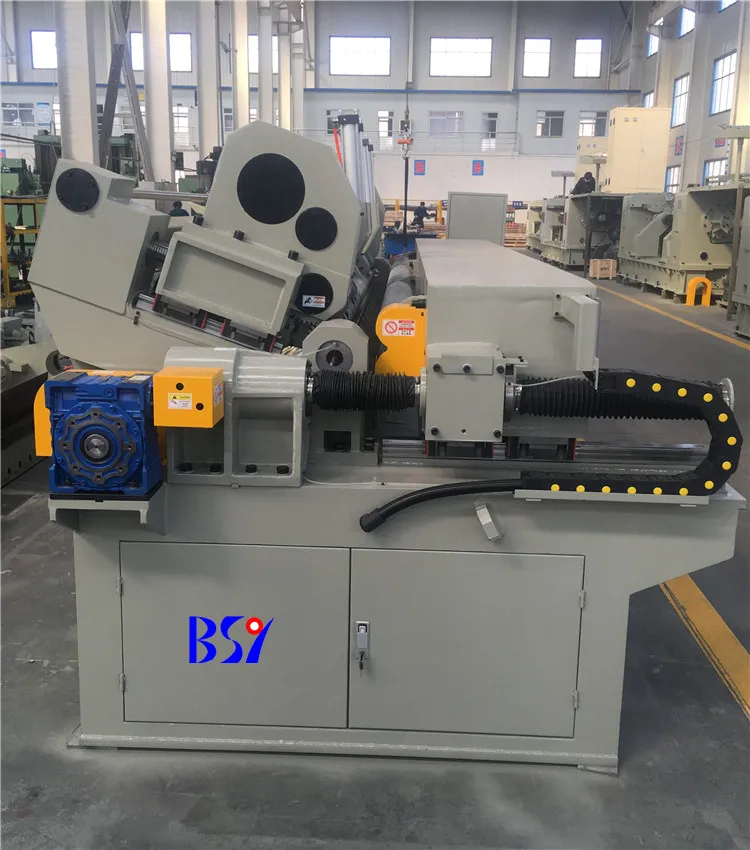

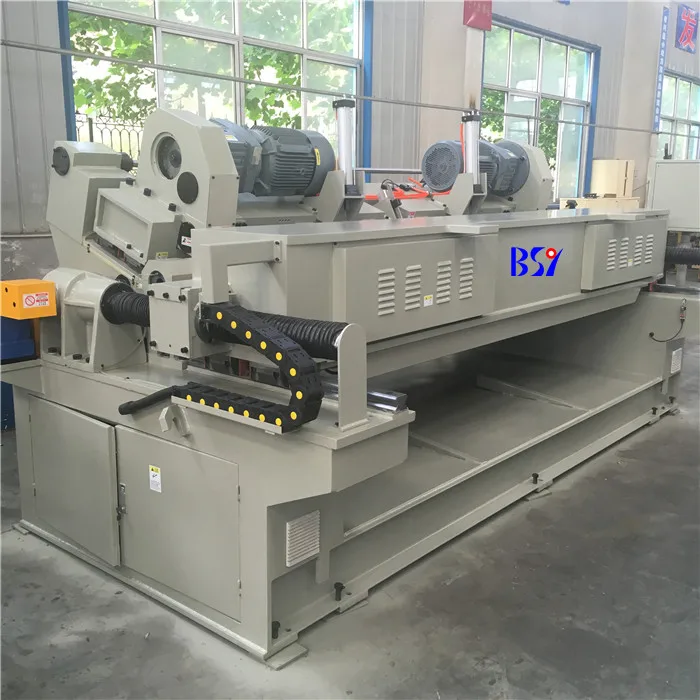

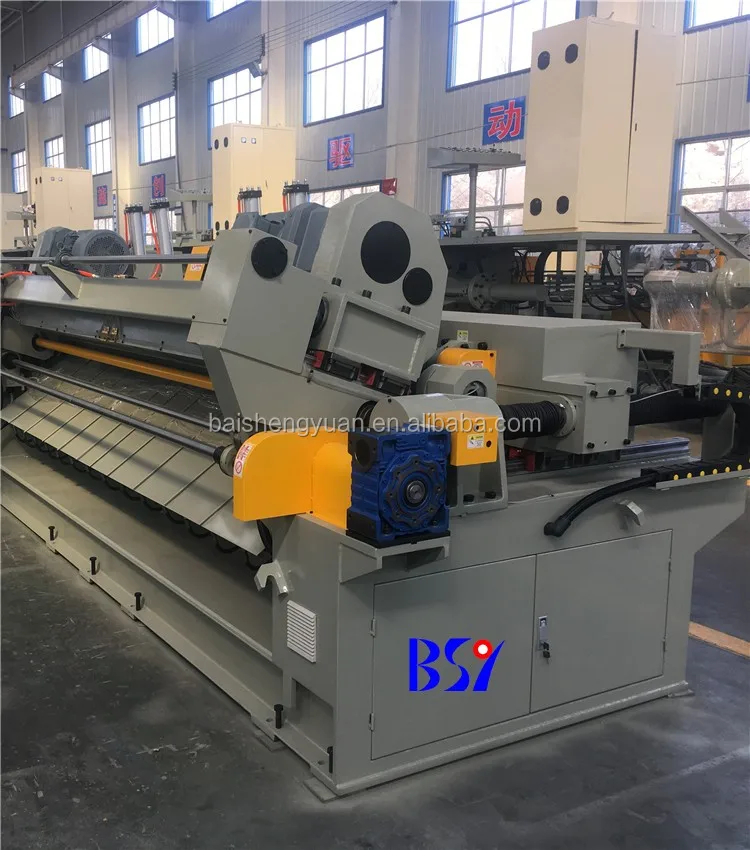

Products Show
Features:
1.CNC system to control the main parts work,with good processing precision
2.Servo motor control the tool carriage ahead and back.(guaranted the veneer evenness and minimized) Brand: Mitsubishi

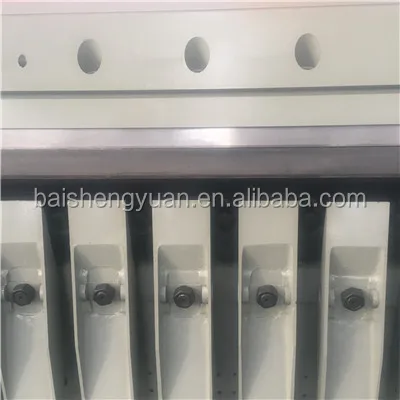

3.The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.
4. The transmission is gear box driving screw,the material of gear:high quality alloy.
5. The main structure is welded by thick steel plate and do special surface dealing.
6. With servo motor control knife-gap, the knife-gap automatic adjustment,with high precision
7.With ball screw and linear guide,with high positioning accuracy and high transmission efficiency
8.The material of roller with 45# steel,the surface with chroming,it improve the hardness and wear-resistant,the roller with long using life.

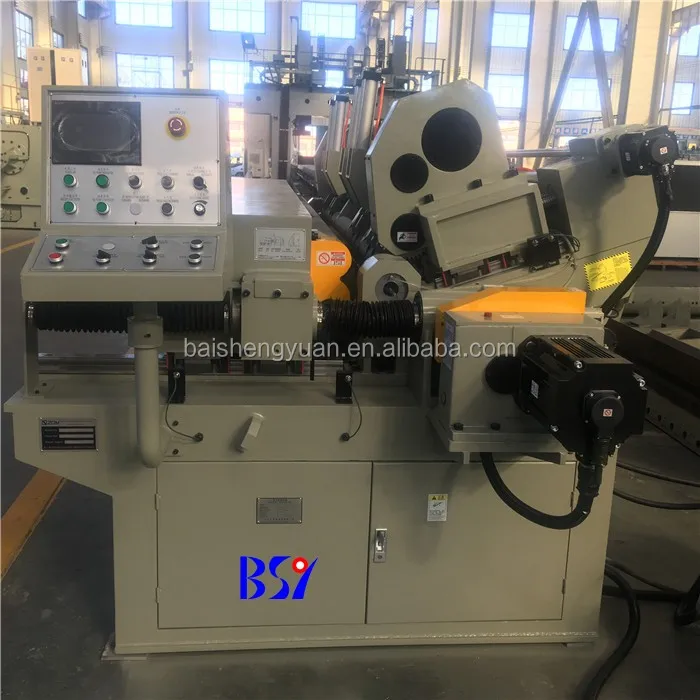

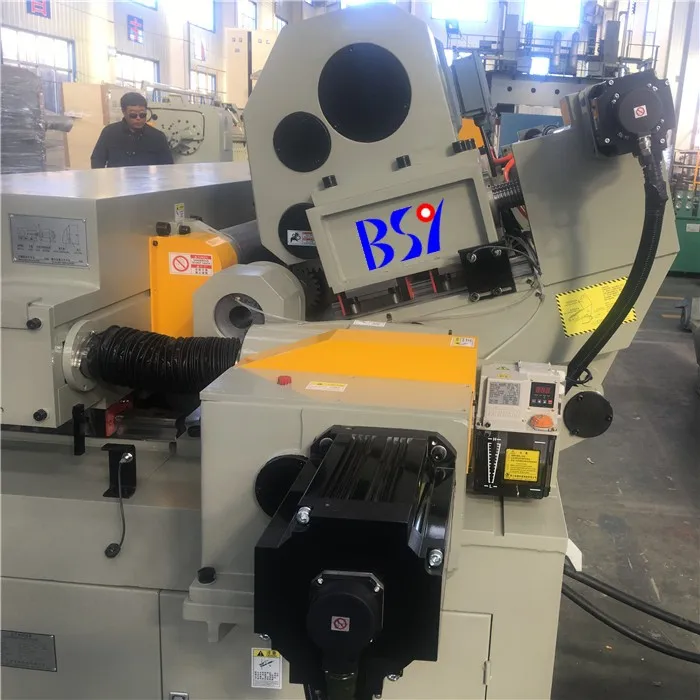

With two servo motor:
One is for controlling knife-carriage(guaranteed the veneer evenness and minimized).
The other control system is for setting kinfe-gap, with process different thickness veneer.
One is for controlling knife-carriage(guaranteed the veneer evenness and minimized).
The other control system is for setting kinfe-gap, with process different thickness veneer.

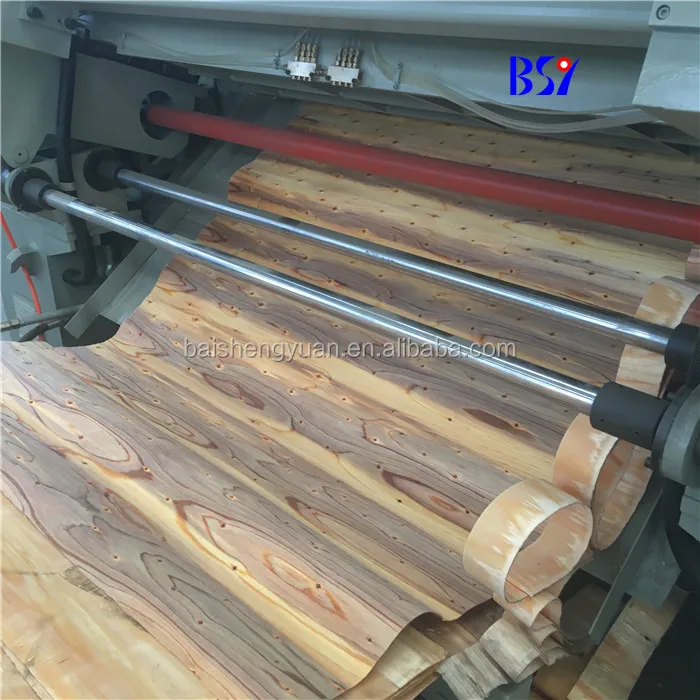

final product
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Other machinery,you maybe interested in too:

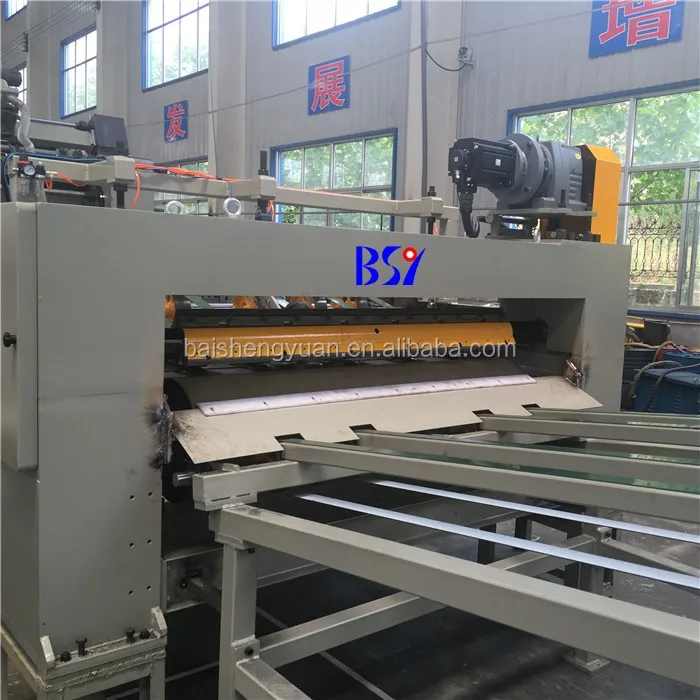

Log debarking and rounding machine
Automatic Veneer rotary clipper machine
SHANDONG BAISHENGYUAN GROUP CO.,LTD
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
Packing & Delivery
Packing Details : nude packing or wooden case
Delivery Details : within 35 working days
1. packaging
2. packaging
3. packaging
Customer Photo
Customer visit our factory
Group photo with customer
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment. Or L/C
