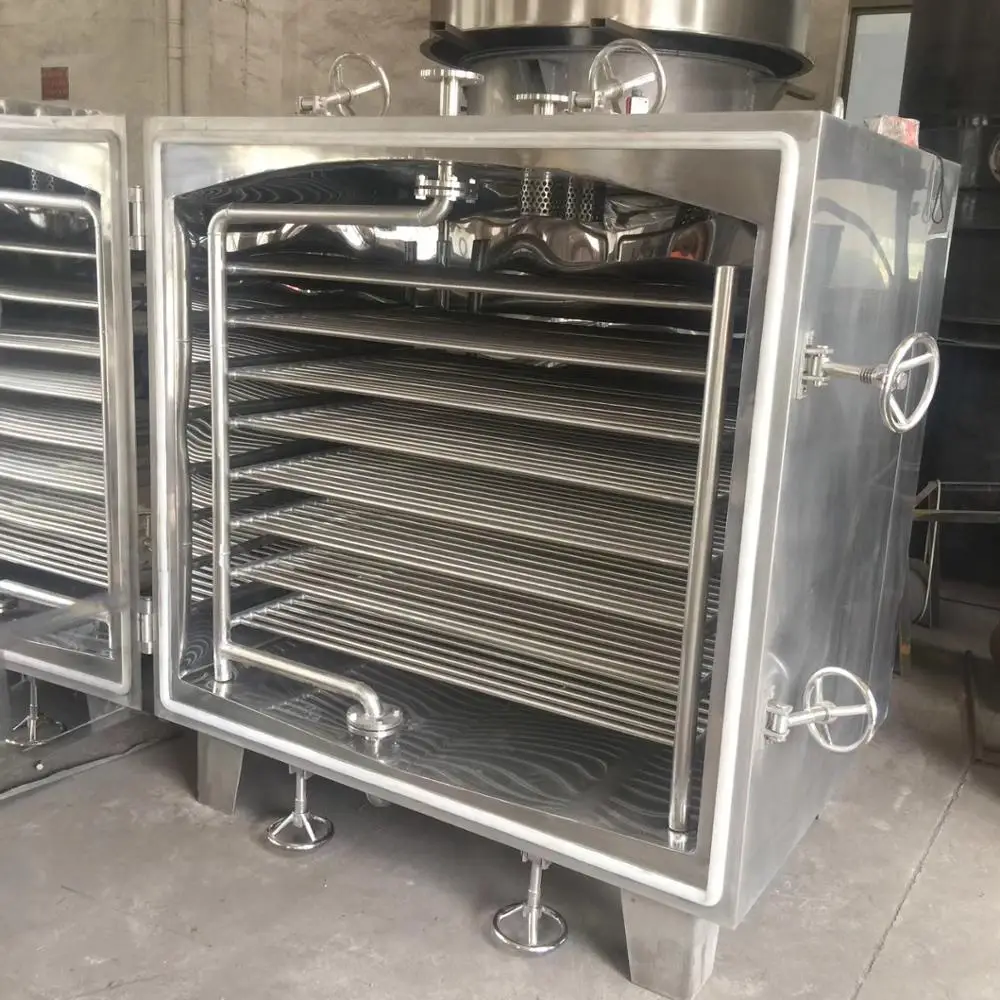

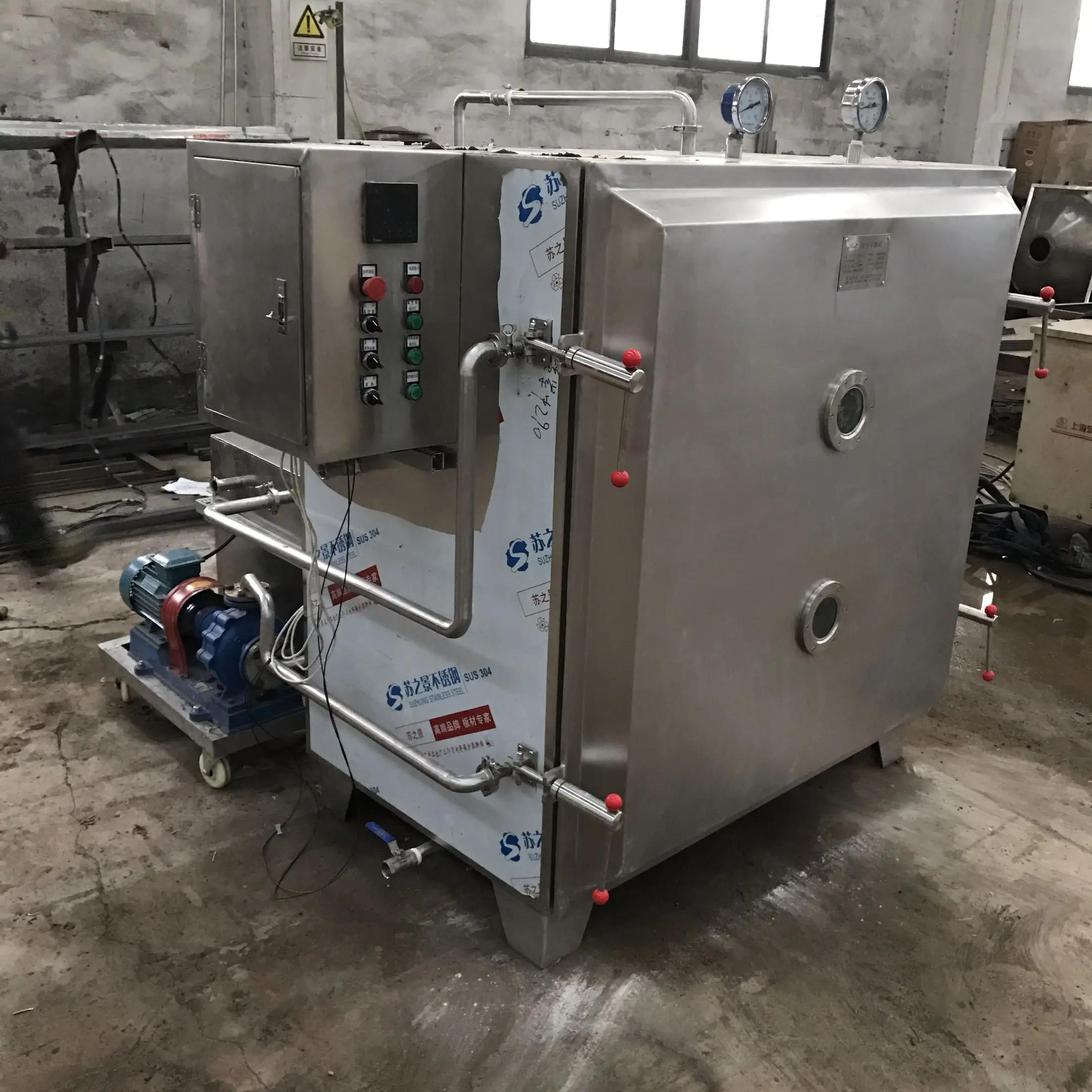

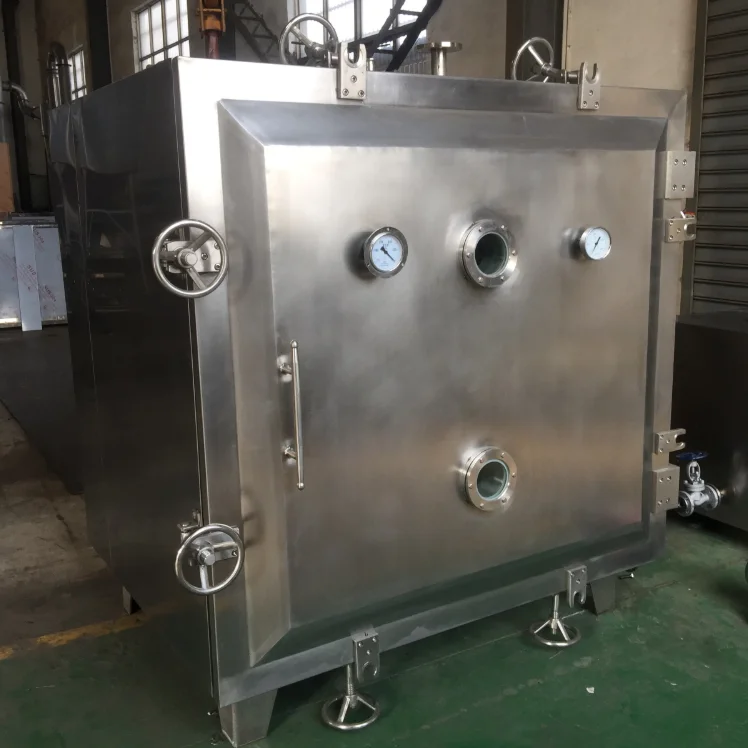

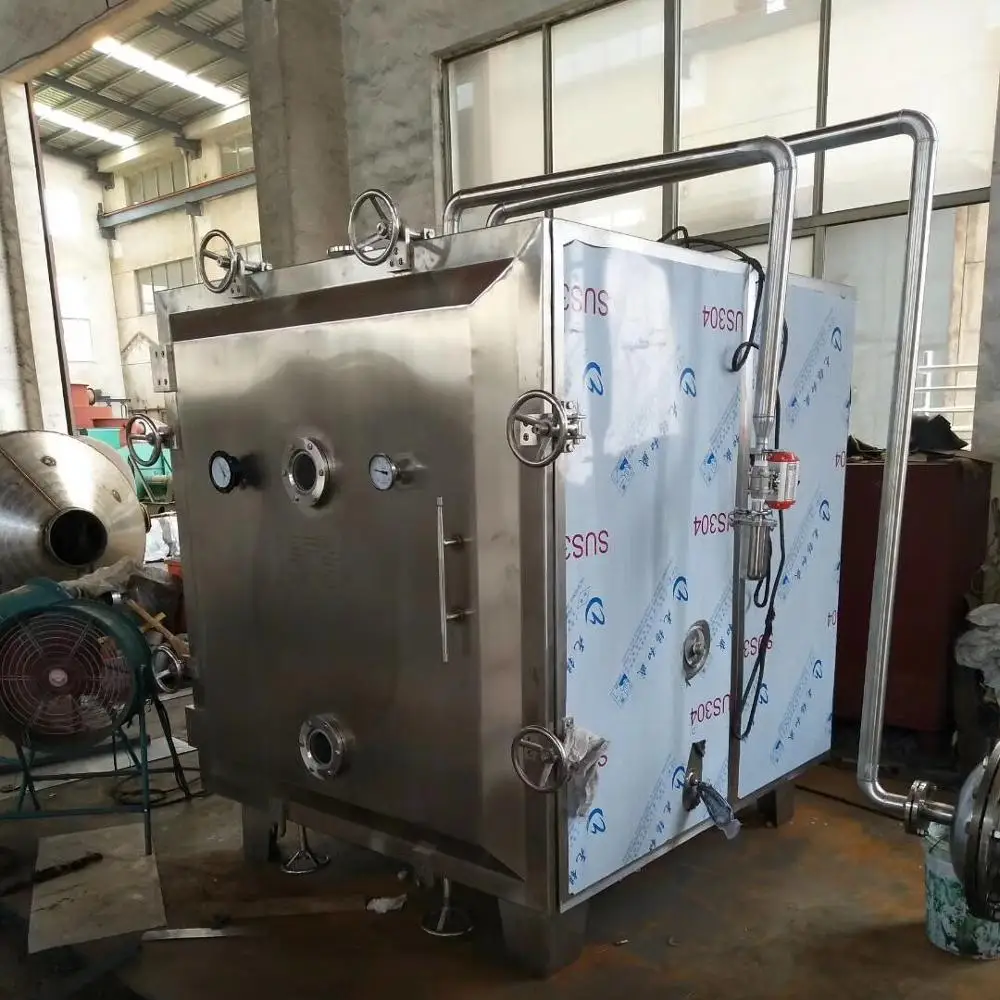

Industrial heat sensitivity material square vacuum tray drying machine

Product Overview

Description

Industrial heat sensitivity material square vacuum tray drying machine



Product Description

Technical paremeter

Model	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
Inner Dimension(mm)	φ600*976	φ800*1247	φ1000*1527	φ1400*2054	1500*1060* 1220	1500*1400 *1220	1500*1800 *1220
Outer Dimension (mm)	1135*810* 1020	1700*1045* 1335	1693*1190* 1500	2380*1675* 1920	1924*1720 *1513	1513*1924 *2060	1924*2500 * 1513
Shelf Layers	4	4	6	8	5	8	12
Shelf Layers Distance(mm)	81	82	102	102	122	122	122
Tray Dimension(mm)	310*600*45	520*410*45	520*410*45	460*640*45	460*640 *45	460*640 *45	460*640 *45
Combined Tray Quantity	4	8	12	32	20	32	48
Shelf Design Pressure(MPa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Shelf Design Working Temp(℃)	35-150	35-150	35-150	35-150	35-150	35-150	35-150
Chamber Vacuum(MPa)	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1	0.1
Water Evaporation Rate Under -0.1 Mpa and 110 Degree (kg/m2·hr)	7.2	7.2	7.2	7.2	7.2	7.2	7.2

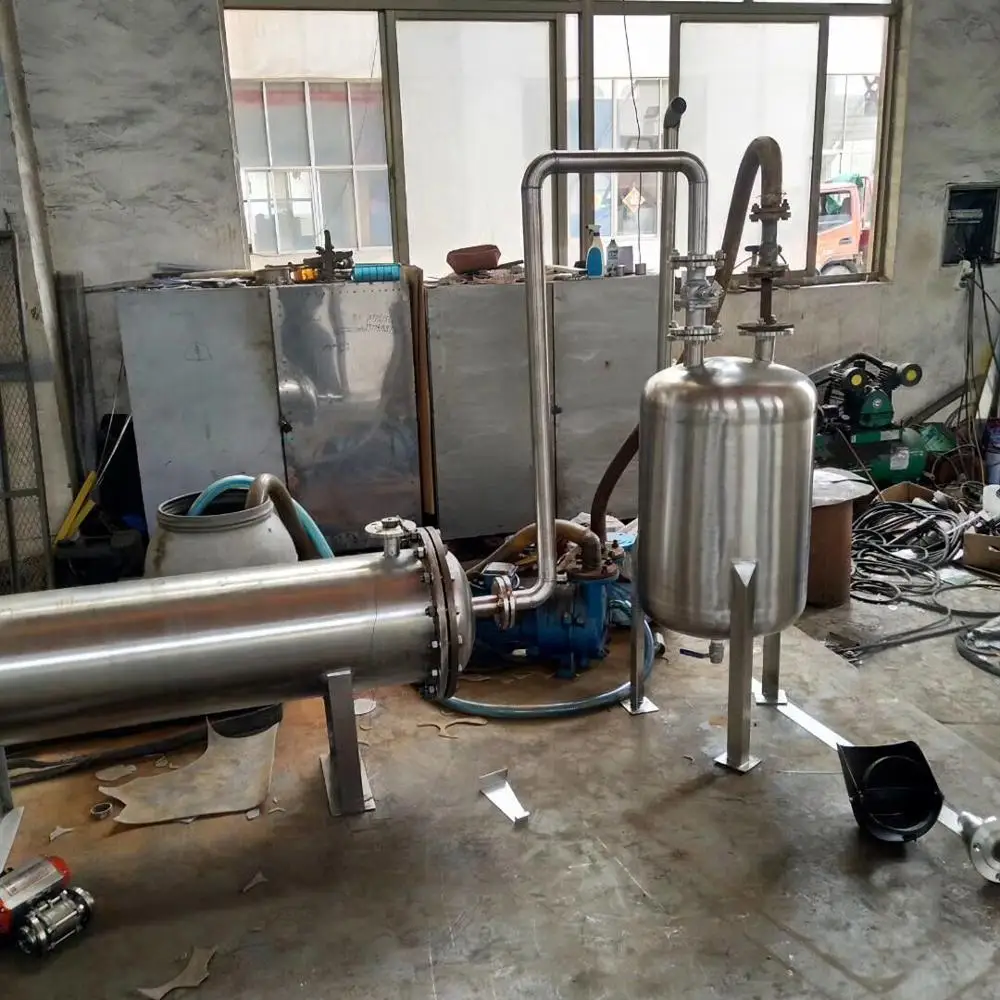

Vacuum Pump Model When Using Condenser kw)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
Vacuum Pump Model Without Condenser (kw)	SZ-0.5 1.5KW	SZ-1 2.2KW	SZ-1 2.2KW	SZ-1      2.2KW	SZ-2 4KW	SZ-2 4KW	SZ-2 5.5KW
Weight(kg)	250	600	800	1400	1400	2100	3200

 Introduction

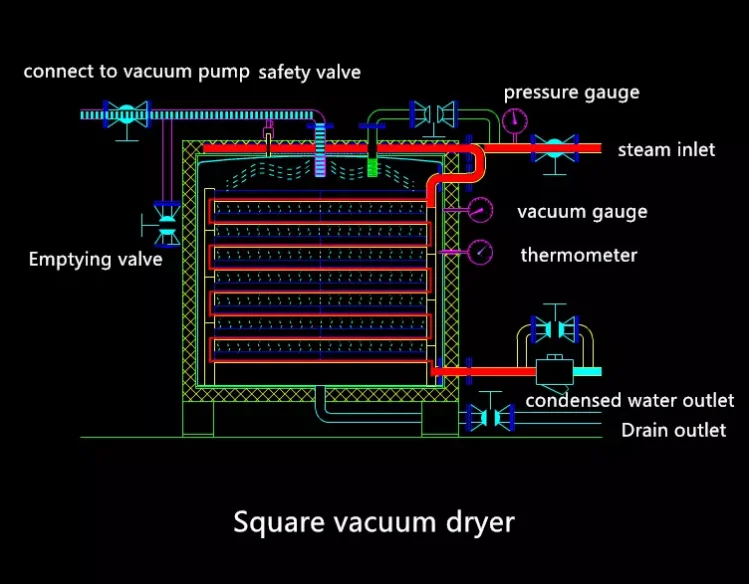

Basic working principle of WKS series square vacuum drying machine is to use electric or steam or hot water or heat transfer oil as heat sources, use radiator to generate heat. Water vaporizes very fast when it’s boiled. Under ordinary pressure, water starts to boil at about 100℃, but under vacuum condition, vaporization occurs when it is below 100℃. For example, water starts to boil at only 70℃ when its surface pressure is -0.07Mpa. WKS series square vacuum drying machine is highly efficient under low temperature condition.

Working Principle

Vacuum drying is a process in which materials are dried in a lower pressure environment, which reduces the heat needed for rapid drying. Drying machines used for this process are known as vacuum drying machine, and vary in size from small units designed to fit on kitchen counters to massive rooms which are used to handle things like timber products.

Drying involves reducing the moisture in an object, and is done in environments where the air is drier than the object being dried, which encourages moisture to evaporate out. This is often accomplished with heat to reduce the humidity of the air, but in a vacuum drier, the temperature does not need to be as high, and the drying is often faster. It's also possible to achieve a very high level of dryness, which may be desirable in some cases.

Product Features

Suitable for drying thermally sensitive material and materials that are easy to be oxidized under low temperature.

Suitable for drying materials that contain solvents, which need to be recycled.

This drying machine series works in static state, so there is no damage to material’s form and structure.

Batch-style operations allow users to adjust at any time.

Inside arch framing avoids condensation water’s returning

Vacuum tubes are all connected to one point, which ensures drying uniformity.



Application

Widely used for heating, solidification and dehydration of pharmacy, chemical, food, light industry, heavy industry materials and products, such as raw material medicine, medicine, Chinese Herbal Medicine, powders, granules, pill bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.

Packaging & Shipping

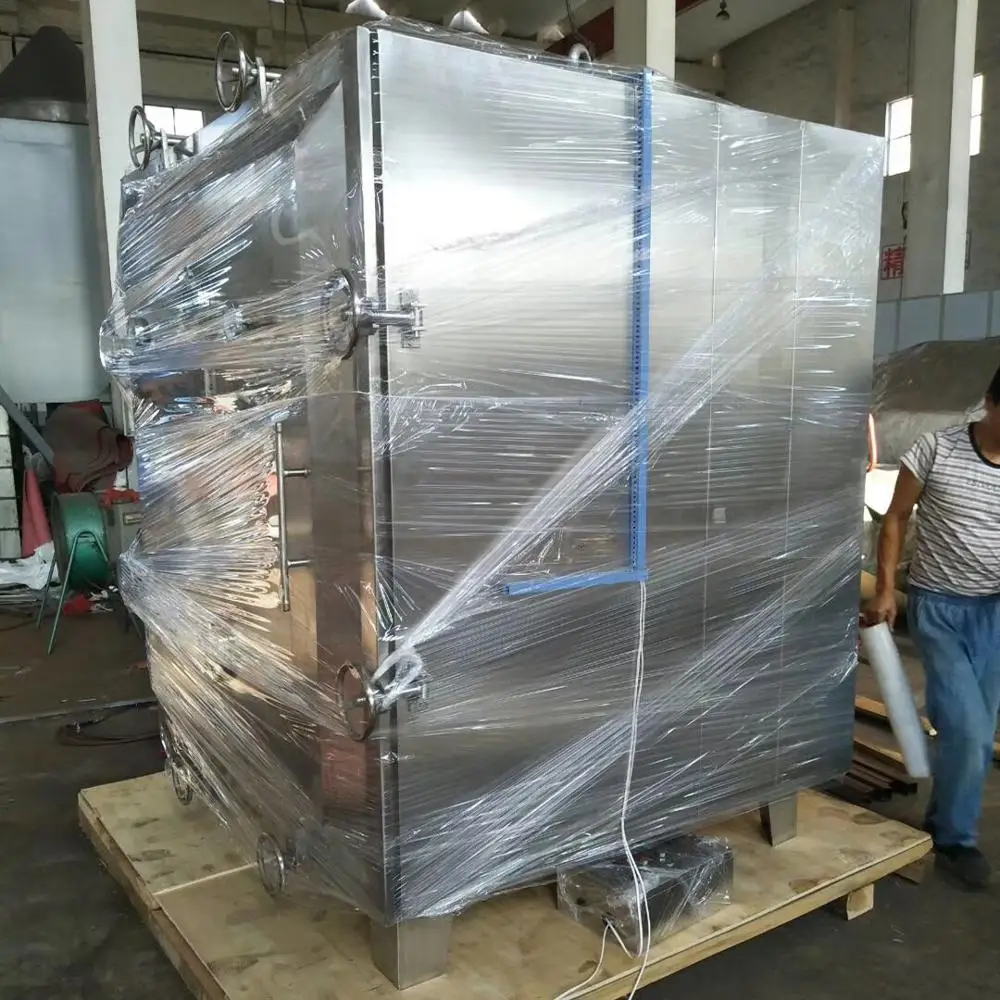

Packaging: wooden case (fumigation free) or as per customers' requirements

Shipping: within 5 to 7 working days after receiving the balance payment
