Aircraft motor parts 70a for rc brushless motors esc brushless speed control

Product Overview

Description

Aircraft motor parts 70a for rc brushless motors esc brushless speed control

1. With powerful and high performance MCU processor, users can set functions according to their own needs.

2. With smooth, delicate speed control feel, first-class speed regulation linearity. Automatic throttle end correction, take the maximum throttle stroke available.

3. Support brushless motor unlimited maximum rotation, support fixed speed function.

4. Start mode can be set, throttle response speed is fast, and has a very smooth linear speed regulation, compatible with fixed-wing aircraft and helicopters.

5. Built-in SBEC, with actuator load power, low power consumption.

6. It has a variety of protection functions: input voltage abnormal protection, battery low voltage protection, overheating protection, throttle signal loss power reduction protection.

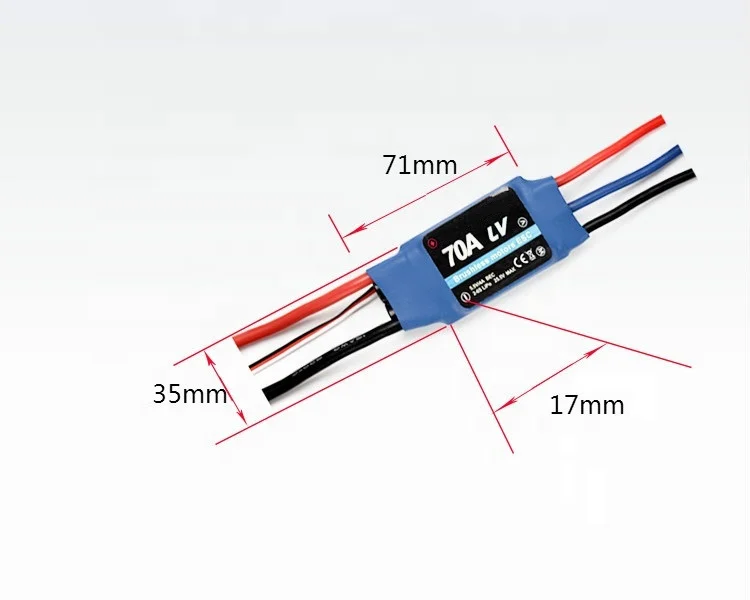

Size:



Technical Parameters:



Model Number	Continuous current	Burst current	LiPo Cells	BEC	Weight	Size
Fly-6A	6A	8A	2-3S	5V/0.5A/2A	6.7g	24*13*5mm
Fly-10A	10A	12A	2-3S	5V/1A/3A	10.1g	32*19*5mm
Fly-12A	12A	15A	2-3S	5V/1-2A	9g	24*18*6mm
Fly-15A	15A	20A	2-4S	5V/2A	10.8g	32*19*5mm
Fly-20A	20A	25A	2-4S	5V/1A/3A	30g	54*26*11mm
Fly-30A	30A	40A	2-4S	5V/1A/3A	32g	54*26*11mm
Fly-40A	40A	60A	2-5S	5.5V/4A	48g	71*35*10.5mm
Fly-45A	45A	70A	3-8S	No	58.5g	54*31*14mm
Fly-50A	50A	80A	2-6S	5.5V/4A	68g	71*35*17mm
Fly-60A	60A	80A	2-6S	5.5V/4A	68g	71*35*17mm
Fly-70A	70A	100A	2-6S	5.5V/4A	69g	71*35*17mm
Fly-80A	80A	100A	2-6S	5.5V/4A	90g	66*35*22mm
Fly-90A	90A	120A	2-6S	5.5V/4A	95g	66*35*22mm
Fly-100A	100A	140A	2-6S	5.5V/4A	95g	71*35*22mm
Fly-110A	110A	150A	2-6S	5.5V/4A	95g	71*35*22mm

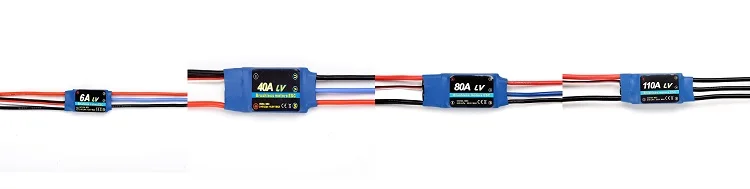

If you need the other current, pls click the following picture. Then you can choose the other type of Fly series.





Standard export carton.

Delivery time:

Pls feel free to contact us and inform the quantity you need. Then we will check to see if we have products in stock or not. If yes, we will send products out in 7 days. If not, we need some days to prepare your orders. The specific delivery time will be different according to your quantity.



1. We can accept L/C, T/T, Western Union and MoneyGram.

2. 30% TT advance, 70% before shipment.

How to order:

1. If you have any questions, pls feel free to contact us. And pls let us know the model and the quantity you need.

2. After confirming all details, we will send you a quotation.

3. Sample confirmation. We will prepare the sample you need and send out in 7 days.

4. After you confirm the bulk order, we will send you the PI.

5. After confirming the PI, you transfer 30% deposit.

6. After receiving your deposit, we arrange to produce your order.

7. After testing and packing, we will send product pictures and packing pictures for your confirmation.

8. You transfer the 70% balance. After we receive your payment, we will ship out and offer you the tracking number.

9. If the details of the page are all ok for you, you can place a trade assurance order directly. We wil prepare your order asap.

10. After-sale services and feedback.



After-Sale Service:

We will track the order until you received.



If you have any questions, pls feel free to contact us. Thank you!
