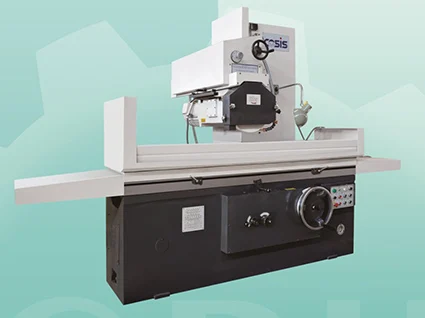

Swallow tall slideway Grindeing machine with Horizontal spindle and rectangular table
- Category: Machine Tool Equipment >>>
- Supplier: Shandong Luci Industrial Technology Co. Ltd.
Share on (62293032176):
Product Overview
Description
Product Description
The machine uses grinding wheel end faces for grinding, which can grind steel, castings, non-ferrous metals and glass, ceramics and other materials. It is mainly used for grinding dovetail guide rails, and can also grind flat, V-shaped, rectangular and other guide surfaces.
Main Specification | Units | M7232C | |
Table | Working table size(LxW) | mm | 1000*320 |
Max.grinding size(LxWxH) | mm | 1000*320*400 | |
Table longitudinal travel | mm | 1100 | |
Table longitudinal movement speed(stepless) | m/min | 3~15 | |
Table T-slot(Geneva numerate) | pieces | 3 | |
Table bearing capacity(including electromagnetic chuck weight) | kg | 400 | |
Wheelhead | The distance between grinding wheel spindle center to work table | mm | 0~400 |
Max.travel of wheelhead Cross(manual or power-operated) | mm | 600 | |
Max.travel of wheelhead Vertical(manual or power-operated) | mm | 400 | |
Cross rapid moving speed of wheelhead | m/min | 2.1 | |
Wheelhead rapid lifting speed | mm/min | ≥400 | |
The ratating speed of the grinding wheel spindle | rpm | 2880 | |
Grinding wheel size(O.DxI.D) | mm | Φ125xΦ32 | |
Motor Power | Total motor power | kw | 5.26 |
Wheelhead motor power | kw | 2.2 | |
Working accuracy | Working surface to base level parallelism | mm | 0.01/500 |
Surface roughness | μm | Ra1.25 | |
G.W | kg | ≈3500 | |
Overall dimension(LxWxH) | mm | 2350*2200*2650 | |

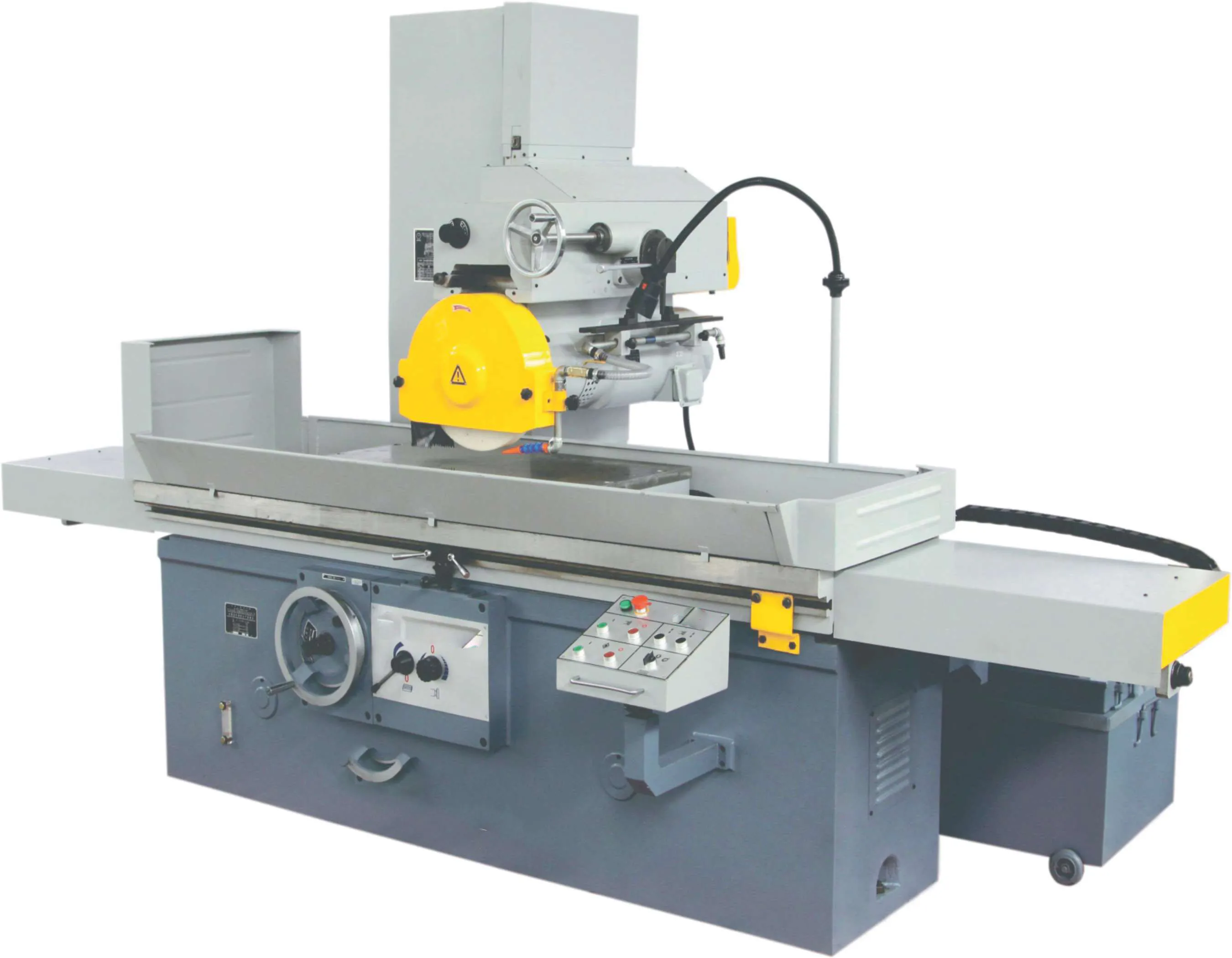

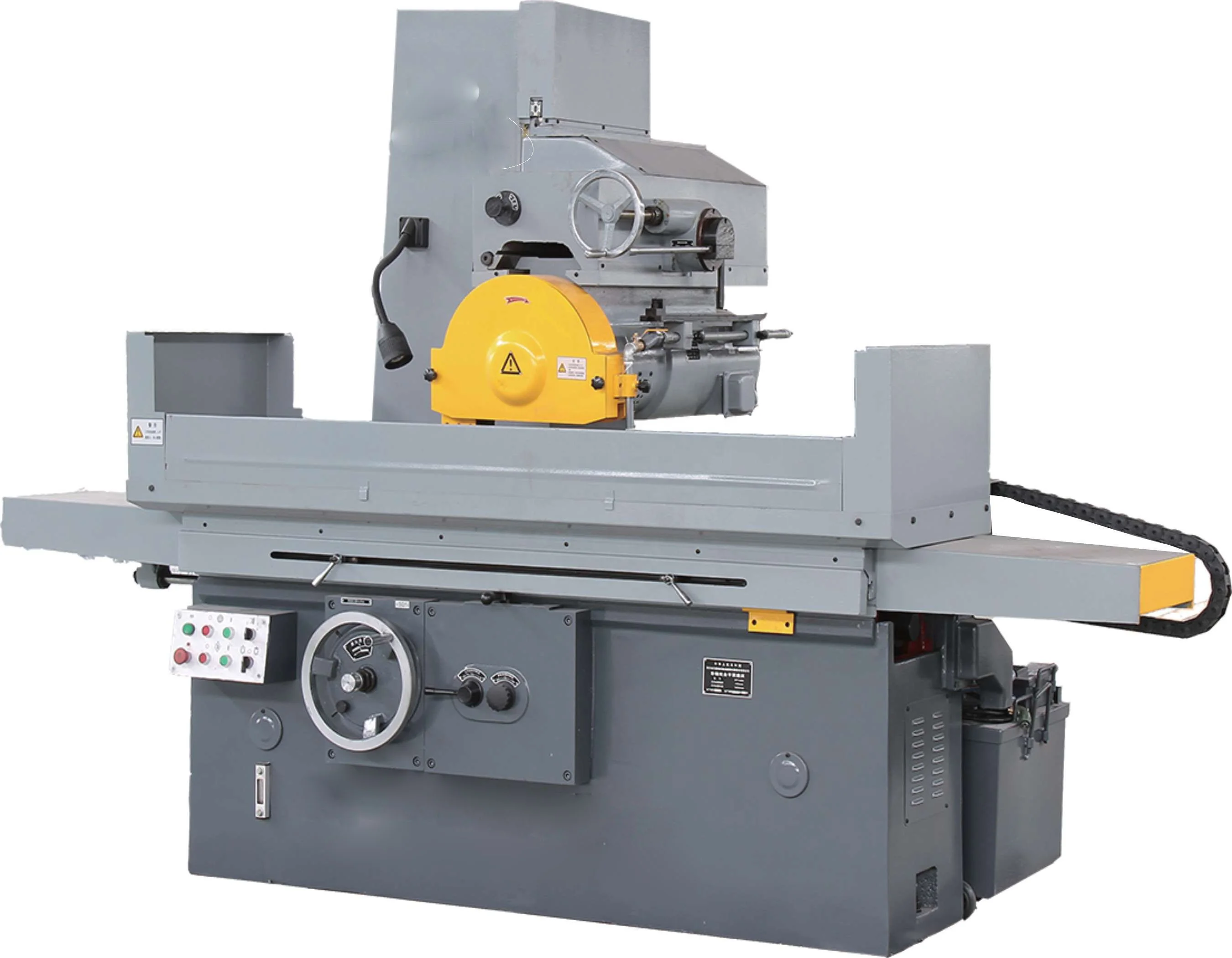

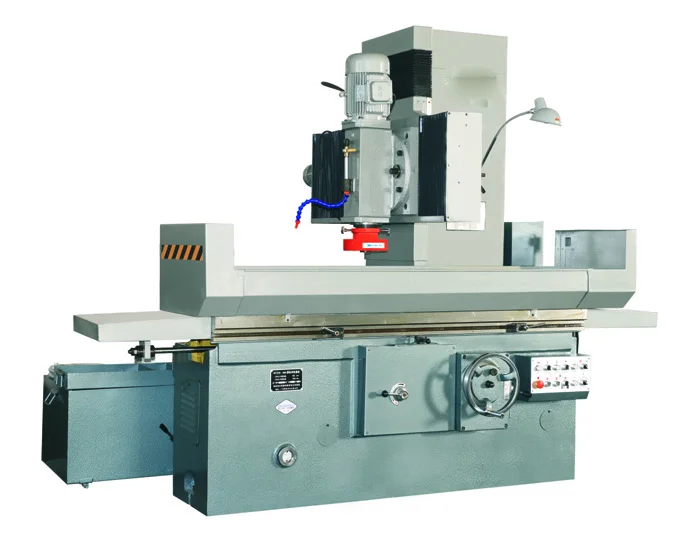

Details Images
Main feature:
1.The longitudinal movement of the table is hydraulically driven, stepless speed regulation. Grinding head lateral feed adopts ball screw drive.
2.The vertical feed of the grinding head is manual, equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
Product packaging
Customer Photos
Certifications
More info. please contact Luci of the personnel of the service,ask about details,provide your demand, professional engineers will make plan for you.
FAQ
●Because of different factory custom specifications of products,product size and shape are different,so product appearance depends on goods.
●Because of different type and specification,market prices fluctuate frequently,so the actual price will be subject to the contract.
●Because of different type and specification,market prices fluctuate frequently,so the actual price will be subject to the contract.
