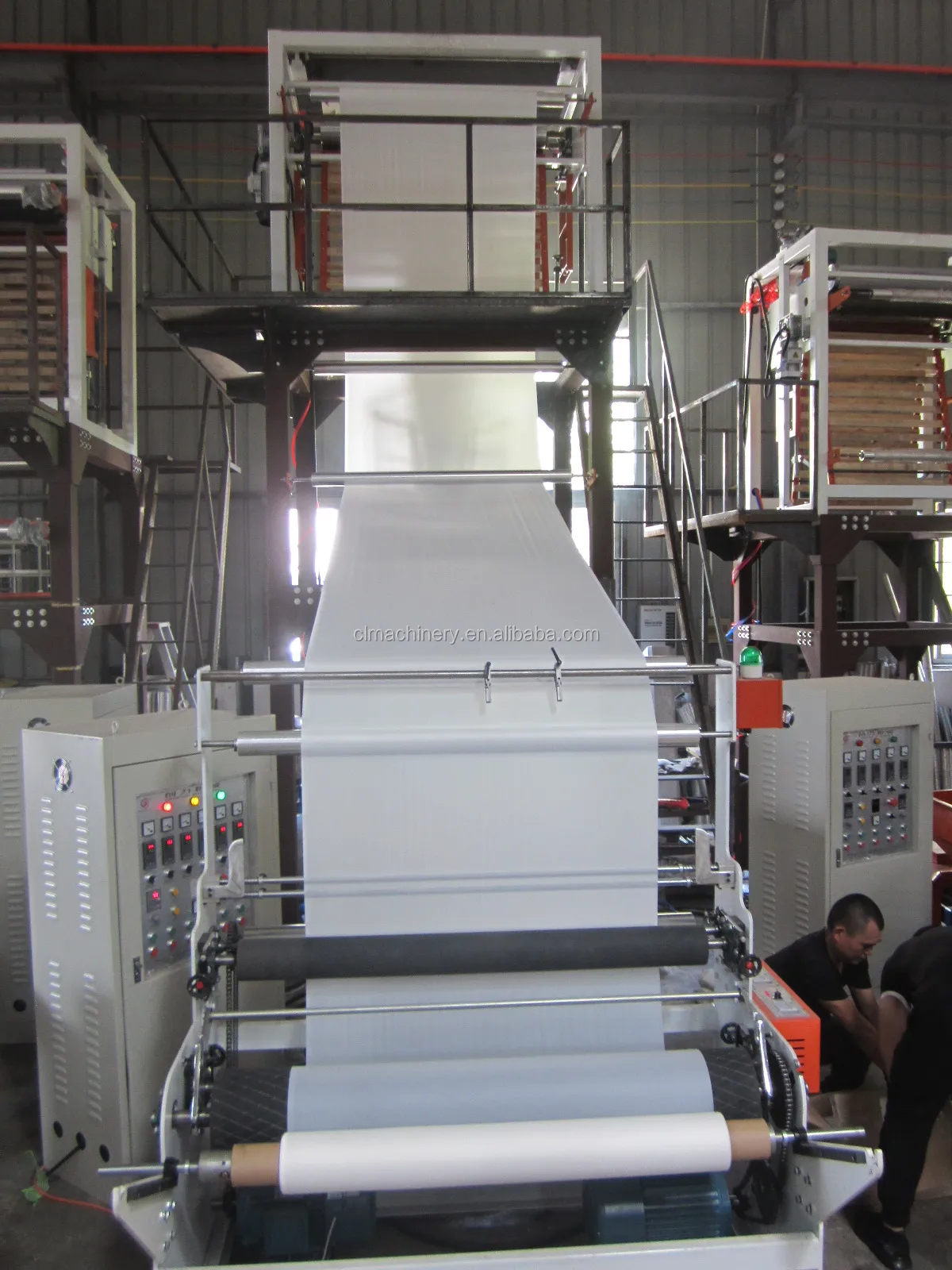

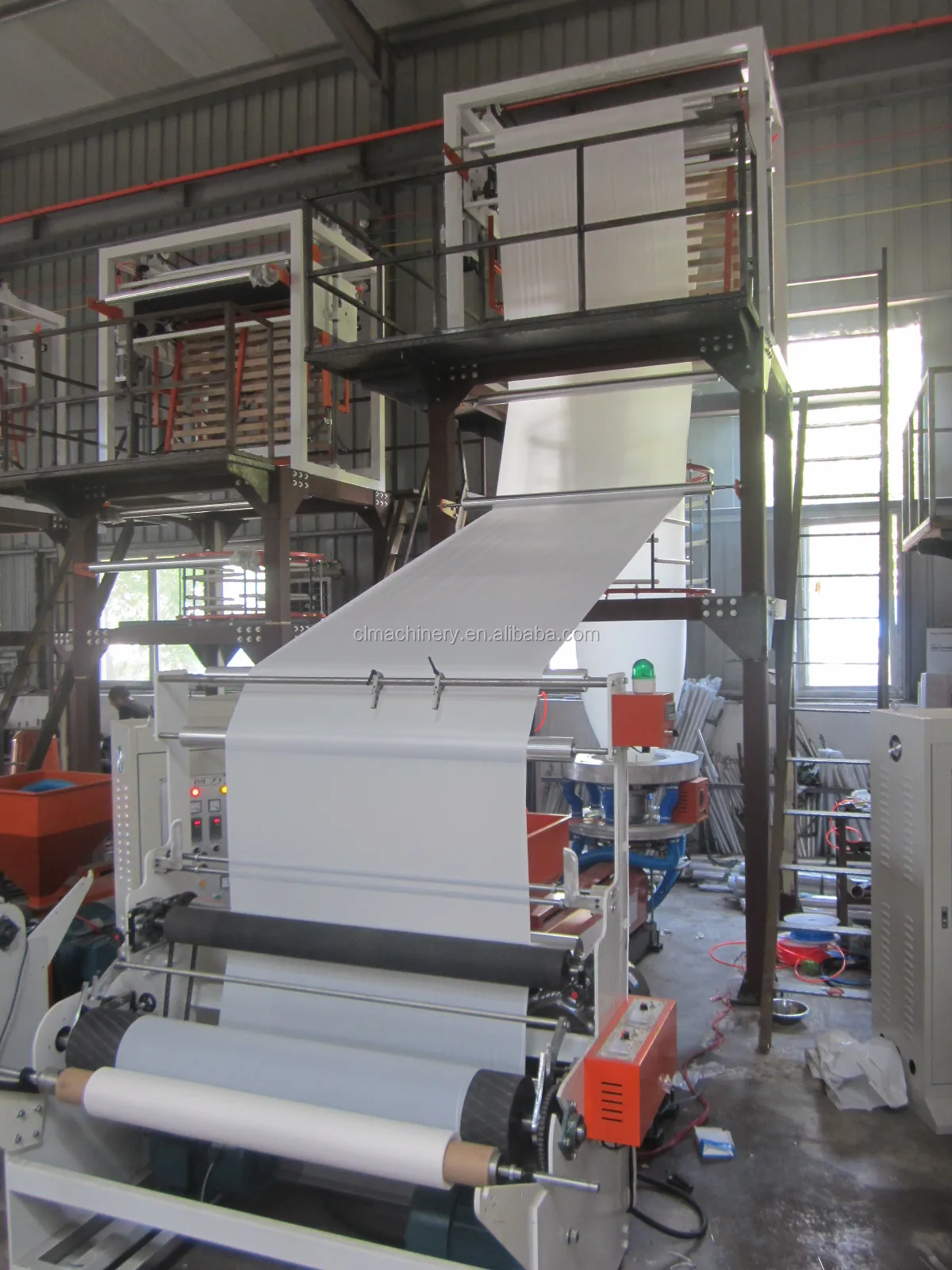

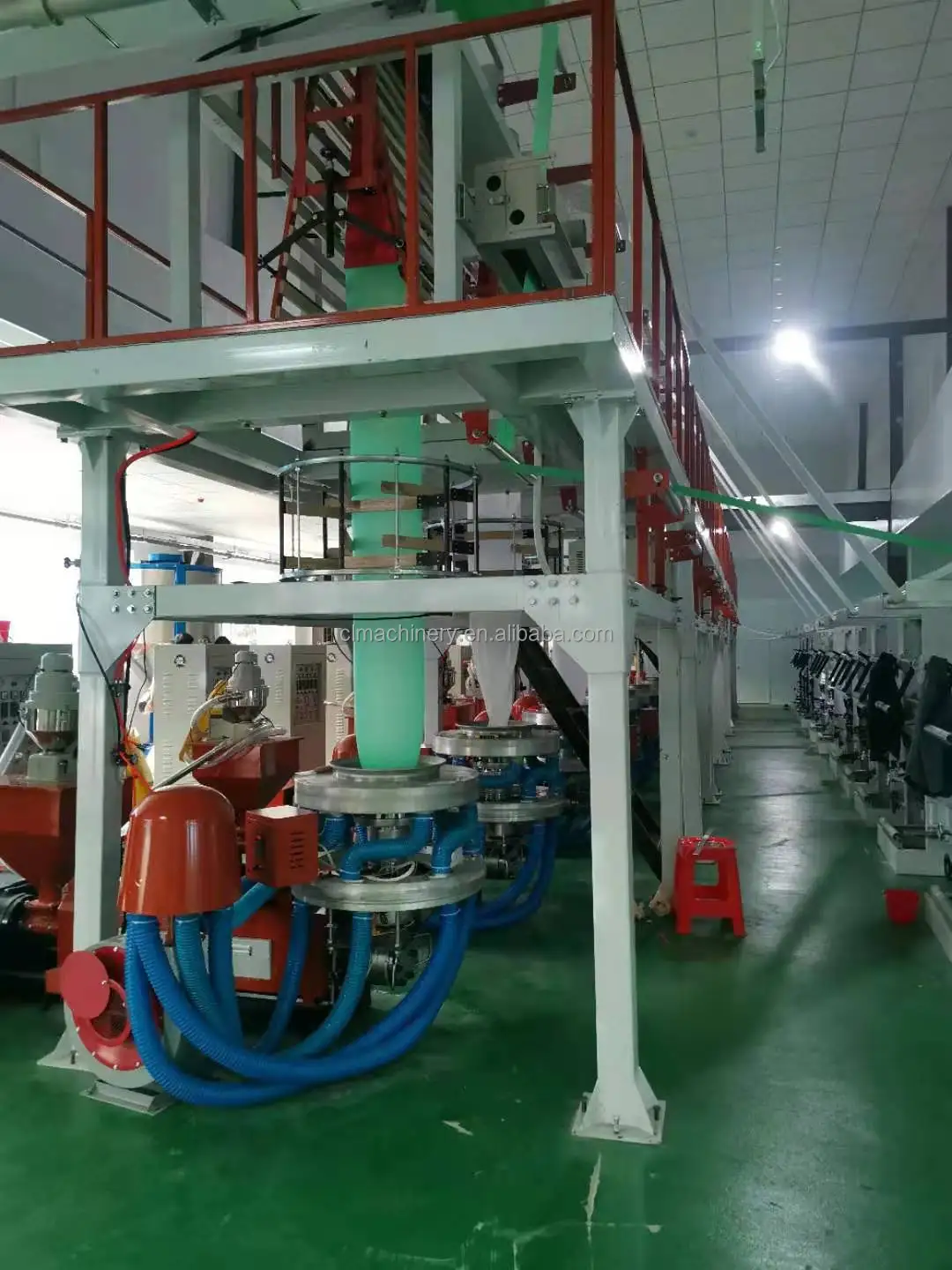

Biodegradable Corn Starch Film Blowing Extrusion Machine

Model

SJ-45

SJ-50

SJ-55

SJ-65

Features

Raw Material

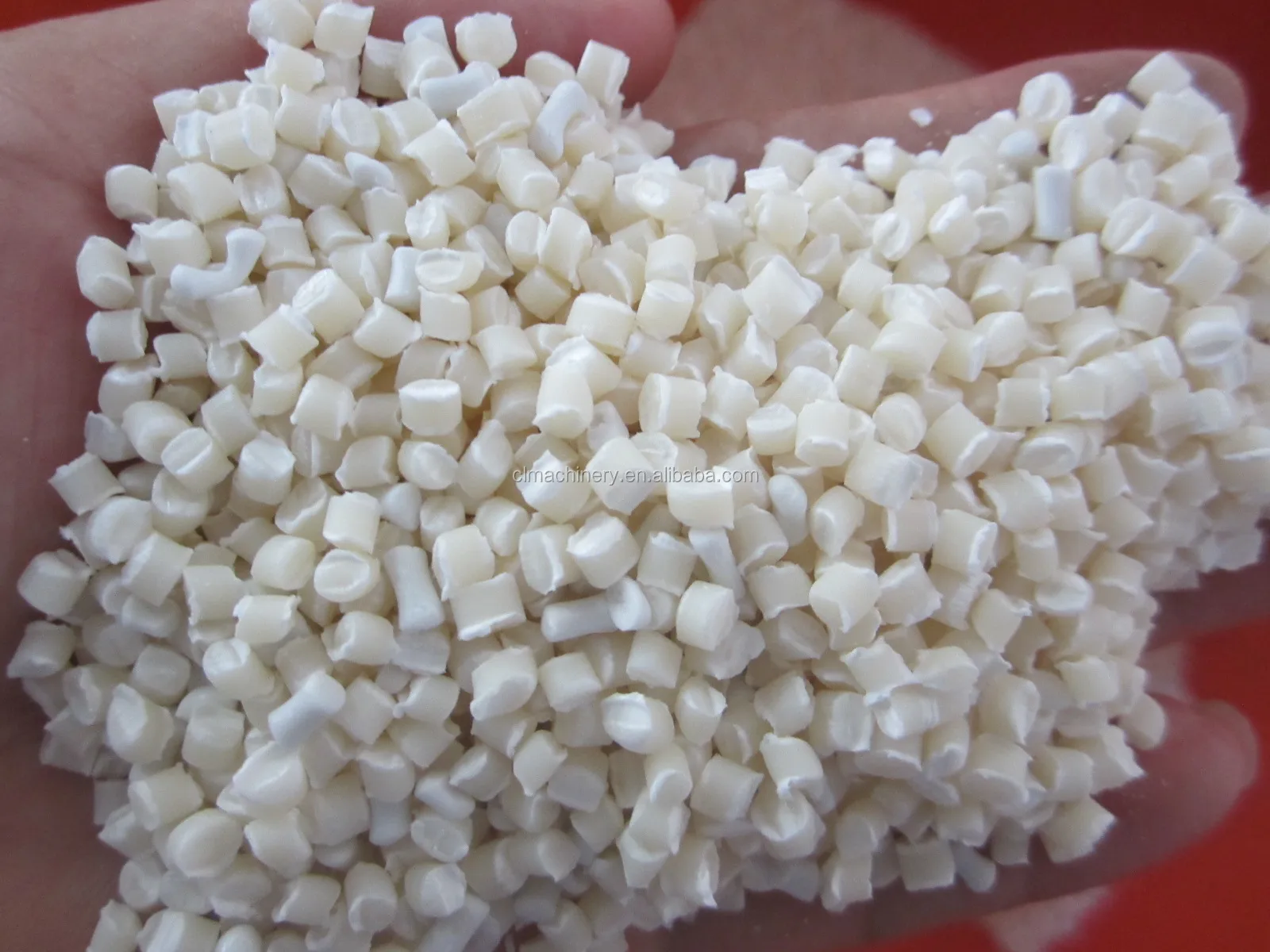

Biodegradable material

Film Width

500mm

600mm

800mm

1200mm

Output

35Kgs/h

45Kgs/h

60Kgs/h

100kg/h

Film Thickness

0.008mm-0.15mm

Power supply

380V, 3Phase, 50Hz

Weight

1800kg

2100kg

2500kg

3200

Dimension

5×2.3×4M

5×2.3×4M

5.5×2.5×4.5M

6×3.2×5.5M

Extrusion Unit

Screw&Barrel Diameter

45mm

50mm

55mm

65mm

Screw&Barrel L/D ratio

32:1

Motor

11KW

15KW

18.5KW

30KW

Gearbox

133

146

173

180

Die Head Type

Fixed Die Head

Die Size

50/80

60/100

120/160

160/250

Heating

11KW

11KW

13KW

18

Blower

2.2KW

3.7KW

Film

Taking-up  Tower

Upper Tower Type

Rise and Fall

Roller Length

700mm

700mm

900mm

1400mm

RollerWorking Way

Opened and Tightened By Air Cylinders

Take Up Motor

1.5KW

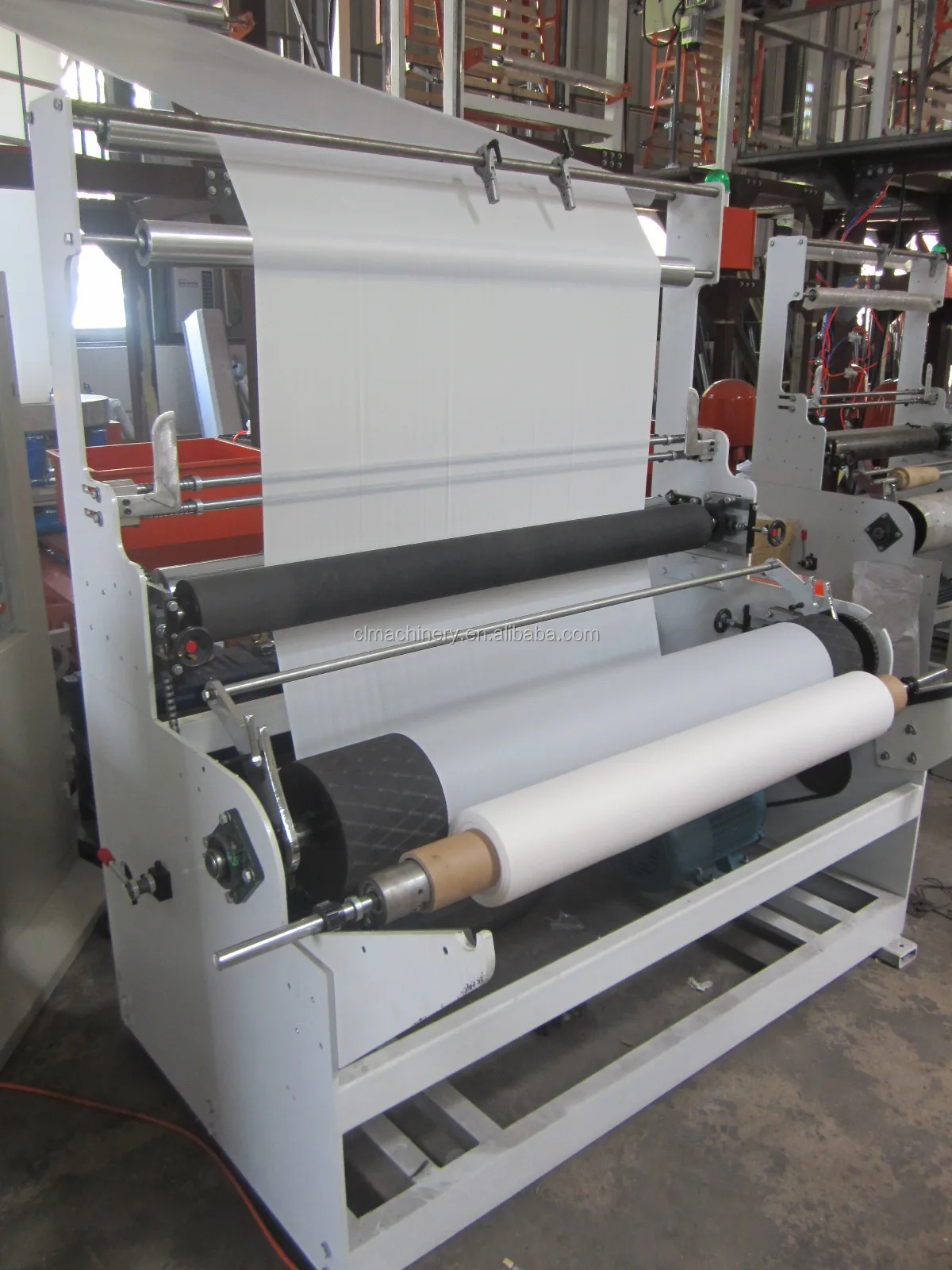

Winding Station

Winder Type

Single winding station

Rollers

700mm

700mm

900mm

1400mm

Torque Motor

5N/M

Max. Winding Diameter

600mm
