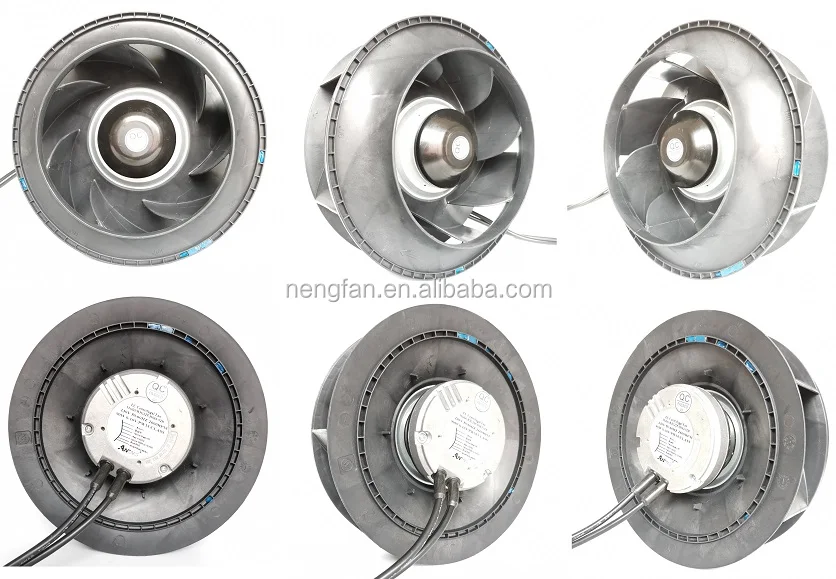

Model Type: R3G225-H050-01B / Motor Type: 72mm 92mm
Rated Voltage
Frequency
Rated Current
Input Power
Speed
Air Flow
Air Flow
Static Pressure
(VAC)
(Hz)
(A)
(W)
(RPM)
(CFM)
(m3/h)
(Pa)
220
50/60
1.0
124
2700
664
1130
580
Details Description
Current Leakage
<=3.5mA
Operation Mode
continuous operation S1
Direction of Rotation
clockwise, seen on rotor
Mounting Position
at will
Insulation Class
"B"
Cable Length
450mm
Bearing
ball bearing (NMB)
Net weight
2.0kg
Surface of Rotor
electrophoresis
Number of Blades
"7"
Type of Protection
IP55
Speed control
0-10v / PWM signal
Approval
CE
Operate Life
>=40,000hours
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)

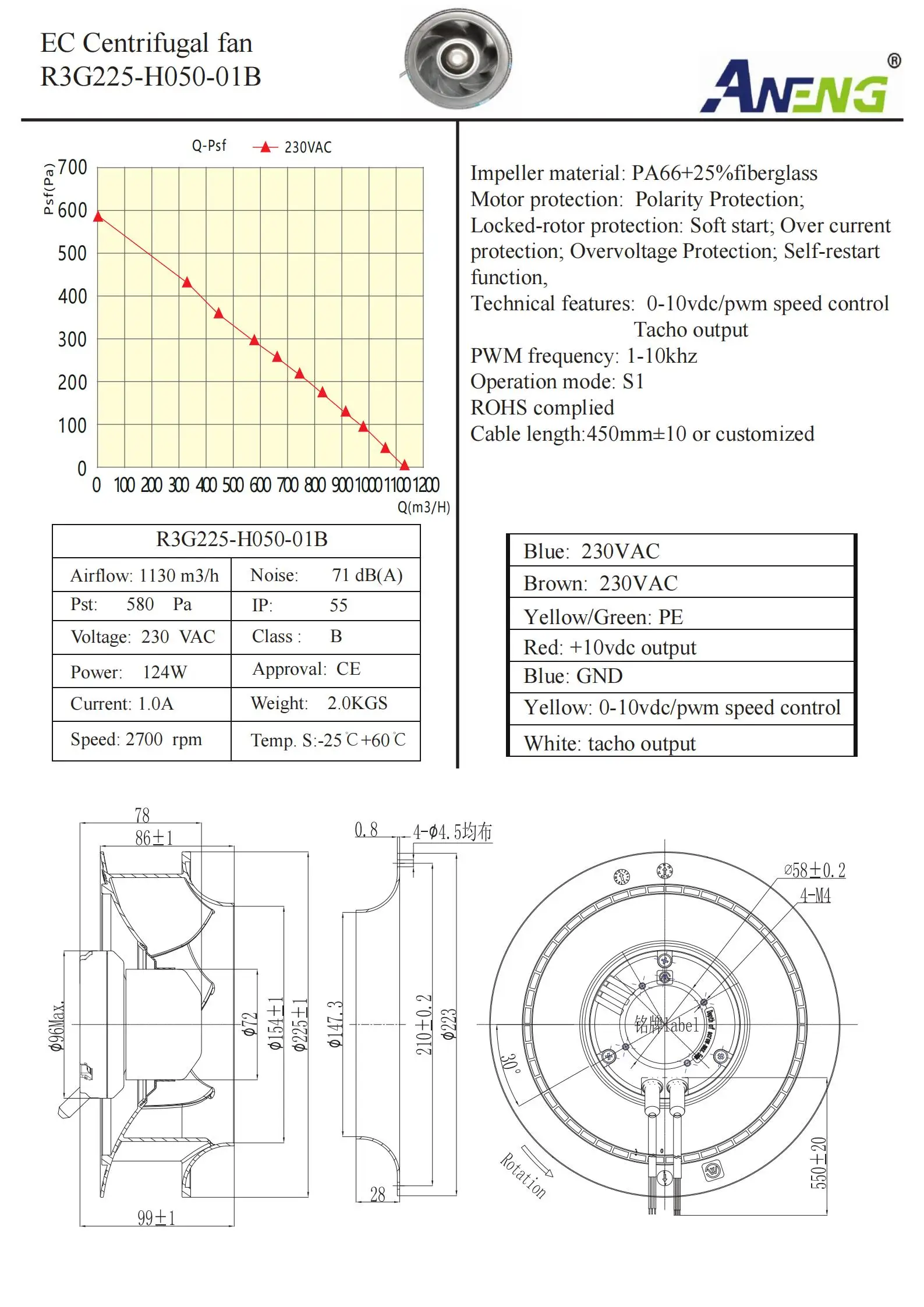

specification
Factory Display
Production Line
Packaging
1. for Sample, packing individually by foam carton;
2. for Mass, pallet package 120x100x120CM.
Certifications
Our Guarantees
Quality Guarantee
We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.
Price Guarantee
The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.
Delivery Time Guarantee
We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.
Service Guarantee
We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
