Product Overview
Description
——10 Years PCBA Manufacturer Especially in IOT and RF fields——
Bluetooth 50 Beacon Ble ibeacon Customization schematic design pcb pcba
OEM Solutions
- PCB Assembly for mass production, daily capability is 30000pcs of PCBAs.
- PCBA prototype workable samples quick making within 2-3 weeks, offer test reports.
- Professional R&D engineers team for PCB Layout, PCB Design.

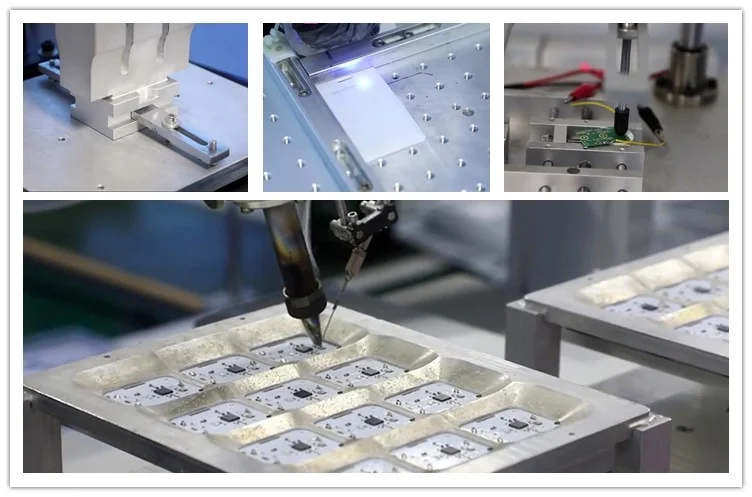

- Electronic Finished Products Assembly.
- Material, Components Sourcing for customers at VAT cost.
- It's optional to find alternatives with good quality to optimize and reduce material cost.
RF and PCB development, manufacturing and testing equipment:
- Spectrum analyser
- Infrared re-flow used for reworking fine pitch BGA and CSP devices
- Temperature chamber
- Network analyser
- Spectrum analyser and signal generator
- RF power sensor

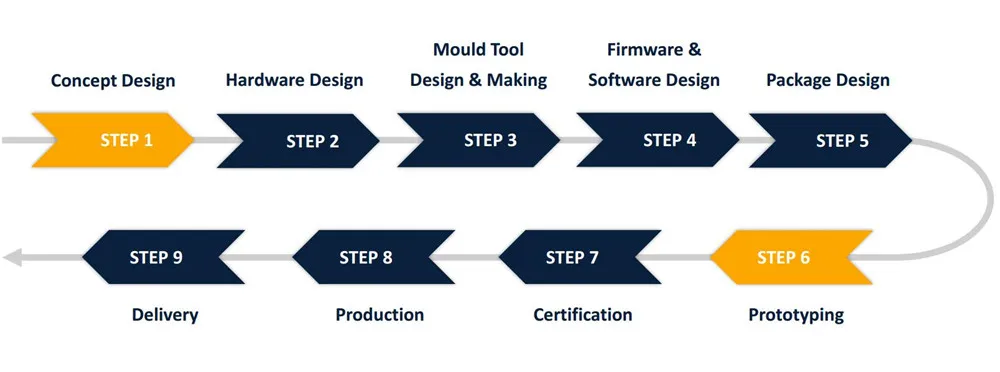

ODM Design
- PCB Layout Design
Schematic design ,from concept design to finished products
- Fast PCB Prototype Service
- Firmware and software custom
- Components Subsitution
- Product Certification
Related Products
High-speed Signal Bluetooth
RF PCB Design Layout Gerber PCBA Board
RF Wireless PCB Assembly
IoT tracking solution Prototype
Schematic Stackup Layout
Wi-fi Solution Multilayer PCB Design

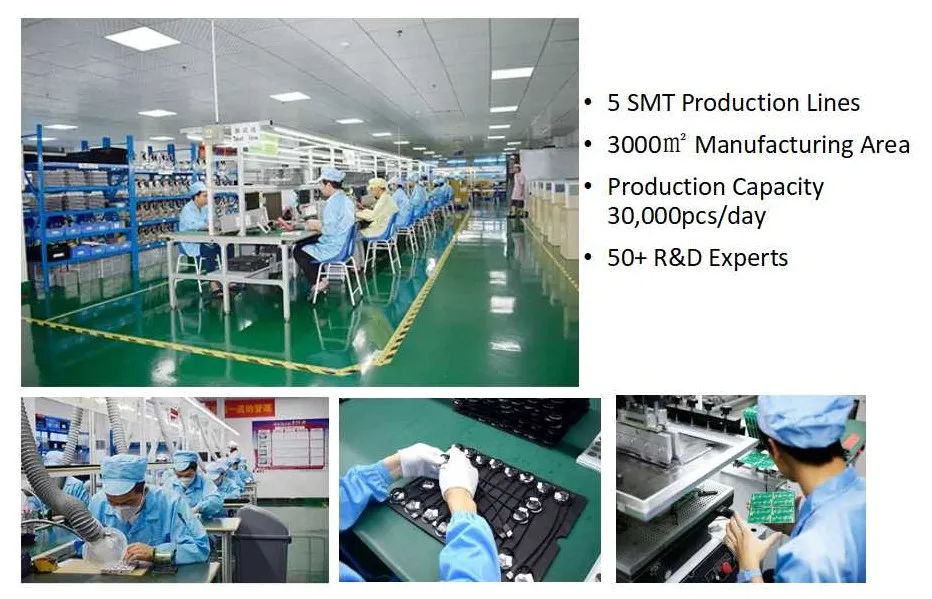

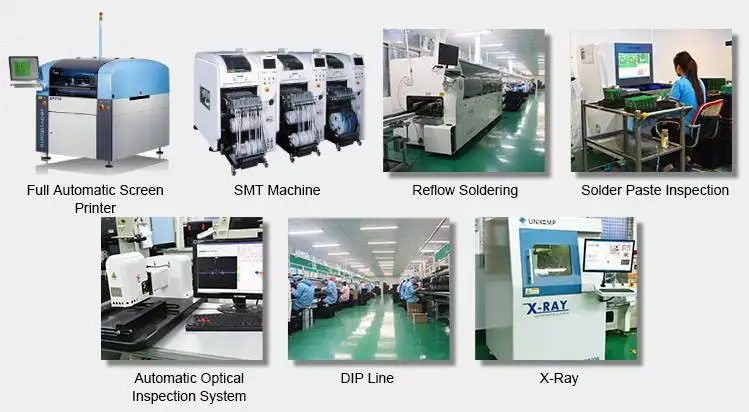

PCBA Capacity
- 5 Automatic SMT Equipment Lines
- 6 Raido High Frequency RF/ EMI Shielded Rooms
- Temperature and Humidity Chambers
- High and low temperature test machine
- 100% checked by X-Ray and AOI Machine
| Order Quantity | 1-50,000pcs (including prototype) |
| Components | SMD and THT |
| From size 0402.0201 to 01005 | |
| SOIC,PLCC, TSOP, QFP,BGA | |
| Assembly Method | Single and double-sided / SMD and THT / SMT and Thru-hole |
| Ball Grid Array (BGA) | As small as 0.5mm pitch |
| All BGA placements are inspected by X-Ray | |
| Components Package | Poles,Reels, Tape Strips, Bulk Supply |
| Maximum Componentsize | 55*55*15mm |
| Fine Pitch from 0.4mm | |
| Minimum Pin width 0.2mm | |
| Solder | Lead free and conforming to DIN 32513,ISO, EN29454,IPC 650 |
| Related Test | AOI & X-Ray Inspection, Flying Probe Test and In Circuit Test |
| File Format | BOM & Gerber files |
Company Information
Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application.
Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time,By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier.
We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.
Minew has 50+ R&D experts on the firmware & software design, custom SDK/APP for you to modify the UUID/Major/Minor , if you require big volumes beacons in the future and need to install, welcome to send us project details for OEM/ODM.
Certifications

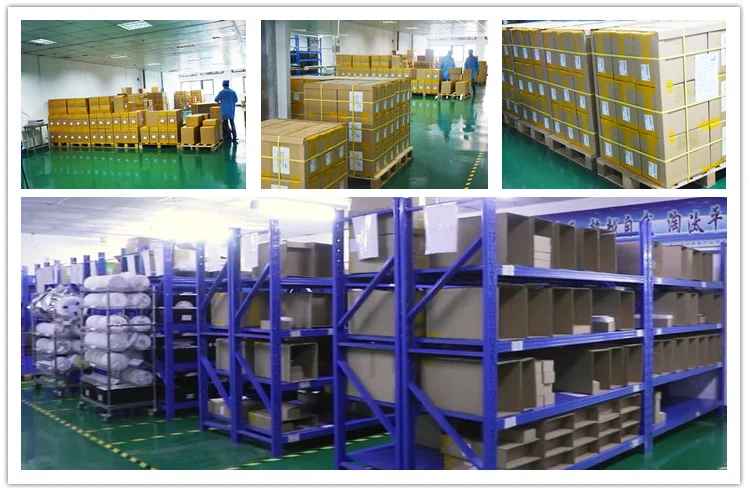

Packaging & Shipping
Standard Package
Each PCBA unit will be in anti static bag, then the bubble bag, and then put into PCBA carton.
PCBA Lead Time (Suppose Minew purchase all materials.)
Prototype: 2-3 weeks
Low volume PCBA 100 pcs: Around 30 days
1K-10K: standard L/T: 4~6 weeks
Above is for first order of any new customers. If repeat orders, the L/T should be faster.
