motar spraying machine

Product Overview

Description

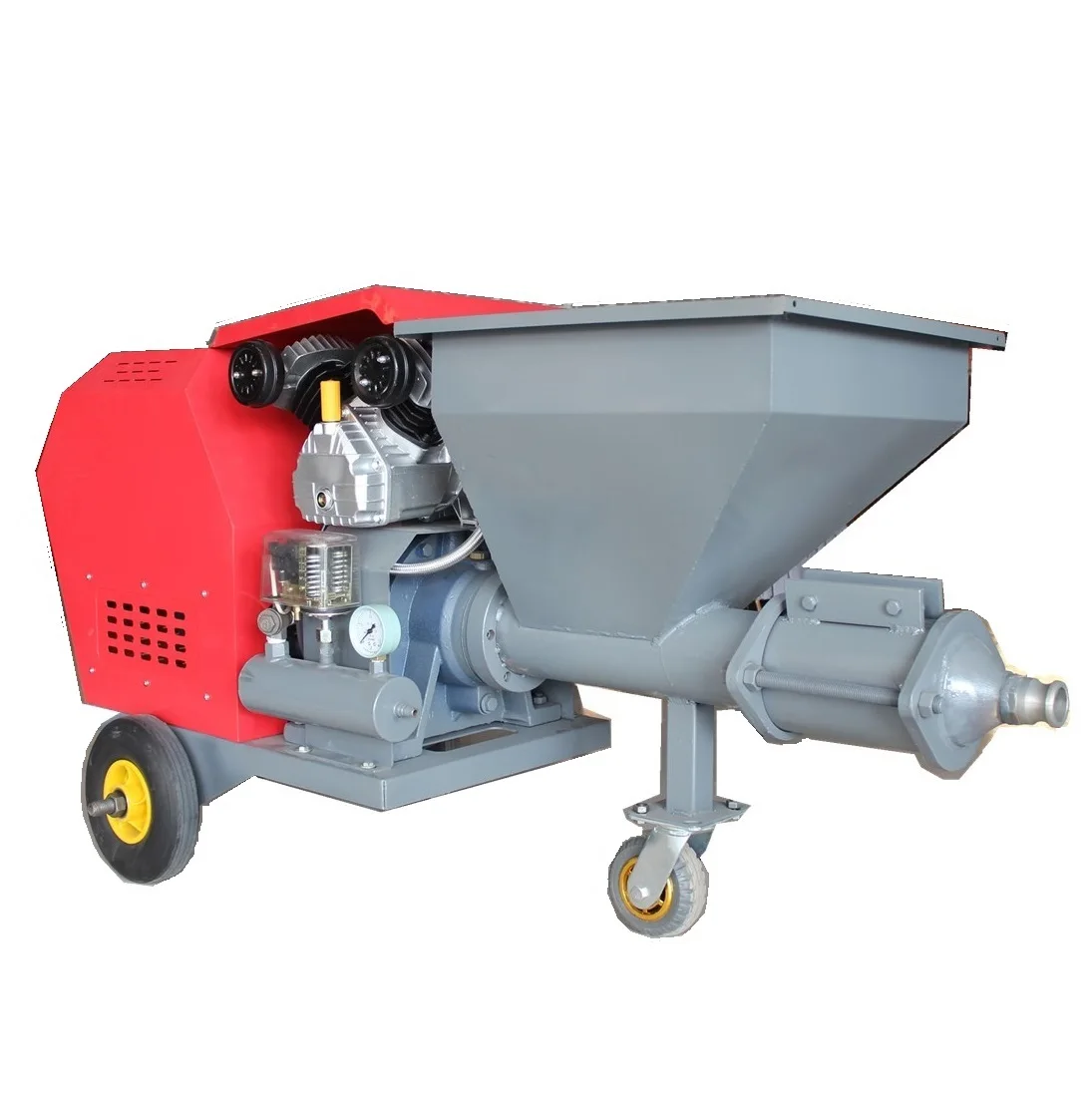

This machine is used to spray cement sand motar / plaster on the wall.

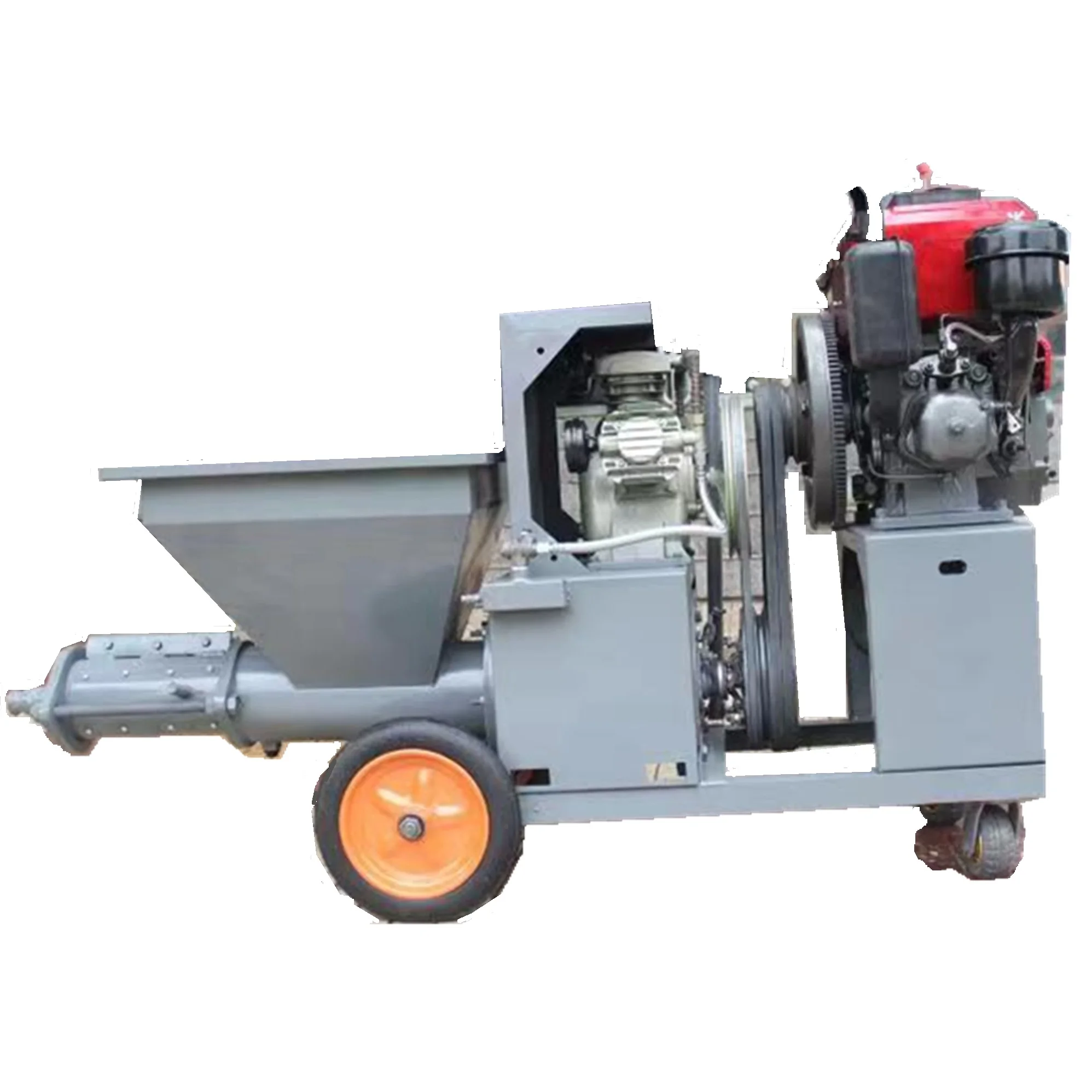

1.  The machine can be powered with  220v, 380v electric motor or diesel engine, at buyer's selection

2.  There are different models to meet various motar spraying capacity

3    Model HJ311 specification:

• 220 /380 v electic motor drive
• pump type: screw pump
• pumping motor 4kw
• pumping pressure: 3 MPa
• air compressor:  motor 2.2kw, 0.8MPa, 0.36m3/min
• spraying flow capacity:  40 Lt/min,  2.5m3/h
• hopper volume: 50 Lt
• sand grain size: no more than 3mm
• sand cement motar formula:  water:cement:sand=1:1:2
• motar spraying efficiency:  50~120 sqm/h
• wear parts:  wear resistant rubber liner, wear resistant alloy screw
