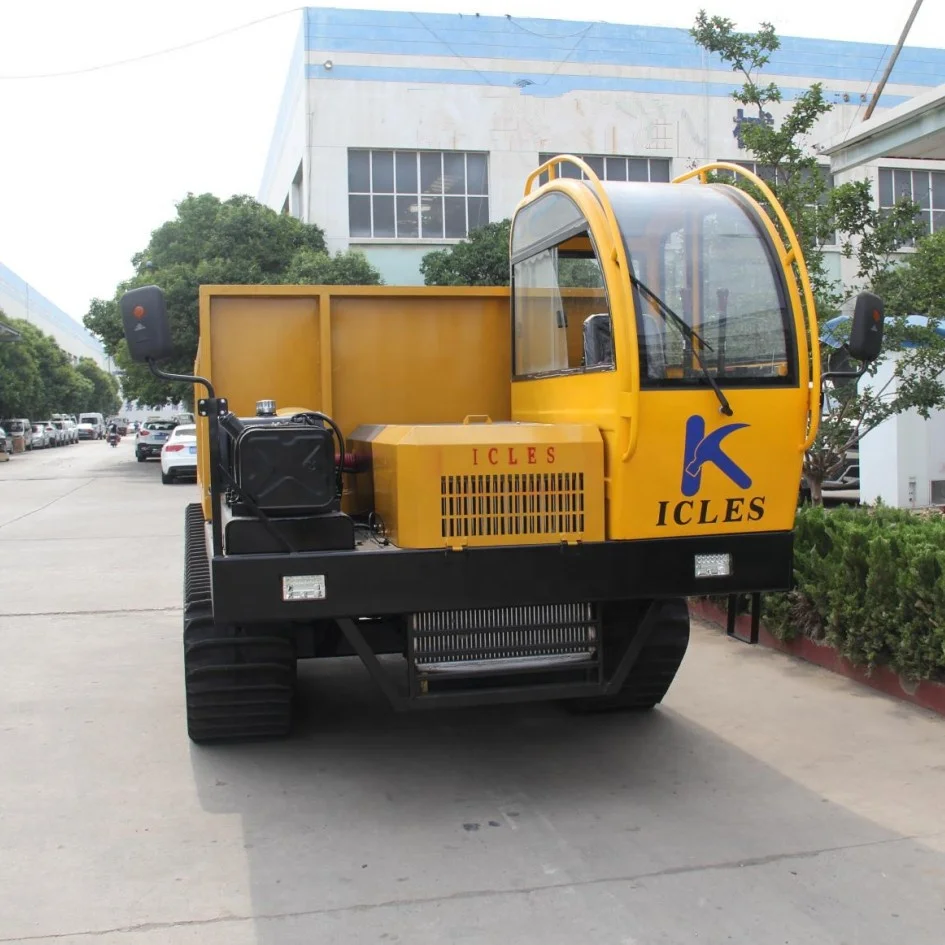

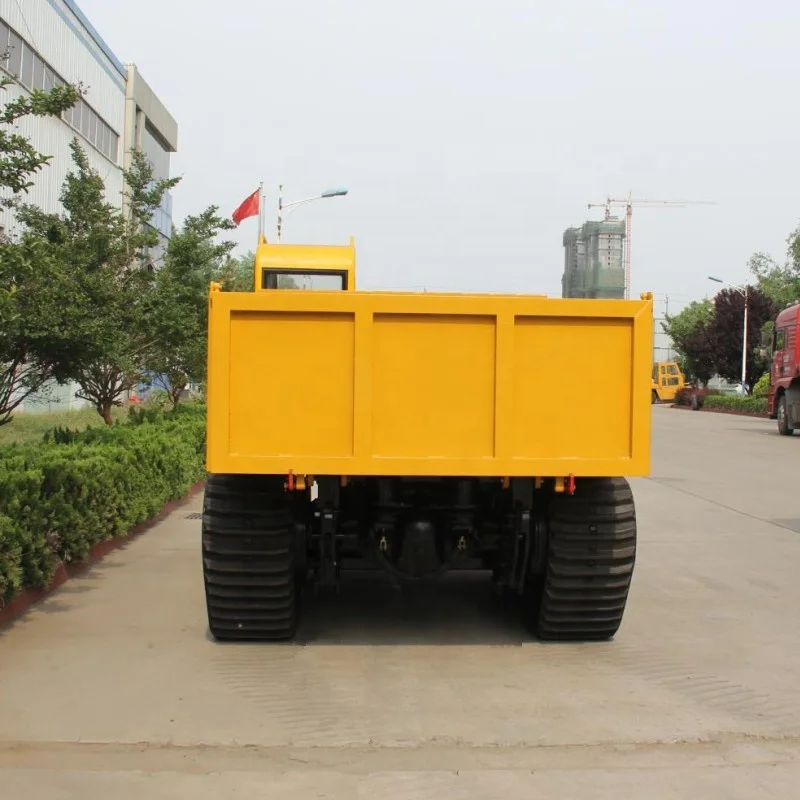

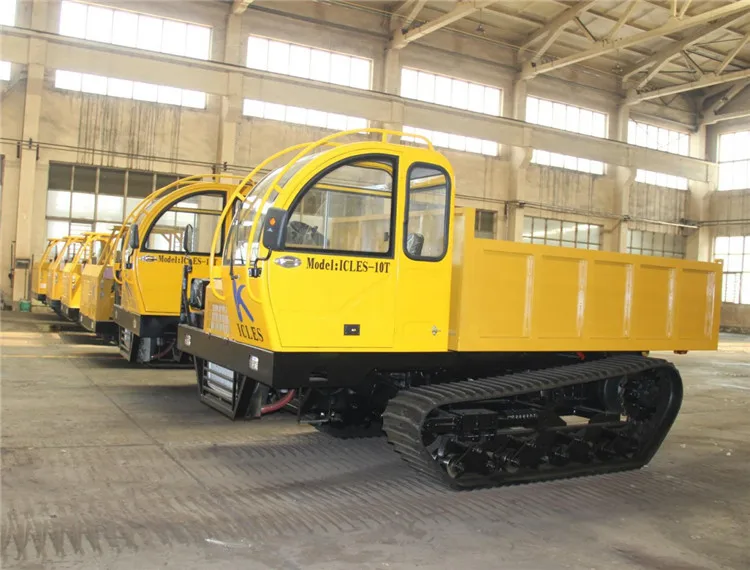

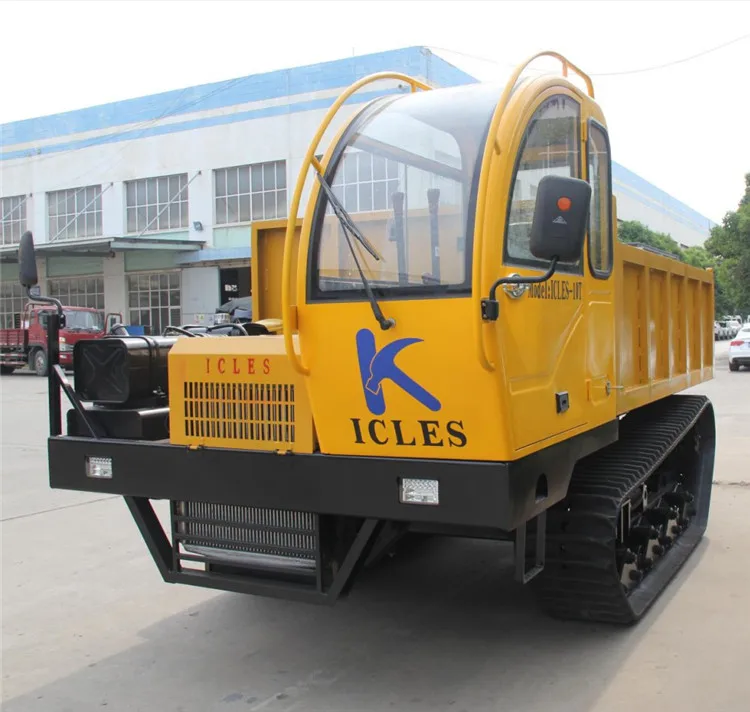

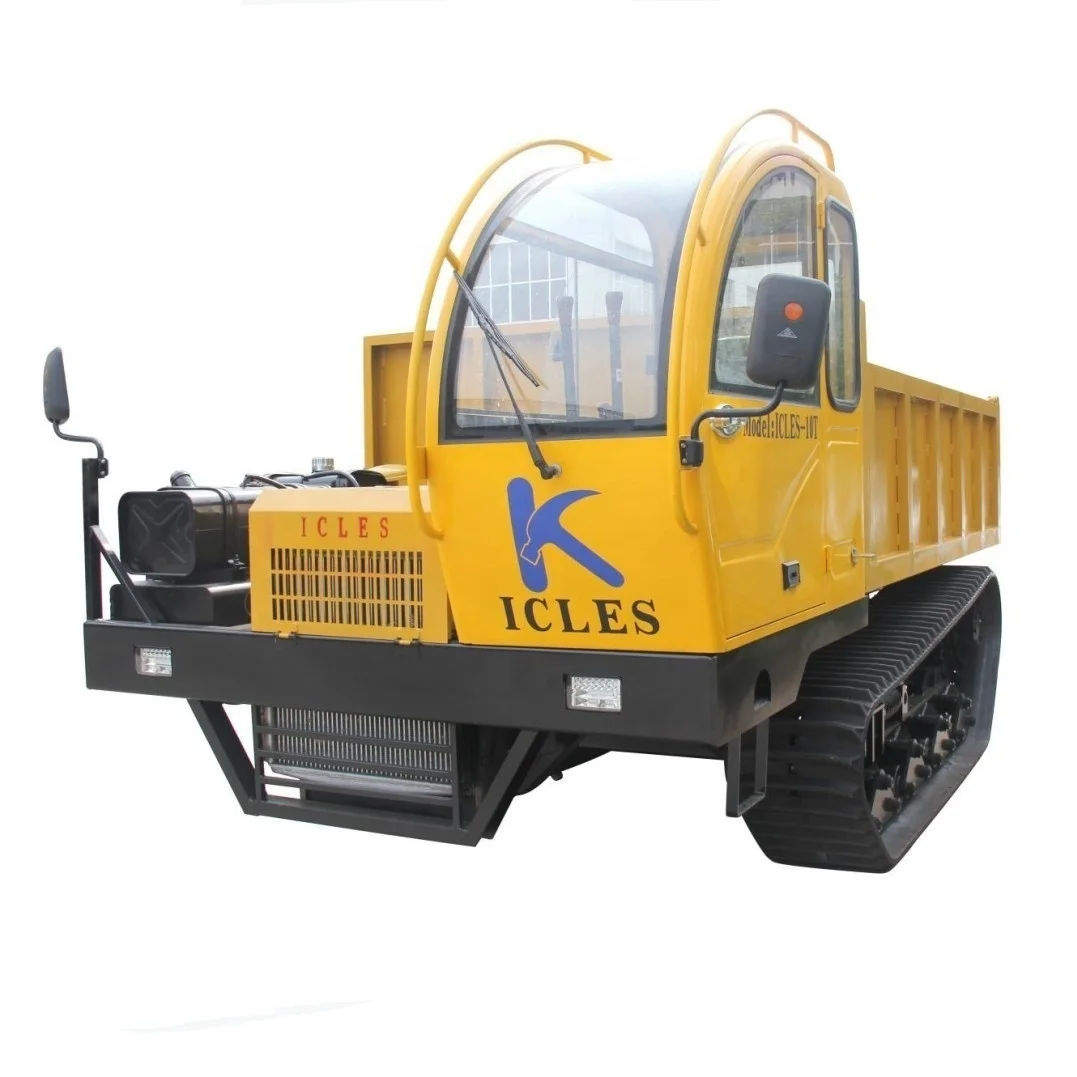

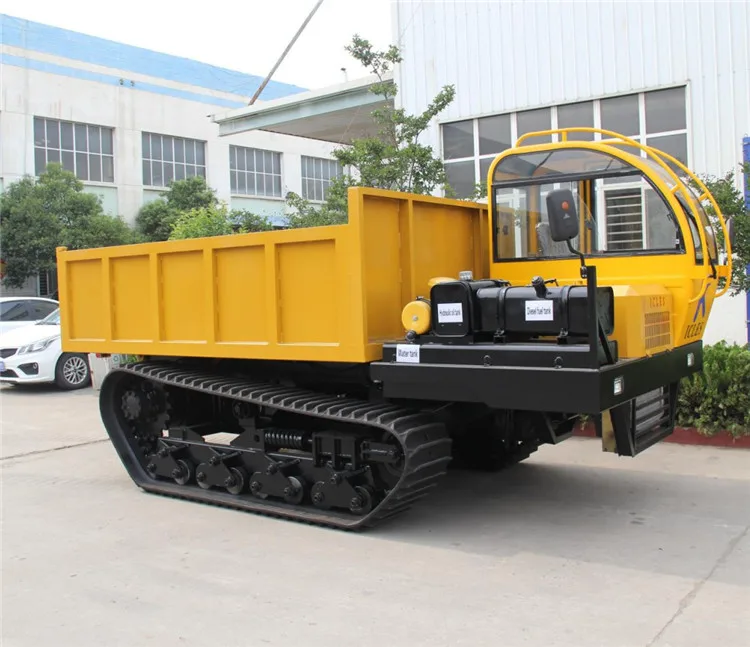

10 tons mini crawler dump trucks manufacturer China can adapt to the complex road conditions such as paddy fields, marshes, muddy field roads, rugged mountain roads, soft grassland and desert, wet ice and snow, etc. It is widely used in agriculture, forestry and orchard transportation, freight yard loading, water conservancy construction, infrastructure projects and mining places.
10 tons rubber track dump transporter China manufacturer replaces the traditional wheel type walk with rubber tracks. the crawler type travel device increases the unit grounding area between the machine and the ground, and reduces damage to the farmland.
10 tons mini crawler dump trucks manufacturer China features as below:
1,High Quality 3 years of experience and technology in manufacturing the crawler carrier.critical quality control ensure that every crawler carrier will satisfy the most demanding customer. From design to production, from sales to service, Icles means high quality.
2,Powerful Engine Chinese famous brand engine Yuchai brand 4102 Intercooled turbocharged engine. Four-cylinder power system, turbine pressurization, low oil consumption, stable performance.
3,Advanced Cab Features The 8 Tons Crawler Carrier offers all the conveniences an operator could want. Superior ventilation combined with excellent seating position and well placed low effort controls make work easy on any job site.
4,Mechanical engineering rubber tracks. Chinese famous brand rubber track “Jinlilong”brand ,Wider and thicker rubber track with steel wire and steel plate ,High strength Large bearing capacity, strong grip ,wear resistant .
5,Braking way : air brake rear axle brake with water cooling configuration,it is powerful and safe and effective
6,Hydraulic lift : Self-discharging design, simple operation, efficient and labor-saving.
7,Easy Operation the joysticks can control the forward and backward turns of the 8 tons crawler carrier .the joysticks can change the high speeds and low speeds gears. The joysticks can also control the rise and fall of the carrier bucket, and the unloading Angle can also be adjusted .it can reduce labor intensity and improve work efficiency.
8,High quality gearbox China famous brand Wanliyang brand 545 type gear box with high and low speed configuration.it have 5 pcs forward gears and 1 pcs backward gear .The crawler carrier travel speed can be adjusted by the joysticks, which enables the whole carrier to achieve convenient movement, turning, climbing and walking.
Technical data for 10 tons mini crawler dump trucks manufacturer China

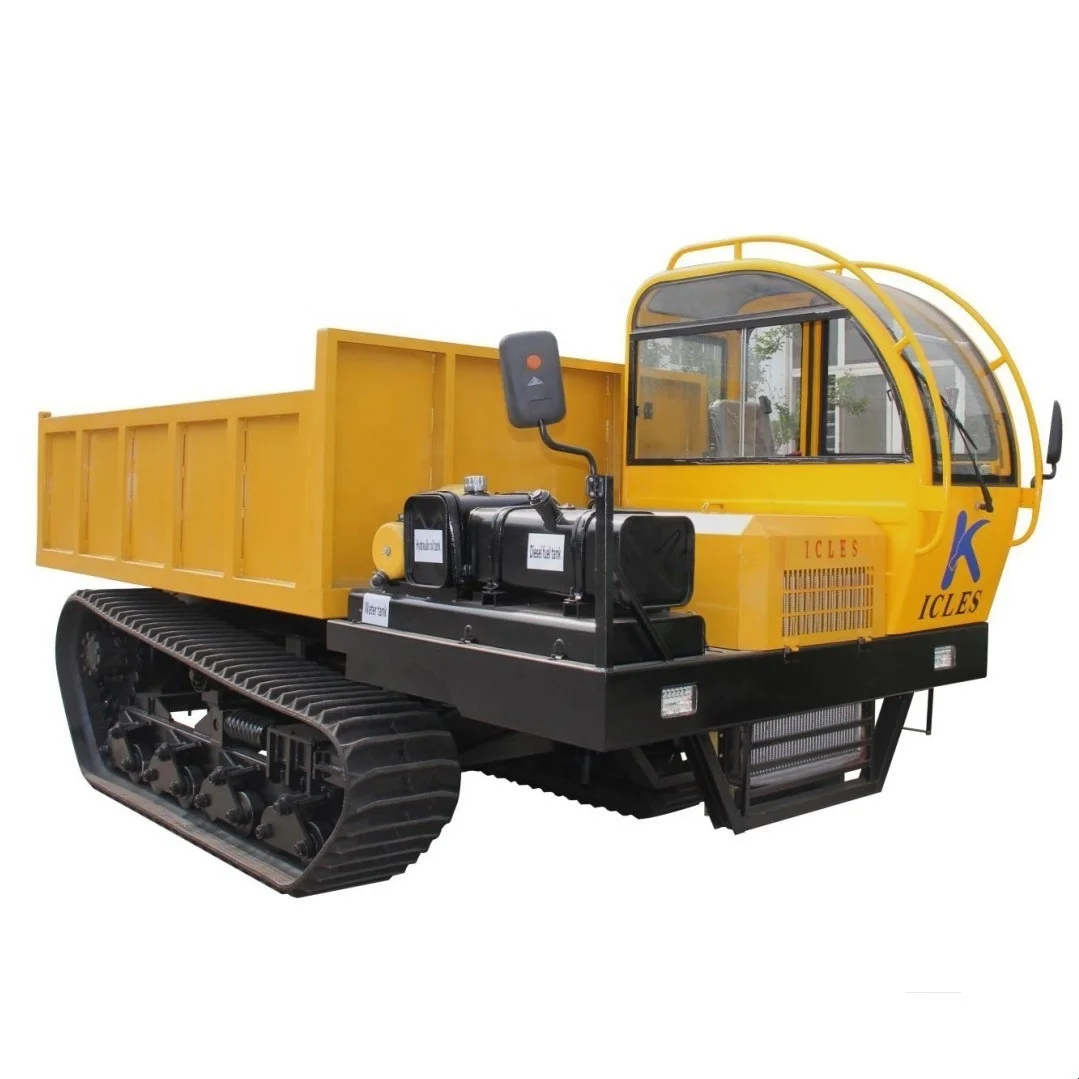

10 tons mini crawler dump trucks manufacturer China
Diesel Engine
Yuchai brand 4102 Intercooled turbocharged engine
Model: YCD4F32-129
Rated Power /Speed
95KW 2800RPM
Gearbox
Brand: WANLIYANG
Model: WLY 545 with high and low speed configuration
Rubber Track
Brand:Jiangxi Jinlilong Rubber Track Co., Ltd.
Material: Engineering rubber crawler
Track dimension: 450mm*90mm*70pcs
axle
153 axle
Hydraulic arm for lifting bucket
Model:110 * 900mm ,2 PCS Hydraulic arms
Brake mode
Rear axle air brake
Add the configuration
Cooling water tank
Dumper/Bucket Size
3050X2050X800mm
Overall size
4550X2220X2450mm
Machine weight
5000kgs
Rated Loading weight- Driving on level Road
10 tons
Rated Loading weight - Driving uphill
8 tons
Gradeability
35 degrees
Travel Speed (Low - High)
0-35km/h

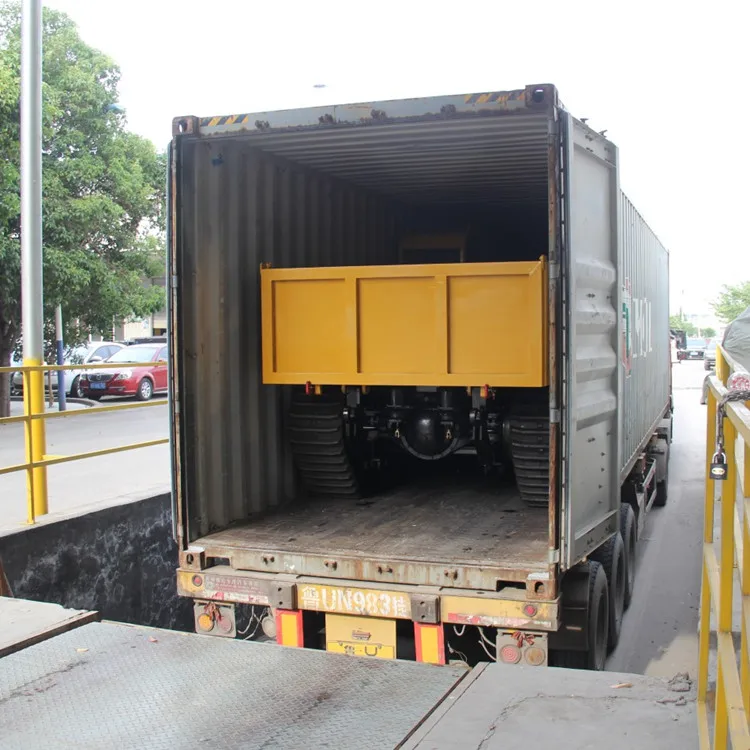

Packaging & Shipping

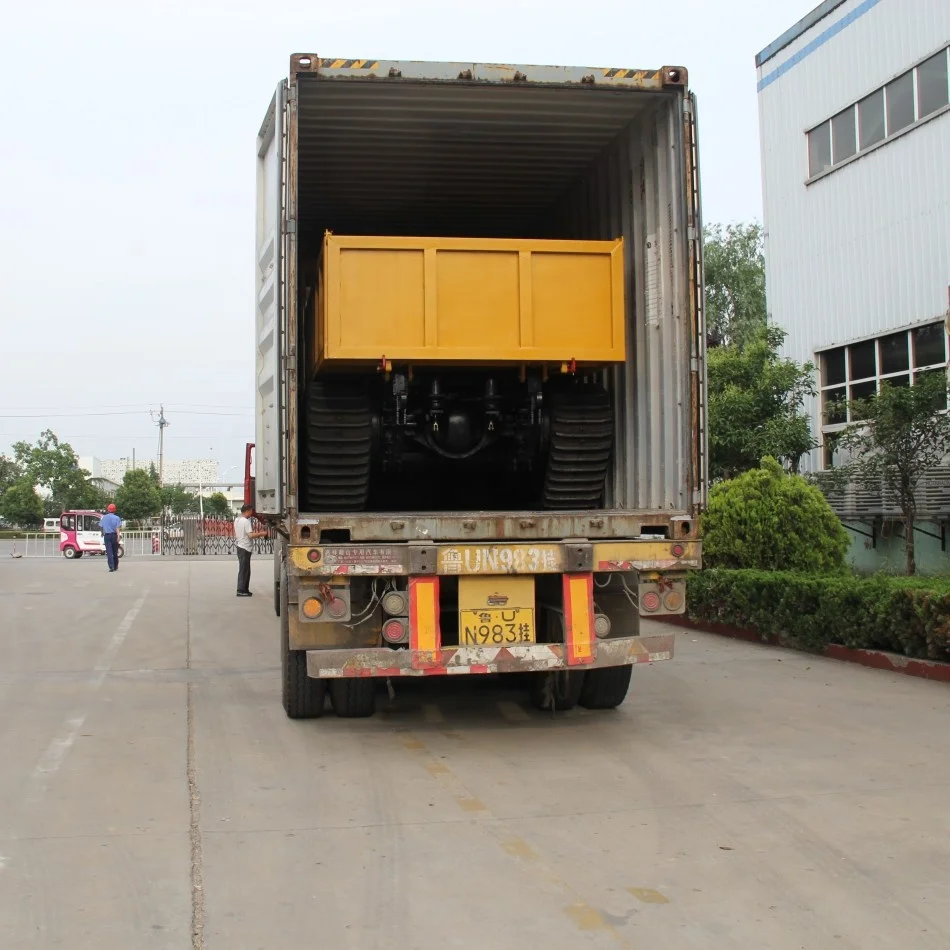

Packing : two units 10 tons mini crawler dump trucks manufacturer China per 40 HQ container.
Delivery Time : we are the professional 10 tons mini crawler dump trucks manufacturer China,the goods can be delivered in time.
Our Services
ICLES Team always here ,glad to service for you.
1,Manufacturer:we are the professional mini road roller mini excavator and other construction machinery manufacturer with more than ten years experiences.we can supply the good quality parts and competitive price.welcome to visiting our production workshop.
2,good after sales service and technology assistance.we have our own professionaltechnical person .engineers available to service machinery overseas if the customers need.
3,fast delivery :we have many mini road rollers and spare parts in stock .for the delivery date,we have many advantages as a manufacturer ,usually within one week after the order confirmation.
4,Payments:T/T ,L/C ,Paypal, Western Union are available.and also welcome Alibaba trade assurance ,this payment can guarantee the customer's interests.
5,assurance:we are the Alibaba golden supplier,Alibaba can be as the guarantor.
Company Information

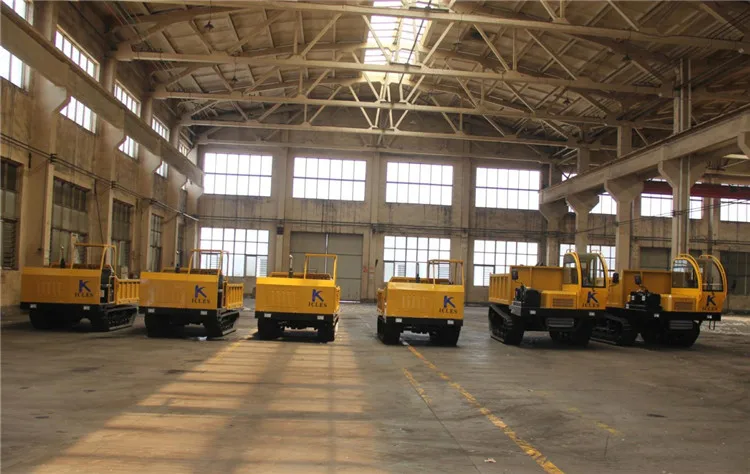

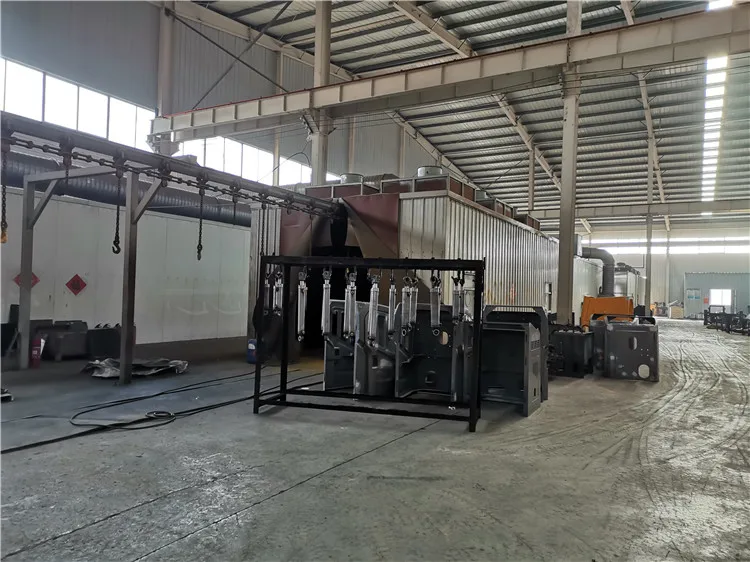

Shandong Kelesi Machinery Co., LTD founded in 2002 is the professional construction machinery manufacturer in China. Our company is located at National High-tech Zone, Jining City, Shandong province. Our company covers more than 10,000 square meters. We are the research, manufacture and sales integrated enterprise. we also have one professional foreign trade team, that covers English, French, Russian, Korean, Japanese 5 languages professionals.
excavator, Tractor, Road Roller and other construction machines. we have 7 pieces CE certificates for them.
with reasonable design, low energy consumption, high efficiency, and convenient operation and maintenance, Our construction machinery can meet our customers different requirements. OEM service are also welcome.
With the advanced equipment, strong technical force and Excellent sales and service team, Our construction machinery are sold throughout China and are also exported to Russia, Germany, Indonesia, Thailand, Singapore, Turkey, New Zealand, and other countries and regions. Our company has established long-term mutually beneficial cooperative relations with many large enterprises at home and abroad. They are very satisfied with our products and service. our annual exports reached fifty million yuan. We have established the strict quality inspection system, got ISO9001 international quality system certification, European Union C E certification, S G S certification and so on certification.
High quality, reasonable price, professional service team, we will be the best business partner for you! Warmly welcome the friends from all over the world to visit our company and cooperate with us.
Packing : two units 10 tons mini crawler dump trucks manufacturer China per 40 HQ container.
