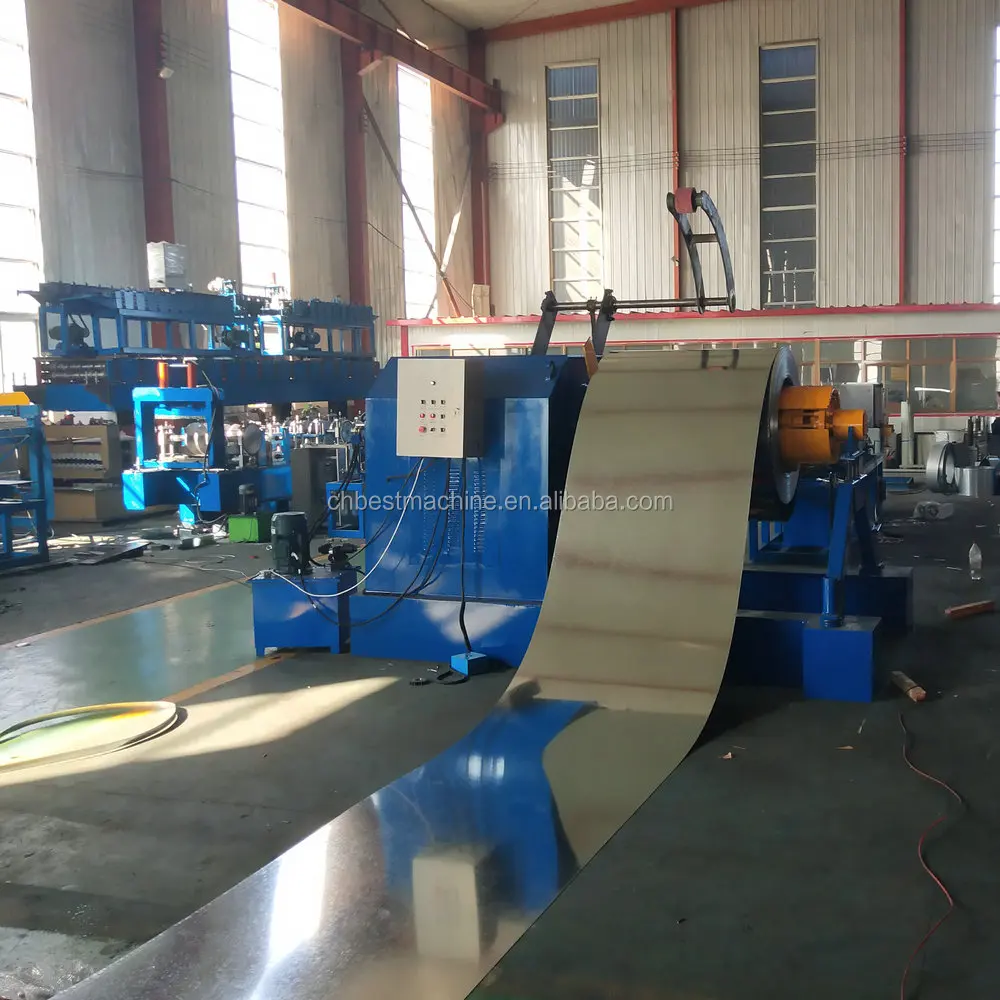

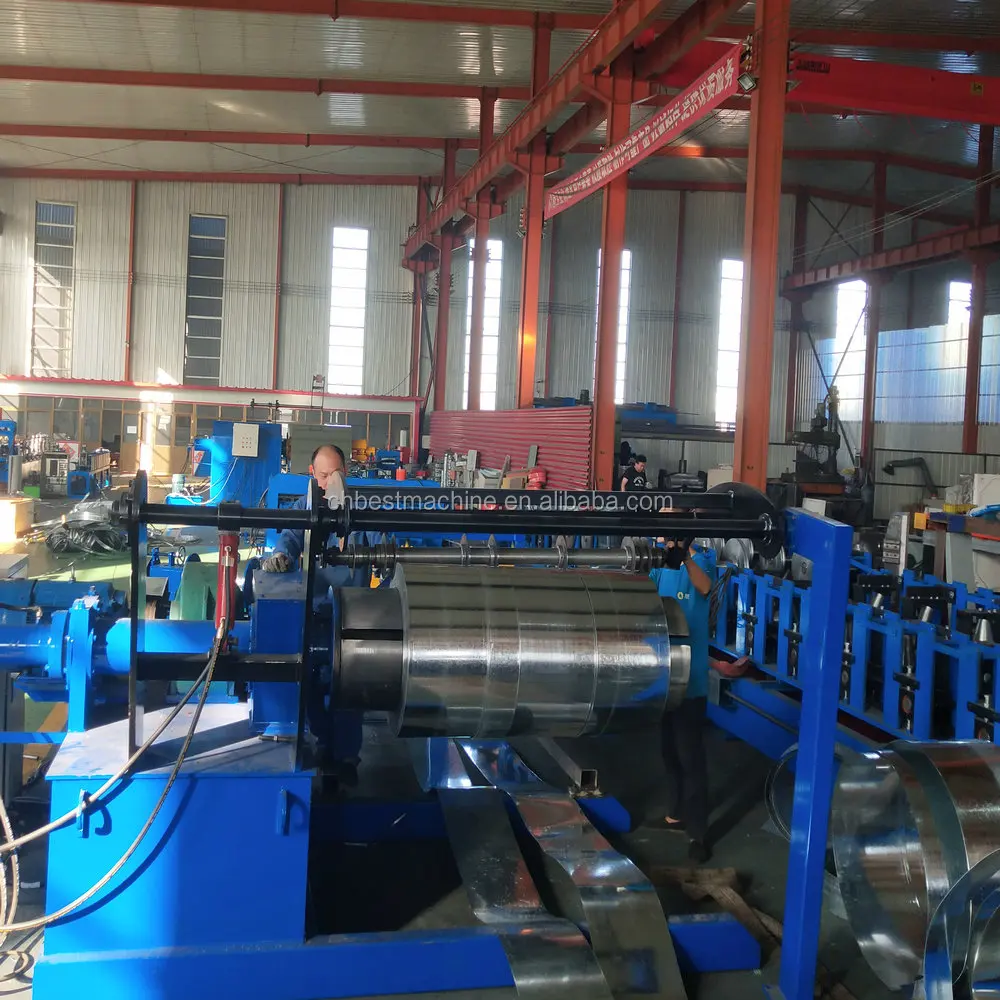

Full Automatic PLC Control High Speed Steel Coil Cut to Length Slitting Machine
- Category: >>>
- Supplier: Cangzhou Best Machinery Manufacturing Co. Ltd.
Share on (62316123106):
Product Overview
Description
High Speed Iron Sheet Uncoiling Coil Slitting Recoiling Line Machine
Product Description
The technical details:
| 1 | Material of processible coiled plate: carbon steel , GI |
| 2 | Thickness of coiled plate: 0.3-2mm; |
| 3 | Width of coiled plate: 1600mm; |
| 4 | Slitting speed: 0-120m/min(0.3-1mm) 0-100m/min(1-2) 0-80m/min(2-3mm) |
| 5 | Loading capacity of de-coiler machine (feeding machine): 10T |
| 6 | Coil I.D: Φ508mm; Coil O.D: Φ1600mm |
| 7 | Knife pivot diameter of slitting :120mm |
| 8 | Slitting blade:Φ180Xφ320X15 |
| 9 | Material of slitting blade:6CrW2Si |
| 10 | Precision of slitting: ≤±0.05 |
| 11 | Recoiler I.D: 508mm |
| 12 | The hardness of slitting blade:HRC58°-60° |
| 13 | Area of the whole machine:28m(L)x8m(W) |
| 14 | Operator needed:1 technician and 2 general workers |
| 15 | Weight of the whole machine:40T |
| 16 | VoltageL 380V-50HZ-3P. or as required |
Machine detail:

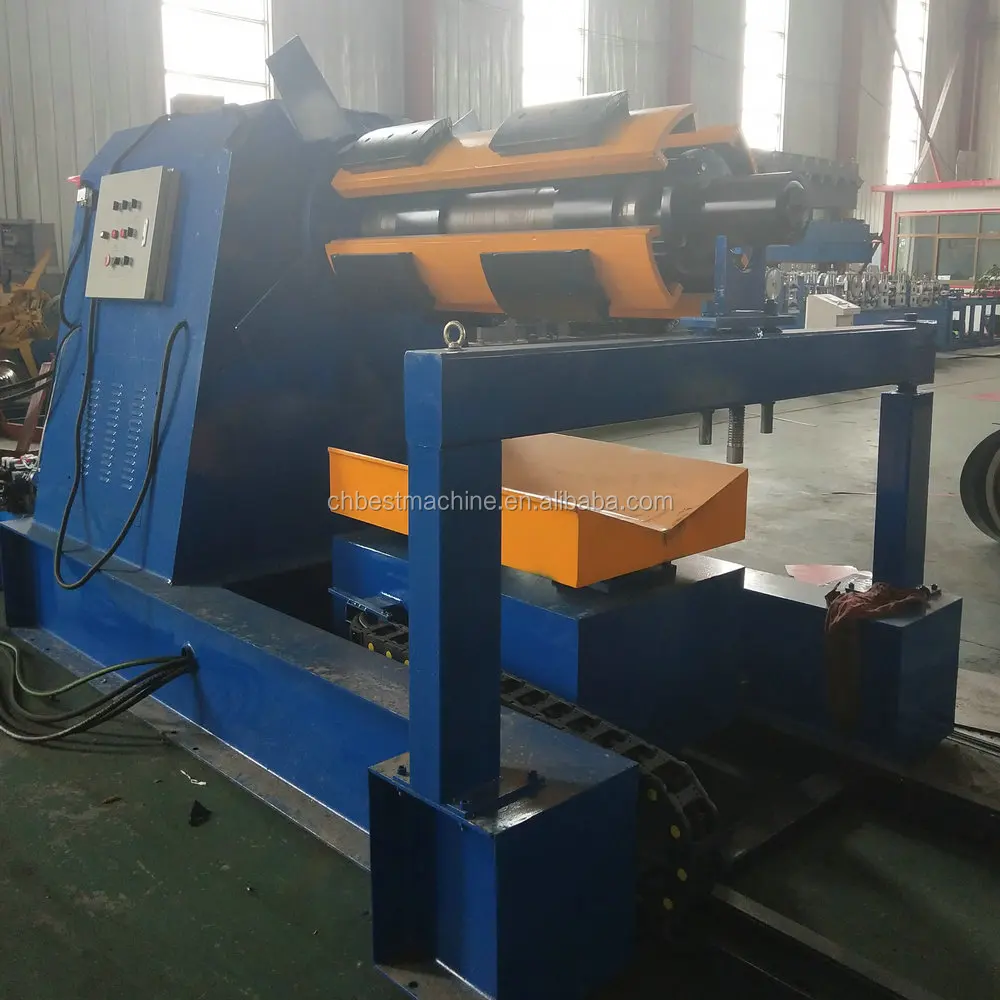

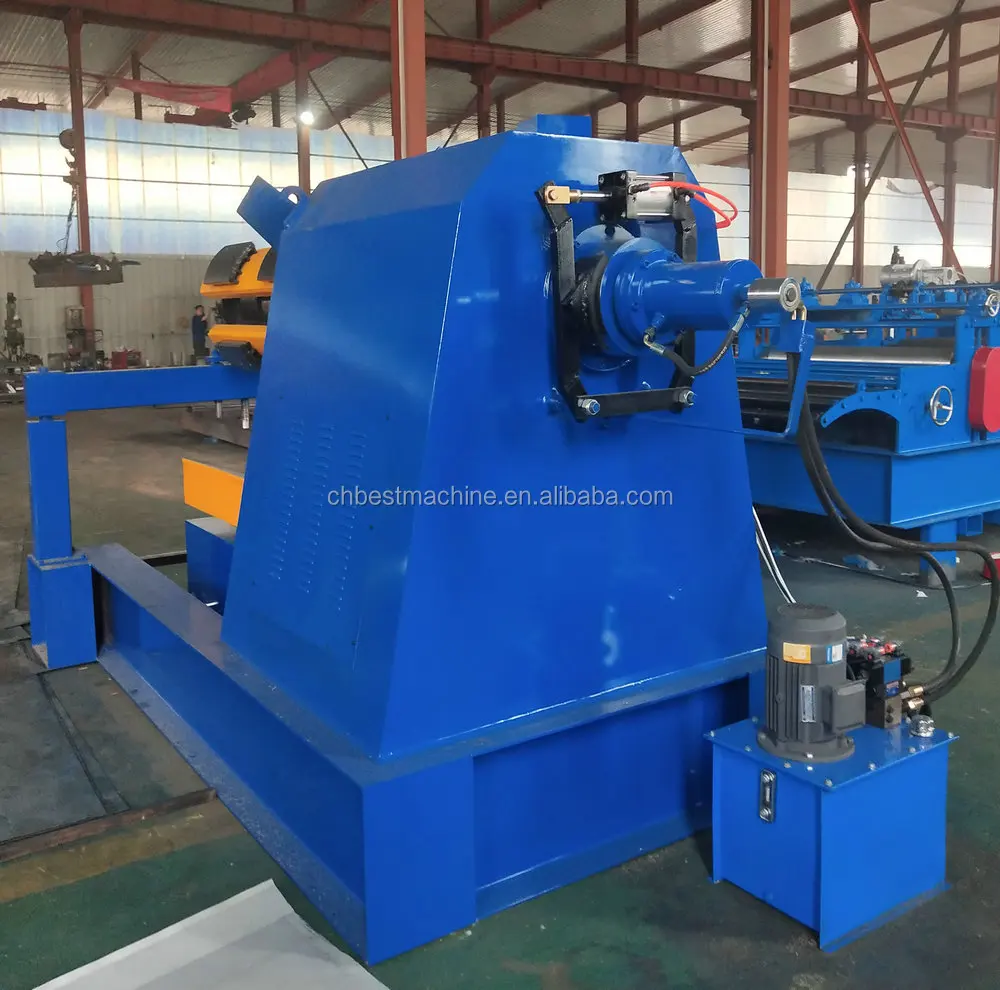

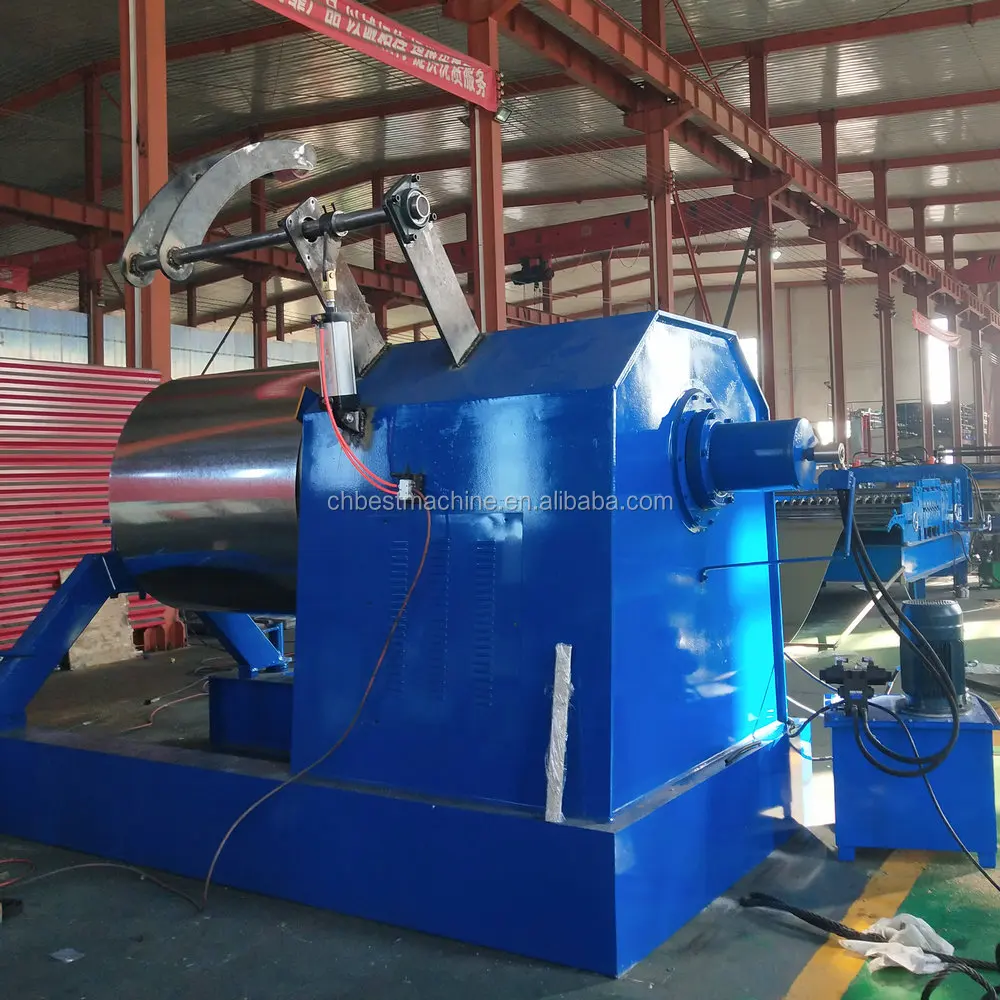

1.Decoiler
(1)Inner Diameter: Φ508– Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5t
(5)Type: hydraulic
(6)Power:7.5kw

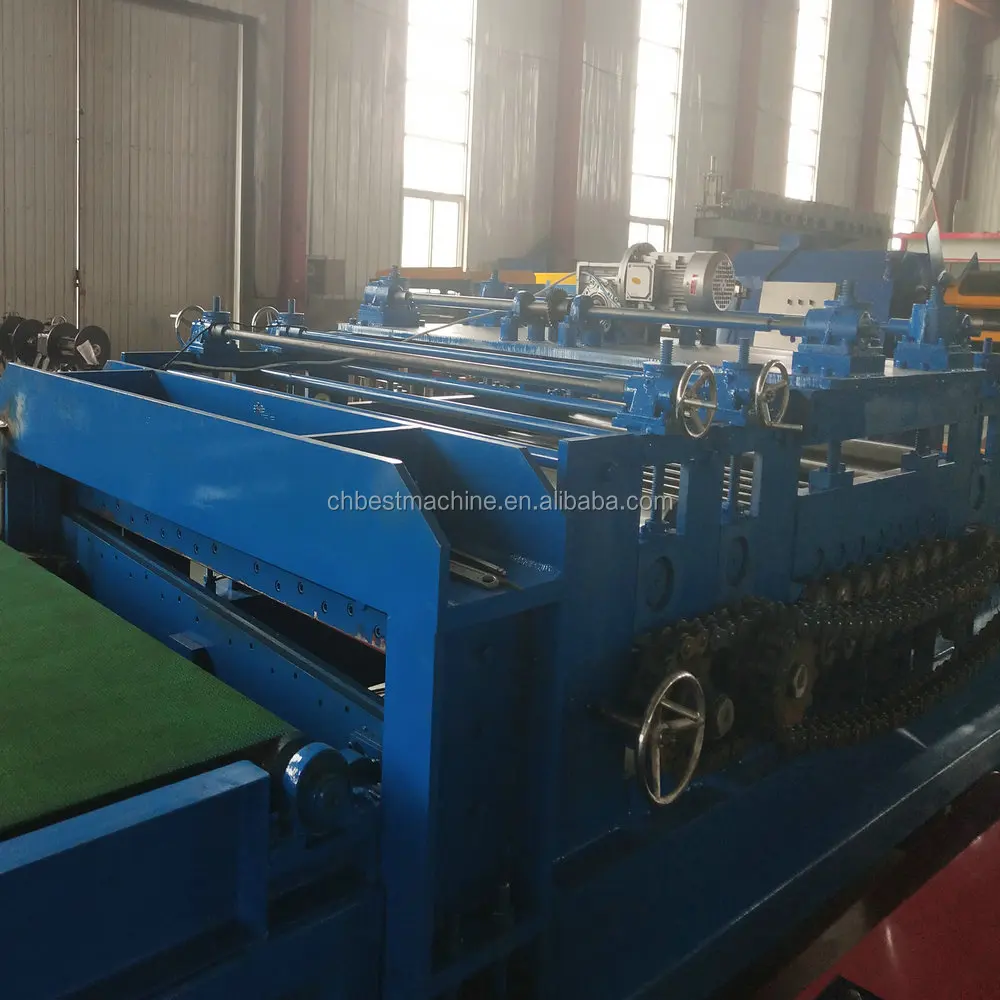

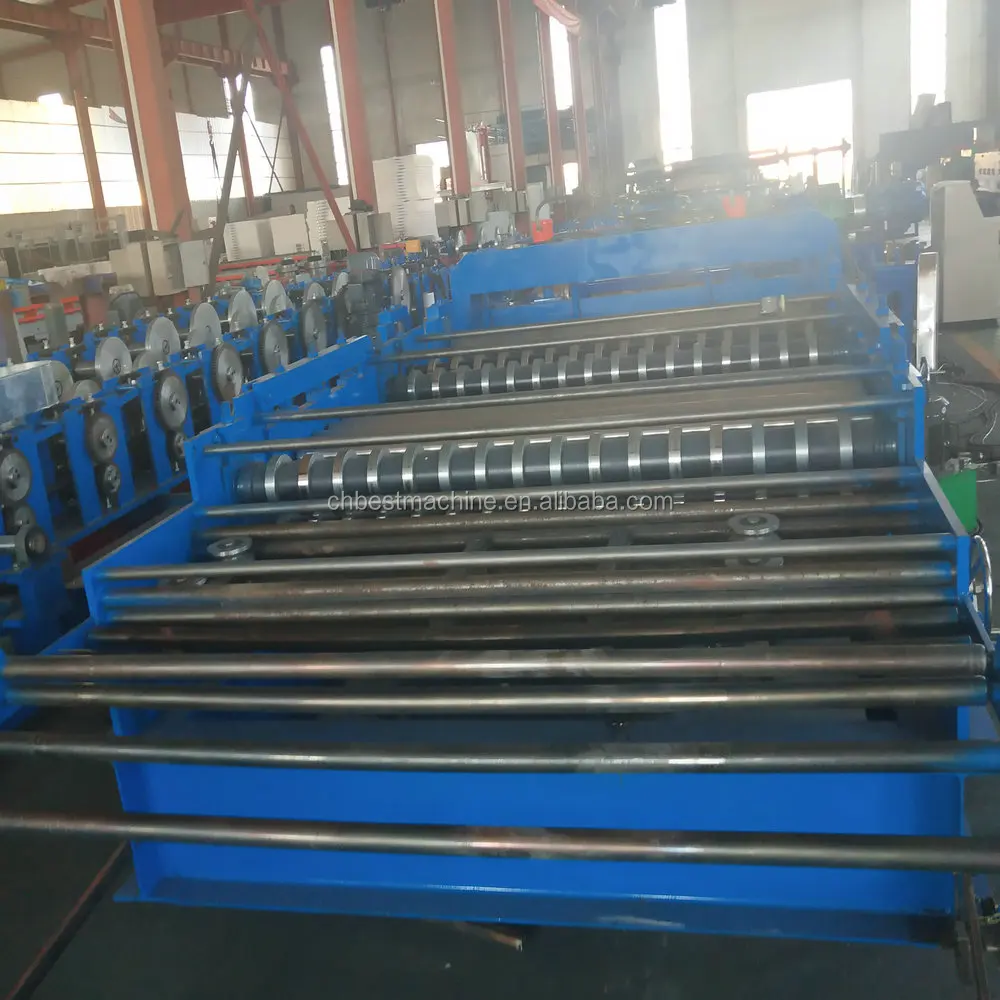

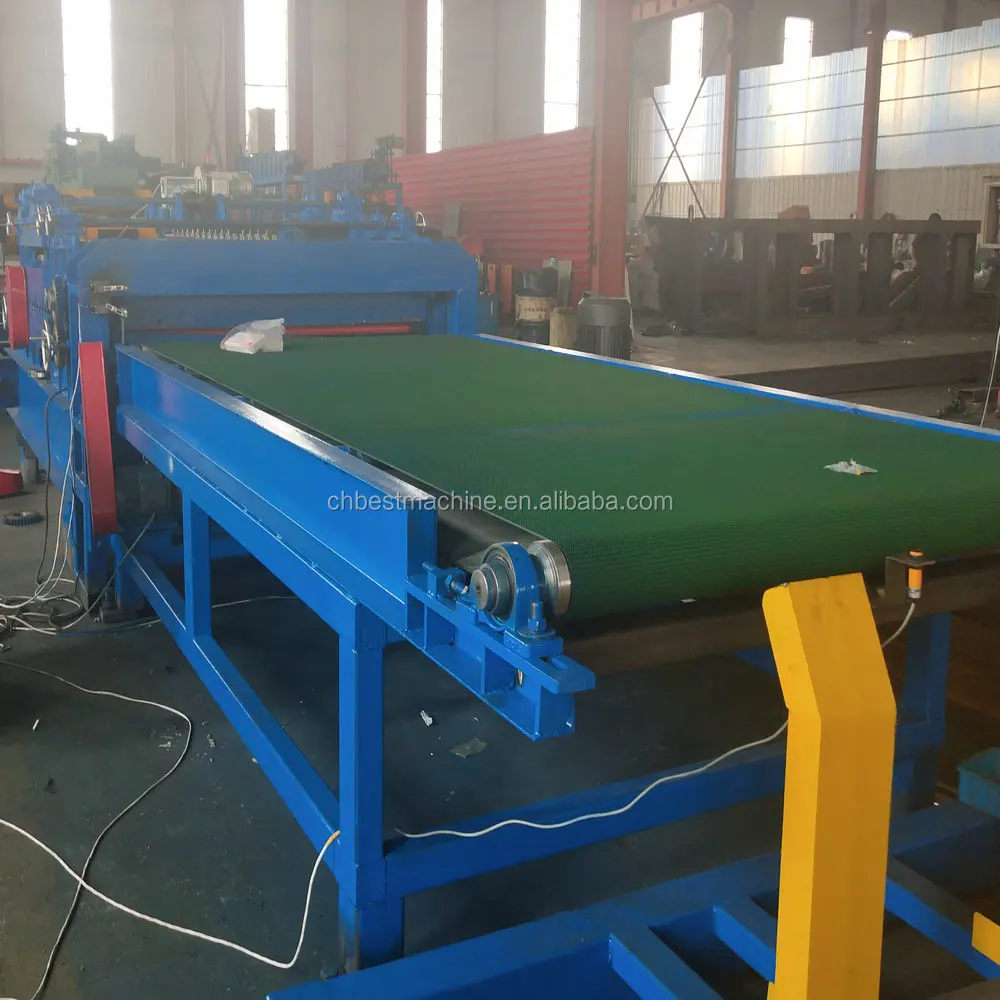

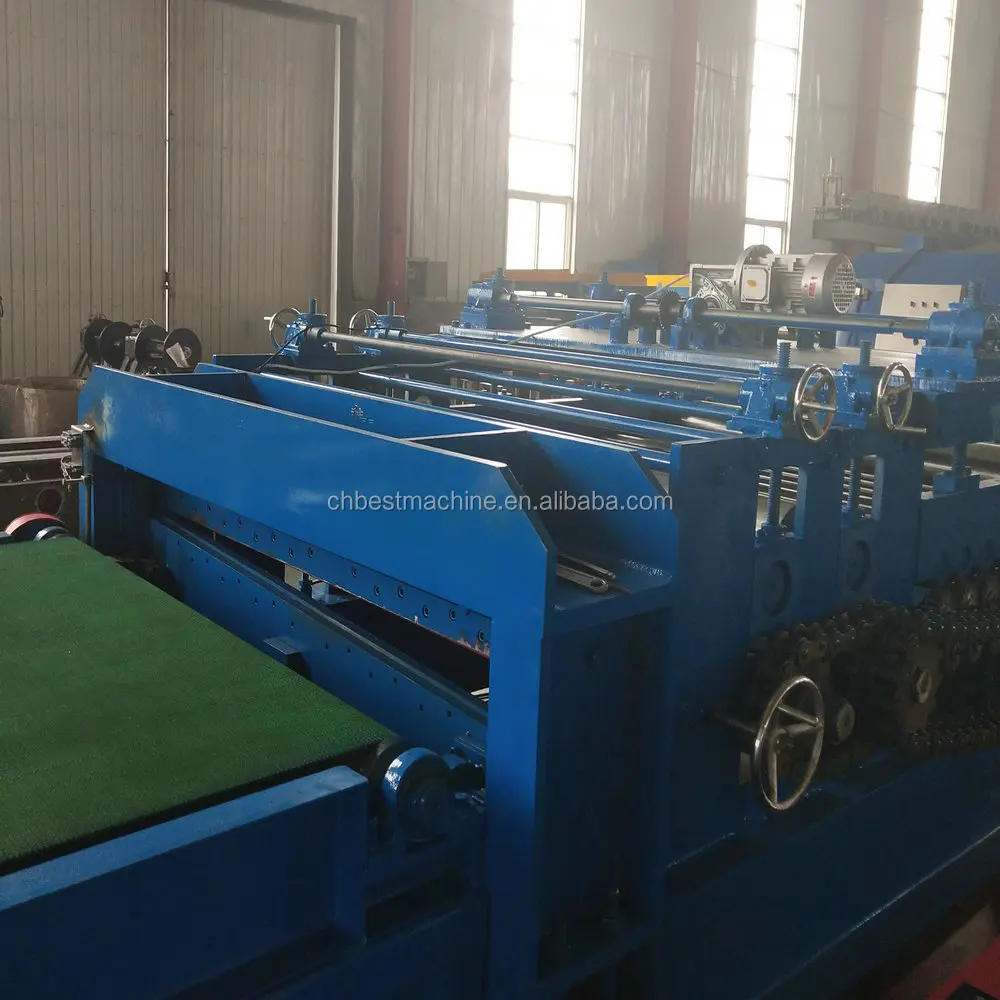

2. Slitting
2.1Function: orientation and feeding arrangements around the brush, to achieve positioning strip points and cut the time to stop beating strip to improve the accuracy of sub-shear.
2.2 Power section: dynamic seat, motor, tooth distribution box, universal couplings, clutches and so on.
Main machine parts: fixed arch, movable arch, movable arch mobile device, pressing the knife shaft synchronous lifting mechanism, the trimming device, up and down knife shaft, blade, spacers, frequency conversion motor, supplied with imported guide and guard, on the device and wipe the brush thin material damping mechanism, welded base and so on. Supplying six blades and spacers, rubber ring set, sub-shear specifications provided by the user.
(1)Number of blades: 9blades
(2)Main power: 15kw
(3) Speed: about 10m/min
(4)Diameter of axis: 100mm
(5)Material of slitting blade: CR12 material
(5) Hardness of blades: HRC55-60℃
(6)The blade size: 100mm*15mm
(7)Voltage: 380V/3PH/50HZ(or depends on customer’s requirement)
(8)Control system: PLC
3. Separate unit and damping institution
3.1 Function: Separating the steel sheet which after slitting, to adapt the material recoil. When cutting thin material to build the back pull, so that later recoiled strip neat.
3.2 Slitting shaft, mechanical manual pressure device, damping felt
4. Recoiler
4.1 Function: main machine cooperate with first slitting and second separate to recoil the finished product which after slitting, coil win ding tension and winding speed both can be adjustable.
4.2 Base, shaft, rack, wedge-type sizing mechanism, hydraulic shrink oil cylinder, hydraulic station inverter motor and gear box, shaft material pressure points.
(1)Inner Diameter: Φ450 – Φ550 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity:5T
(3)Power: 15kw
(4)Type: hydraulic
