Product Overview

Description

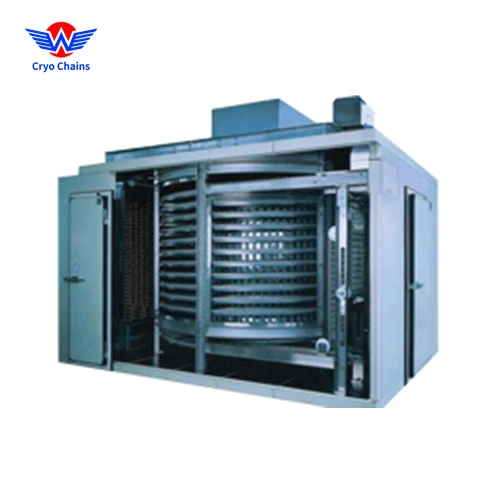

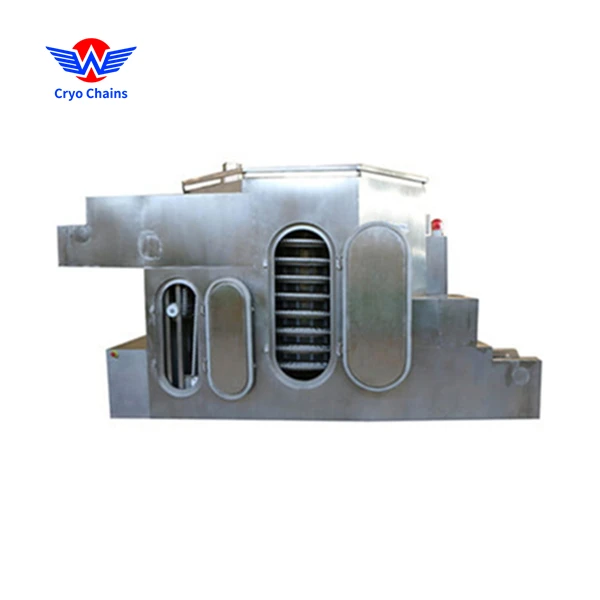

Blast Meat Spiral Freezer Quick Used Spiral Freezer Small Stainless Steel Liquid Nitrogen Spiral Freezer Belt For Tuna





With the improvement of people's living standard, the importance of food safety and food quality is also increasing day by day. How to obtain high-quality edible products has become a big challenge in front of us.In order to meet the above requirements, keeping food fresh at low temperature after quick-freezing becomes the preferred storage method to extend its shelf life and maintain its quality.

In the selection of quick-freezing equipment, the expected output of various products, the area of the equipment, the comprehensive consumption of liquid and gas and the final quality of products should be taken into account.



Cryo Chains self-packing screw quick-freezing machine is a new type of liquid-gas quick-freezing machine with compact design and large handling capacity.Compared with the quick-freeze tunnel, the spiral quick-freeze machine occupies a smaller area and has a larger processing capacity.



Spiral liquid nitrogen quick-freezing machine is using liquid nitrogen as refrigerant, because the temperature of liquid gas is -196 degrees, can achieve fast freezing effect, "fast freezing" can make food ice crystal particles small, reduce the loss of product water, ensure the quality of the product is not damaged.In short, the liquid-gas spiral quick-freezing machine not only maintains the product quality, but also improves the product output.



Cryo Chains is the first self-stacking screw liquid-gas quick-freeze machine in China. Compared with the fu type drive assembly of other screw freezers, self-stacking design reduces the maintenance of mechanical parts.Can meet the strictest hygiene standards.Octagonal design ensures minimal space around the chain mesh device.The circular design of the rotating body minimizes the unnecessary space, improves the gas velocity and improves the efficiency of low-temperature quick-freezing.



Cryo Chains self-packing screw quick-freeze machine is suitable for freezing all kinds of products, including: meat (mince pies, whole fish, fillets, tripe, steak), fruits and vegetables (various vegetables, grass mould, bayberries, pastries, pizzas, ice cream and prepared dishes) and various seafood.



Product configuration:
1. stainless steel mesh belt.
2. drive motor with speed change controller.
3. built-in fan makes the gas move vertically.
4.Single side suspension control panel with easy to operate switch, automatic air supply controller and temperature reader.
5. all welded structure.
6. curtain feeding port, using belt - type scraper discharging.
7. liquid nitrogen spraying manifold, circulating fan, exhaust fan.
8. emergency stop switch, flash alarm.
9. door safety system ensures that all doors are closed when the cryogenic refrigerator is injected.
10. adjustable legs are used to facilitate the cleaning of the equipment base at the bottom of the refrigerator.



Parameters:

1,Model:SQM-2500/700;

2,Frozen production:100 - 2500KG/H;

3,Feed temperature:25°C;

4,Effective network chain length:72m;

5,Net chain width:700mm; wire diameter 1.6mm;screw pitch 15mm;

6,Chain layer height:80-110mm

7,Net chain effective area:49.0 square meters

8,Maximum height of product feed:100mm

9,Product residence time:15 - 30Min;

10,Operating temperature:- 60 - 100°C;

Packaging & Shipping

Wooden packaging. Mode of transport: by sea or by train.



Our Services

OEM, ODM. We can provide a good after-sales service.



Company Information

Cryo Chains is a high and new tech enterprises, which is specialized in R&D, manufacturing and selling stainless steel biological liquid nitrogen container, aluminum alloy biological liquid nitrogen container, liquid nitrogen filling tank, various customize cryogenic containers, cryogenic pipeline, Cryogenic instruments & equipments and managing system software for stem cell banks and biological sample banks.

Cryo Chains has always been upholding the corporate concept that “the company should seek supreme quality, advanced technology, sincere service and innovative development”. We have a technical team of professional technical personnel with experience of about many years in R&D and manufacturing of various types of cryogenic liquid storage and transportation equipment. Particularly, we have accumulated rich experience in acquiring and keeping vacuum, multi-layer insulation, biological product cryopreservation, cryogenic intelligent electronic control system, and so forth.

Cryo Chains is also equipped with advanced manufacturing facility, manufacturing technology, detection means, and professional cryogenic product design and scale production capability. Having successful experience of several major cryogenic engineering implementations, we have established technical cooperation with many higher institutes and research institutions. Our business covers stem cell bank, blood bank, hospital, biological engineering, animal husbandry, higher institute, research institution, machinery, petrifaction, semi-conductor, aerospace, superconductor, industrial gas and liquid, metallurgy, new material, air separation, low carbon chemical engineering and so on, and could provide mature program design.

Our products have passed the test of national cryogenic liquid container testing center; meanwhile we get the CE certificate. The company strictly follows ISO 9001 quality control procedures to ensure its product quality and 100% qualified product rate. In the meanwhile, after-sale service system of quick response is established to make sure that users can safely use its products. Now our products have been sold to over 50 countries in the world and earn very good reputation.



FAQ

Q: What are the advantages of liquid nitrogen quick-freezing technology?

A: 1. Liquid nitrogen is non-toxic, and inert to food ingredients, is so far the world's most environmentally friendly most economical freezing and cooling medium.

2 frozen food quality is high. As the liquid nitrogen quick-frozen for a short time, the lowest temperature -196 ℃, the liquid nitrogen quick-frozen food can be processed to maximize the preservation of the color, smell, taste and nutritional value. Reduced water loss, lossless, reduced weight, freshness retention, improved product quality, and increased yield (more products can be operated simultaneously).

3. Frozen fast. 5 minutes rapid freezing, greatly reducing time to market, no need to store a large number of products. Completely solve the problem of overproduction, expired, deterioration and other issues.

4. Dry material consumption is small: the general freeze-drying loss rate of 3 to 6%, while the liquid nitrogen quick-frozen can be reduced to 0.25 to 0.5%.

5. Easy to operate, can be unattended operation, easier access to the existing production line.

6. Space is very small, saving space in the factory, no noise.

7. Equipment and power costs low, one-time investment in equipment, low operating costs, easy to achieve mechanization and automated assembly line, improve productivity.

8. Low maintenance costs.

9. Less power consumption. The device is to rely on liquid nitrogen phase change refrigeration and internal energy to achieve the purpose of quick-frozen preservation, unlike ordinary refrigeration systems that need to consume a lot of frozen energy to drive refrigeration mechanical refrigeration, so from the cooling principle, it is Does not require direct consumption of electricity.

10. Equipment structure is simple, safe and reliable. Analysis shows that the moving parts of the whole device only the movement of the conveyor belt and a simple axial fan, unlike ordinary refrigeration system as complex, mechanical moving parts and more, thus reducing the possibility of failure, and the system working pressure is low, No high voltage equipment

11. Hygienic cleaning. Reduce cleaning time. The refrigerated cabinet is made of assembled heat insulation plate, and the inner and outer shields are made of stainless steel. It is easy to dismantle and easy to clean. It is also equipped with stainless steel structure for direct contact with poultry.

12. No pollution, green environmental protection. Because this freezing process does not need the CFC refrigerant in the ordinary refrigeration system, it has no destructive effect on the atmospheric ozone layer. In the current international limit and the prohibition of the use of CFC, this characteristic of CFC refrigerant is not particularly outstanding. And the development of the device, with a positive role in promoting, is to vigorously develop the trend.

13. Shelf-life longer, is the traditional quick-frozen shelf-life of 1 to 3 times.



Q: What is the Working theory?

A: Liquid nitrogen is sprayed directly onto small food items such as soft fruit and shrimps. Due to the liquids' extremely low temperatures(-196℃ degree), freezing is almost instant. The nitrogen gas is removed by fans.
