XCMG официальный 1,5 тонн 2ton 2,5 тонны 3 тонны 3,5 T/детскй 4 колесный Электрический вилочный погрузчик для продажи
- Category: Material Handling Equipment >>>
- Supplier: XCMG E-Commerce Inc.
Share on (62318059426):
Product Overview
Description
Product Description

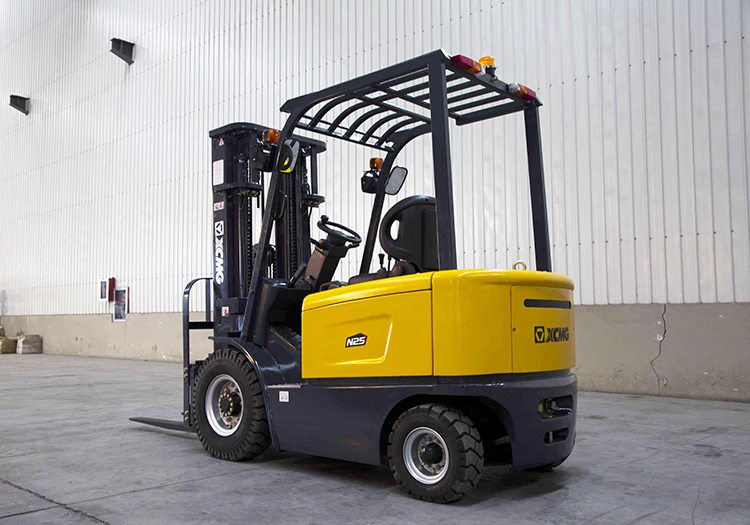

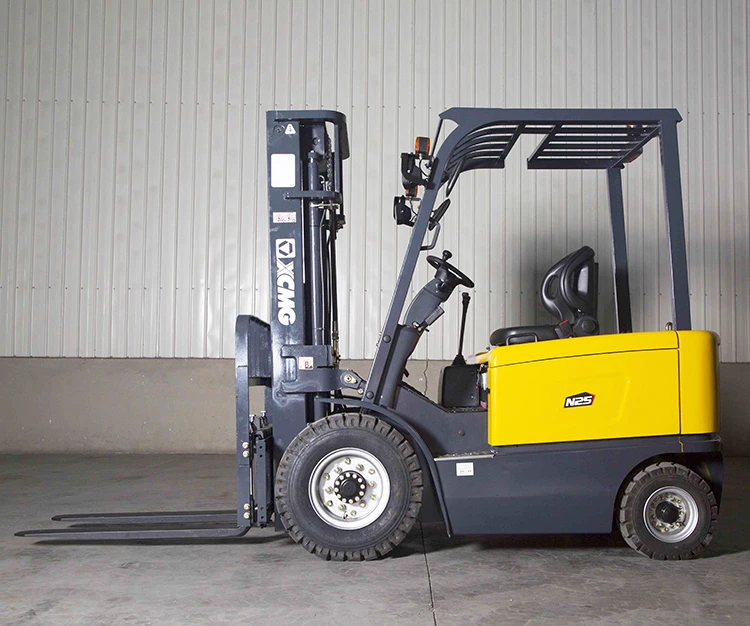

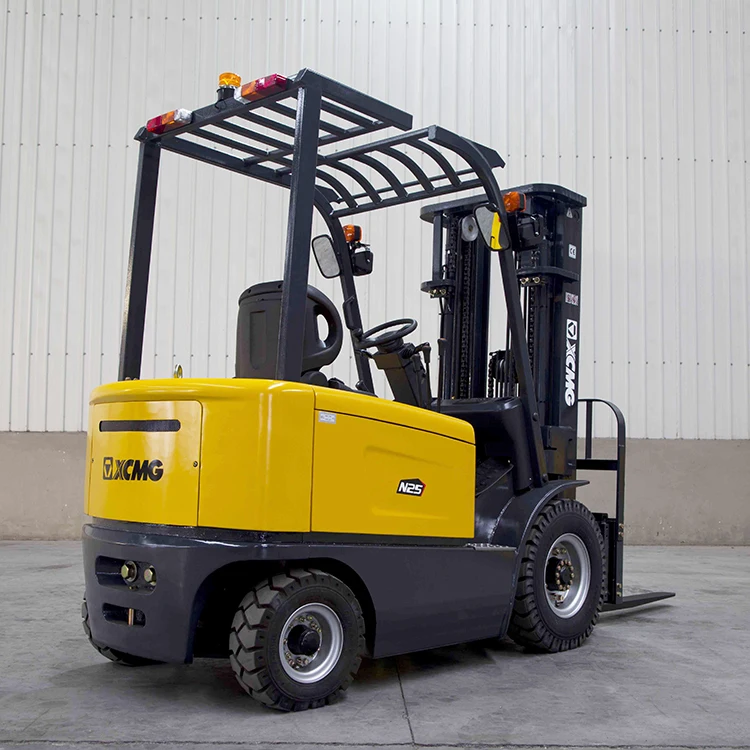

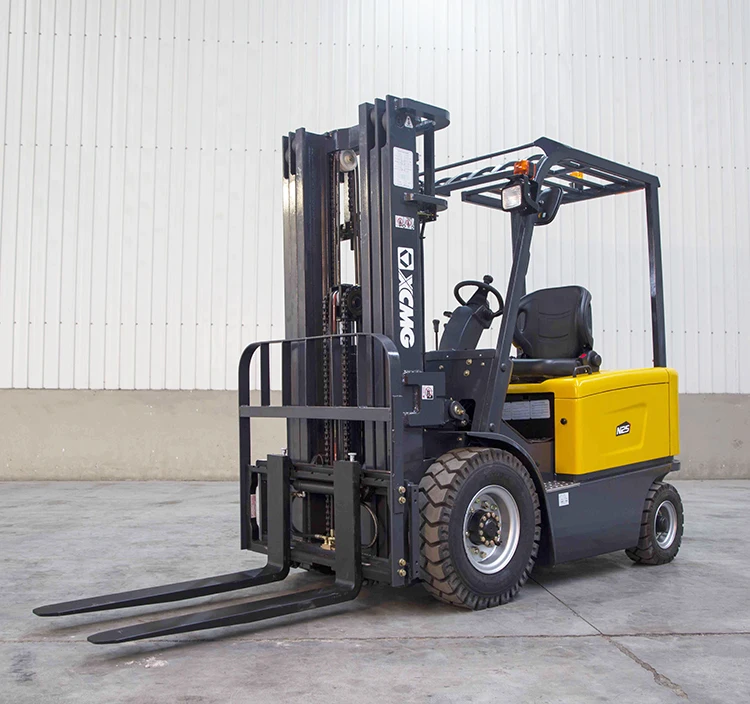

XCMG Official 1.5 ton 2ton 2.5tons 3 tons 3.5T 4 Wheel Electric Forklift for sale
• Full AC System
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
* Zero-Emission, Zero-Pollution, Low-Level Vibration, Low-Level Vibration, Low Operation Cost, High Efficiency, High Quality, these are the reasons for you to choose XCMG Electric Forklift.
* The most advanced 3-phase full AC technology in XCMG’s electric range combining the Italian ZAPI electric controller, ZAPI-SUPEREC AC motors, and HAKWER battery, as well as the excellent hydraulic system, these features guarantee your material handling become the most cost-efficient.
* The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.
* The most advanced 3-phase full AC technology in XCMG’s electric range combining the Italian ZAPI electric controller, ZAPI-SUPEREC AC motors, and HAKWER battery, as well as the excellent hydraulic system, these features guarantee your material handling become the most cost-efficient.
* The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.
Specification
Model | FB20-AZ1 | FB25-AZ1 | FB30-AZ1 | FB35-AZ1 | |
Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 |
Load Centre | C(mm) | 500 | 500 | 500 | 500 |
Lift Height | H3(mm) | 3000 | 3000 | 3000 | 3000 |
Free Lift | H2(mm) | 100 | 100 | 100 | 100 |
Fork Size (L×W×T) | L/W/T(mm) | 1070×120×40 | 1070×120×40 | 1070×125×45 | 1070×125×50 |
F/B(α°/β°) | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
Length (To Fork Face) | L1(mm) | 2380 | 2380 | 2475 | 2535 |
Width | B1(mm) | 1150 | 1150 | 1225 | 1225 |
Mast Lowered Height | H1(mm) | 2055 | 2055 | 2070 | 2070 |
Mast Extended Height (With Backrest) | H4(mm) | 4070 | 4070 | 4070 | 4070 |
Overhead Guard Height | H5(mm) | 2125 | 2125 | 2125 | 2125 |
Turning Radius | Wa(mm) | 2080 | 2080 | 2215 | 2280 |
Fork Overhang (Wheel Center to Fork Face) | X(mm) | 478 | 478 | 485 | 485 |
Front Tread | B2(mm) | 970 | 970 | 1000 | 1000 |
Rear Tread | B3(mm) | 950 | 950 | 980 | 980 |
Ground Clearance | H6(mm) | 120 | 120 | 130 | 130 |
Wheelbase | Y(mm) | 1500 | 1500 | 1600 | 1600 |
Fork Spread (Min/Max) | (mm) | 250/1040 | 250/1040 | 250/1100 | 250/1100 |
Travel Speed (Full Load) | km/h | 12 | 12 | 12 | 12 |
Travel Speed (No Load) | km/h | 13 | 13 | 13 | 13 |
Lifting Speed (Full Load) | mm/s | 300 | 300 | 280 | 280 |
Lifting Speed (No Load) | mm/s | 420 | 420 | 440 | 440 |
Max.Gradeability (Full Load) | % | 18 | 16 | 12 |

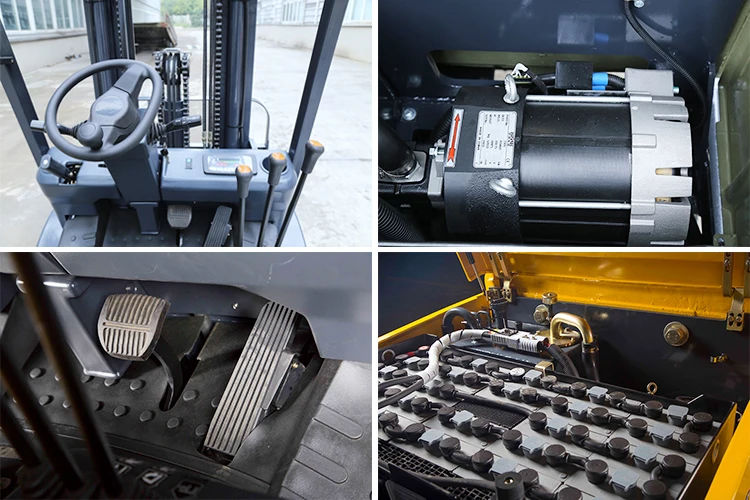

Product Show
