YSX Full PTZ Camera Zoom Hd Conference Camera YSX 320R 1080P HD SDI DVI USB Output 18x 1.07 Kg CN;GUA Black 2.2 Million Pixels
- Category: Conference System >>>
- Supplier: Shenzhen Jianhao Technology Co. Ltd.
Share on (62318266157):
Product Overview
Description
Product Description
Model | YSX-320R |
The sensor | SONY 1/2.8” Progressive CMOS |
Pixel size | 2.75um x2.75um |
Scanning system | 16:9 scan line by line |
Synchronization system | The synchronous |
Sound track | Support |
Location tracking | 230 |
Effective pixels | 8.5 million |
Horizontal resolution | 1100TVL |
Low illumination | 0.5Lux (day), 0.1Lux (night) |
The lens | F=4.7~94mm, F1.8 ~ F3.5 |

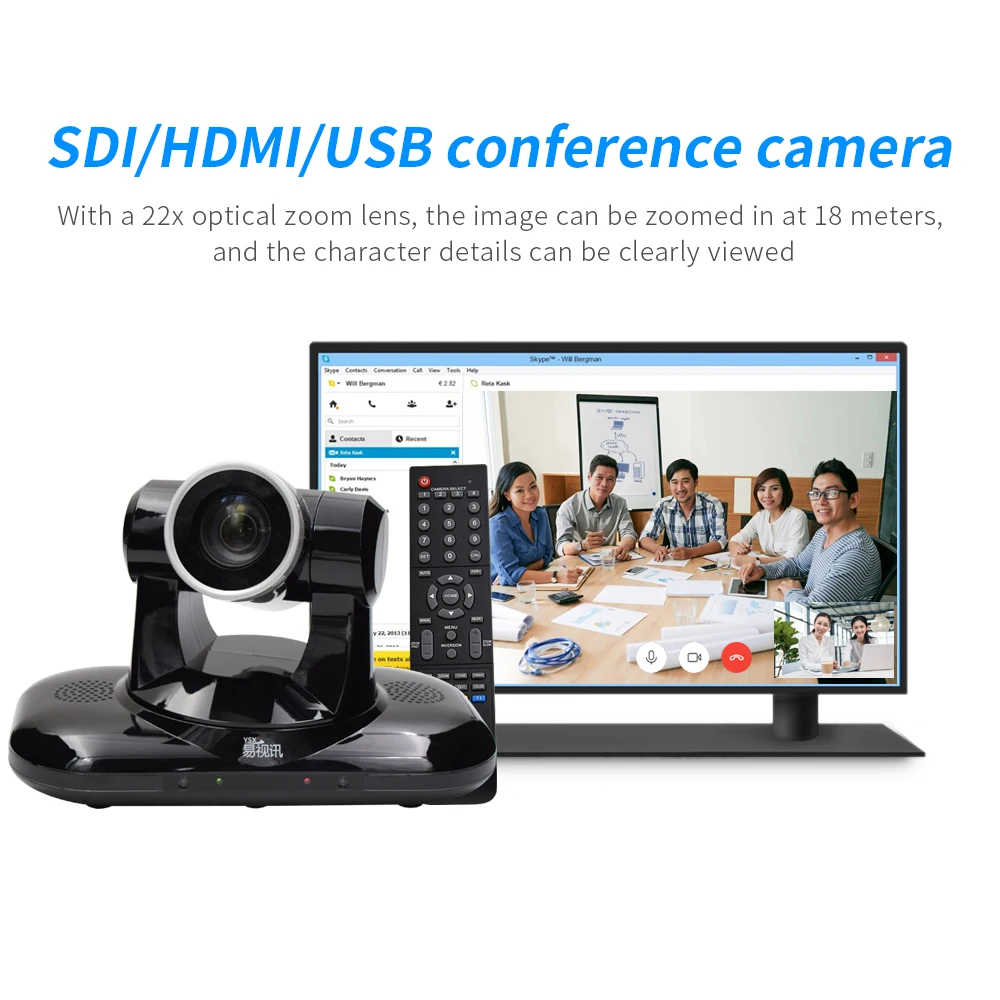

Zoom range | 1～22X optical change |
Zoom speed | Wide to Tel: 3.0 Tel ~ S Wide: 2.8 S |
Focusing on the | Near/far, automatic/manual/semi-automatic (one-button) |
Viewing Angle | Level:58.7 (far end), 3.2 (near end) |
Automatic aperture | Automatic/shutter priority/aperture priority/brightness/manual |
exposure | Automatic |
Electronic shutter | PAL, NTSC: 1/30 ~ 1/10000, 1/25 ~ 1/10000 |
The white balance | Automatic |
Day night switching system | Automatic/day/night/infrared external synchronization |
The menu | Chinese and English menu |
The noise reduction | 2 d & 3 d noise reduction |
Other features | Mirroring, flipping, electron amplification, defogging, freezing, wide motion |

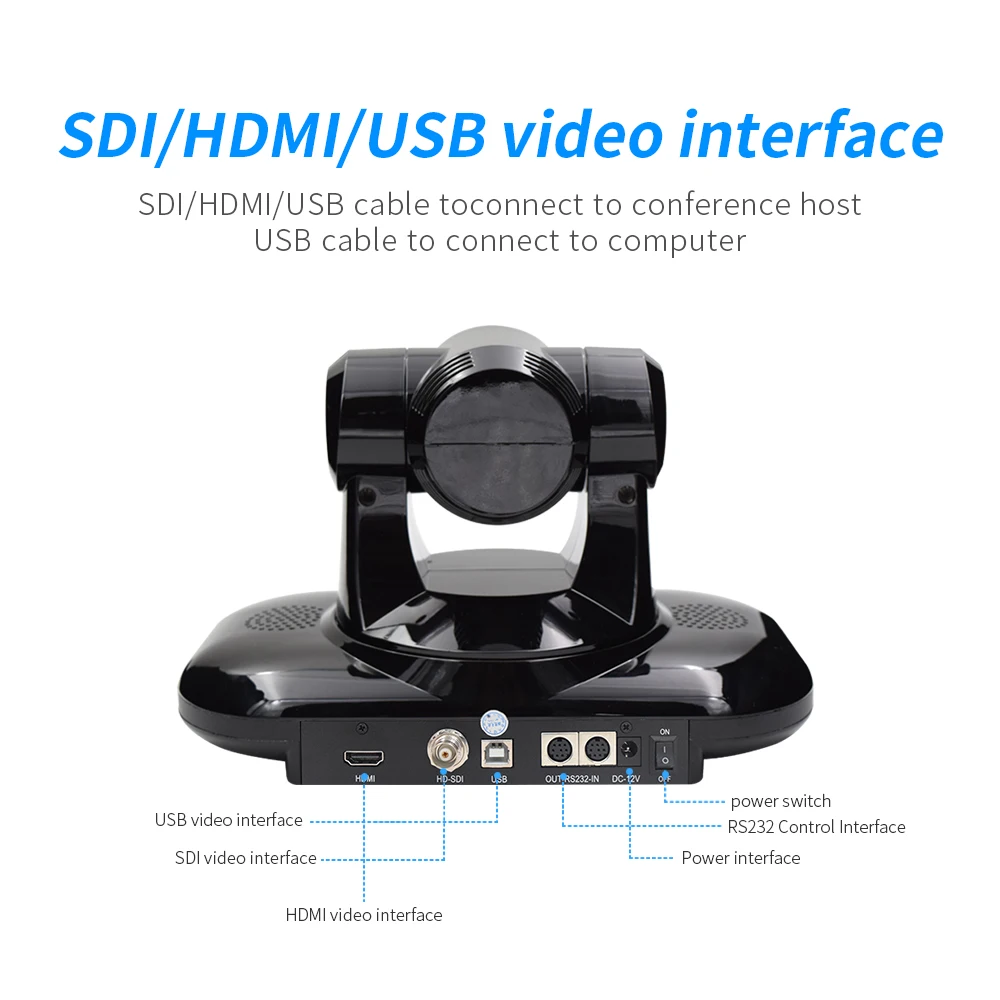

Video output interface | USB/SDI/HDMI |
UART RS232/RS485 | Sony-visca protocol, pelco-d protocol |
Working temperature | . - 10 ℃ to 50 ℃ |
Power adapter | . + 12 VDC, Max 3.6W |
Product color | black |
Product size | 260 x 170 x 152 mm |
The product weight | 1.07 kg |
