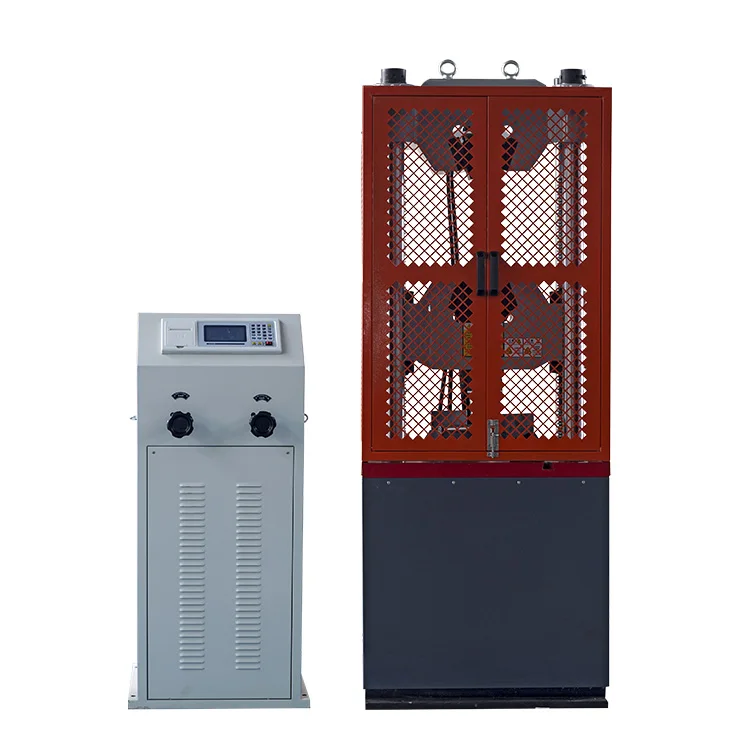

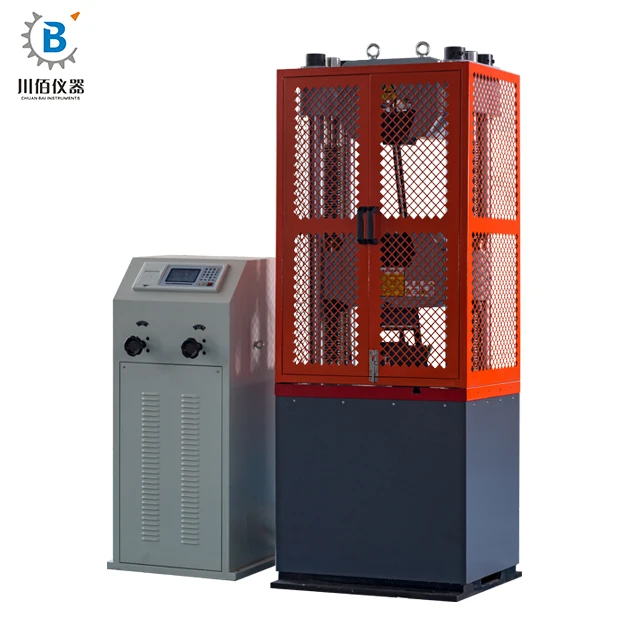

ASTM A370 Hydraulic Universal Testing Machine Mechanical Testing Equipment Steel Tensile Tester

The testing machine will do the opened loop testing control when used the convenient manual valve. Meanwhile, it will drive the precision clearance seal hydraulic cylinder so as to complete the test of the tensile, compression, bending and other testing performance. The operation is direct, fast, efficient, in line with national standards.

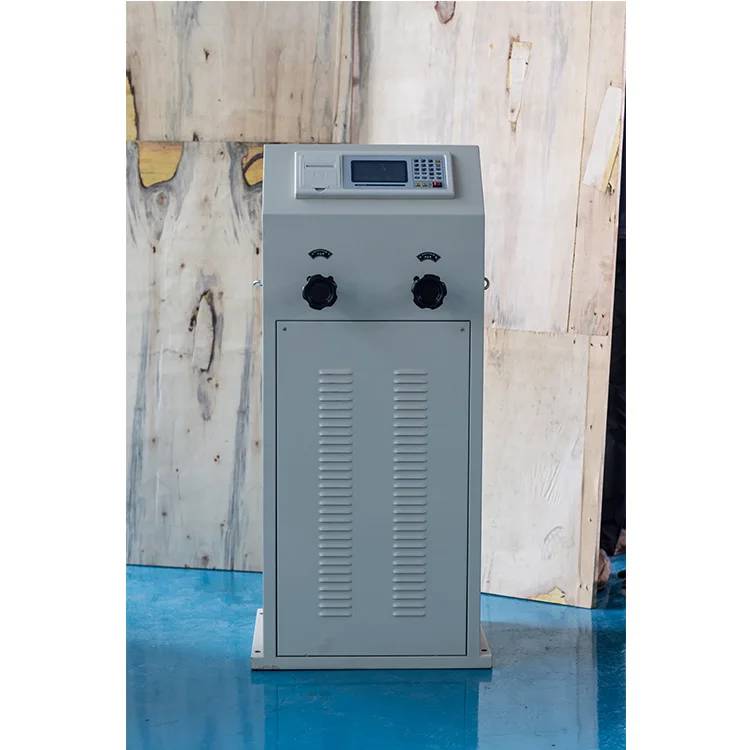

The force value was tested by the sensor, and realize the setting for the parameter, data acquisition, processing, analysis, storage, as well as the display for the force value, loading speed & max load through the LED displayer. In addition, it can automatically calculate the tensile strength, yield characteristics of the yield strength of the material, calculate break elongation test data, etc. This kind of equipment also has such functions of limit protection, over current protection, overload protection, etc.

1.WE-1000B electro-hydraulic universal testing machine is mainly used for tensile, compression, bending, shear and other mechanical properties test of metal materials, adding simple accessories and devices, and can also test cement, concrete, rubber and its products.

2. Widely used in aerospace, machinery manufacturing, building materials and other industries of material inspection and analysis, is scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments ideal testing equipment.

Grips Specifications:

The equipment is equipped with a set of tensile grip, bending grip and compression grip respectively.

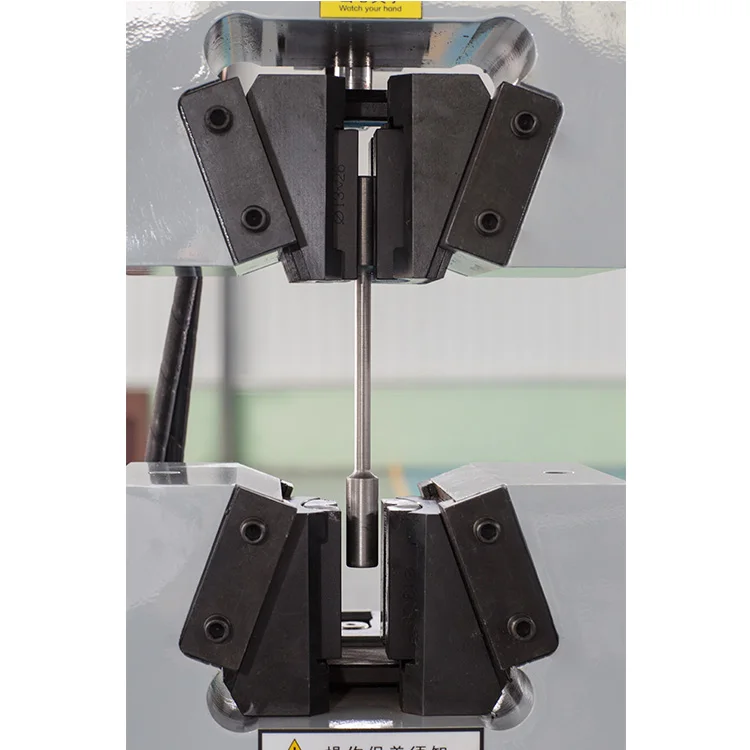

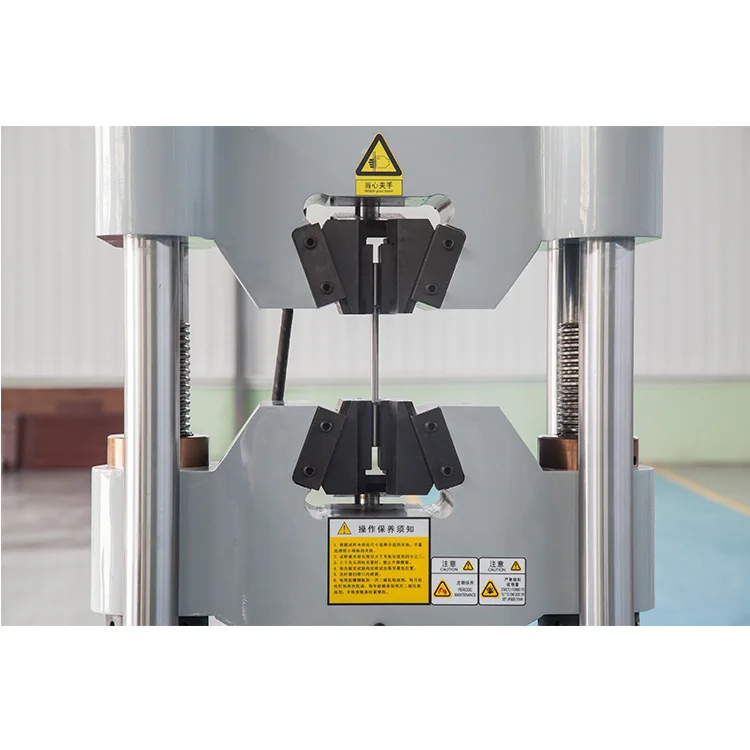

1. The tensile jaws size for 600Kn: round: 6-13,13-26,26-40; The thickness of the plate: 0-15,15-30,Please confirm before shipment.

2.Compression plate size: 150mm * 150mm, which can be customized according to special requirements, as the max size can be up to 380mm * 380mm

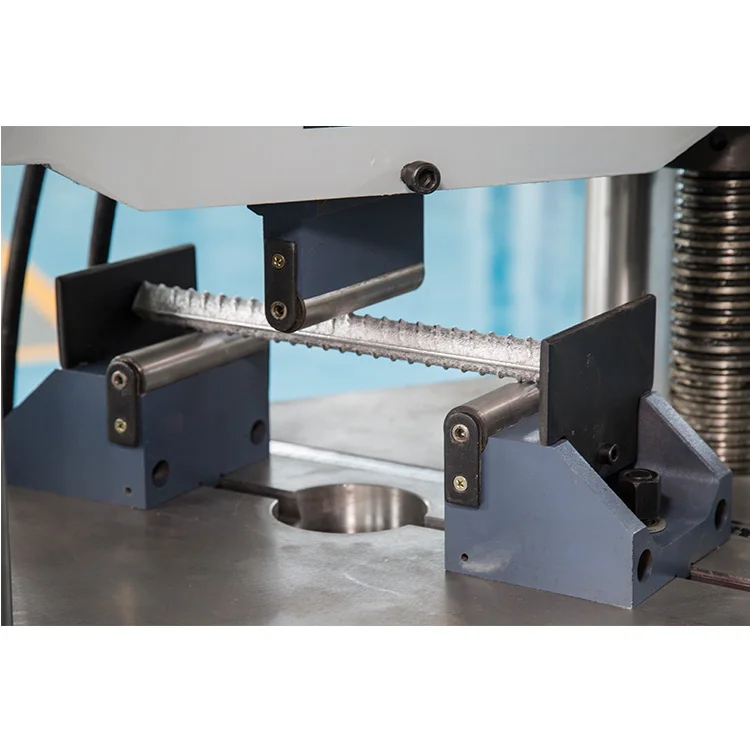

3.Size of three-point bending attachment: the diameter of the roller is 40mm, which can be customized according to special requirements.

Jinan Chuanbai Instrument Equipment Co., Ltd, located in Jinan city, Shandong province-the national test machine production base, is a collection of scientific research and development as one of the high-tech production enterprises. We have been producing professional UTM and various test equipment for 12 years. We have had great success in both China and the international market. Since the establishment, we have been committed to the research and development of mechanical testing instruments with a leading position with such hydraulic universal testing machine, electric universal testing machine, compression testing machine, impact testing machine, fatigue testing machine, torsion series machine, horizontal tensile testing machine, and other customized products. And we will always welcome any inquiry about the equipment on our website:www.chubaitest.com, where you can better understand us here.

Q1: Does the product have CE and ISO certificates?
A: Our all products have passed CE and ISO certifications.

Q2:  What are the test forces of the hydraulic universal testing machine?

A:  As long as the test force values of the hydraulic universal testing machine are: 300 kN / 600 KN / 1000 KN / 2000 KN. Need to confirm the type and size of test products.

Q3:  Your company is a trading company or a factory?

A: Factory + trade (integration), 12 years of focus on the field of testing instruments.OEM is also acceptable for us.

Q4: When will the order be delivered?

A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory. Please note that our products delivery time depends on the specific equipment and quantities.

Q5: What about the warranty?

A:  12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory. After the warranty, the professional after-sales service team will provide perfect technical support to help customers solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.

Q6: How about the service and quality of the products?

A: Each equipment must be 100% inspected and tested during transportation and delivery. Product use training, we can send you the video for training to show you how to install and operate. We can arrange engineers to train the operation of the equipment for you when necessary. We made an amazing reputation in this field.
