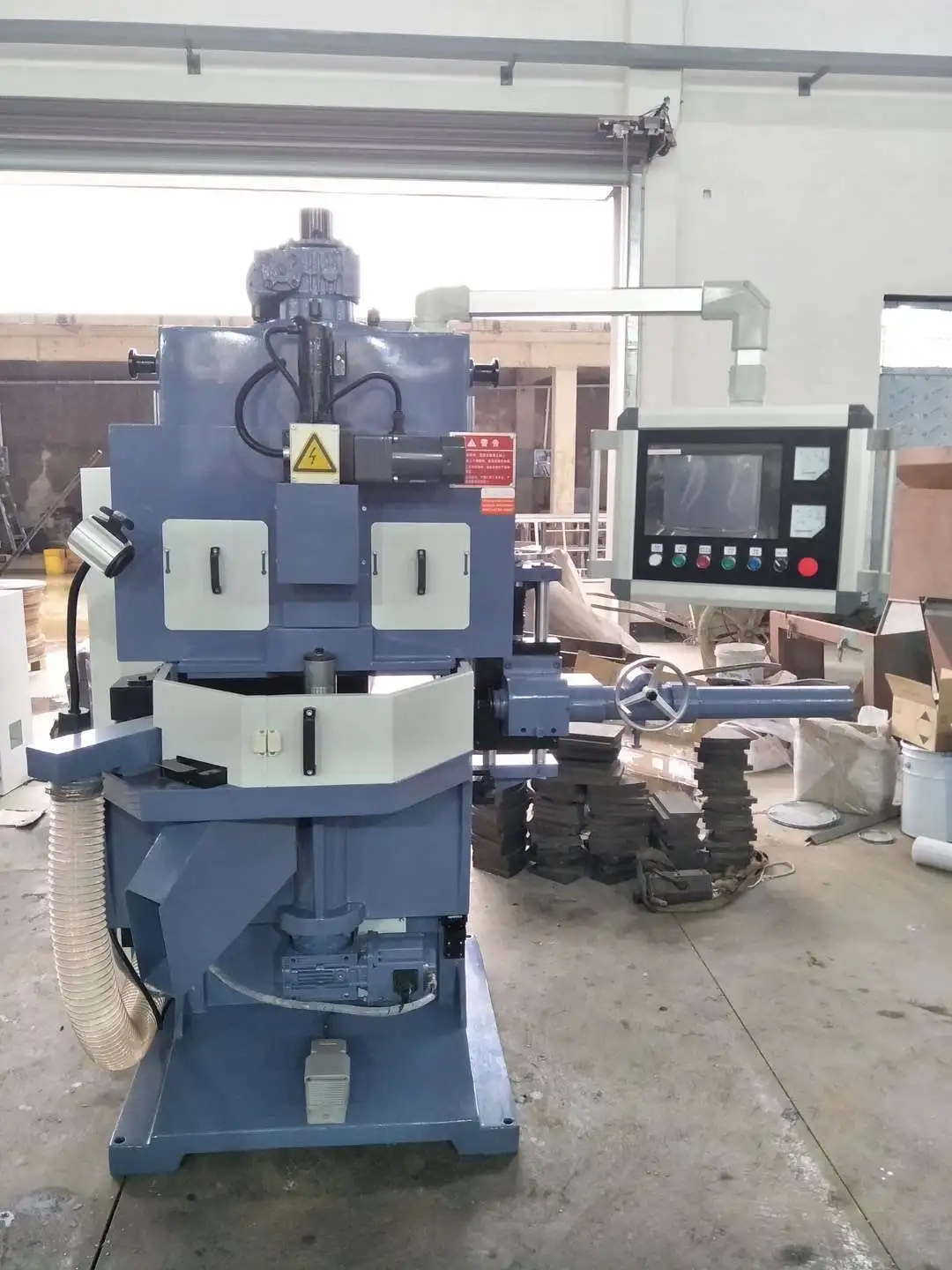

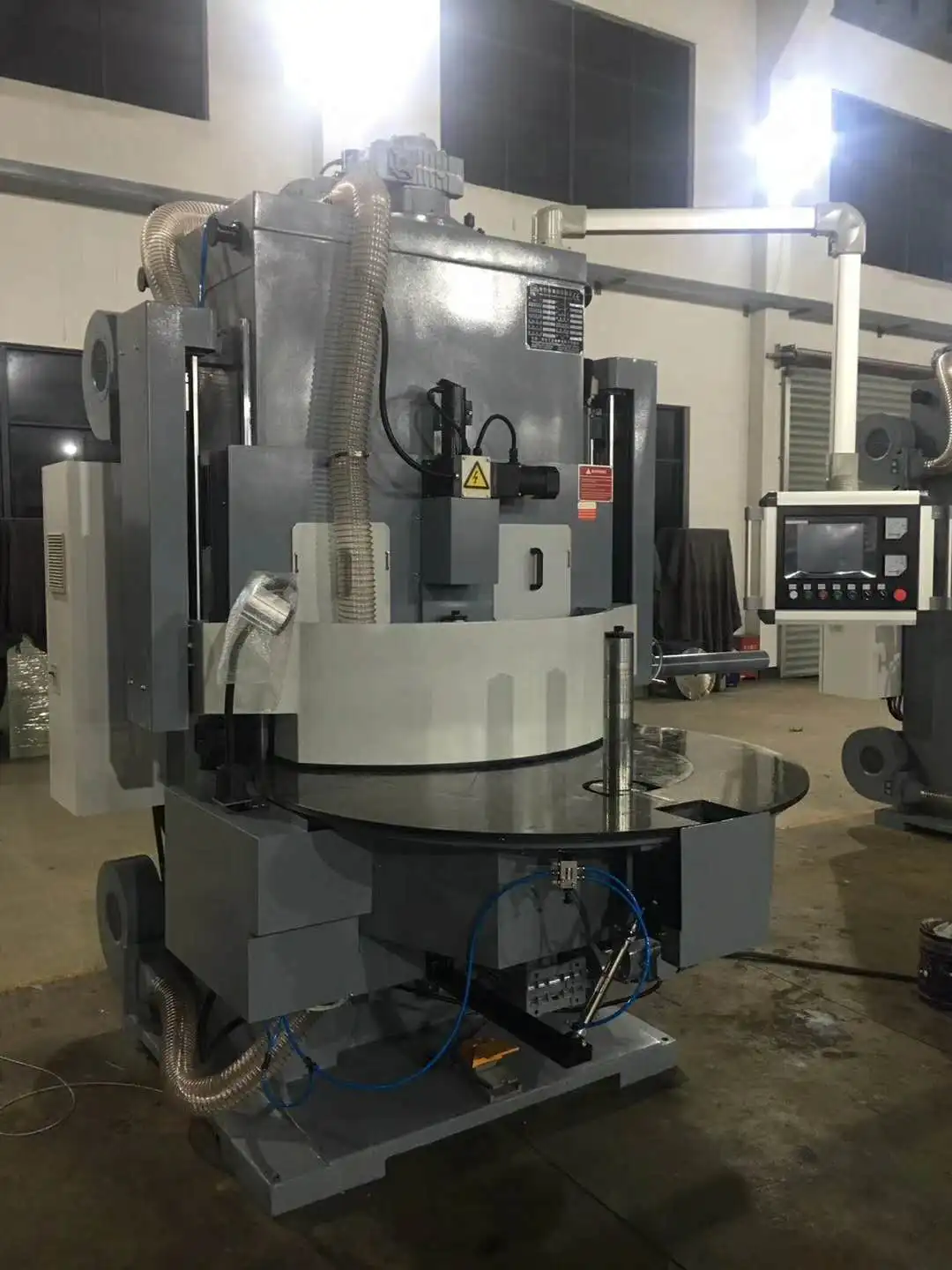

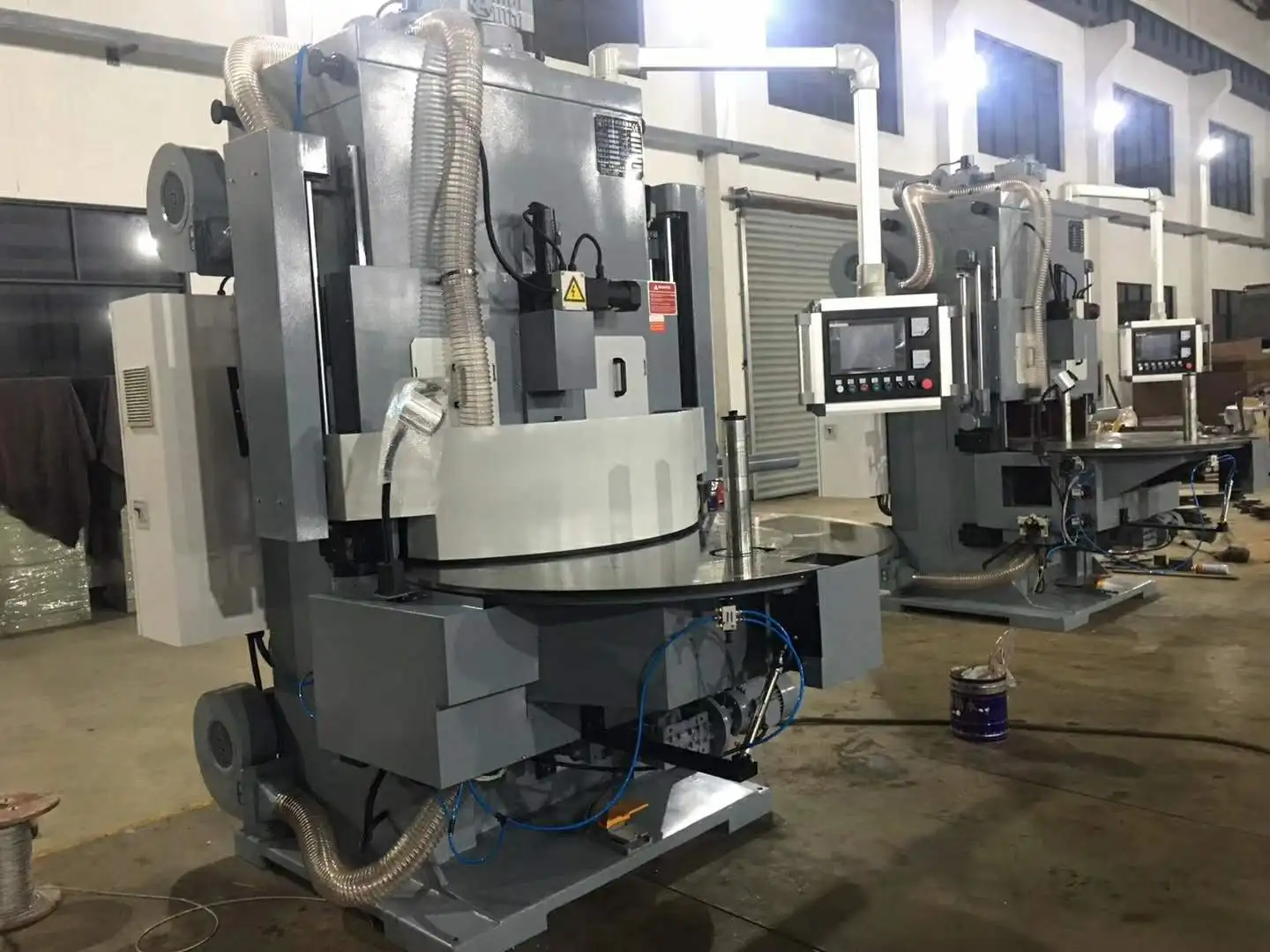

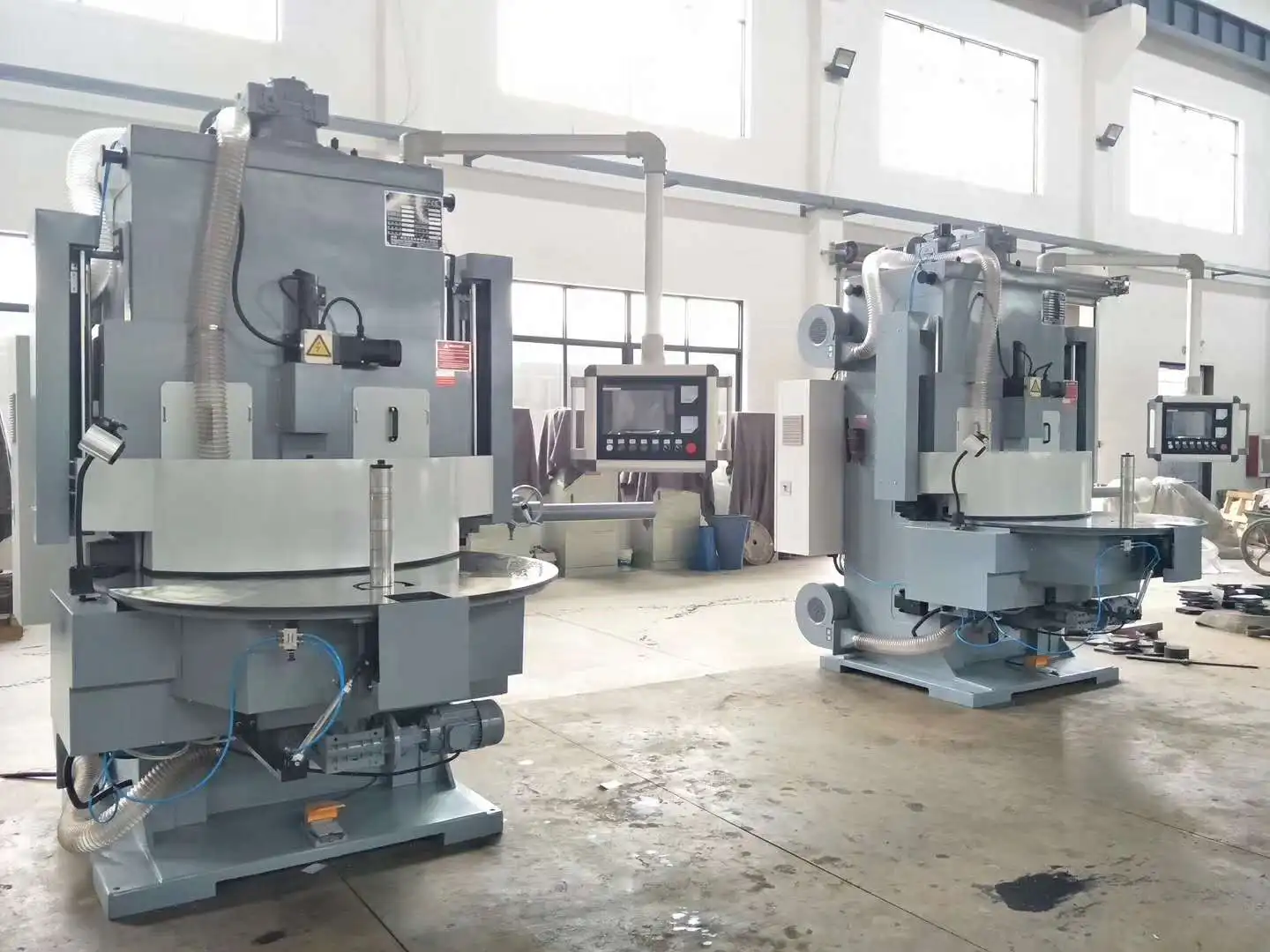

YinFeng brand High production wheel speed cnc spring end grinding machine from China

SN

Item

SLM180-6B

Unit

1

Specification of grinding wheel

Φ400*55

mm

2

Diameter of feeding plate

Φ580

mm

3

Wire diameter of grinding spring

Φ0.8--Φ6

mm

4

Outside diameter of grinding spring

Φ8--Φ80

mm

5

Height of grinding spring

10-180

mm

6

 Motor power

Upper grinding wheel

4

kw

Under grinding wheel

4

kw

Feeding plate

1.5

kw

Refueling plate

/

kw

Elevating motor of upper grinding wheel

1.5

kw

Elevating motor of under grinding wheel

0.18

kw

Blower

1.5

kw

Compensated motor of upper grinding wheel

0.14

kw

Total power

12.82

kw

7

Rotate speed of feed plate

Adjustable

R/min

8

Rotate speed of grinding wheel

1450

R/min

9

Displacement distance of grinding wheel

Upper grinding wheel:180

Under grinding wheel:40

mm

10

Working accuracy

Vertical:≤0.025Ho

Roughness:≤0.025

Ra

11

Machine weight

2200

kg

12

Machine dimension

2050*1660*2120

mm
