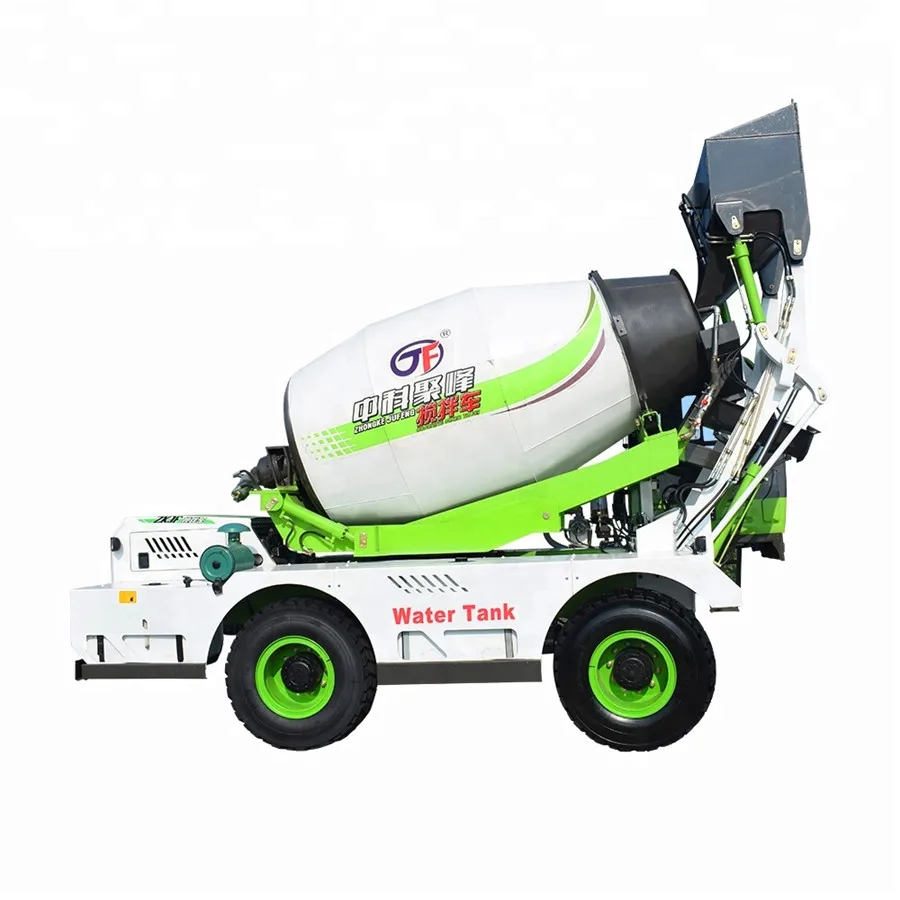

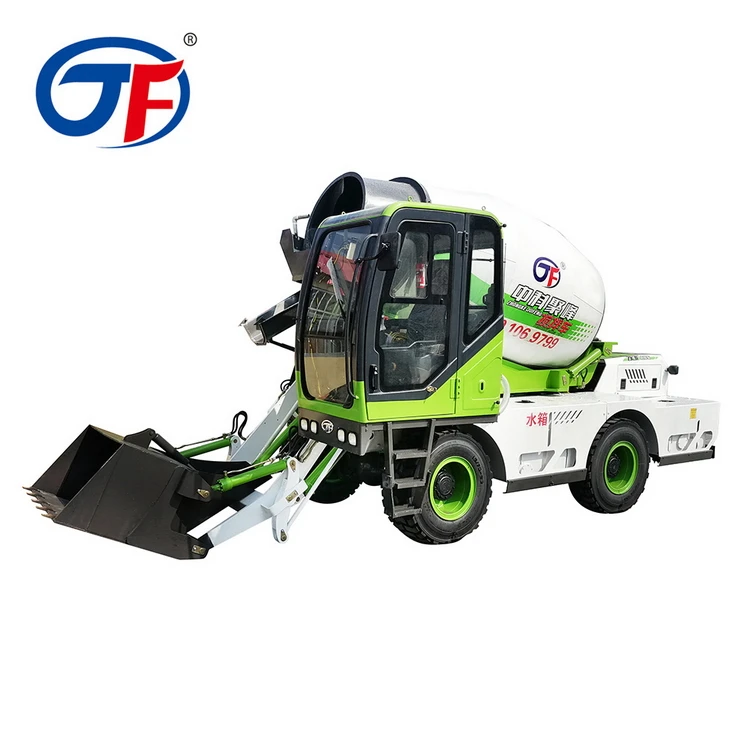

4.0M3 Self Loading Concrete Mixer Price SELF LOADING CONCRETE MIXER trucks

4.0M3 Self Loading Concrete Mixer Price SELF LOADING CONCRETE MIXER trucks

Category: Concrete Truck >>>
Supplier: Laizhou Jufeng Machinery Co. Ltd.

Price:$32,400.00 - $34,143.00

Quantity:

Product Overview

Description

Product Description

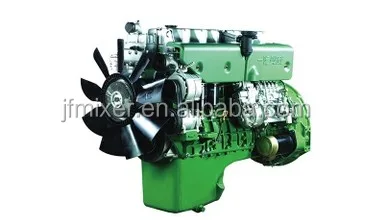

China TOP Brand FAW Diesel Engine

CMT5500R is driven by FAW 6110, 110 kW (150 HP),6-cylinder, Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.

220 Degrees Drum slewing for discharge

The mixing drum can slew hydraulically through 220 degrees for high discharge over 2.0m on the four sides of the vehicle. The drum can also be lifted up 20° from the bottom hydraulically for the convenient discharge of concrete.

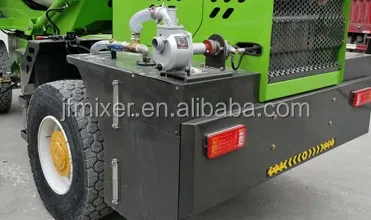

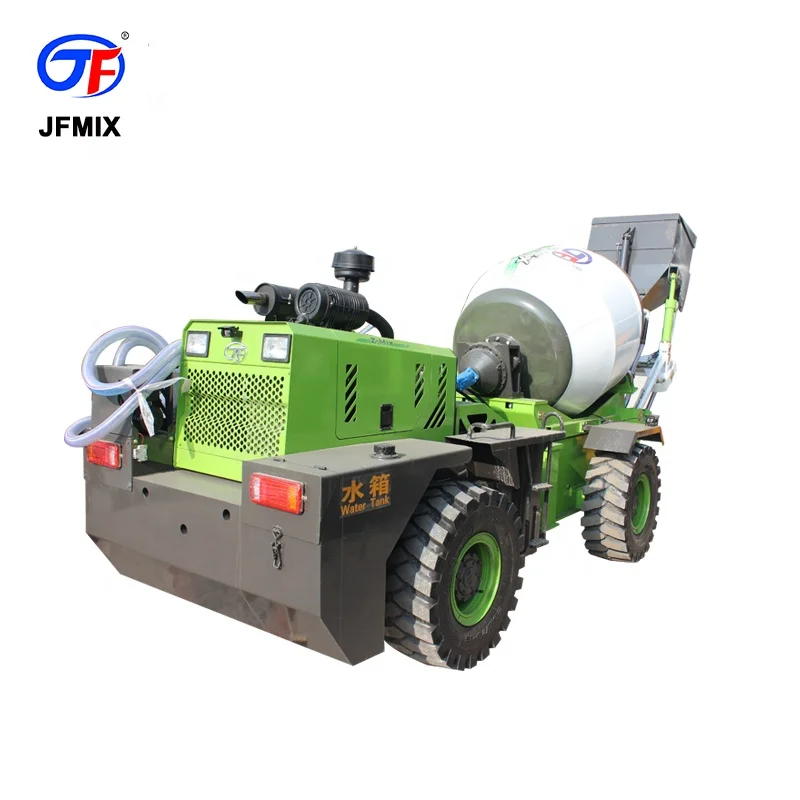

2x430L Rear Water tank & hydraulic water pump

2x430L Water tank is fitted in the rear of vehicle. Self-priming hydraulic water pump features quick suction (550L/min.)

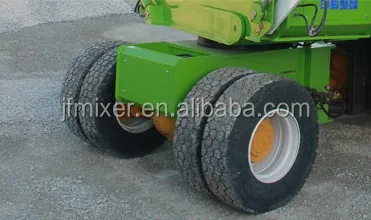

4-Front tyres

4 Front tyres are available on this truck, off road steel cord type, 1670-22.5, PR14.

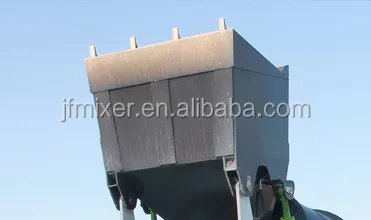

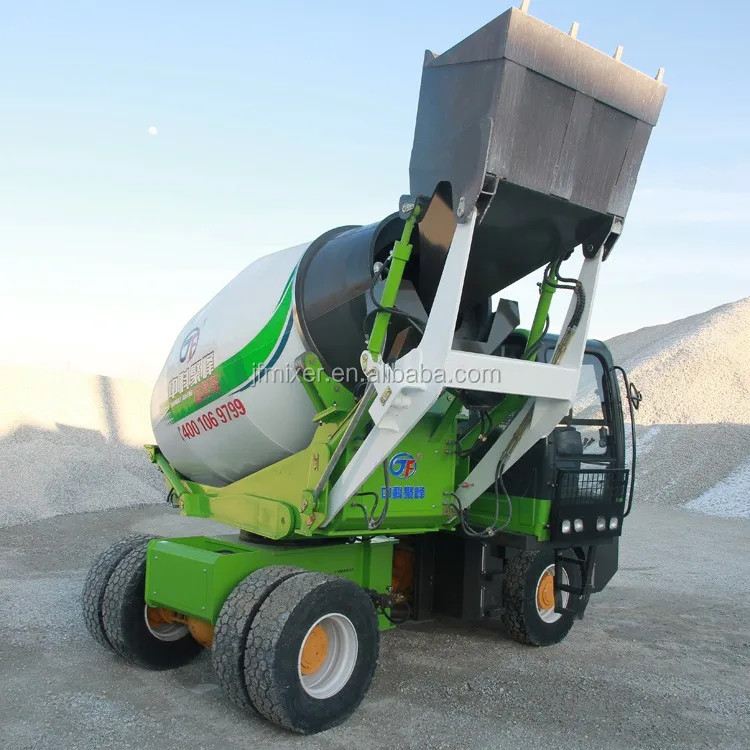

800L Shovel

800L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 7 times of loading.

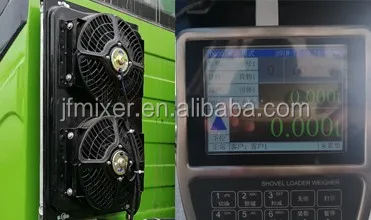

Electronic weighing system and air conditioning system

Electronic weighing system and Cooling & heating air conditioner are equipped with this vehicle. The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.

USA SUNNY piston motor

USA Brand SUNNY piston motor is applied on this truck.

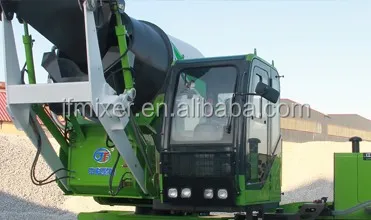

Bidirectional driving cabin

The cabin is suited in the front and can slew together with drum base through 270 degrees, which makes bidirectional driving available.

Mixing Drum
Mixing volume	5.5 M3
Geometrical volume	7.8 M3
Concrete output	5.5 M3 / batch, 22 M3 / hour
Drum rotating speed	20 rpm
Drum slewing angle	220°
Engine
Brand	FAW (Cummins Engine optional)
Model	6110
Type	In-line, 6-Cylinder, Turbo Charged and Water Cooled,
Rated power	110 KW (150HP)
Emission standard	Euro II
Chassis
Structure	Articulated chassis
Transmission gear	Automatic, 4F+ 4R shift
Driving & steering	4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase	3350 mm
Tread	2480 mm
Axles	Outsize wheel-side reducer driving axle
Tyre size	Off road steel cord type, 1670-22.5, PR14 (four front tyres)

Cabin
Driving direction	Bidirectional
Type	ROPS & FOPS type closed front cab
Joystick control	Double-joystick control the hydraulic system
Weighing system	The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
Air conditioning system	Cooling & heating air conditioner
Loading shovel & chute
Volumetric capacity	800L
Number of shovel loading times of full drum	Around 7 times
Chute	2 pcs. of discharging chute extensions. Manually rotating at 90 degree.
Water system
Max. water suction capacity	550 L/min. (Self-priming hydraulic water pump)
Water tank capacity	2x430 L.

Vehicle
Max. Driving speed	42.0 km/h
Gradient	Fully loaded 45%
Min. turning radius	6.2 m
Operating weight	11,200 Kg
Max. payload	13,200 Kg
Max. gross weight	24,400 Kg
Overall size (L×W×H)	8450 mm × 3100 mm × 3640 mm (4580 mm full height)
Service refill capacities
Fuel tank:	75L
Total hydraulic system capacity:	75L
Engine oil:	16L
Electric system
Alternator	24V-1500W
Battery:	2x12V-80AH
Optional accessories:
Dongfeng Cummins engine
Foton Cummins engine

Contact Person: James Yang			Contact Person: Jerry Lee
Position: Director of Foreign Trade Tel: +86-15098557232 Wechat: JamesJFMIX QQ: 3269321933 Whatsapp: +8615098557232			Position: Director of Foreign Trade Tel: +86-15098557112 Wechat: LeeJFMIX QQ: 1038640498 Whatsapp: +8613705358617


Web Site: //en.sdzkjf.com
Address: Tushan Industrial Park, Laizhou City, Shandong Province, China 261400

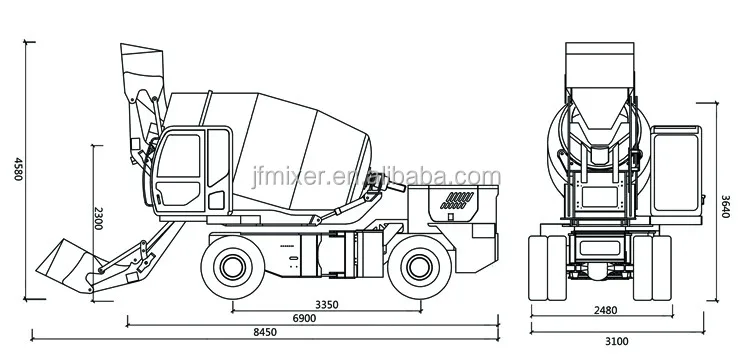

Overal Dimensions

Detailed Image

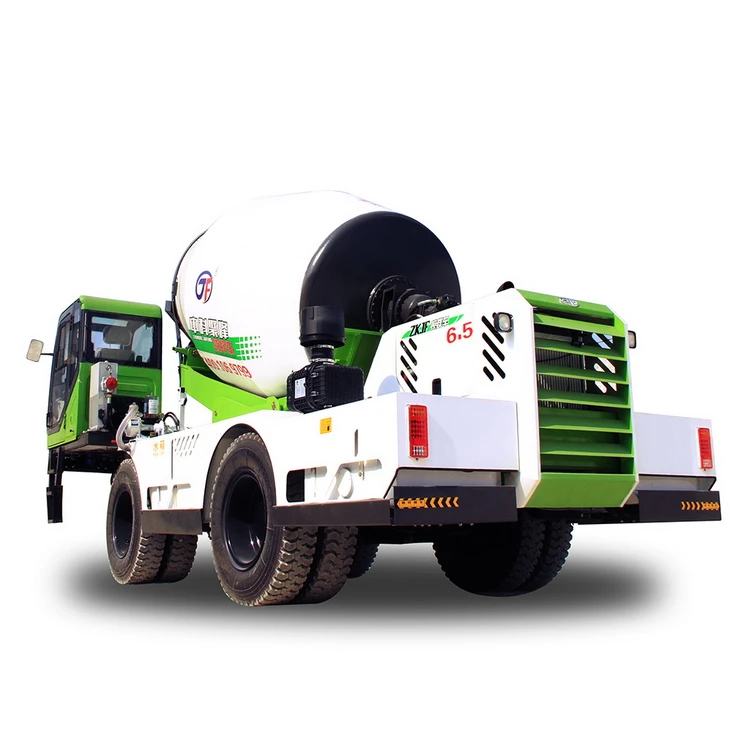

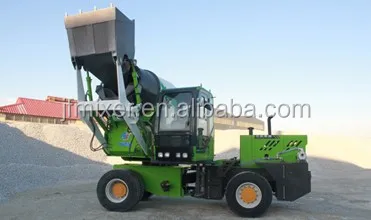

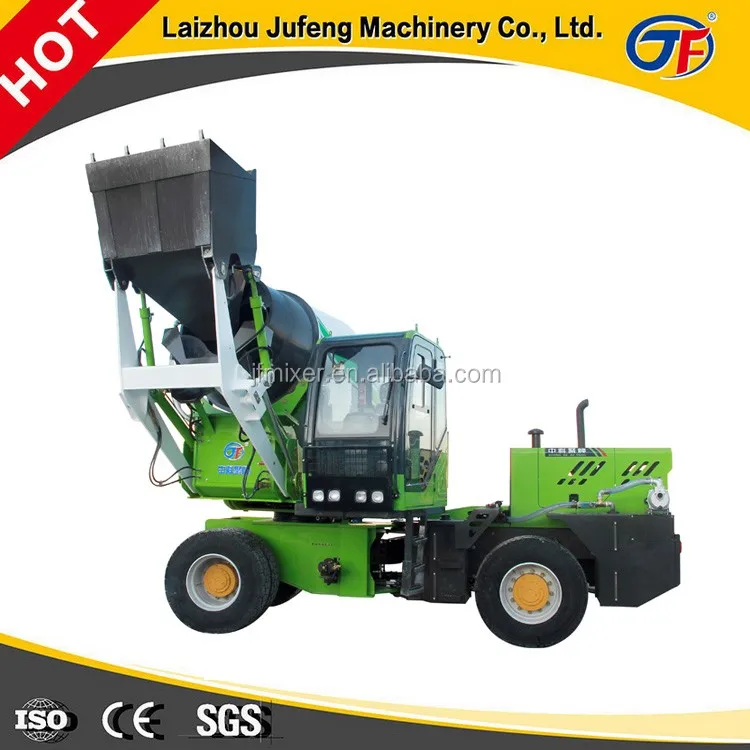

MODEL CMT5500R BIDIRECTIONAL DRIVING SELF LOADING CONCRETE MIXER TRUCK (5.5 CBM)

Product Introduction

Model CMT5500R Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features automatic calculating the proportion of mixing materials, the concrete output ability is 22 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 42 km/hour, and the min. turning radius is 6.2 meters only.

Advantages

\tCMT5500R is equipped with imported Sunny hydraulic system and China FAW 6-cyliner (110KW) Turbo charged diesel engine. The standard configuration includes high pressure water washing device, driving camera, automatic water feeding & metering system, hydraulic water suction pump, cooling & heating air conditioner, electronic weighing system and imported piston motor etc.

\tThe driver cabin is suited in the front and can slew with drum base together through 270 degrees, which makes bidirectional driving available.

\tThe mixing drum can slew through 220 degrees for high discharge over 2.0m on the four sides of the vehicle. The drum can also be lifted up 20 degrees from the bottom by two hydraulic cylinders for the convenient discharge of concrete.

\tThe rotating speed of drum has reached 20 rpm, which has improved working efficiency by 30% compared to its competitor in the industry.

\tThe application of wet brake of front axle, air brake, double brake system and double front tyres, increases the safety and stability of the mixer truck.

\tFull load with 45% gradeability makes our mixer be the leading position in the industry.

\tThe external water pump is equipped with water suction change-over switch, which can fill water into water tank and drum respectively.

\tThe vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

\tHigh strength steel plate, which enhances the load capacity and high stability of vehicle.

\tThe material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

\tMixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.

Main Features

Packing & Delivery

Our Company

Company Brief Introduction

Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
