3 фазы гармоник тестер анализатор качества электроэнергии 1,0 V ~ 1000V Напряжение дисбаланс тестер
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Baoding Langxun Electronics Technology Co. Ltd.
Share on (62324467415):
Product Overview
Description
Product Description
Product Advantage
LX-5000 Power Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
Basic function
1. Waveform real-time display (4 channels voltage/4 channels current).
2. True RMS values of voltages and currents.
3. The DC components of voltages.
4. Peak current and voltage values.
5. Minimum and maximum half-cycle RMS current and voltage values.
6. Phase or diagram display.
7. Measurement of each harmonic up to order 50.
8. Bar charts show harmonic ratios of current and voltage of each phase.
9. Total harmonic distortion (THD).
10. Active, reactive, apparent power, by phase and cumulative.
11. Active, reactive, apparent energy, by phase and cumulative.
12. Transformer K factor.
13. Power factors (PF) and displacement factors (DPF or COSΦ).
14. Short-term voltage flicker (PST).
15. Three phase unbalance (current and voltage).
LX-5000 Power Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
Basic function
1. Waveform real-time display (4 channels voltage/4 channels current).
2. True RMS values of voltages and currents.
3. The DC components of voltages.
4. Peak current and voltage values.
5. Minimum and maximum half-cycle RMS current and voltage values.
6. Phase or diagram display.
7. Measurement of each harmonic up to order 50.
8. Bar charts show harmonic ratios of current and voltage of each phase.
9. Total harmonic distortion (THD).
10. Active, reactive, apparent power, by phase and cumulative.
11. Active, reactive, apparent energy, by phase and cumulative.
12. Transformer K factor.
13. Power factors (PF) and displacement factors (DPF or COSΦ).
14. Short-term voltage flicker (PST).
15. Three phase unbalance (current and voltage).
Specification
Power supply | Rechargeable lithium-ion battery pack 9.6V, backup charger. |
Power consumption | Current consumption of normal test 490 mA, continuous working for 8 hours. |
Display mode | LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm. |

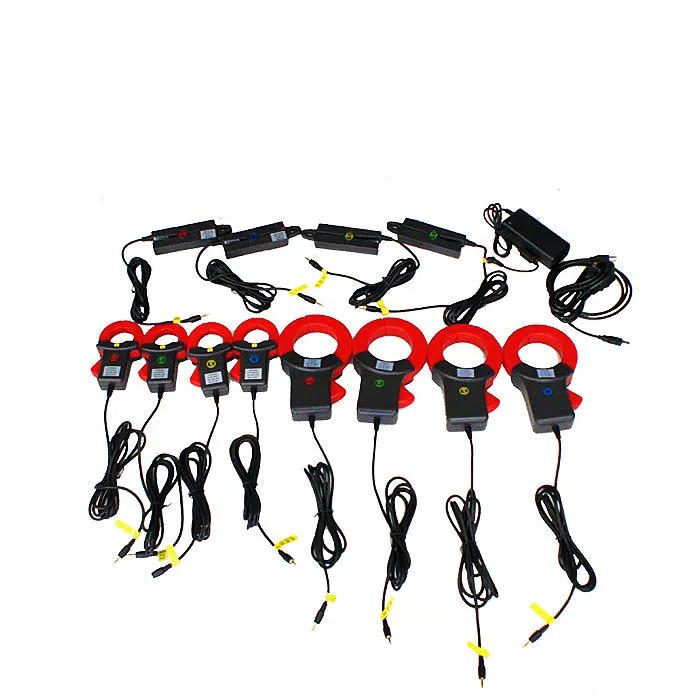

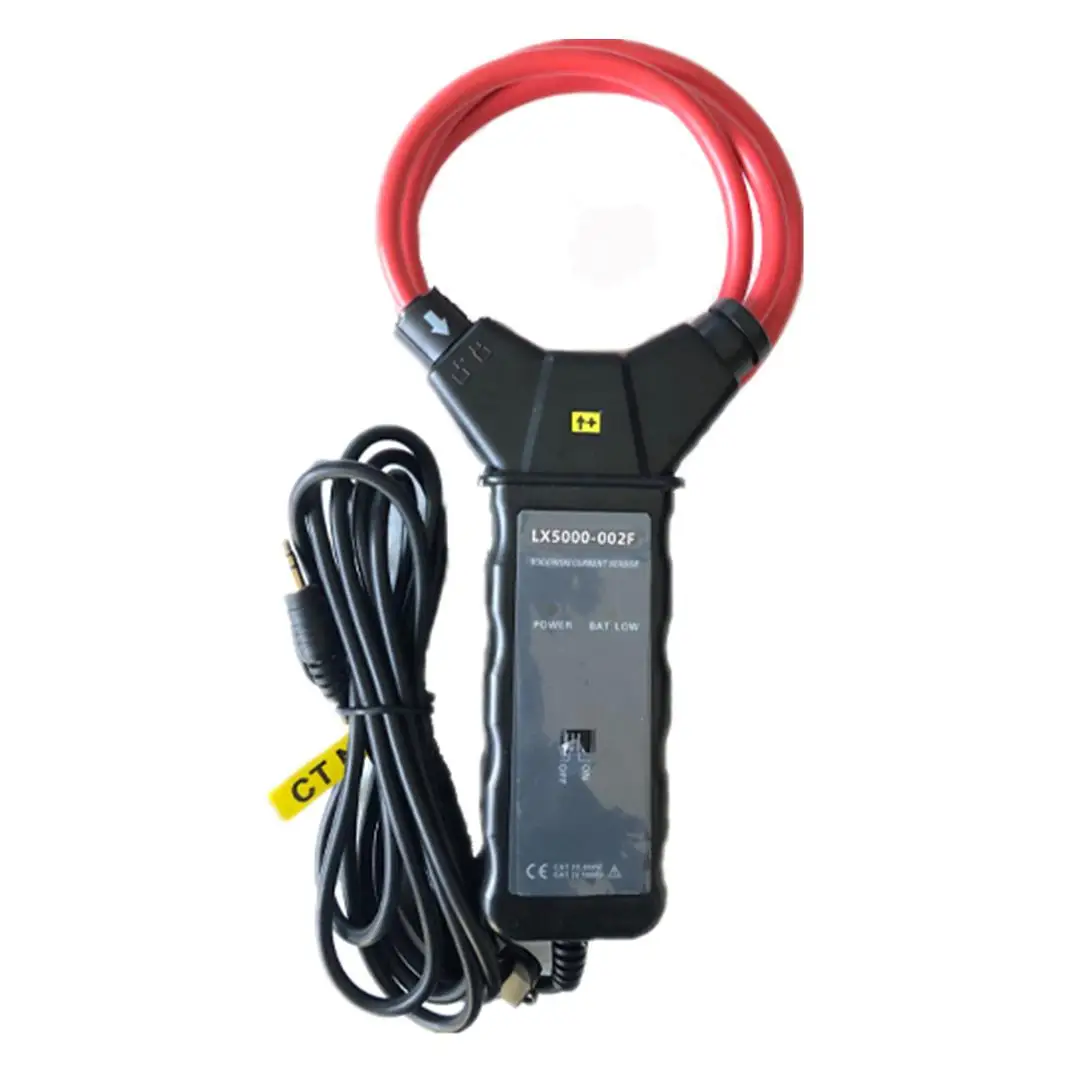

Size of clamp | 008B small sharp current clamp: 7.5mm×13mm; 040B circle current clamp: 35mm×40mm; 068B circle current clamp: 68mm×68mm. 300F Flexible Coil Current Sensor (with Integrator) : diameter 300mm |

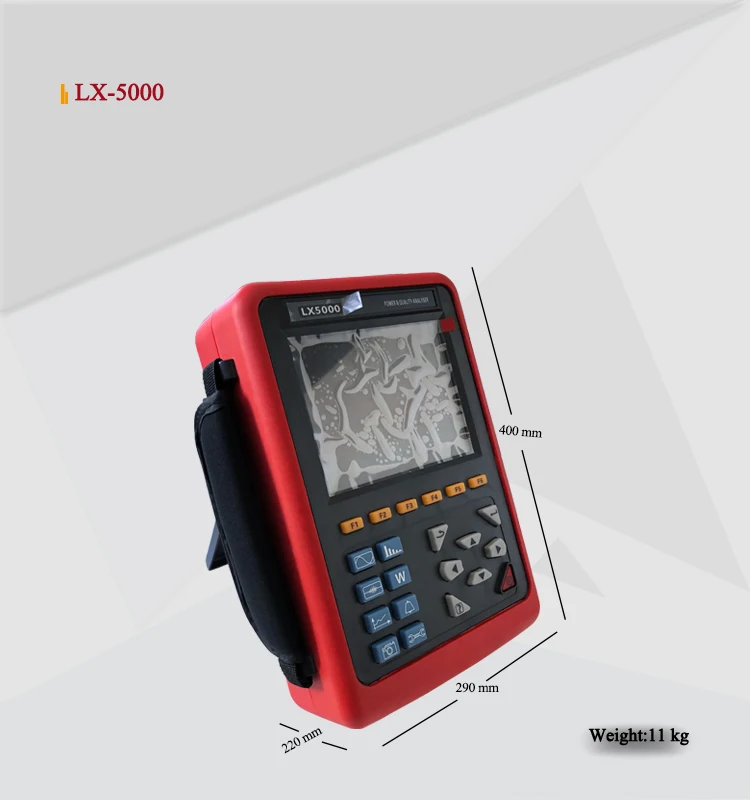

Instrument dimensions | L×W×H: 240mm×170mm×68 mm. |
Number of channels | 4U/4I. |
Phase-to phase voltage | 1.0V~2000V. |
Phase-to-neutral voltage | 1.0V~1000V. |
Current | 008B current clamp: 10mA~10.0A; 040B current clamp: 0.10A~100A; 068B current clamp: 1.0A~1000A; 300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A |
Frequency | 40Hz~70Hz. |
Parameters of electricity | W, VA, Var, PF, DPF, cosφ, tanφ. |
Energy parameters | Wh, Varh, Vah. |
Harmonic | Order 0~50. |
Total harmonic distortion | Order 0~50, each phase. |
Expert mode | Yes. |
Number of Transient records | 150 sets. |
Voltage flicker | Yes. |
Starting current mode | Yes, 100 seconds. |
3 phases unbalance | Yes. |
Record | 300 days(simultaneous recording 20 parameters, record one point every 5 seconds). |
Min/Max recorded value | Measurement of maximum and minimum values over a period of time. |
Alarm | 40 different types of parameter selections, 12,800 sets alarm logs. |
Peak | Yes. |
Phasor diagram display | Automatically. |
Capacity of snapshots | 60. |
Menu language | English/Chinese. |
Communication | USB. |
Automatic switching off | When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off. |
In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute. | |
Backlight function | Yes, suitable for use at night and dark place. |
Weight | Host: 1.6kg (with battery). |
008B small sharp current clamp: 170g×4; | |
040B circle current clamp: 190g×4; | |
068B circle current clamp: 510g×4; | |
300F Flexible Coil Current Sensor (with Integrator) : 330g×4; | |
Test wires and power adapter: 900g; | |
Total weight: about 9.2kg (with packaging). | |
Length of voltage test wire | 3meter. |
Length of current sensor wire | 2m. |
Working temperature and humidity | -10°C~40°C; below 80%Rh. |
Storage temperature and humidity | -10°C~60°C; below 70%Rh. |
Input impedance | Input impedance of test voltage: 1MΩ. |
Withstand voltage | Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. |
Insulation | Between instrument wiring and shell ≥10MΩ. |
Structure | Double insulation, with insulation vibration-proof sheath. |
Safely rules | IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2. |

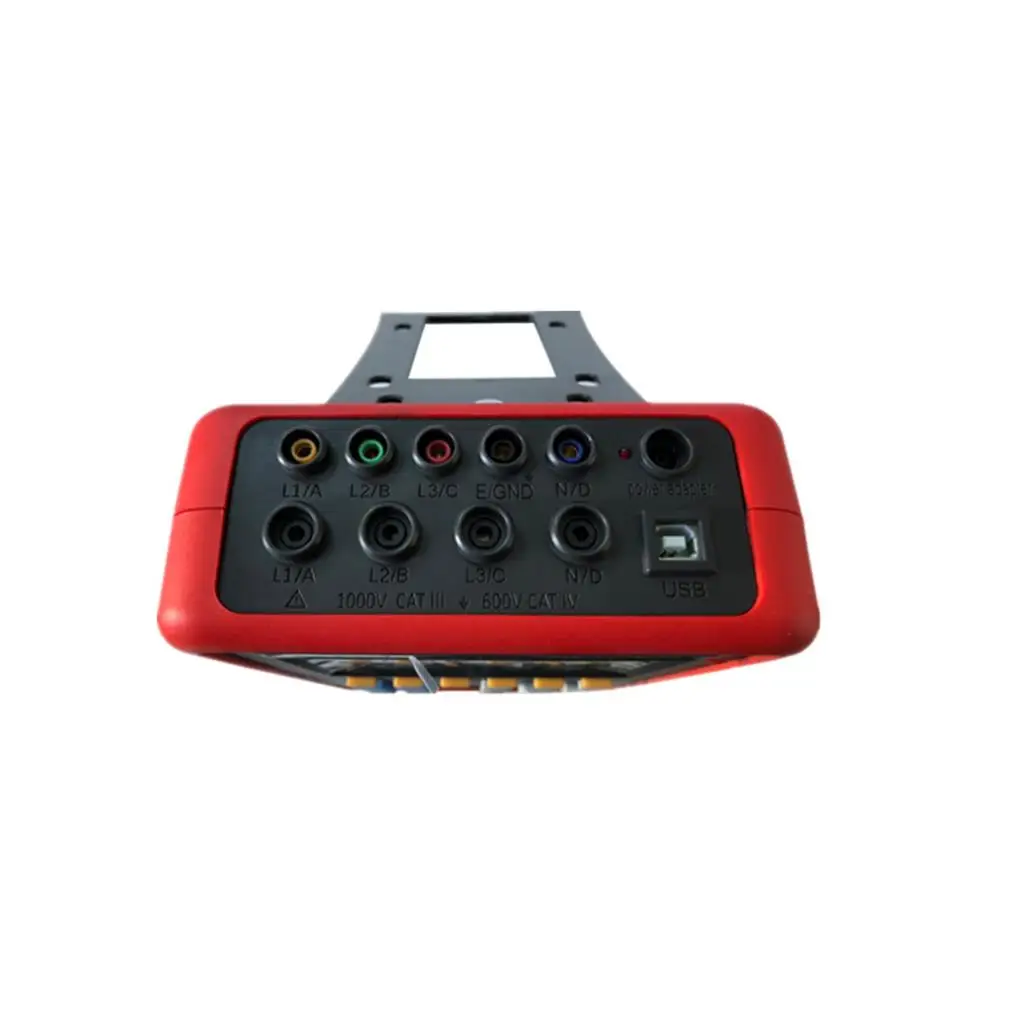

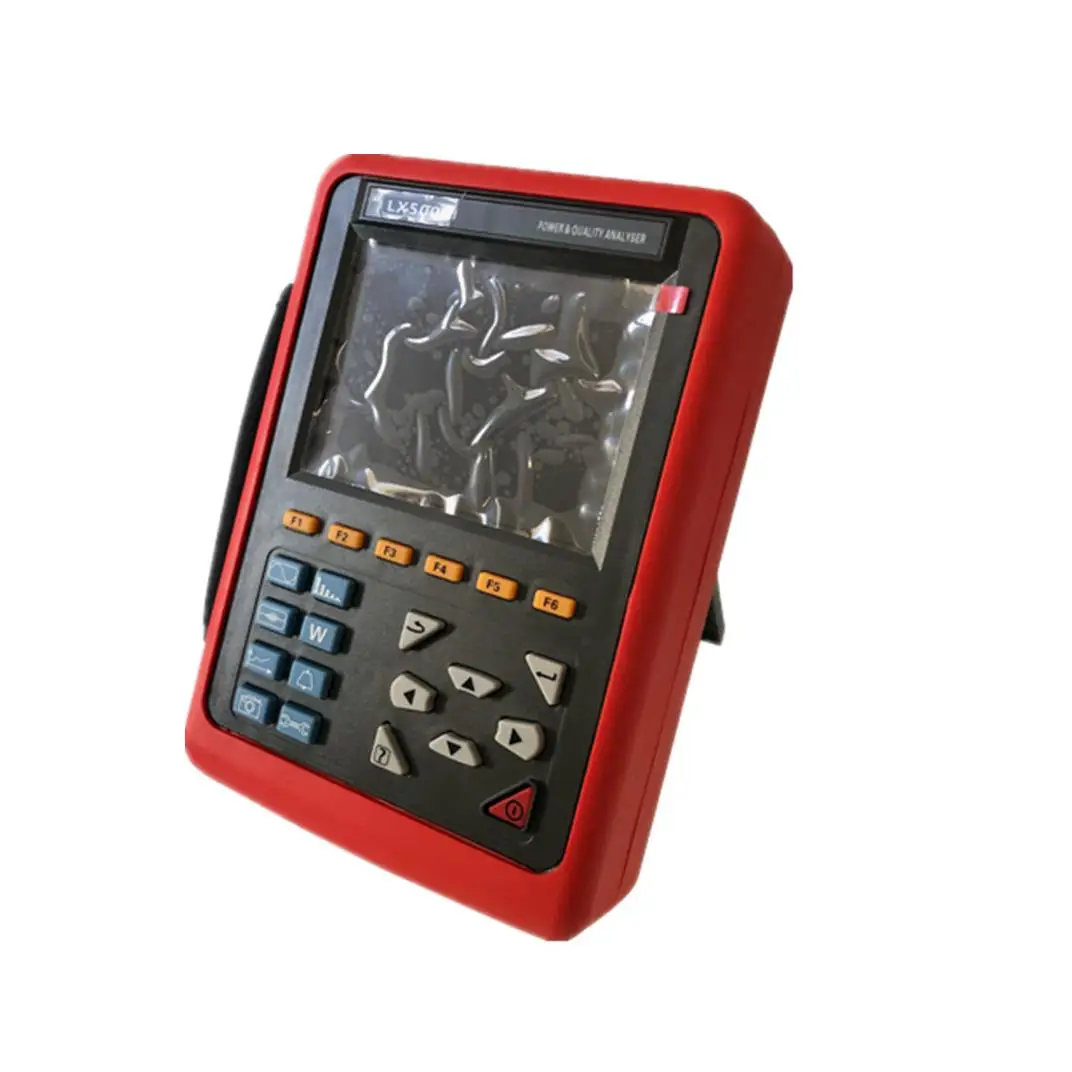

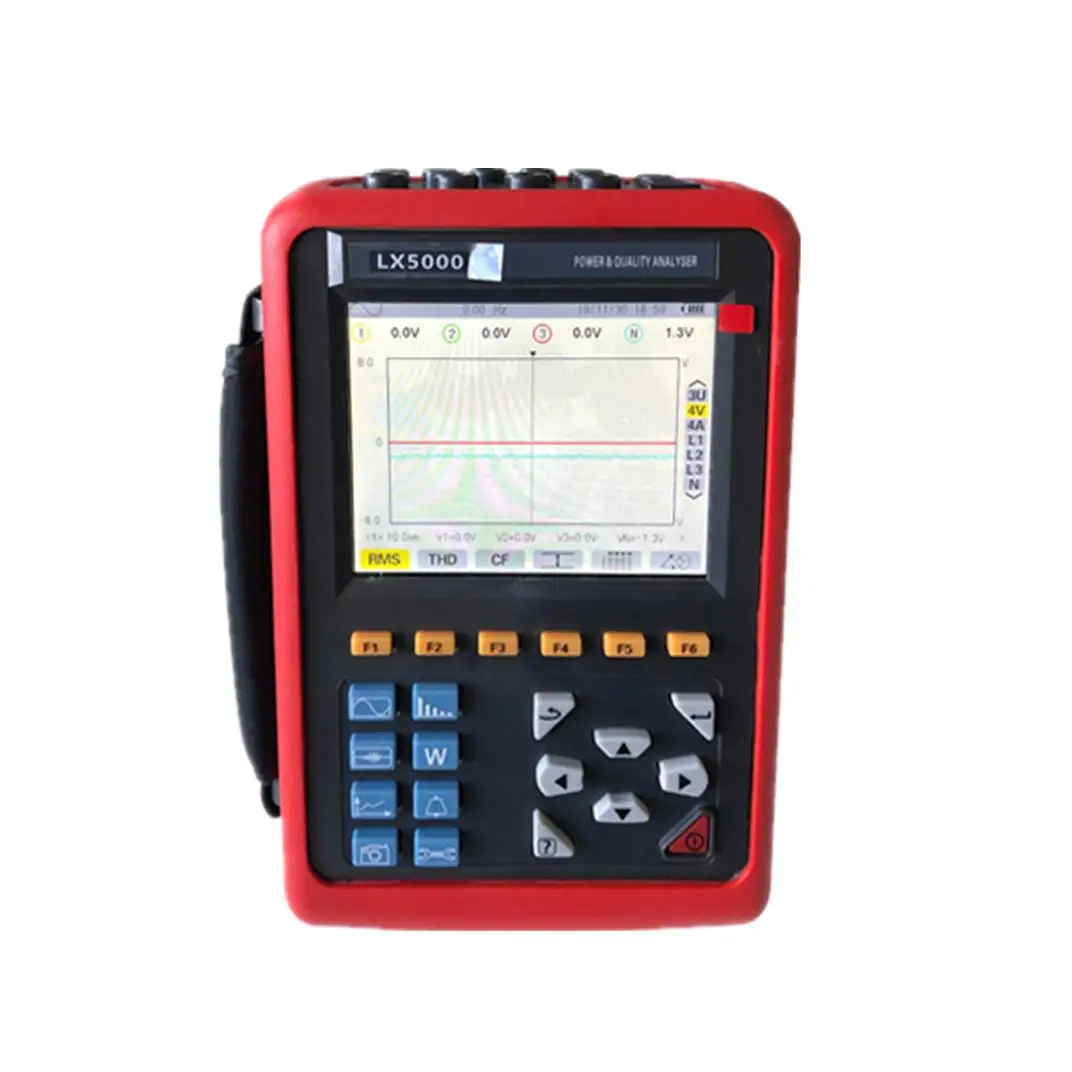

Product photos
Packing & Delivery
Packaging Details
Inside packing: bubble board
Outside packing: standard box
Customer OEM packing also available
Inside packing: bubble board
Outside packing: standard box
Customer OEM packing also available
Company Profile
Located in Baoding High-tech Development Zone, Baoding LangXun Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research, development, production, sales and service of power system automation devices and test instruments.
With science and technology as the guide, relying on scientific research institutions such as North China Electric Power University, power system professionals and our company's professional R&D personnel, the company has developed a series of power system automation devices and test instruments, and has been committed to exploring the high-tech field of power system automation. The company has advanced production, test equipment, production in strict accordance with national standards and industry labels, and constantly improve, update, strive to make products up to or better than national standards and industry standards. Strict control of each link in the production process ensures the stability and reliability of product quality, and lays a solid foundation for better meeting customer needs and faster development. Products have been widely used in electric power, water conservancy, petroleum, railway, mining, chemical industry, machinery, metallurgy, electronics and many other fields. Sales and service network covers nearly 30 provinces, municipalities, autonomous regions and municipalities directly under the Central Government. Excellent technical performance and reliable product quality have won the unanimous praise of users.
The company has always adhered to the business philosophy of "science and technology first, honesty first", market-oriented, customer demand-oriented, quality-oriented, technology innovation as the driving force, survival by quality, pioneering and enterprising, updated advanced testing equipment, and improved the quality assurance system. Customer satisfaction is the company's eternal purpose, to provide reliable products and thoughtful service for customers is the company's persistent goal of every employee.
The company will continue to carry forward the spirit of hard work and pioneering work. Take the production of high quality and efficient products as our responsibility, constantly improve the quality of products and service level, as always, and strive.
With science and technology as the guide, relying on scientific research institutions such as North China Electric Power University, power system professionals and our company's professional R&D personnel, the company has developed a series of power system automation devices and test instruments, and has been committed to exploring the high-tech field of power system automation. The company has advanced production, test equipment, production in strict accordance with national standards and industry labels, and constantly improve, update, strive to make products up to or better than national standards and industry standards. Strict control of each link in the production process ensures the stability and reliability of product quality, and lays a solid foundation for better meeting customer needs and faster development. Products have been widely used in electric power, water conservancy, petroleum, railway, mining, chemical industry, machinery, metallurgy, electronics and many other fields. Sales and service network covers nearly 30 provinces, municipalities, autonomous regions and municipalities directly under the Central Government. Excellent technical performance and reliable product quality have won the unanimous praise of users.
The company has always adhered to the business philosophy of "science and technology first, honesty first", market-oriented, customer demand-oriented, quality-oriented, technology innovation as the driving force, survival by quality, pioneering and enterprising, updated advanced testing equipment, and improved the quality assurance system. Customer satisfaction is the company's eternal purpose, to provide reliable products and thoughtful service for customers is the company's persistent goal of every employee.
The company will continue to carry forward the spirit of hard work and pioneering work. Take the production of high quality and efficient products as our responsibility, constantly improve the quality of products and service level, as always, and strive.

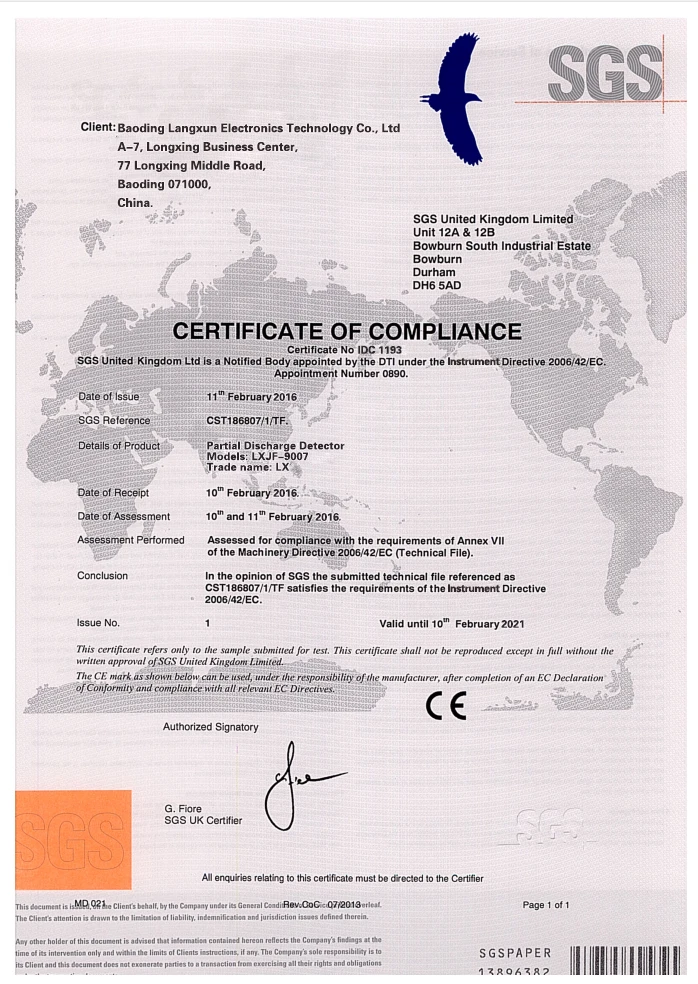

Certifications
