Price:$8.99 - $24.99

Quantity:


Product Overview

Description



Product Description

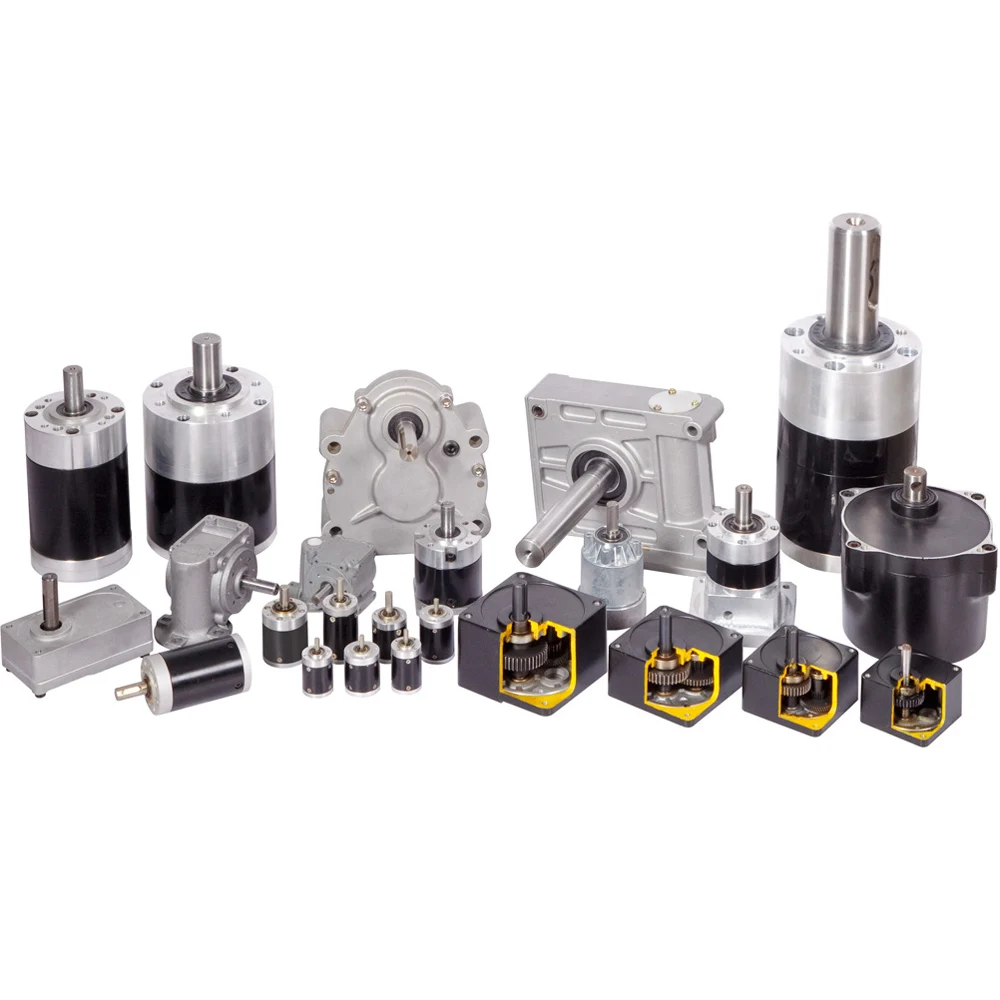

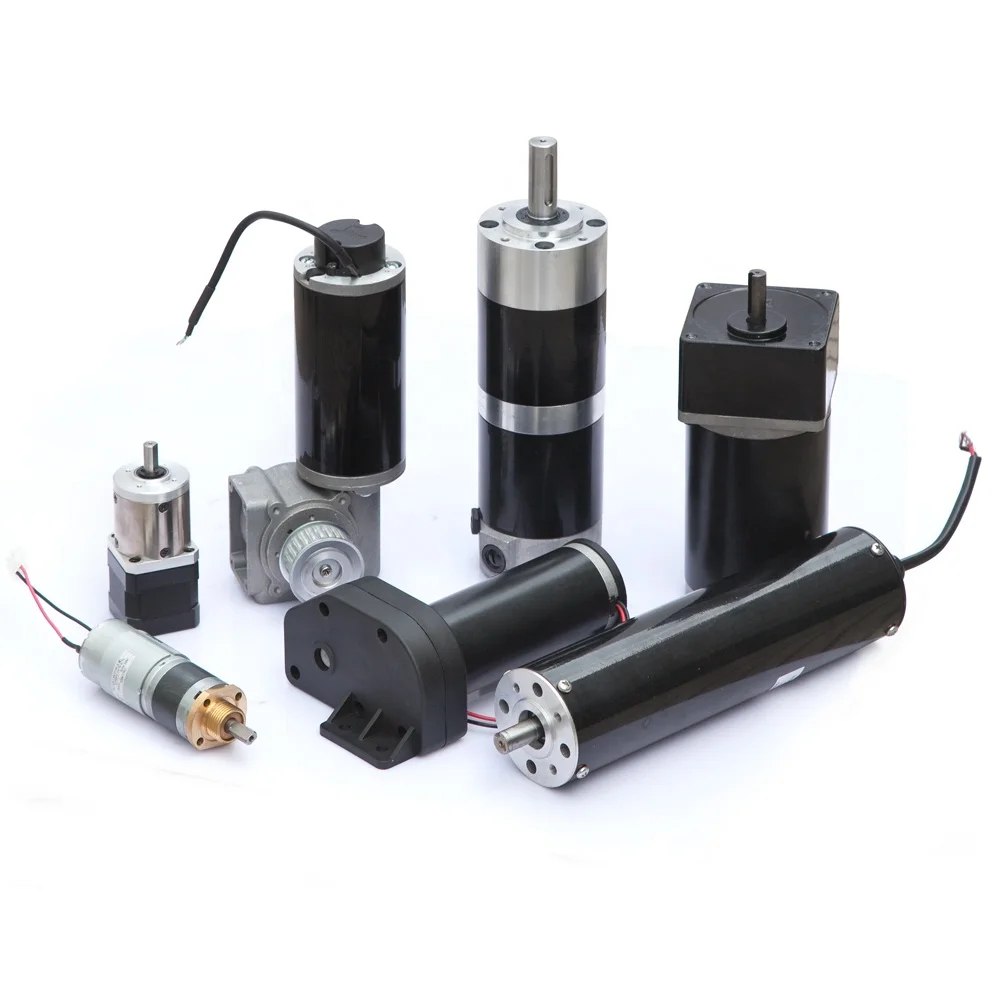

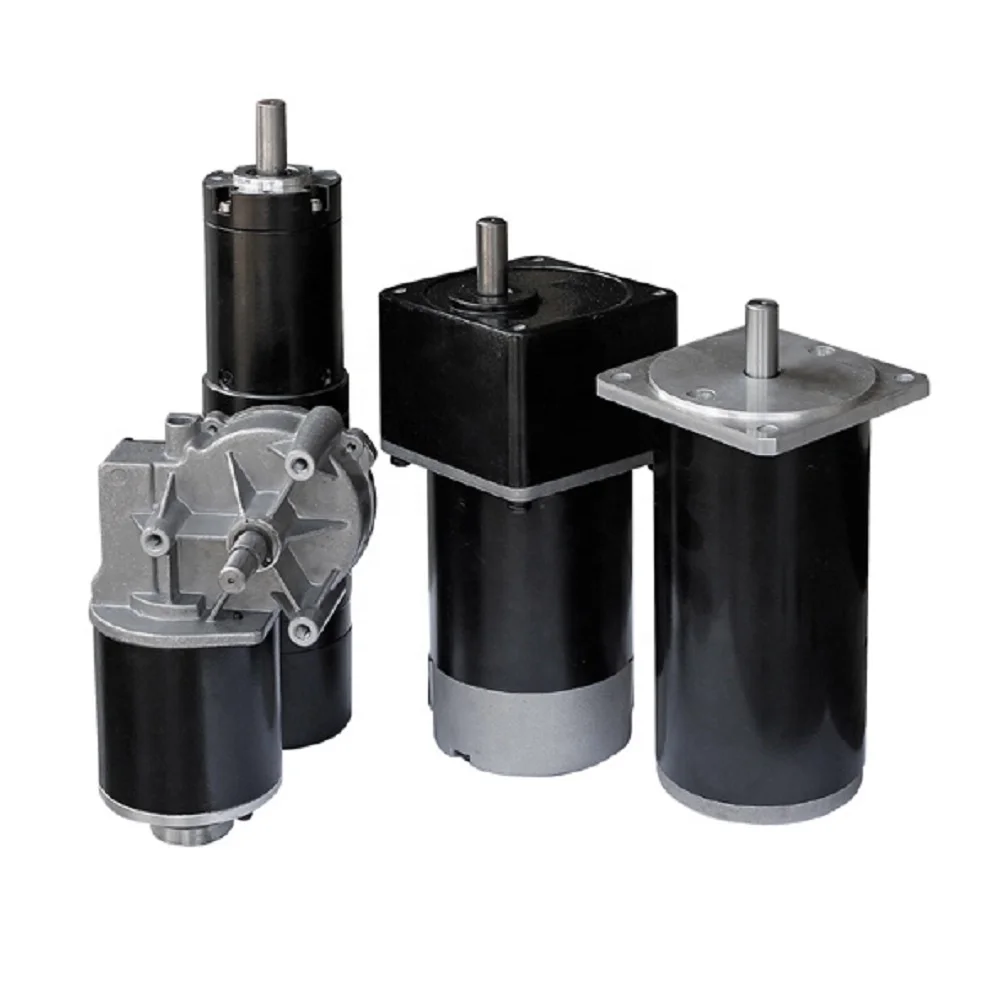

Right Angle/Worm Gearbox/Reducer
Worm Reduction Gearbox
Gearbox Dimensions: Φ30mm ~ Φ200mm
Gear Ratios: 5:1 ~ 150:1
Matched Motor: Brushed DC motor; Brushless DC motor; AC motor; Stepper motor; Servo motor
To match with motor to achieve rated torque up to 500N.m

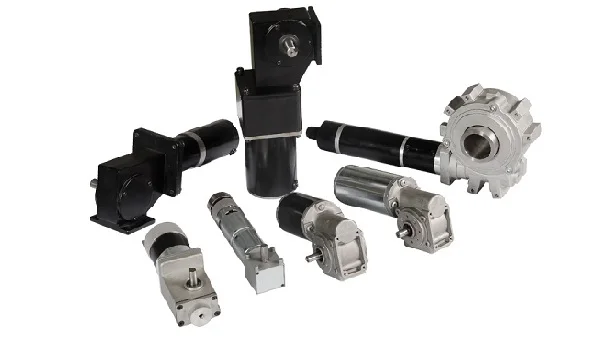

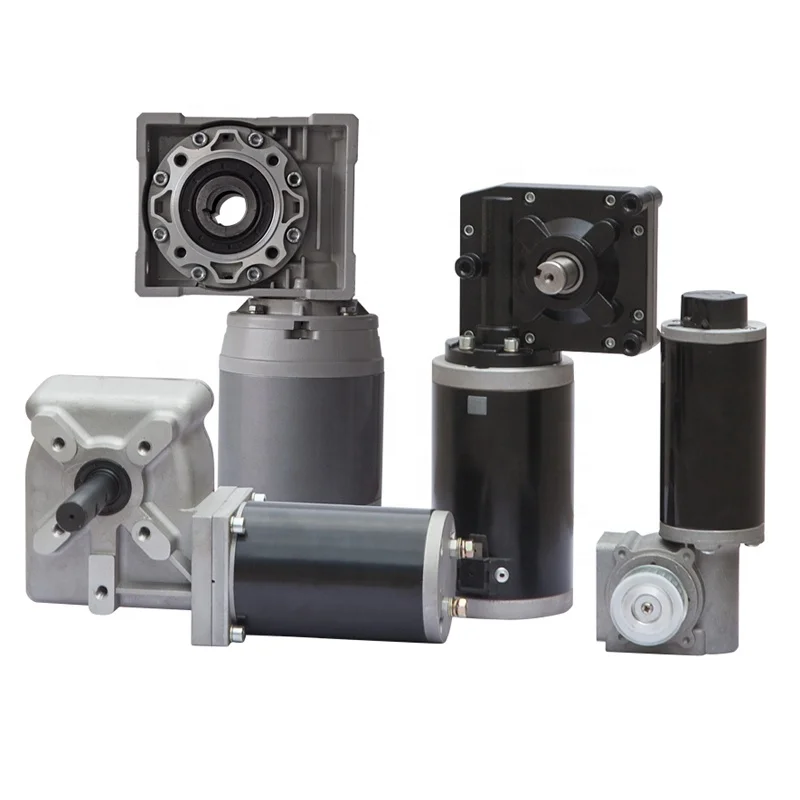

DC / AC Right Angle/Worm Gear Motors
Gearbox Frame: 50JW, 63JW, 70JW, 90JW, 102WJ, 108WJ, 122WJ, 130WJ, JW-3, JW-5, RV030, RV040, RV050, RV063, RV075, RV090
Motor OD: 42MM ~ 170MM
Rated Torque up to 300N.m
Rated Speed: 1 ~ 700RPM
Protection up to IP66
Optional: Encoder / Brake / Connector / Pulley


DC Right Angle Gear Motors Characteristics
Gearbox size
50 ~ 130MM
Gear ratio
5 : 1 ~ 300 : 1
Motor type
Brushed DC Motors, Brushless DC Motors
Motor diameter
42 ~ 170mm
Nominal voltage
6V ~ 400V DC
Nominal speed
1 ~ 700rpm
Rated torque
Up to 500N.m
Nominal power
Up to 1KW
IP rating
Up to IP66
Option
Magnetic/optical encoder, power-on/power-off brake, connector, pulley




Customized Gear Motors for Typical Applications
Tarp Gear Motors


Slow Juicer Motors

Curtain & Window Motors
Robot Pool Cleaner Motors
Door & Gate Motors


Robot Lawn Mower Motors

Automatic Pool Cover Motors
Solar Tracking System Motors




Related Products




FAQ


Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
