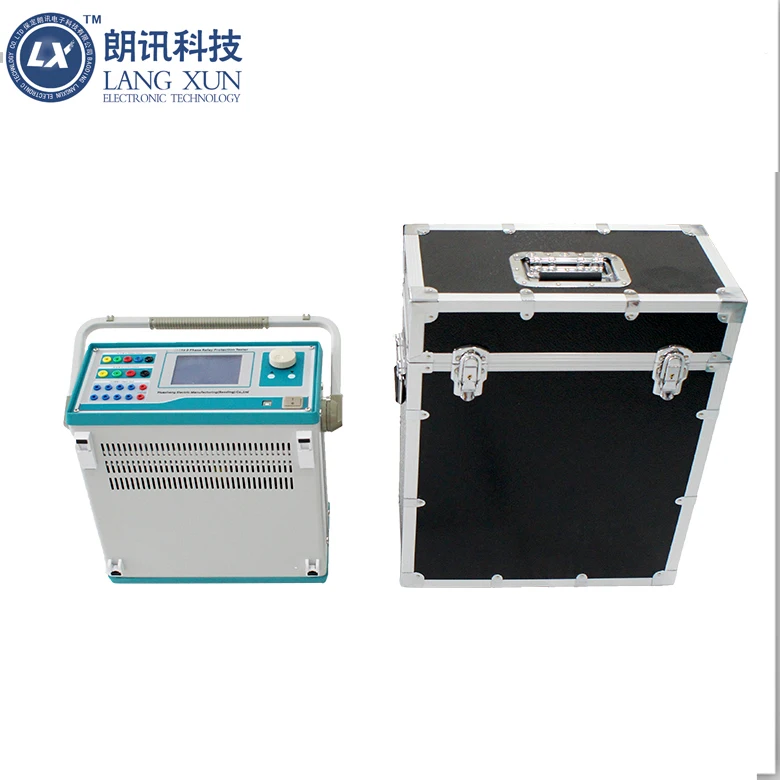

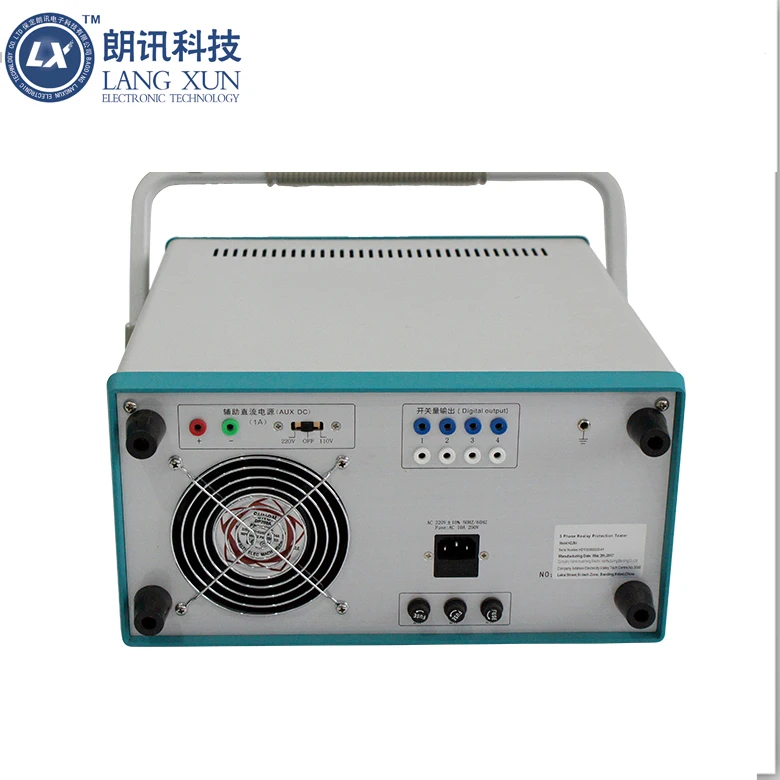

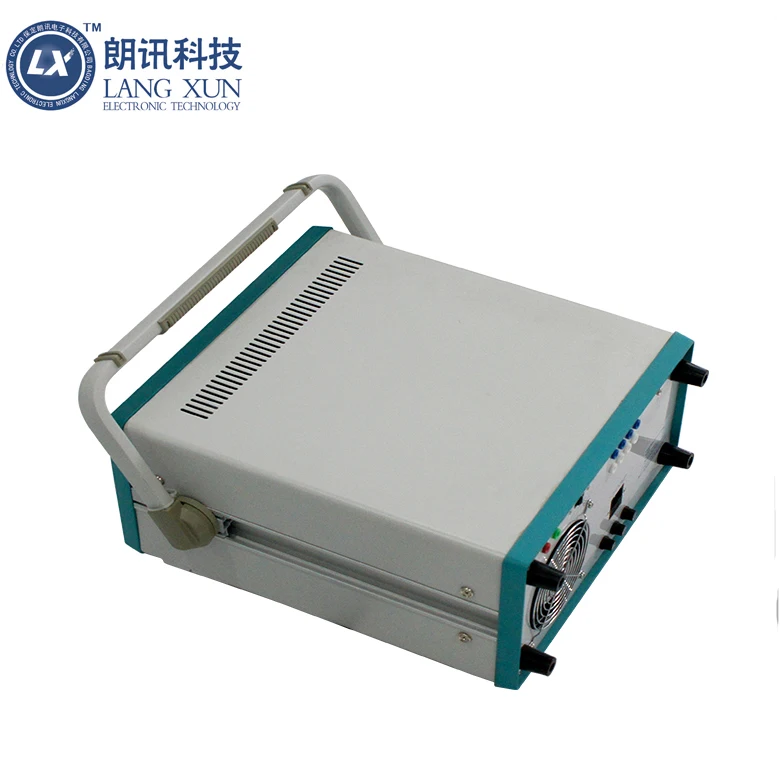

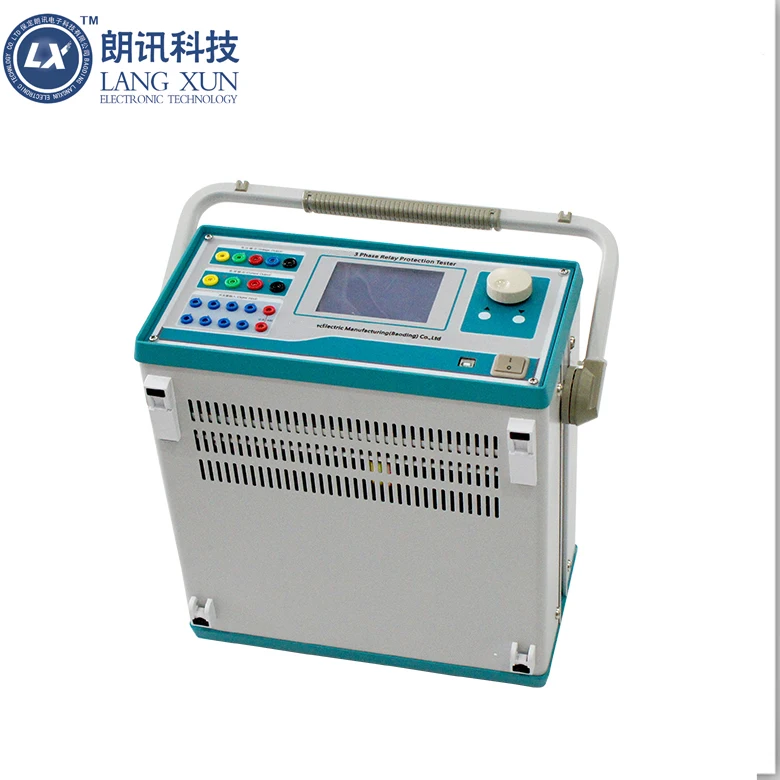

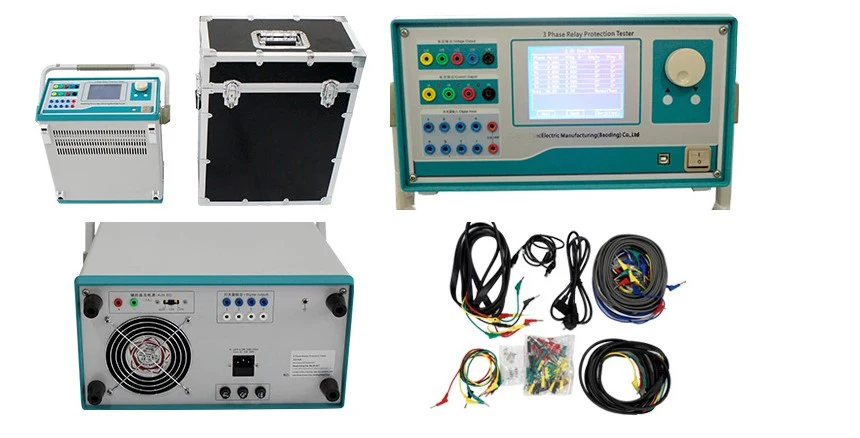

3 Phase Secondary Injection Relay Test Set relay protection tester

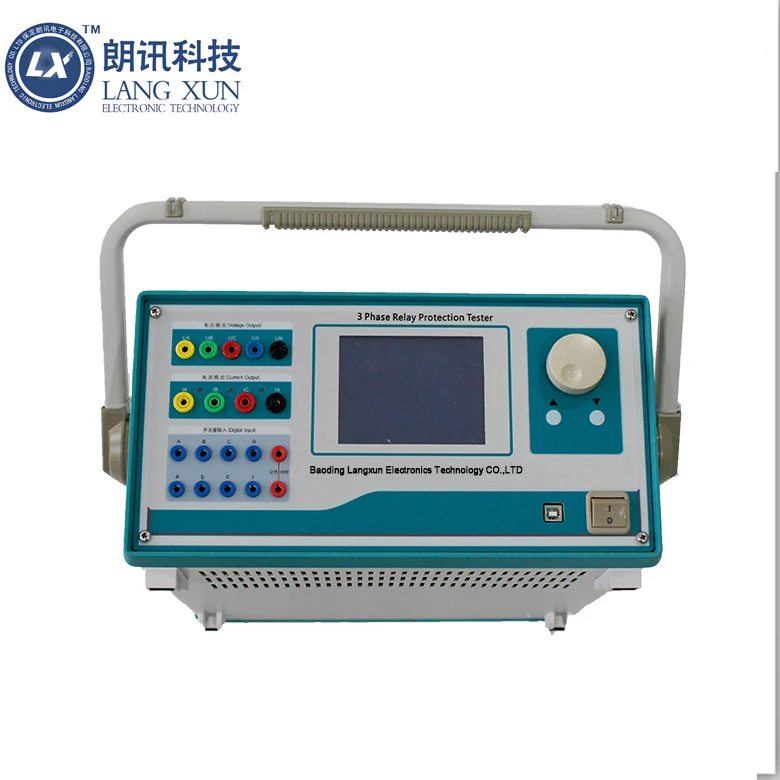

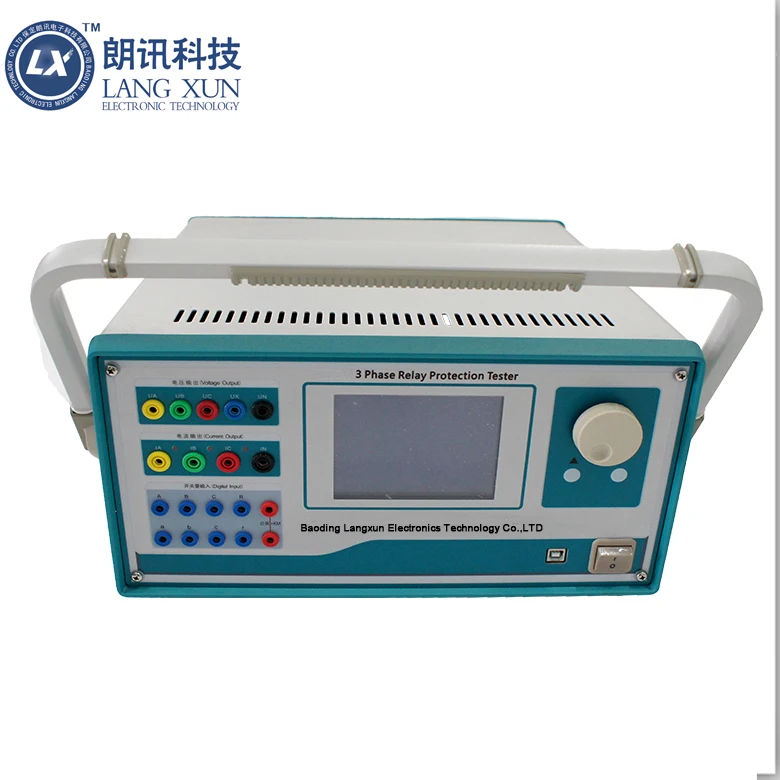

3 Phase Relay Protection Tester

Alternating Current Output:

Output accuracy

0.5 magnitude

Phase current output (effective value)

0~40A

Three parallel phase current output (effective value)

0~120A

Phase current value with long time under permission (effective value)

10A

Phase current maximum power output

420VA

Three parallel phase current maximum power output

900VA

Three parallel phase current maximum work time

10s

Frequency range (base wave)

20~1000Hz

Harmonic frequency number

1~20 time(s)

Direct Current Output:

Output accuracy

0.5 magnitude

Current output

0~±10 A/each phase, 0~±30 A/every three parallel

Maximum output of load voltage

20v

Alternating Voltage Output:

Output accuracy

0.5 magnitude

Phase voltage output (RMS)

0~120v

Line voltage output (RMS)

0~240v

Phase voltage/line voltage power output

80VA/100VA

Frequency range (base wave)

20~1000Hz

Harmonic frequency number

1~20 time(s)

Direct voltage output:

Output accuracy

0.5 magnitude

Phase voltage output amplitude

0 ~ +160v

Line voltage output amplitude

0 ~ +320v

Phase voltage/line voltage power output

70VA/140VA

The Switch Quality and Time Measurement

Switch parameters input - 7 ways

Empty contact: 1~20mA, 24v

Power contact access:“0”: 0~+6V;“1”: +11V~+250V

Switch parameters output - 2 couples

DC: 220V/0.2A;AC: 220V/0.5A

Measuring range

0.1ms ~ 9999s

measuring accuracy

0.1ms

Volume and weight

Appearance and size

400×300×180 (mm)

Weight of a single machine

22kg

Supply power

AC 220V±10%,50/60Hz

Environmental temperature

-10℃~ +50℃
