6) Applying to capacitive load, inductive load and nonlinear mixed load;
7) Communication function: USB interface/SNMP remote control/GSM SMS function;
8) Perfect protection function: input over/low voltage, overload, short circuit, low battery voltage, over temperature etc.
Technical Parameter
Model
8KW
10KW
12KW
15KW
20KW
25KW
30KW
40KW
Instant power
Three times
DC Input
DC voltage
96V/192V/240V
192V/240V
240V/360V
Battery No.
12V battery: 1pcs/2pcs/4pcs/6pcs
Battery type
Maintenance-free lead-acid batteries
AC Input
Phase
Single Phase
Frequency
50Hz ± 10%
AC input
110V(75-140V)/220V(145-275V) (L+N+G)
AC AVR output
110/220VAC (L+N+G)±10%
AC Charger (option)
Floating charge voltage
DC96V:116V/ DC192V:232/ DC240V:290V/ DC360V: 435
Overcharge protect voltage
DC96V:124V/ DC192V:248V/ DC240V:310V /DC360V: 465
Charge current
10-20A
adjustable (Charging current can be customized)
Invert output
Output voltage
110V/220VAC (L+N+G) ±1%
Frequency
50Hz ± 0.1%
THD
≤ 3% (Linear load)
Dynamic response
5% (0%~100% load)
Crest factor
3:1
Invert efficiency
97%
Man-machine interface
LCD display panel
Alarm
Buzzing and LCD screen flicker
Protection function
Ac overvoltage/under voltage, DC overvoltage/under voltage, Overload, Output short circuit, battery overcharge/overdischarge
Overload capacity
120% 30s; 125% 10s; 150% 0s
Communication interface
USB/RS232/SNMP/Wifi(option)
Protection class
IP21
Surge handling capability
10/700US,5KVA;8/20US,20KA
Noise dB
≤45db
Cooling mode
Forced ventilation
Ambient Temperature
Temperature 0-40℃, relative humidity 10%-90%, elevation<1000m

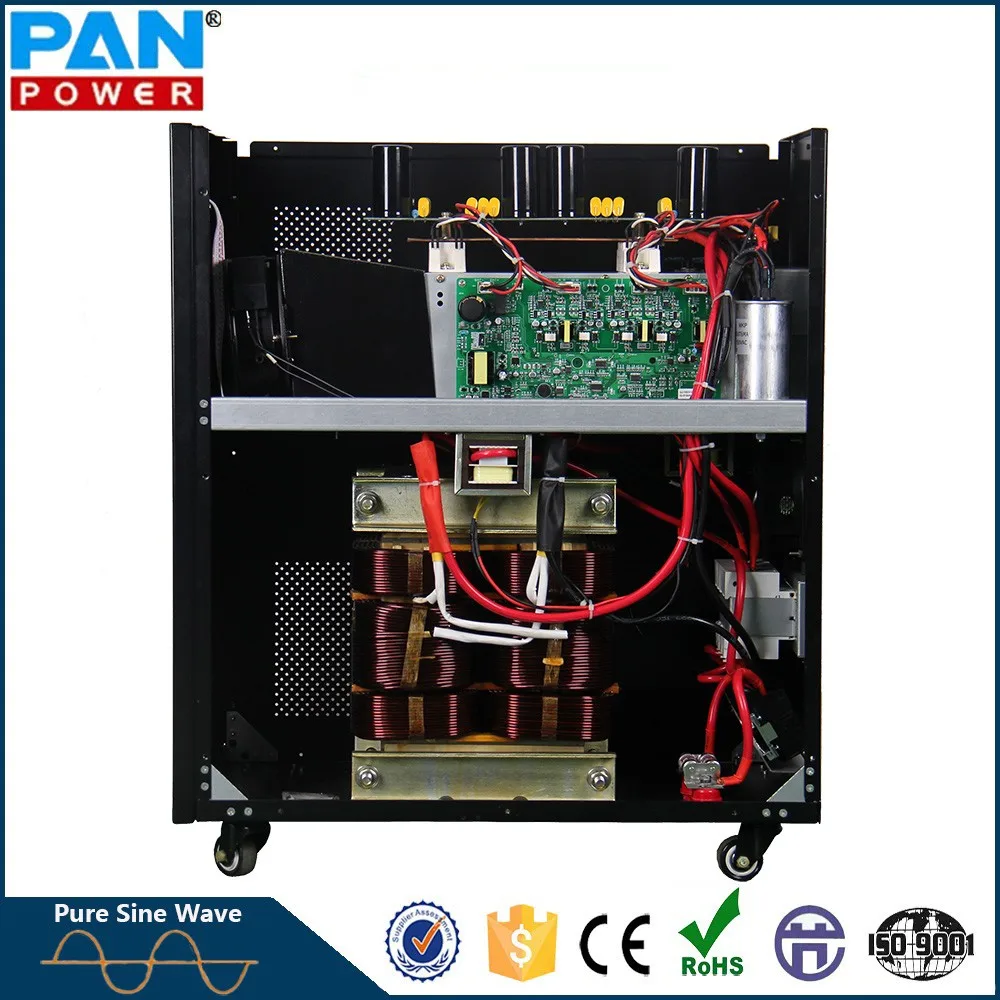

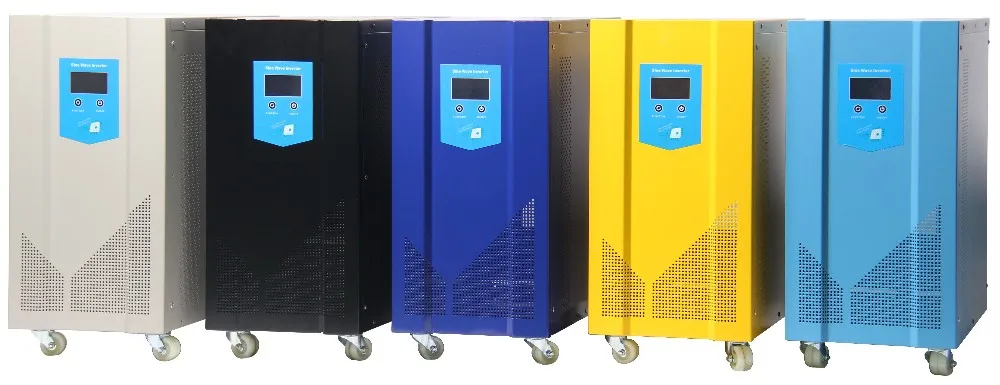

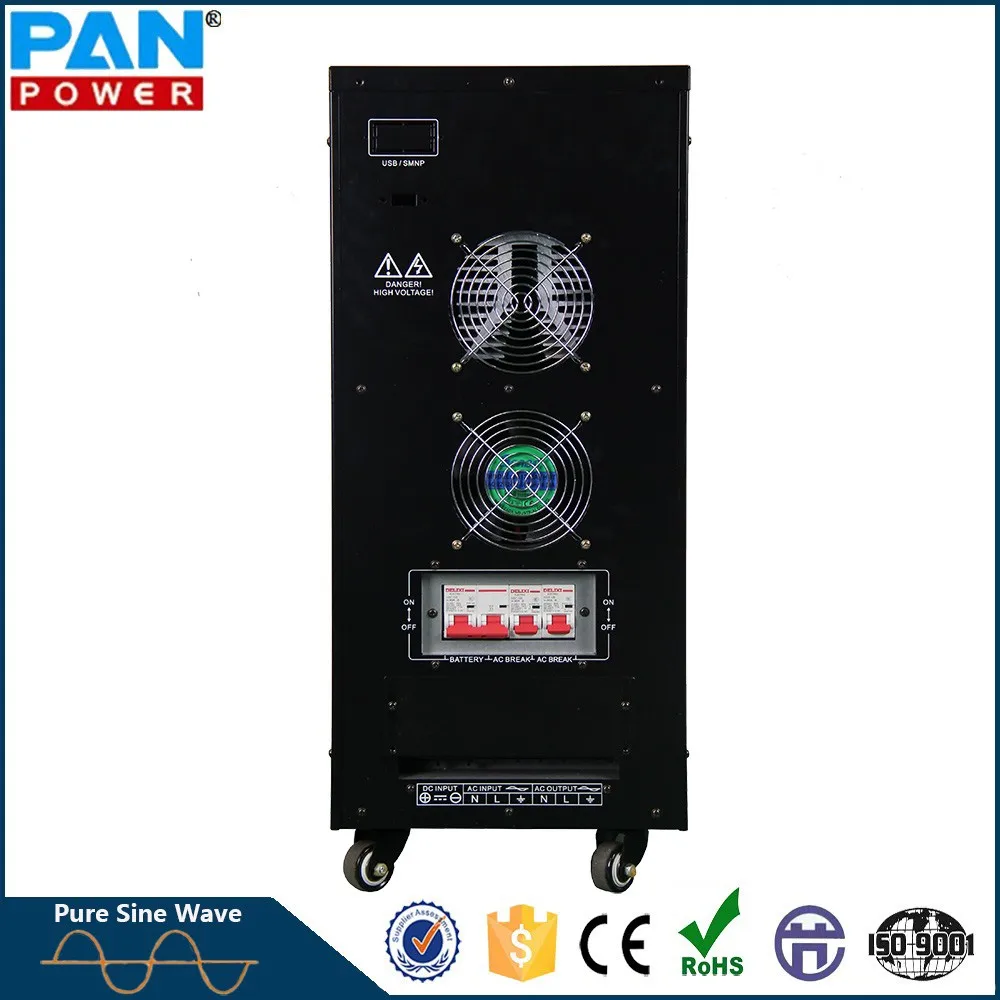

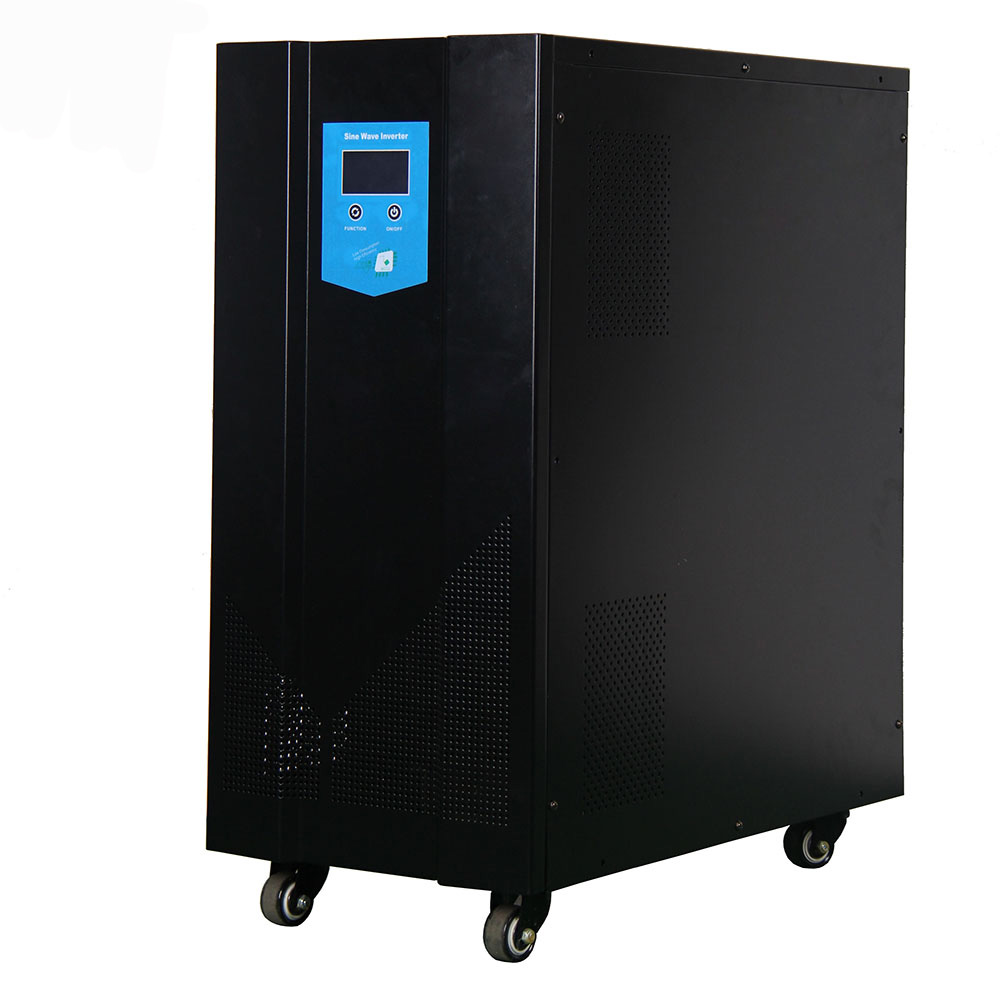

Photos

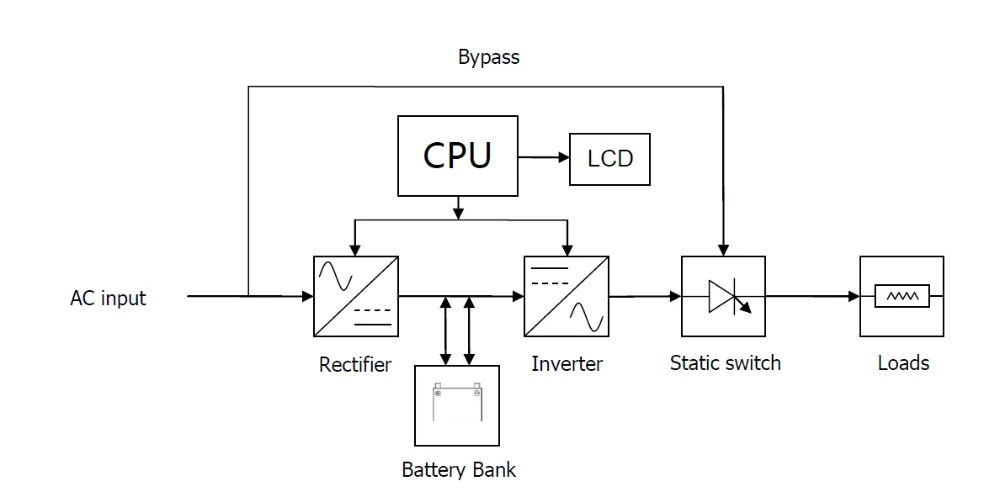

Working principle
Certificate
Trade Information
FAQ
Q: Are you a factory? A: Yes, we are a manufacturer of pure sine wave inverter, solar controller and UPS, AVR. Q: Are you inverter pure sine wave output? A: Yes, All are true pure sine wave. Q: What kind of output you can do? A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz Q: How long is your factory? A: It's over 17 years. Before we focused on domestic market. From 2013, we set up our oversea sales department. Q: What’s the delivery time? A: 3 - 7 days for sample; 10 to 25 days for bulk order. Q: What’s the payment term? A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C, D/P.
