Factory Price Lead Acid Battery Equipment/Production Line

Lead Acid Battery Equipment/Production Line

Competitive superiority

1. Small order acceptable

2. Factory price &  superior quality

3. Short delivery time & perfect service

4. We can supply technical guidance

Main equipment Description

1. Lead powder machine

Technical Specification:

Lead Lump Elevator         Power:18.5KW

High Pressure Blower       Power:0.37KW

Main drum                        Power:75KW

Pulse baghouse               Include scraper discharging unit (Power:1.5KW)

Rotary Feed Valve           Power:0.37KW

Secondary stage bag filter

Neg. Fan                         Power:15KW

Electrical Control Panel

2. Lead plate casting machine

Technical Parameters:

No.	Item	Unit	Spec.	Remarks
1	Product capacity	8H	2800pcs
2	Plate casting speed	min	8-16 mould
3	Plate casting size	mm	400×(100~165)
4	Plate casting thickness	mm	1.0-4.0
5	Adjustable range of cutting die	mm	100-165
6	Lead pot temperature	℃	400-550	Continuously adjustable
7	Lead spoon temperature	℃	400-550	Continuously adjustable
8	Mould temperature	℃	100-200	Continuously adjustable
9	Installed power	KW	56
10	Current source	AC	3F*380V
11	compressed air	Mpa	0.4-0.5
12	External dimensions	mm	3450×900×2450 mm
13	Weight	kg	1500

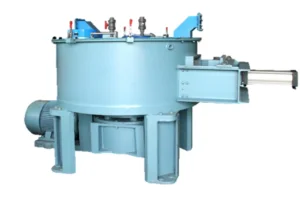

3.  Paste machine



4. Surface drying line

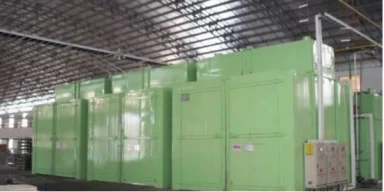

5. Curing drying chamber

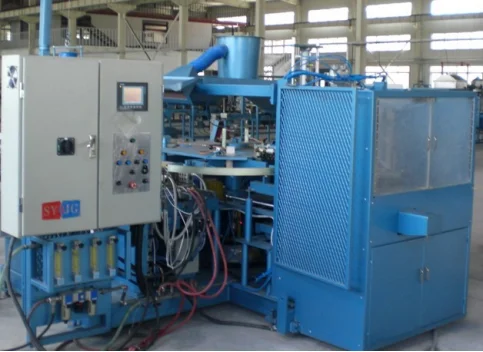

6. Cast-welding machine



7. Full automatic cross wall welding machine



8. Full automatic heat sealing machine

9. Full automatic acid filling machine

10. Formation charger

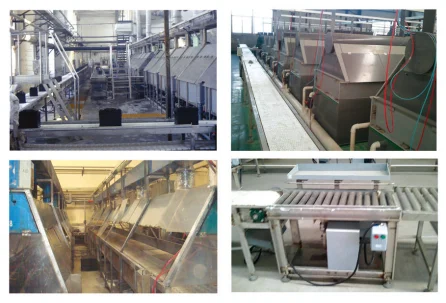

11. Battery Formation tank

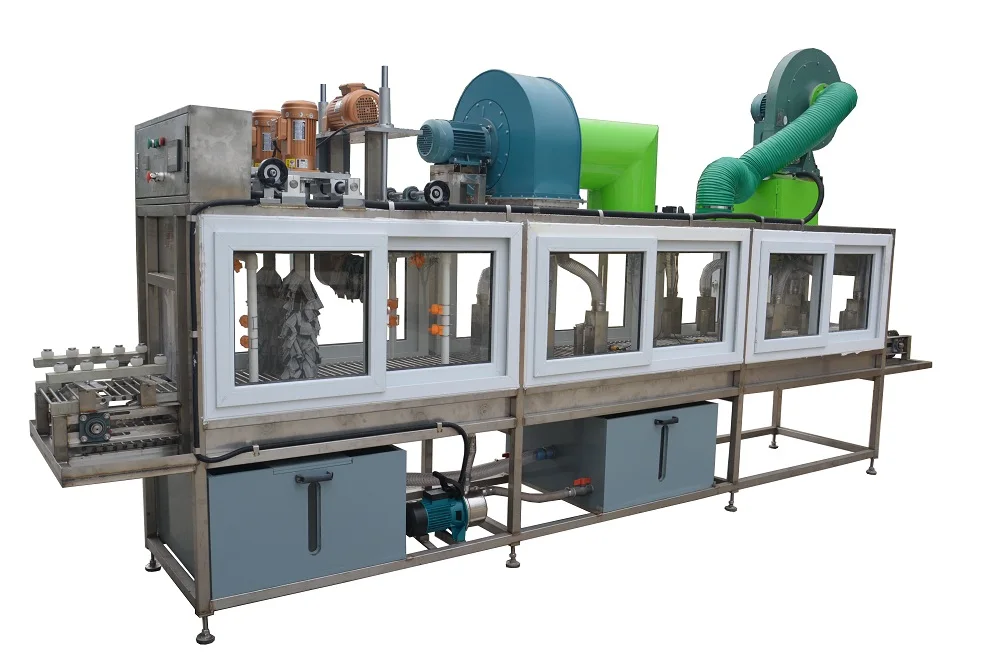

12. Full automatic Washing and drying machine

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

 After-Sales Service

* Training & installation equipment.

* Engineers available to service machinery overseas.
