Dongfeng small 140hp 6CBM 4x2 10 ton truck for transporting sand and gravel price
- Category: >>>
- Supplier: Evangel Industrial (Shanghai) Co. Ltd.
Share on (62327541941):
Product Overview
Description

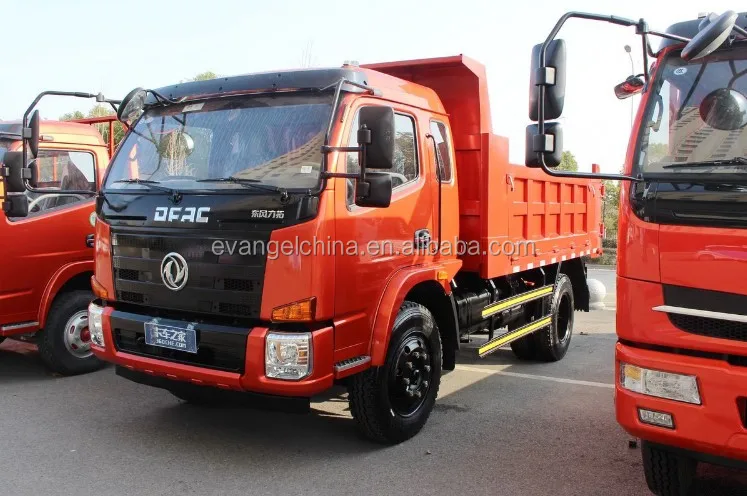

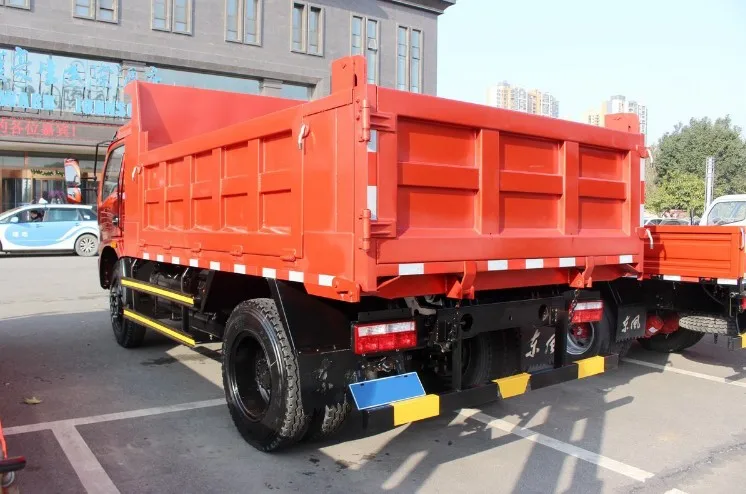

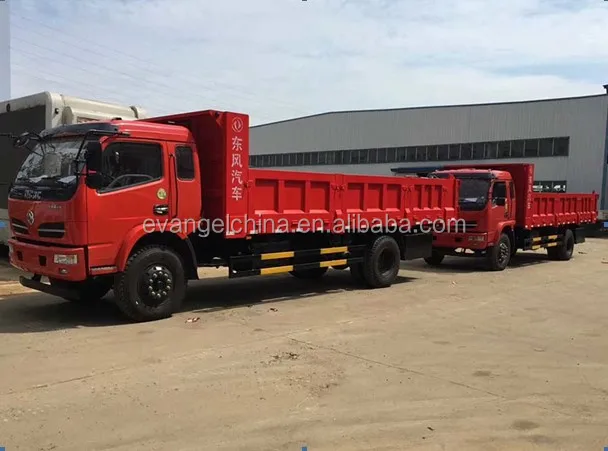

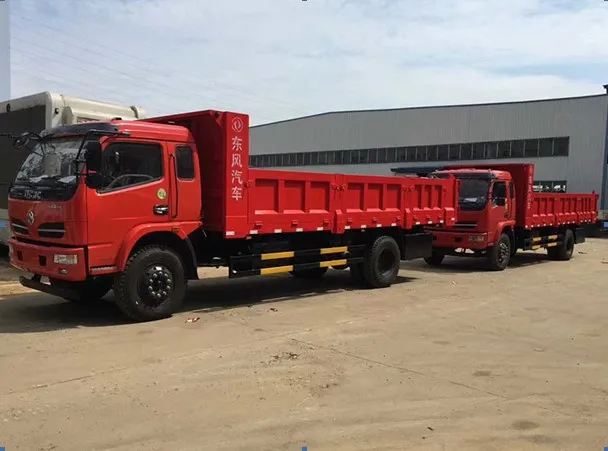

Dongfeng small mini 140hp 6CBM 4x2 10ton dump truck for transporting sand and gravel price
Product Description
Dump truck is a kind of construction vehicle which can unload the goods themselves by hydraulic or mechanical lifting .It's made of truck chassis, hydraulic lifting mechanism, cargo box power takeoff and other parts.
In civil engineering, dump truck usually work with excavators, loaders, belt conveyor and other construction machinery to transport and unloading sandstone, bulk material,etc.
Other chassis optional: DONGFENG/ SINOTRUK HOWO/FAW/ FOTON/ BEIBEN/ JAC/ SHACMAN/ HI NO/ HY-UNDAI
Other drive type optional: 4x2/ 6x4/ 8x4/ 4x4/ 6x6
RHD or LHD is optional.
Product | Dongfeng 140HP 6m3 4x2 dump truck | |
Chassis model | EQ1140 | |
Loading capacity | 10Ton | |
Parameters | Overall dimension L/W/H | 7200×2000×2600mm |
Container dimension L/W/H | 4300×2000×800mm | |
Floor of container | 5mm thickness | |
Side of container | 4mm thickness | |
Lifting system | Middle lift | |
Curb Mass | 6200kg | |
Approach / Departure angle | 20/14(°) | |
Fuel Type | Diesel | |
Max Speed | 90(km/h) | |
Engine | Model | 4DX23-140E5 |
Horsepower | 140HP | |
Displacement | 3857ml | |
Emission standard | Euro 5 | |
Manufacturer | FAW-WUXI DIESEL ENGINE WORKS | |
Gear box | Manual, WLY brand,5 forward gears with a sub-gearbox | |
Chassis | Drive type | 4×2 |
Cab | Single row with one sleeper,power window, Electronic flameout,Air-condition | |
Power steering | Yes | |
Wheelbase(mm) | 4050 | |
Front axle | 2.7Ton | |
Rear axle | 8Ton | |
Spring films(front/rear) | 8/10+7 | |
Tire Type | 8.25R20, 6+1 spare tire | |
ABS | Yes | |
Any interest, please email: teresa(at)evangelchina.com
Whatsapp/Phone: 8617705652725
Wechat: xuanmin36
