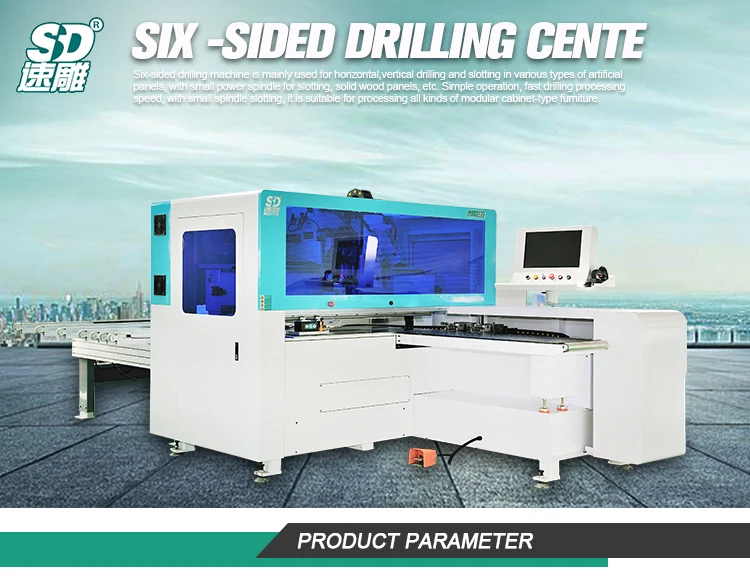

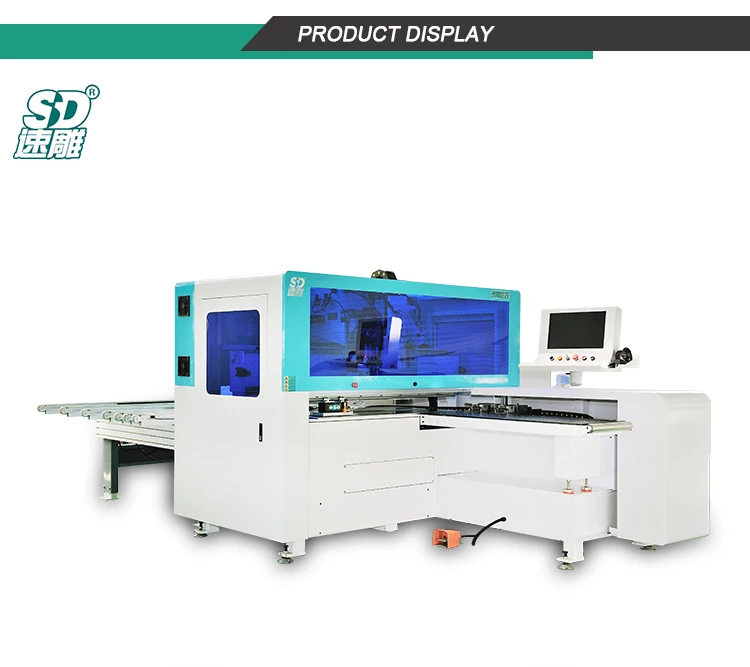

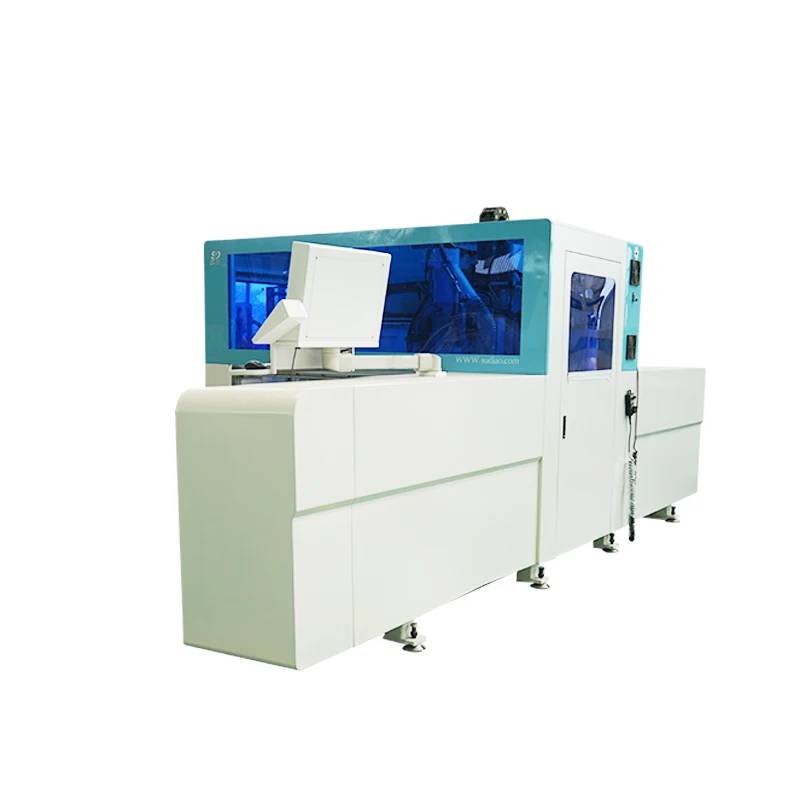

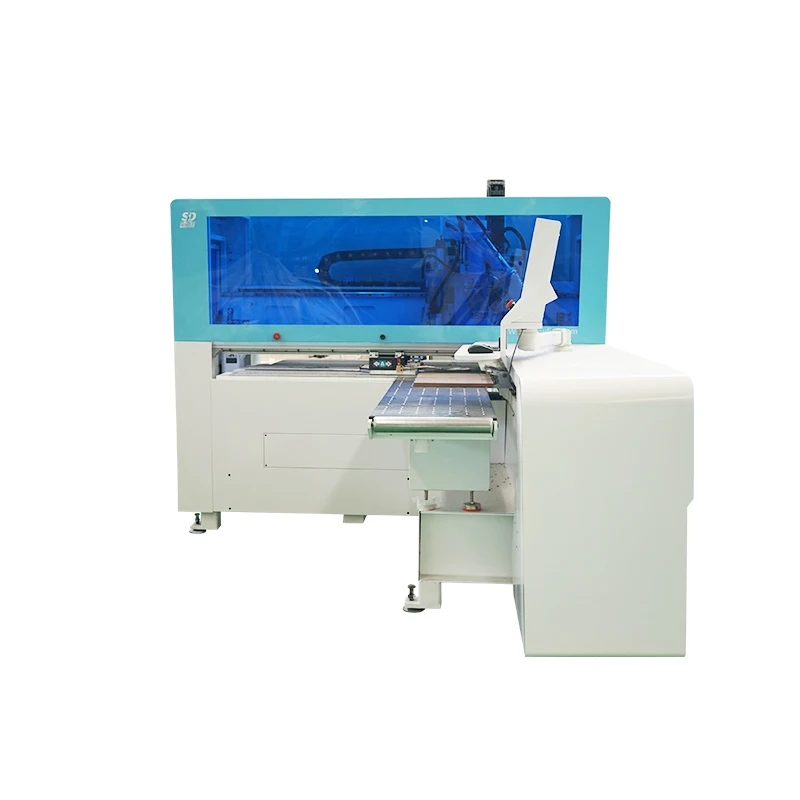

High efficiency six sides drilling machine for woodworking furniture

Product Overview

Description

High efficiency six sides drilling machine for woodworking furniture



Model	SD-VI-12
Max sheet size(Width mm)	1220
Min sheet width(mm)	50
Min sheet length(mm)	200
The fastest processing speed (m/min)	X/U130, YN80,ZNW40
Motion axes quantity	7
Quantity of machining side	6
Control system &CAM	Higerman
Drive system	Yaskawa
Quantity of top vertical drills	12
Quantity of bottom vertical dils	6
Quantity of top spindle	1 (HQD3.5KW)
Quantity of bottom spindle	1 (HQD2.2KW)

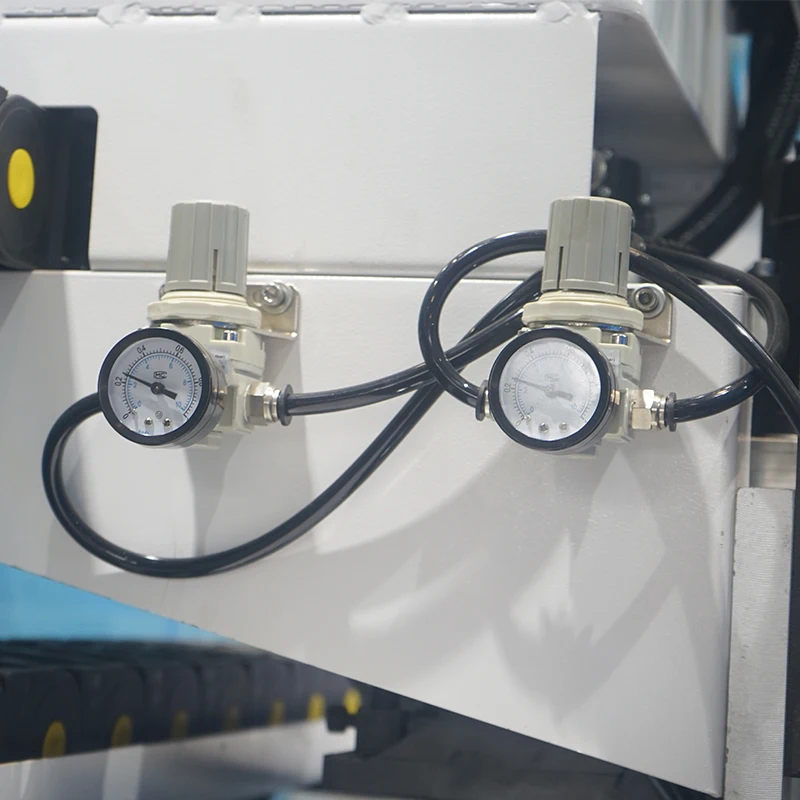

Air Pressure	0.6-0.8Mpa
Total power	15KW
Working Voltage	AC380V/3PH/50Hz
Dia. of suction port	φ 150mm
Machine size(L ength x Widthx Height mm)	5200x 2500 x 2000

Application industries: panel furniture cabinets, wardrobes, custom furniture, office furniture, door panels.

JINAN SUDIAO CNC ROUTER CO., LTD.

12 Years of Experience Professional Trustful CNC Router Manufacturer in China. Over 20,000 Machines Sold Worldwide. 24*7 Service, 12 Months Warranty, Lifetime Support. Contact SUDIAO for High Performance and Reliable CNC Router at Bargain Prices. JINAN SUDIAO CNC Router Company Is Found In 2007 .

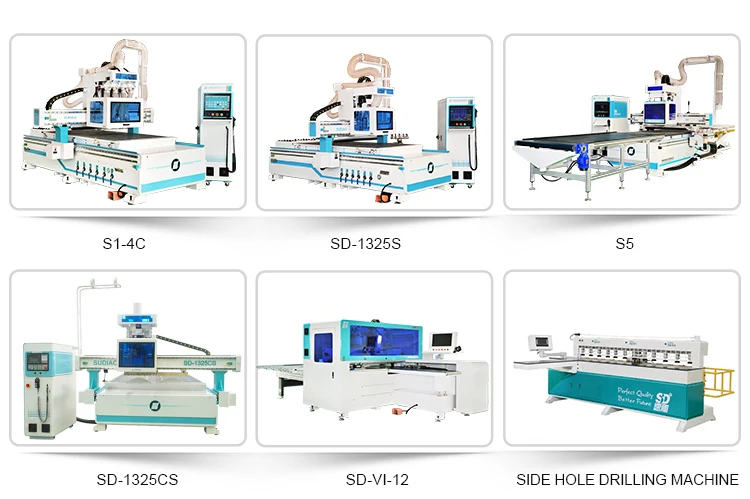

As A Professional CNC Router  Manufacturer SUDIAO Is Constantly Devoted in R&D and Manufacturing of Different Cabinet Kitchen Solutions Such As CNC Panel Production Line S6 , Smart CNC Nesting Machine S2/S3/S5 ,Five-Side Drilling Machine, Laser Model Side Drilling Machine, Assembled Solid Doors Process Center and Wood CNC Process Center . We Now Establish Several Branches and Agencies in 18 Countries Like USA UK France,Germany Canada.,etc



We Has Imported Advanced International Technology and Production Process.  Developing High Performance ,High Quality Machines to Meet the Different Customers Requirement is our Ceaseless Pursuit and Development Direction .



We Are Looking for Long Term Business Cooperation to Work Together.
