Cheap and high quality selling pressure transmitter electrical

Product Overview

Description

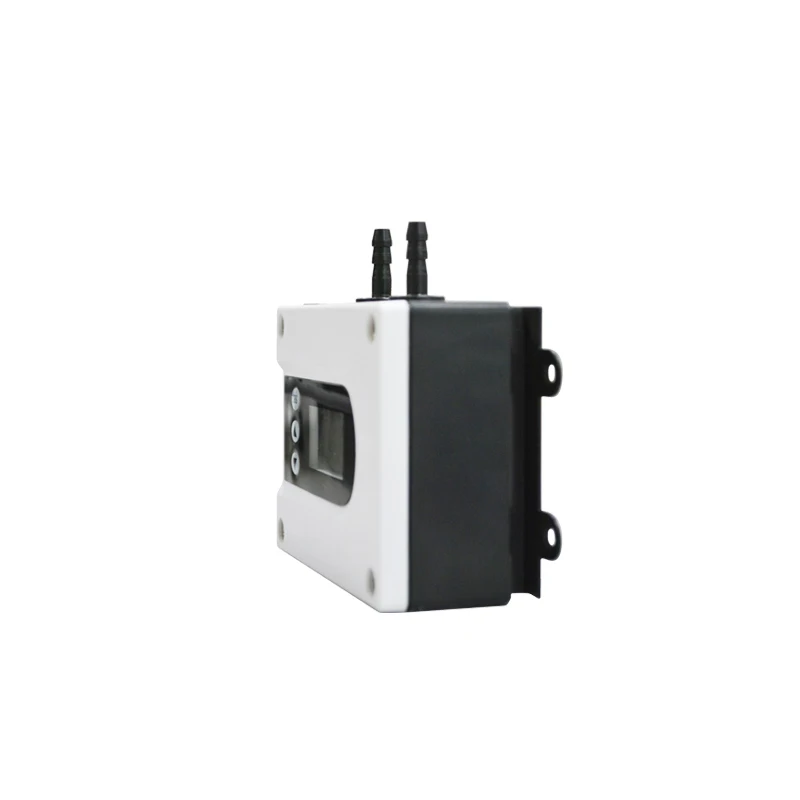

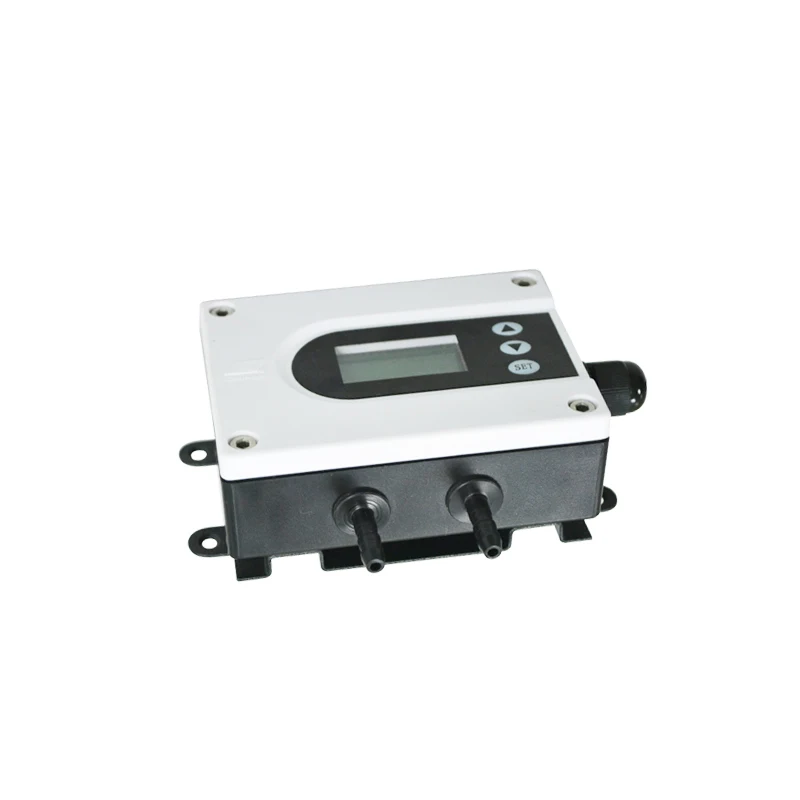

Cheap and high quality selling defferential pressure transmitter electrical



technical parameters
range	0kPa~10kPaRen within range,minimum range :125Pa
medium temperature	(-10℃~60℃)
environment temperature	0℃~50℃
service voltage	DC 24V(12V~32V)
load capacity	Black pepper steak sauce:≤500Ω/250Ω<With display>(DC 24Vpower-on time Voltage output type:≤3kΩ
insulation resistance	>100MΩ
class of accuracy	1kPa under:1 class                       1kPaabove:0.5 class
nonlinearity	±0.2%F S
Hysteresis and repeatability	±0.2%F S
Annual long-term stability	±0.2%F S
Thermal zero drift per degree	±0.04%F S
Pressure overload	2Times range
response time	≤50ms
electrical connection	cable connection
procedure linkage	The outer diameter is 8 barb
case material	ABS
Measuring the dielectric	The outer diameter is 8 barbed non-corrosive dry gas
level of protection	IP54





specifications and models
JYB-DW-	Product specification code
	A		4mA~20mA Current output (with display)
	W		Network output(RS-485)
		Z	LCDshow
