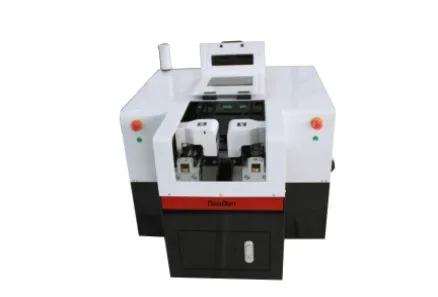

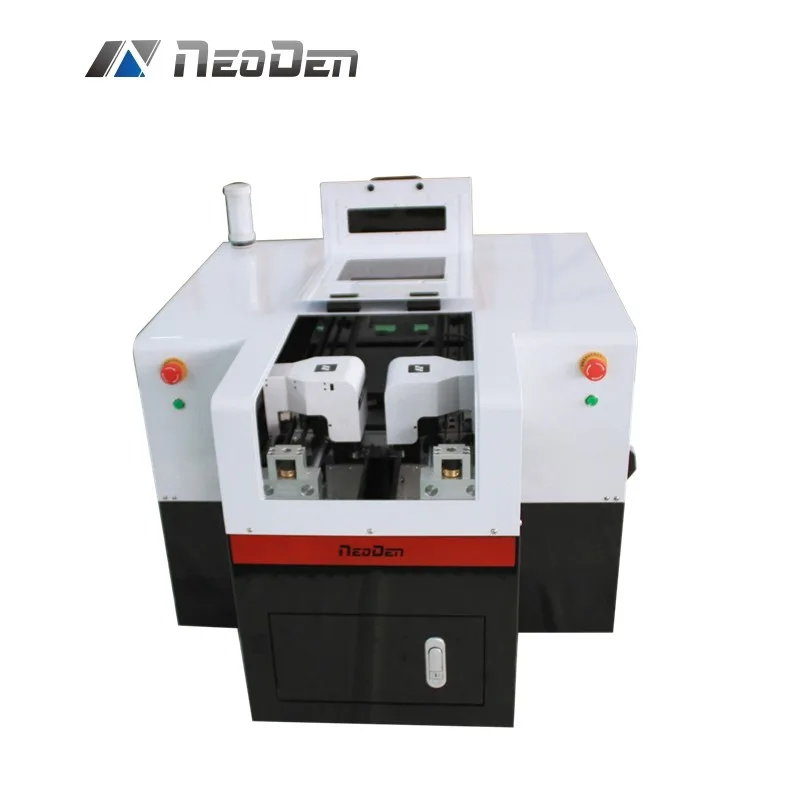

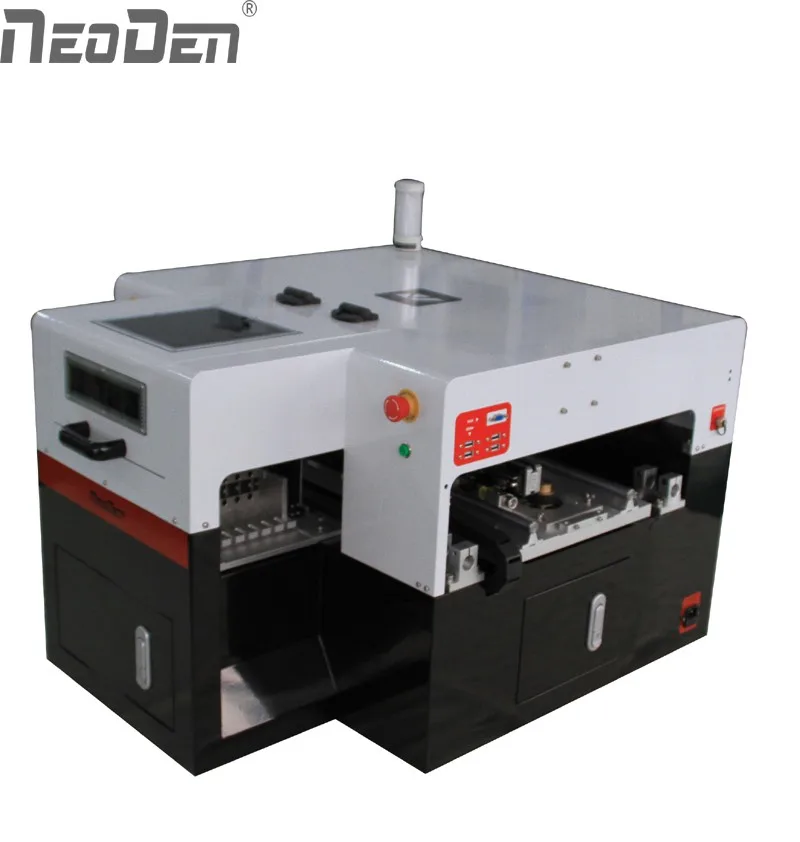

NeoDenL460 Introduction-led pcb assembly machine

The NEW NeoDenL460 is a highly productive pick and place machine with flying vision. As is built for speed, especially designed for LED board production, it features a faster XY motor and tape feeders, as well as the new head that achieves 18,000 chips per hour. The NeoDenL460 supports parts from 0603 to LQFP80 being used in mass production with high accuracy.

Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..


Specification
Item
NeoDenL460
Machine style
Dual gantry with 4 heads
Alignment
Flying Vision
Placement Rate
18,000CPH(Optimum)
Feeder Capacity
12pcs(all 8mm width tape feeder)
Component Range
Smallest Size:0603 Largest Component size:LQFP80
Max Height
5mm
Z Axis Movement Height
10mm
Rotation
±180°
X-Y repeatability
±0.02mm
Placement Accuracy
±0.1mm
Maximum Board Dimension(mm)
380 x 1,200
Main Control
GUI
Electricity Supply
110V/220V
Power
230W
External Dimensions(mm) Machine Size
1,780(L) x 900(W) x 600(H)
Packing Size
1050(L) x 1050(W) x 820(H)
Net Weight
110kgs
Gross Weight
150kgs
Spotlights

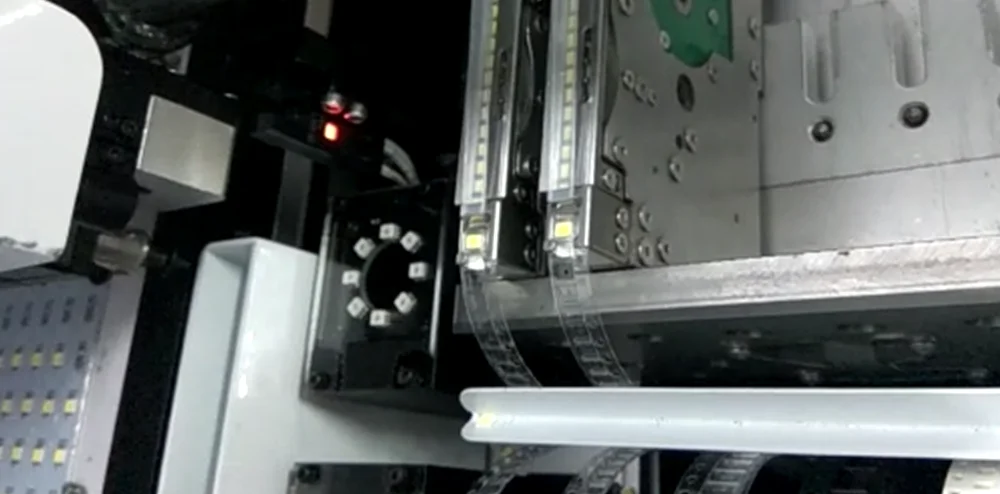

1.Flying Vision


Inspect parts up to LQFP80

Update positon without reducing speed


2. Dual Gantry 4 Head System


Simultaneous pick up to reduce production time

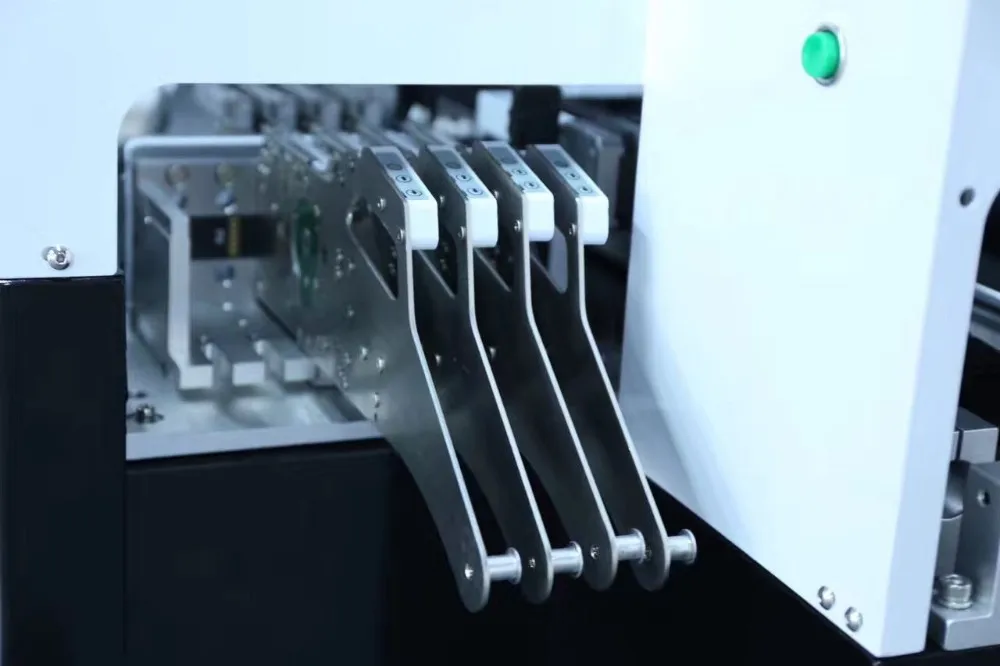

3.Smart Feeder

High-precision design, Ultra-smooth electronic actuation and tape advance greatly reduce the feeding deviation

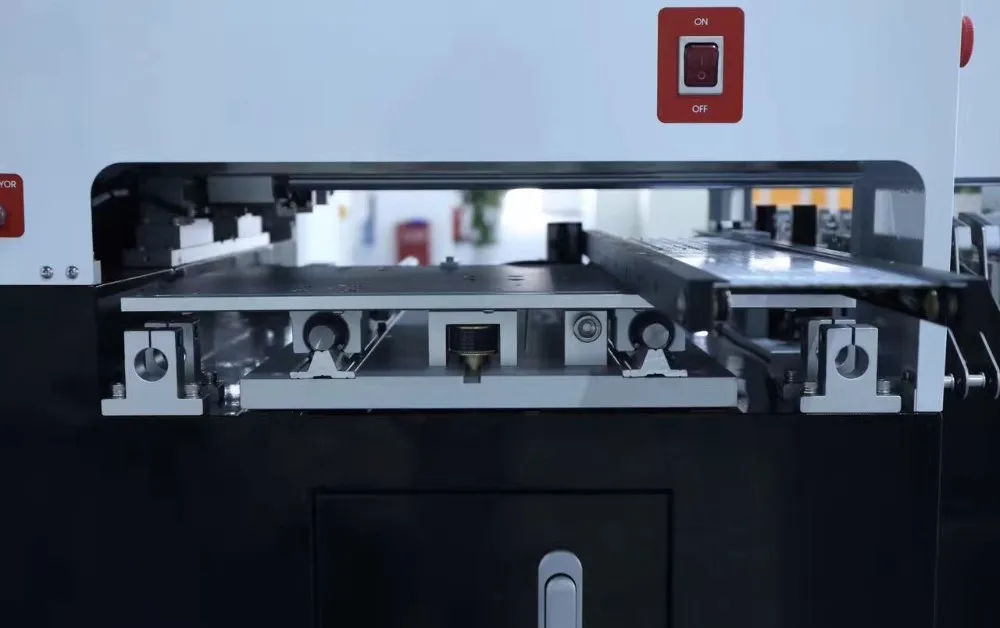

4.Auto Rails Achieve Continuous Placement

1.5m auto rails could be connected with universal conveyors to achieve continuous placement

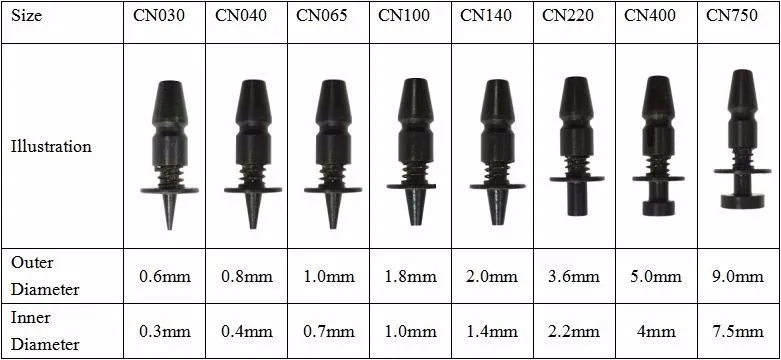

Nozzles information
Placement effect
Product category
Company Profile
Our show
Packaging & Shipping
FAQ
Q1:Do you provide software updates?

Customers who buy our machine,we can offer free upgrades software for you .

Q2:Does our machine need air supply?

We have vacuum pump inside machine , no need air supply .

Q3:This is the first time i use this kind of machine ,is it easy to operate ?

We have English user manual and guide video to teach you how to use the machine . If still have question , pls contact us by email / skype / whatapp / phone / trademanager online service .

Q4:How about the warranty ?

We have 2 years warranty for NeoDen4 , 1 year for all other model , life time after-sales support .

Q5:How can i buy machine from you ?

(1)Consult us on line or by e-mail

(2)Negotiate and confirm the final price , shipping , payment method and other terms

(3)Send you the perfroma invoice and confirm your order

(4)Make the payment according to the method put on proforma nvoice

(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping

(6)Send your order via express or by air or by sea .
