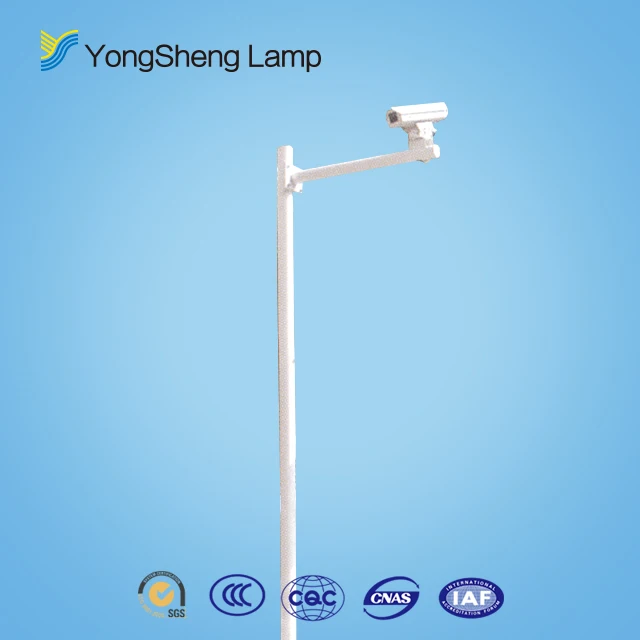

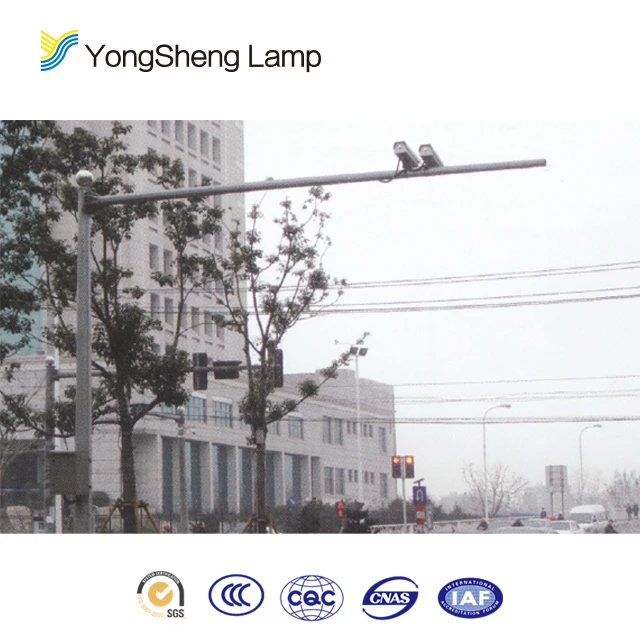

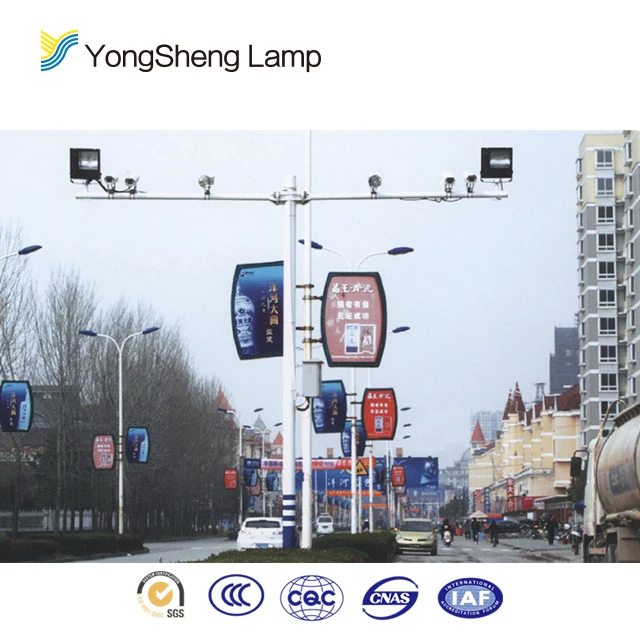

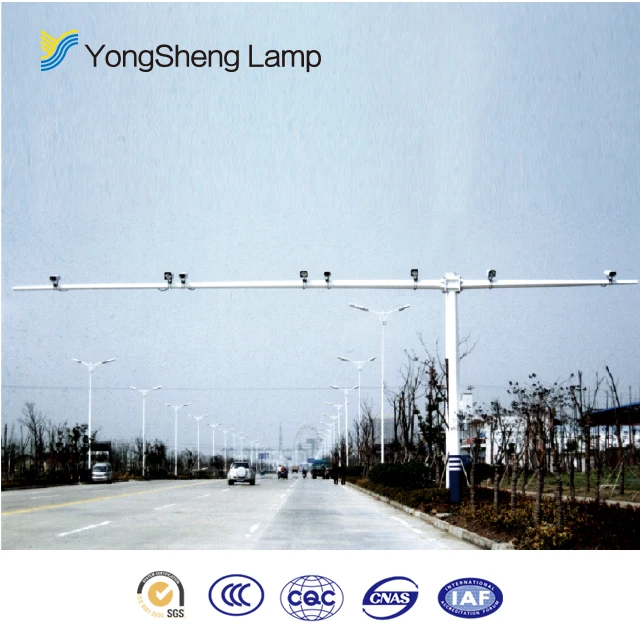

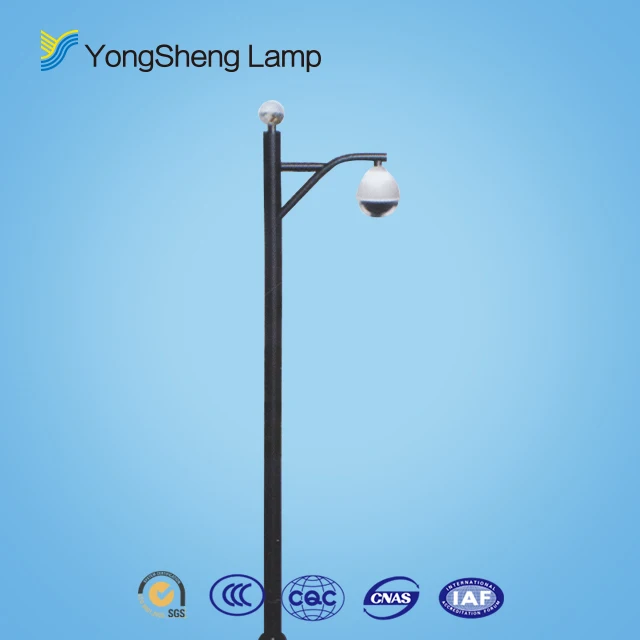

6.5 6meter 8meter Galvanized Traffic and Telescopic cctv Camera Monitor Mast Steel Pole
- Category: >>>
- Supplier: Shijiazhuang Economic And Technological Development Zone Yongsheng Lamp Manufacturing Co. Ltd.
Share on (62330537501):
Product Overview
Description
Q235 Galvanized steel Conical / Round / Polygonal Double Arms Traffic Light Pole For Railway Crossing
Product name | Monitoring pole |
Height | 3-12m |
Surface treatment | Hot dip galvanizing meets Chinese standard GB / T 13912-2002 or American standard ASTM A123 or AS / NZS 4680:2006 can be powder coated or painted according to customer requirements |
Material | Hot rolled steel Q235,Q345,Q420,Q460,ASTM A527 A36,GR50,GR65,ST-37,ST-44,ST-52,S355JR,S355J2G3,SS41,SS50,SS55 etc. |
shape | Polygonal, Round,Equal diameter pipe, reducer pipe, Conical, etc. |
Thickness | 2-12mm |
Welding | Welding conforms to the AWS D1.1 standard. Automatic method of CO2 welding or submerged arc welding No cracks, scars, overlaps, layers or other defects Internal and external welding makes the rod more beautiful If the customer needs any other welding requirements, we can also adjust according to your requirements. |
baseplate | Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement. |
Connection method | Combined with insert mode, flange mode.,Face-to-face joint mode connecting rod. |
Color | Surface spray, color optional |
Lifespan | More than 25 years, it is according to installing environment |
Applications | Traffic road, crossroad, school, government, communitie, border defense, airport, highway, etc. |
Product name | 19YS-JKG-8L-H6-L3-1-01 | |||||
Pole | height | type | Upper /Lower Caliber(mm) | Thickness(mm) | Pole flange(mm) | Pole weight(kg) |
6 | octagonal | 180/240 | 3.75 | φ450*16 | 141 | |
Cross arm | length | type | Upper /Lower Caliber(mm) | Thickness(mm) | Cross arm flange(mm) | Cross arm weight(kg) |
3 | octagonal | 90/140 | 3 | 300*300*11.75 | 47 | |
Material | Height Opening(mm) | Auxiliary accessories | Foundation size(mm) | Embedded parts | ||
Q235 | 500 | Access door, fixing bolt,Lightning pole | 700*700*1000 | National standard screw M20*1000*6 Base boardφ450*4.75mm | ||
Application | ||||||
Traffic road, crossroad, school, government, communitie, border defense, airport, highway, etc. | ||||||
Above is our standard parameter. We can also customize it according to your requirements. | ||||||
For 30 years, we have always focus on outdoor illuminating——Welcome to Shijiazhuang Yongsheng Lamps Manufacturing Co., Ltd.
Yongsheng Lamps manufacture Co., Ltd was established in 1985 and extended in 2000,11.7 million registered capital.

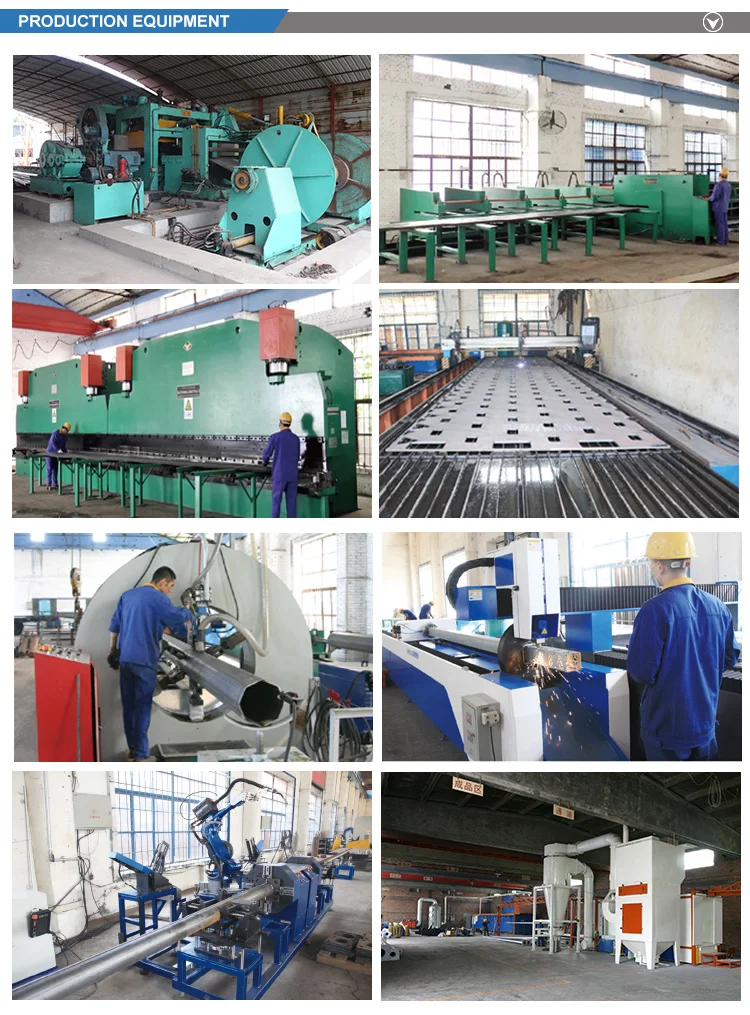

Becuase of the rapid development of the company, our company expanded footprint to more than 130 acres. We have complete design team and a professional CNC intelligent production line. Over the years, we have focused on the production of outdoor lighting and the provision of integrated solutions.
Our company has made outstanding contributions to major projects among great cities in China. It has achieved high praises of the main leaders of provinces, cities and districts from all walks of life and has been given excellent evaluation and support.
