1,Dual analog channels width range 1mV/div~20V/div; 2,7 inches widescreen LCD displays; 3,Special Print Scree Feature; 4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device; 5,USB drive system software upgrade; 6,Storage of waveforms setups and interfaces waveforms and setups reproduction; 7,Automatic measurement of 28 waveform parameters; 8,Unique waveform recording and replay function; 9,Multilingual menu displays.
Product parameters
Specification

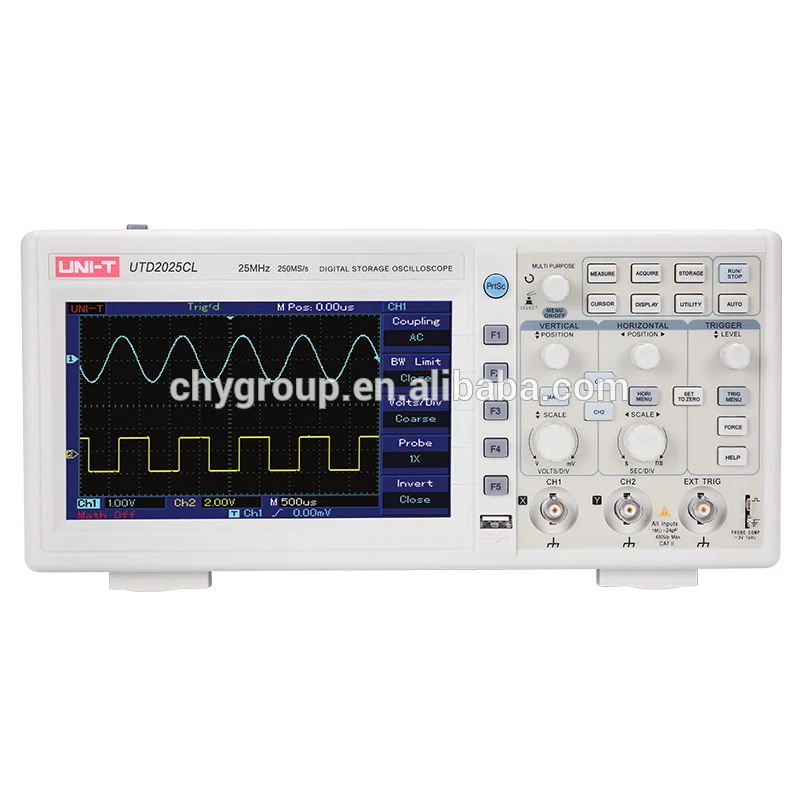

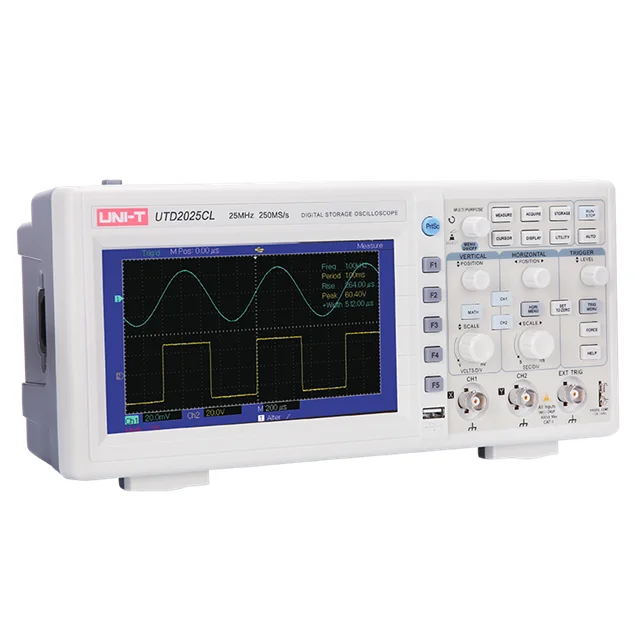

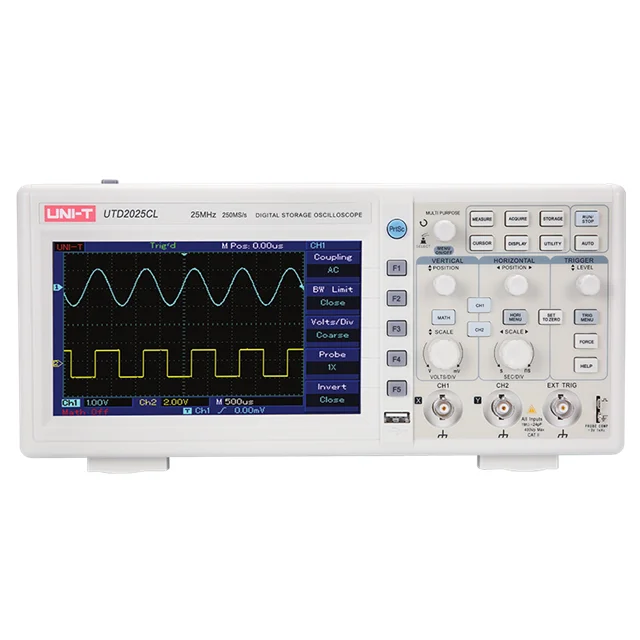

UTD2025CL
Channels
2
Bandwidth
25MHz
Sample Rate
250Ms/s
Rise Time
≤14ns
Memory Depth
25kpts
Waveform Acquisition Rate
≥2000wfms/s
Vertical Sensitivity
1mV/div~20V/div
Timebase Range
10ns/div~50s/div
Storage
Setup,Wave,Bitmap
Trigger Modes
Edge, Pluse, Video, Alternate
Interface
USB OTG,Pass/Fail
General Characteristic
Power
100-240VAC, 40-440Hz
Display
7 Inches 64K Color TFT LCD, 400×240
Product Color
White and Gray
Product Net Weight
2.2 Kg
Product Size (W×H×D)
306mm ×147mm × 122mm
Standard Accessories
Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement (L×W×H)
450mm × 420mm × 280mm
Standard Carton Cross Weight
8.5 Kg
